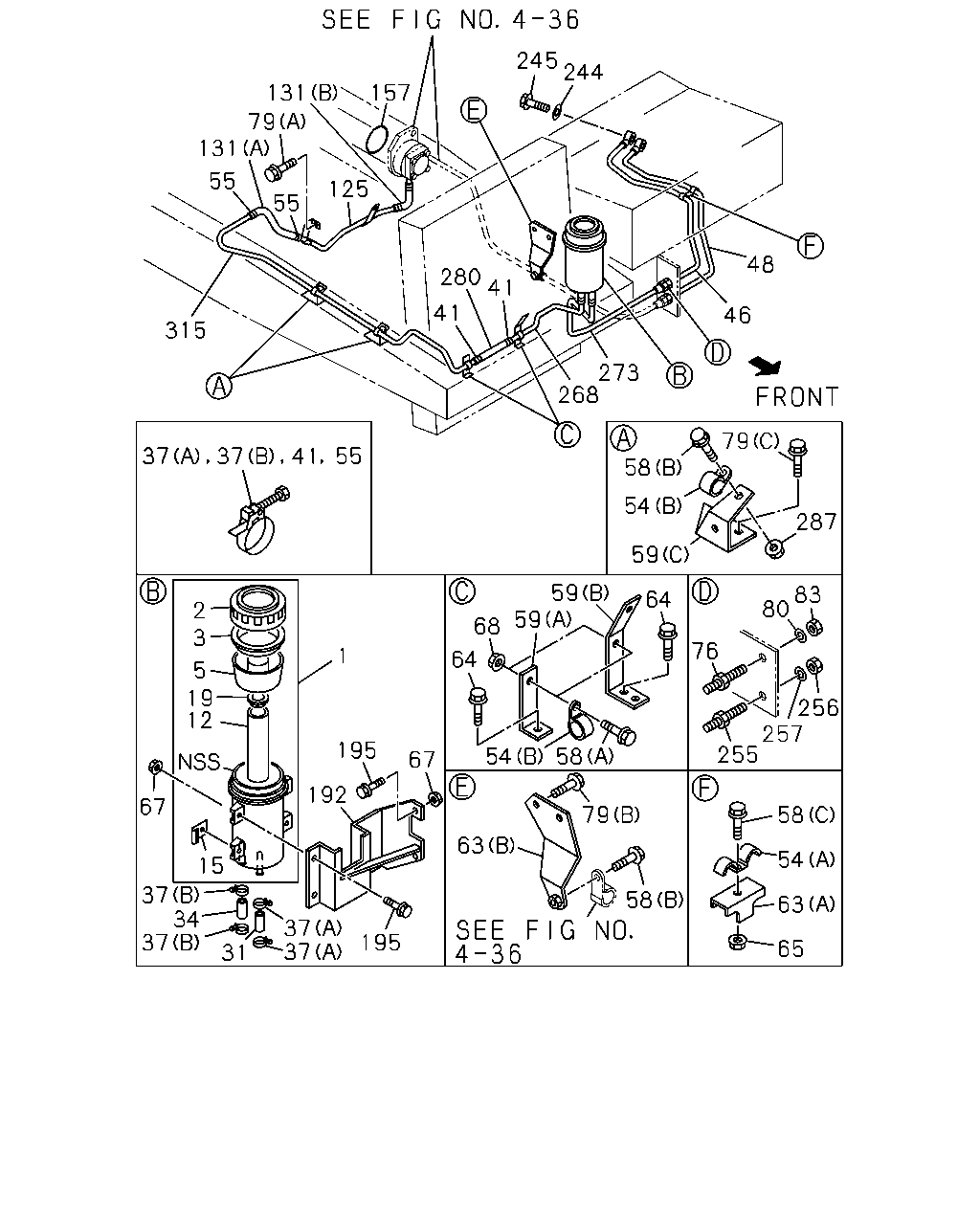

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#8482) — 73 parça

245 244 131 157 79 131 125 55 55 48 280 41 41 46 315 273 268 79 37 37 55 41 58 54 287 59 59 59 83 80 64 2 3 68 76 1 64 5 19 12 256 257 255 195 54 58 67 192 67 79 58 63 54 15 37 34 37 58 63 37 37 195 65 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9912-0508
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0509-1006
1	TANK ASM; OIL,P/S	8-98166-927-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9912-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9912-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9912-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9912-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9912-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21249-004-0	02	1	9912-
31	HOSE; P/S OIL TANK,INL L=150 SERVICED BY L=3000	0-19814-300-0	01	1	9912-
34	HOSE; P/S OIL TANK,OUTLET	0-09818-150-0	01	1	9912-
37	CLIP; HOSE,P/S (A) ID=26	1-09707-108-0	02	1	9912-
37	CLIP; HOSE,P/S (B) ID=32	9-09915-692-1	02	1	9912-
41	CLIP; HOSE,P/S ID=32	9-09915-692-1	02	1	9912-
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-541-0	01	1	9912-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-540-0	01	1	9912-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9912-
54	CLIP; OIL PIPE (B) ID=19 L=28	9-09525-855-0	04	1	9912-0606
54	CLIP; OIL PIPE (B) ID=19 L=28	0-95235-855-0	04	1	0607-
55	CLIP; P/S RUBBER HOSE ID=32	9-09915-692-1	02	1	9912-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9912-0512
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28080-820-0	03	1	9912-0512
58	BOLT; CLIP (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-
58	BOLT; CLIP (C) M8X35 FLANGE	0-28080-835-0	01	1	9912-0512
58	BOLT; CLIP (C) M8X35 FLANGE	0-28050-835-0	01	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-34656-009-0	01	1	9912-
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-681-1	01	1	9912-
59	BRACKET; CLIP,OIL PIPE (C)	1-47478-682-0	02	1	9912-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	01	1	9912-
63	BRACKET; CLIP,P/S (B)	1-47478-683-0	01	1	9912-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	03	1	9912-0512
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28050-820-0	03	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9912-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	9912-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9912-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
76	UNION; OIL PIPE M22	9-09233-315-1	01	1	9912-0607
76	UNION; OIL PIPE M22	0-92123-315-0	01	1	0608-
79	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9912-0512
79	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
79	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	02	1	9912-0512
79	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-
79	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	04	1	9912-0512
79	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	0601-
80	WASHER; LK,UNION,OIL PIPE ID=22.5	9-09150-522-0	01	1	9912-0603
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-522-0	01	1	0604-
83	NUT; UNION,OIL PIPE M22	9-09111-422-0	01	1	9912-0512
83	NUT; UNION,OIL PIPE M22	0-91111-522-0	01	1	0601-
125	CONNECTOR; P/S PUMP	8-97600-804-1	01	1	9912-
131	HOSE; RUBBER,P/S (A)	1-21116-547-0	01	1	9912-
131	HOSE; RUBBER,P/S (B)	8-94396-331-1	01	1	9912-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9912-
192	BRACKET; P/S OIL TANK	1-47478-684-0	01	1	9912-
195	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	06	1	9912-0512
195	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	06	1	0601-
244	GASKET; OIL PIPE,P/S ID=18.2 OD=26.0	9-09571-418-0	04	1	9912-
245	BOLT; EYE,OIL PIPE M18X36	1-09675-205-0	02	1	9912-
255	UNION; FLEX HOSE	1-09650-045-1	01	1	9912-
256	NUT; UNION M20	9-99111-420-0	01	1	9912-0512
256	NUT; UNION M20	0-91111-520-0	01	1	0601-
257	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9912-0603
257	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0604-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21116-543-0	01	1	9912-
273	PIPE; OIL,P/S,UNION TO OIL TANK	1-21116-542-0	01	1	9912-
280	HOSE; P/S OIL PUMP,INL	0-09818-150-0	01	1	9912-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9912-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
315	SILENCER; POWER STRG PIPE	1-21116-544-0	01	1	9912-
