Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

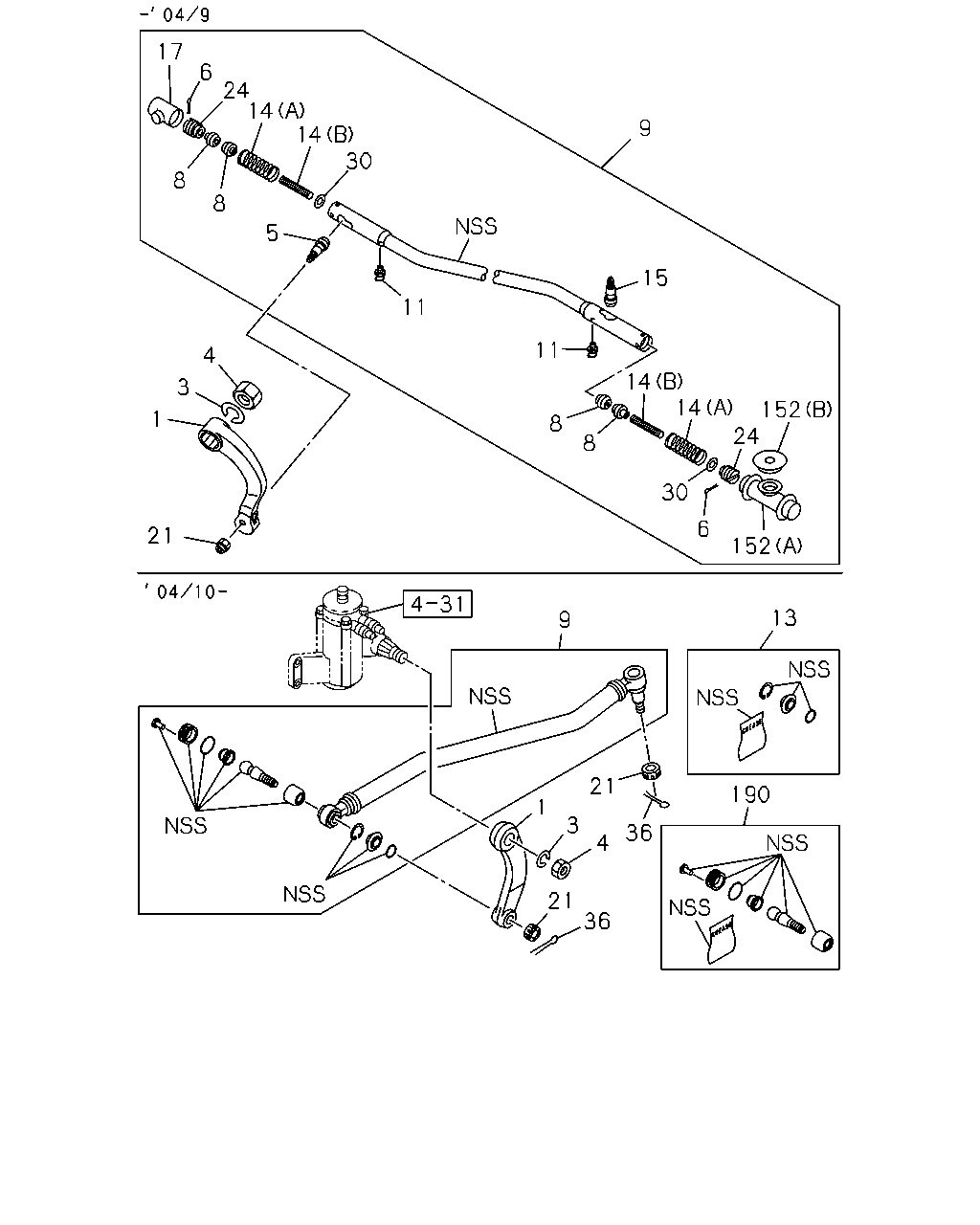

4-33 — STEERING LINKAGE
(#8481) — 30 parça
17
6
24
14
14
30
9
8
8
5
15
11
11
4
14
14
3
152
24
1
8
8
30
6
21
152
13
9
21
190
1
3
36
4
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-213-0
01
1
9912-0409
1
ARM; PITMAN,STRG
1-44341-488-0
01
1
0410-0706
1
ARM; PITMAN,STRG
8-98073-833-0
01
1
0707-
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-026-0
01
1
9912-0805
3
WASHER; LK,PITMAN ARM
ID=30.5
1-09500-055-0
01
1
0806-
4
NUT; PITMAN ARM
M30
1-09400-050-0
01
1
9912-0805
4
NUT; PITMAN ARM
M30
1-09400-166-0
01
1
0806-
5
BALL; JOINT,DRAG LINK
1-44361-107-0
01
1
9912-0409
6
PIN; SPLIT,ADJ SCREW
9-08114-055-0
02
1
9912-0409
8
SEAT; SPR,ROD END
OD=28
1-44371-002-1
04
1
9912-0409
9
LINK; DRAG
1-44350-947-0
01
1
9912-0409
9
LINK; DRAG
1-44380-286-0
01
1
0410-0910
9
LINK; DRAG
8-98151-738-0
01
1
0911-
11
NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
02
1
9912-0409
13
BOOT; DRAG LINK
1-85574-046-0
02
1
0410-0910
13
BOOT; DRAG LINK
1-85574-063-0
02
1
0911-
14
SPRING; COIL,DRAG LINK
(A)
1-09580-409-0
02
1
9912-0409
14
SPRING; COIL,DRAG LINK
(B)
1-09580-410-0
02
1
9912-0409
15
JOINT; BALL,KNUCKLE SIDE
1-44361-048-4
01
1
9912-0409
17
GUARD; MUD,DRAG LINK
9-44365-054-1
01
1
9912-0409
21
NUT; LK,JOINT BALL
M16
1-09449-014-0
02
1
9912-0409
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-021-1
02
1
0410-0805
21
NUT; LK,JOINT BALL
M16 SLOTTED
1-09442-031-0
02
1
0806-
24
PLUG; ADJ,DRAG LINK
1-44375-021-1
02
1
9912-0409
30
SPACER; DRAG LINK
1-44379-008-0
02
1
9912-0409
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
9-08114-025-0
02
1
0410-0606
36
PIN; SPLIT,DRAG LINK
OD=3.7 L=25
0-81124-025-0
02
1
0607-
152
RING; HOLD,DRAG LINK
(A)
1-44365-010-1
01
1
9912-0409
152
RING; HOLD,DRAG LINK
(B)
1-44365-011-1
01
1
9912-0409
190
REPAIR KIT; DRAG LINK
1-85574-062-0
02
1
0911-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
