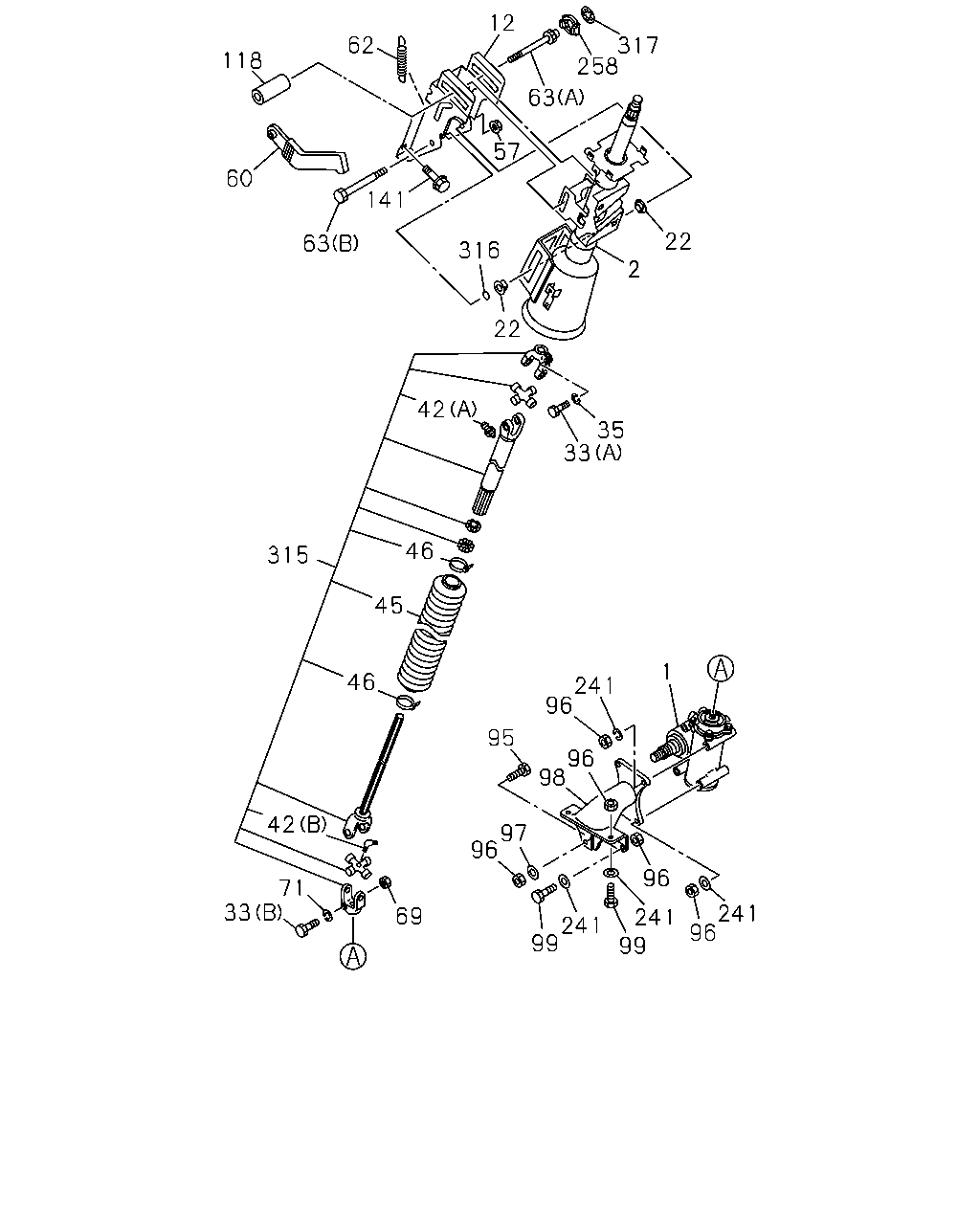

4-31 — STEERING COLUMN AND SHAFT
(#8480) — 43 parça
12
62
317
258
118
63
57
60
141
22
63
316
2
22
42
35
33
46
315
45
1
46
241
96
95
96
98
42
97
96
96
71
33
241
96
69
241
99
241
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-719-7
01
1
9912-
2
SHAFT ASM; STRG
1-44130-689-1
01
1
9912-
12
BRACKET; LWR,STRG COLUMN
1-44227-143-0
01
1
9912-0811
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
0812-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
9912-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-489-0
01
1
9912-0709
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
0710-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
9912-
35
WASHER; LK,STRG SHAFT
1-44139-154-0
01
1
9912-
42
NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT
1-44135-375-0
01
1
9912-
42
NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW
1-44135-376-0
01
1
9912-
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
9912-
46
CLIP; BOOT
1-44139-156-0
02
1
9912-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
9912-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
9912-
62
SPRING; LK,LEVER
1-44227-153-0
02
1
9912-0111
62
SPRING; LK,LEVER
1-44227-153-0
01
1
0112-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
9912-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
9912-
69
NUT; TILT CENTER
M10 FLANGE
0-91150-210-0
01
1
9912-0602
69
NUT; TILT CENTER
M10 FLANGE
0-91180-210-0
01
1
0603-1006
69
NUT; TILT CENTER
M10
0-91110-510-0
01
1
1007-
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
9-09150-810-0
01
1
9912-0603
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
0604-
95
BOLT; STRG UNIT
M14X165
1-09000-115-2
02
1
9912-
95
BOLT; STRG UNIT
M14X150
1-09000-251-2
02
1
9912-
96
NUT; STRG UNIT
M14
9-99110-514-0
07
1
9912-0512
96
NUT; STRG UNIT
M14
0-91110-514-0
07
1
0601-
97
WASHER; PL,STRG UNIT
ID=15
9-09651-069-0
06
1
9912-1201
97
WASHER; PL,STRG UNIT
ID=15
8-98010-627-1
06
1
1202-
98
BRACKET; STRG GEAR BOX
1-44226-031-3
01
1
9912-0212
98
BRACKET; STRG GEAR BOX
1-44226-174-1
01
1
0301-
99
BOLT; BRKT TO FRAME
M14X45
9-92061-445-0
05
1
9912-
118
NUT; LEVER,TILT BOLT
1-44227-146-0
01
1
9912-0506
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
0507-
141
BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE
0-28080-816-0
04
1
9912-0512
141
BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE
0-28050-816-0
04
1
0601-
241
WASHER; PL
ID=15
9-09651-069-0
10
1
9912-1201
241
WASHER; PL
ID=15
8-98010-627-1
10
1
1202-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
9912-
315
JOINT; SPLINE
1-44135-341-1
01
1
9912-
316
RING
1-44227-152-0
01
1
9912-
317
NUT; PUSH
1-44227-148-0
01
1
9912-
