4-25 — REAR FINAL DRIVE (#8478) — 106 parça

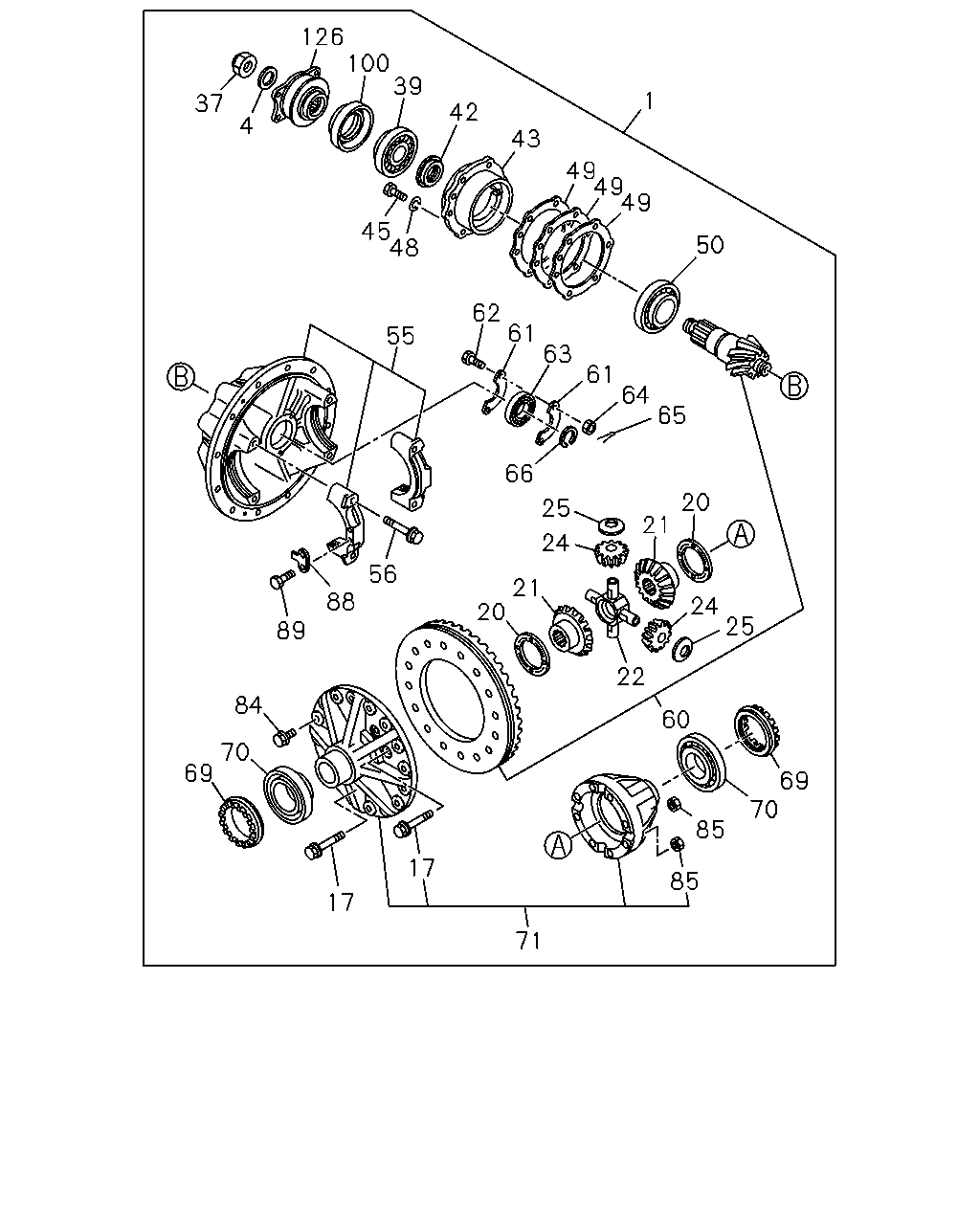

çizim 9598
126 100 39 1 37 42 4 43 49 49 49 45 48 50 62 61 55 63 61 64 65 66 20 25 21 24 56 21 20 88 24 25 89 22 84 60 70 69 69 70 85 17 85 17 71
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,RR
FINAL GEAR 38/7 13.5"(W1B) 38/7 		1-41001-375-0 01 1 0203-
1 DRIVE ASM; FINAL,RR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-41000-943-0 01 1 9912-
4 GASKET; FLANGE,FINAL PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) ID=35.7 T=5 		1-09623-379-0 01 1 9912-0202
4 GASKET; FLANGE,FINAL PINION
ID=35.7 T=5 		1-09623-379-0 01 1 0203-
17 BOLT; DIFF CAGE SETTING
FINAL GEAR 38/7 13.5"(W1B) M14X85 		1-09044-023-0 08 1 0203-
17 BOLT; DIFF CAGE SETTING
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M14X100 		1-09070-006-0 08 1 9912-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=2.80 		1-41562-073-0 AR 1 9912-0202
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-073-0 AR 1 0203-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=2.90 		1-41562-074-0 AR 1 9912-0202
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-074-0 AR 1 0203-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=3.00 		1-41562-075-0 AR 1 9912-0202
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-075-0 AR 1 0203-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=3.10 		1-41562-076-0 AR 1 9912-0202
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-076-0 AR 1 0203-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=3.20 		1-41562-077-0 AR 1 9912-0202
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-077-0 AR 1 0203-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=3.30 		1-41562-078-0 AR 1 9912-0202
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-078-0 AR 1 0203-
20 WASHER; THRUST,SIDE GEAR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=3.40 		1-41562-079-0 AR 1 9912-0202
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-079-0 AR 1 0203-
21 GEAR; SIDE,DIFF
FINAL GEAR 38/7 13.5"(W1B) Z=16 		1-41561-084-1 02 1 0203-1004
21 GEAR; SIDE,DIFF
FINAL GEAR 38/7 13.5"(W1B) Z=16 		1-41561-150-0 02 1 1005-
21 GEAR; SIDE,DIFF
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) Z=16 		1-41561-093-0 02 1 9912-1004
21 GEAR; SIDE,DIFF
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) Z=16 		8-98165-935-0 02 1 1005-
22 SPIDER; DIFF PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-41521-035-0 01 1 9912-0202
22 SPIDER; DIFF PINION 1-41521-035-2 01 1 0203-1004
22 SPIDER; DIFF PINION 1-41521-062-0 01 1 1005-1309
22 SPIDER; DIFF PINION 1-41521-035-2 01 1 1310-
24 GEAR; PINION,DIFF
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) Z=10 		1-41551-024-0 04 1 9912-0202
24 GEAR; PINION,DIFF
Z=10 		1-41551-024-0 04 1 0203-1004
24 GEAR; PINION,DIFF
Z=10 		1-41551-050-0 04 1 1005-
25 WASHER; THRUST,PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-41552-020-0 04 1 9912-0202
25 WASHER; THRUST,PINION 1-41552-020-0 04 1 0203-
37 NUT; DRIVING PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M30 FLANGE 		1-09449-066-1 01 1 9912-0202
37 NUT; DRIVING PINION
M30 FLANGE 		1-09449-066-1 01 1 0203-
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1001-
39 BEARING; FINAL PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) NSK 		1-09812-026-0 01 1 9912-0202
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 0203-1001
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1002-
42 COLLAR; DIST,COLLAPSIBLE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=15.75 		1-41219-004-0 01 1 9912-0202
42 COLLAR; DIST,COLLAPSIBLE
T=15.75 		1-41219-004-0 01 1 0203-
43 CAGE; FINAL PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-41151-063-0 01 1 9912-0202
43 CAGE; FINAL PINION 1-41151-063-0 01 1 0203-
45 BOLT; FINAL PINION CAGE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M12X40 		9-02361-240-0 06 1 9912-0202
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 0203-
48 WASHER; LK,FINAL PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) ID=12.2 		9-09150-512-0 06 1 9912-0202
48 WASHER; LK,FINAL PINION
ID=12.2 		9-09150-512-0 06 1 0203-0603
48 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-512-0 06 1 0604-
49 SHIM; FINAL PINION CAGE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=0.50 		1-41154-021-1 AR 1 9912-0202
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 0203-
49 SHIM; FINAL PINION CAGE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=0.30 		1-41154-051-1 AR 1 9912-0202
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 0203-
49 SHIM; FINAL PINION CAGE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=0.40 		1-41154-052-1 AR 1 9912-0202
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 0203-
49 SHIM; FINAL PINION CAGE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=1.00 		1-41154-053-1 AR 1 9912-0202
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 0203-
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0612-
50 BEARING; FINAL PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) NSK 		1-09812-041-2 01 1 9912-0202
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0203-
55 CARRIER; DIFF
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-41110-105-0 01 1 9912-0202
55 CARRIER; DIFF 1-41110-105-0 01 1 0203-
56 BOLT; BRG CAP
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M14X95 FLANGE 		1-09070-027-0 04 1 9912-0202
56 BOLT; BRG CAP
M14X95 FLANGE 		1-09070-027-0 04 1 0203-
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR 38/7 13.5"(W1B) 38/7 		1-41210-529-0 01 1 0203-
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 38/8 		1-41210-501-0 01 1 9912-
61 RETAINER; PILOT BRG,PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		9-41227-006-0 02 1 9912-0202
61 RETAINER; PILOT BRG,PINION 9-41227-006-0 02 1 0203-
62 BOLT; RET
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M8X35 W/PIN HOLE 		1-09042-034-0 02 1 9912-0202
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 0203-0804
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 0805-
63 BEARING; PINION PILOT
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) NSK 		1-09810-062-1 01 1 9912-0202
63 BEARING; PINION PILOT
NSK 		1-09810-062-1 01 1 0203-
63 BEARING; PINION PILOT
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) JTEKT 		1-09810-063-2 01 1 9912-0202
63 BEARING; PINION PILOT
JTEKT 		1-09810-063-2 01 1 0203-
64 NUT; RET
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M8 SLOTTED 		9-09117-508-0 02 1 9912-0202
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 0203-0512
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0601-
65 PIN; SPLIT,RET
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		9-08112-012-0 02 1 9912-0202
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0203-0805
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0806-
66 RING; SNAP,PILOT BRG
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) OD=32.2 		1-09588-065-1 01 1 9912-0202
66 RING; SNAP,PILOT BRG
OD=32.2 		1-09588-065-2 01 1 0203-
69 NUT; ADJ,DIFF CAGE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M115 H=26 		1-41121-028-0 01 1 9912-0202
69 NUT; ADJ,DIFF CAGE
M115 H=26 		1-41121-028-0 01 1 0203-
69 NUT; ADJ,DIFF CAGE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M115 H=20 		1-41121-039-0 01 1 9912-0202
69 NUT; ADJ,DIFF CAGE
M115 H=20 		1-41121-039-0 01 1 0203-
70 BEARING; DIFF CAGE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 9912-0202
70 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 0203-
71 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR 38/7 13.5"(W1B) 		1-41510-298-0 01 1 0203-
71 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-41510-230-0 01 1 9912-0105
71 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-41510-301-0 01 1 0106-
84 BOLT; FINAL DRIVE GEAR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M14X29.5 FLANGE 		1-09070-085-0 16 1 9912-0202
84 BOLT; FINAL DRIVE GEAR
M14X29.5 FLANGE 		1-09070-085-0 16 1 0203-
85 NUT; DIFF CAGE SETTING
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M14 		1-09400-077-1 08 1 9912-0202
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 0203-
88 PLATE; LK,ADJ NUT
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) T=2.3 		9-41124-015-0 02 1 9912-0202
88 PLATE; LK,ADJ NUT
T=2.3 		9-41124-015-0 02 1 0203-
89 BOLT; LK PLATE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M8X16 		0-20800-816-0 04 1 9912-0202
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 0203-0512
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0601-
100 SEAL; OIL,FINAL PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) NOK 		1-09625-484-0 01 1 9912-0202
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 0203-
100 SEAL; OIL,FINAL PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) TKK 		1-09625-637-0 01 1 9912-0202
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 0203-
126 COUPLING; DRIVING PINION
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-37245-069-6 01 1 9912-0202
126 COUPLING; DRIVING PINION 1-37245-069-6 01 1 0203-
