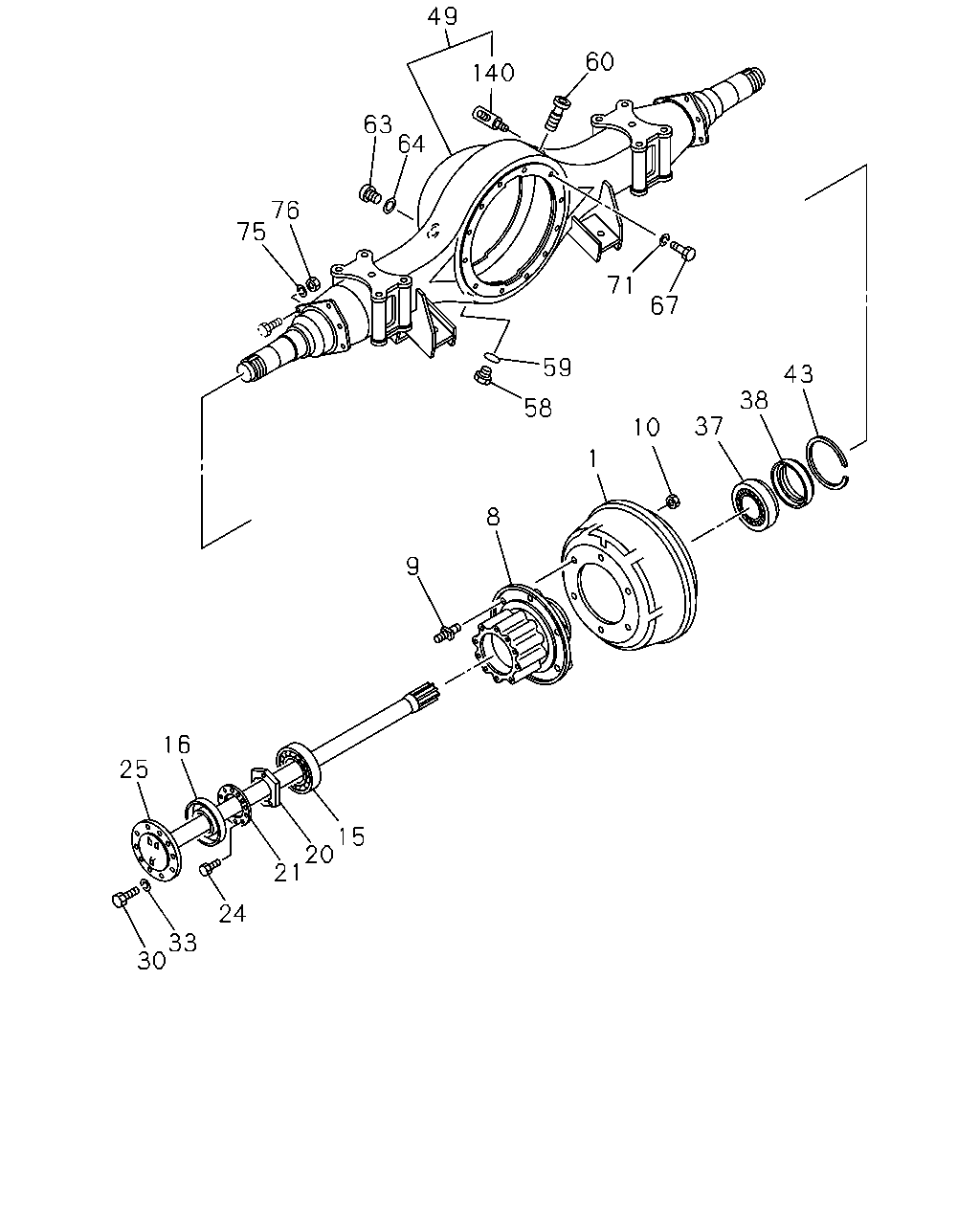

4-20 — REAR AXLE CASE AND SHAFT (#8477) — 69 parça

49 60 140 63 64 76 75 71 67 59 43 38 58 37 10 1 8 9 16 25 15 20 21 24 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z)	1-42315-360-0	02	1	9912-0202
1	DRUM; BRK,RR	1-42315-360-0	02	1	0203-
8	HUB; RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z)	1-42311-009-6	02	1	9912-0202
8	HUB; RR AXLE	1-42311-009-6	02	1	0203-
9	PIN; WHEEL,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-0	06	1	9912-0202
9	PIN; WHEEL,RR AXLE M20X34.5 LH THREAD,M22X43.5 RH THREAD	1-42332-106-2	06	1	0203-
9	PIN; WHEEL,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M20X34.5,M22X43.5 RH THREAD	1-42331-106-0	06	1	9912-0202
9	PIN; WHEEL,RR AXLE M20X34.5,M22X43.5 RH THREAD	1-42331-106-2	06	1	0203-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M22 FLANGE	1-09440-065-0	12	1	9912-0202
10	NUT; WHEEL PIN,RR AXLE M22 FLANGE	1-09440-065-0	12	1	0203-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) JTEKT	1-09812-049-0	02	1	9912-0202
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-049-0	02	1	0203-1002
15	BEARING; HUB OUTER,RR AXLE JTEKT	8-98156-814-0	02	1	1003-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) NSK	9-00093-159-0	02	1	9912-0202
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-159-0	02	1	0203-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-160-0	02	1	1003-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) TKK	1-09625-331-0	02	1	9912-0202
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	0203-
20	NUT; BRG,RR HUB FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M64	9-09843-721-2	02	1	9912-0202
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	0203-
21	WASHER; LK,BRG NUT FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) ID=64	9-09854-122-0	02	1	9912-0202
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	0203-
24	BOLT; LK WASHER FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M6X16 FLANGE	0-28680-616-0	06	1	9912-0202
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0203-0512
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-
25	SHAFT; AXLE,RR FINAL GEAR 38/7 13.5"(W1B) L=942	1-42171-347-1	02	1	0203-
25	SHAFT; AXLE,RR FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z)	1-42171-345-2	02	1	9912-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M12X45	9-09804-239-1	20	1	9912-0202
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	0203-
33	WASHER; AXLE SHAFT FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) ID=12.2	9-09150-812-0	20	1	9912-0202
33	WASHER; AXLE SHAFT ID=12.2	9-09150-812-0	20	1	0203-0603
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	0604-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) JTEKT	1-09812-044-0	02	1	9912-0202
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-044-0	02	1	0203-1002
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-154-0	02	1	1003-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) NACHI	1-09812-053-0	02	1	9912-0202
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-053-0	02	1	0203-1002
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) NSK	9-00093-161-0	02	1	9912-0202
37	BEARING; HUB INNER,RR AXLE NSK	9-00093-161-0	02	1	0203-1002
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-153-0	02	1	1003-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) TKK	1-09625-569-0	02	1	9912-0202
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	0203-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z)	9-09950-201-0	02	1	9912-0202
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	0203-
49	CASE; RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z)	1-42130-915-4	01	1	9912-0202
49	CASE; RR AXLE	1-42130-915-5	01	1	0203-
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M24X17 FLANGE	1-09604-023-0	01	1	9912-0202
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0203-
59	GASKET; DRAIN PLUG FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) ID=26.8	9-09920-605-0	01	1	9912-0202
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0203-
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	9912-
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M24X17 FLANGE	1-09604-022-0	01	1	9912-0202
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0203-
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) ID=26.8	9-09920-605-0	01	1	9912-0202
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0203-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M10X35	1-09000-398-0	08	1	9912-0202
67	BOLT; FINAL DRIVE SETTING M10X35	1-09000-398-0	08	1	0203-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M10X55	1-09000-429-1	04	1	9912-0202
67	BOLT; FINAL DRIVE SETTING M10X55	1-09000-429-1	04	1	0203-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) ID=10.2	9-09150-810-0	12	1	9912-0202
71	WASHER; LK,FINAL DRIVE SETTING ID=10.2	9-09150-810-0	12	1	0203-0603
71	WASHER; LK,FINAL DRIVE SETTING ID=10.2	0-91510-810-0	12	1	0604-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) ID=14.2	9-09150-814-0	12	1	9912-0202
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	12	1	0203-0603
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	12	1	0604-
76	NUT; RR BRK ASM SETTING FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M14	9-99110-514-0	12	1	9912-0202
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	12	1	0203-0512
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	12	1	0601-
140	CONNECTOR; AXLE CASE	1-09656-239-3	01	1	9912-
