Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

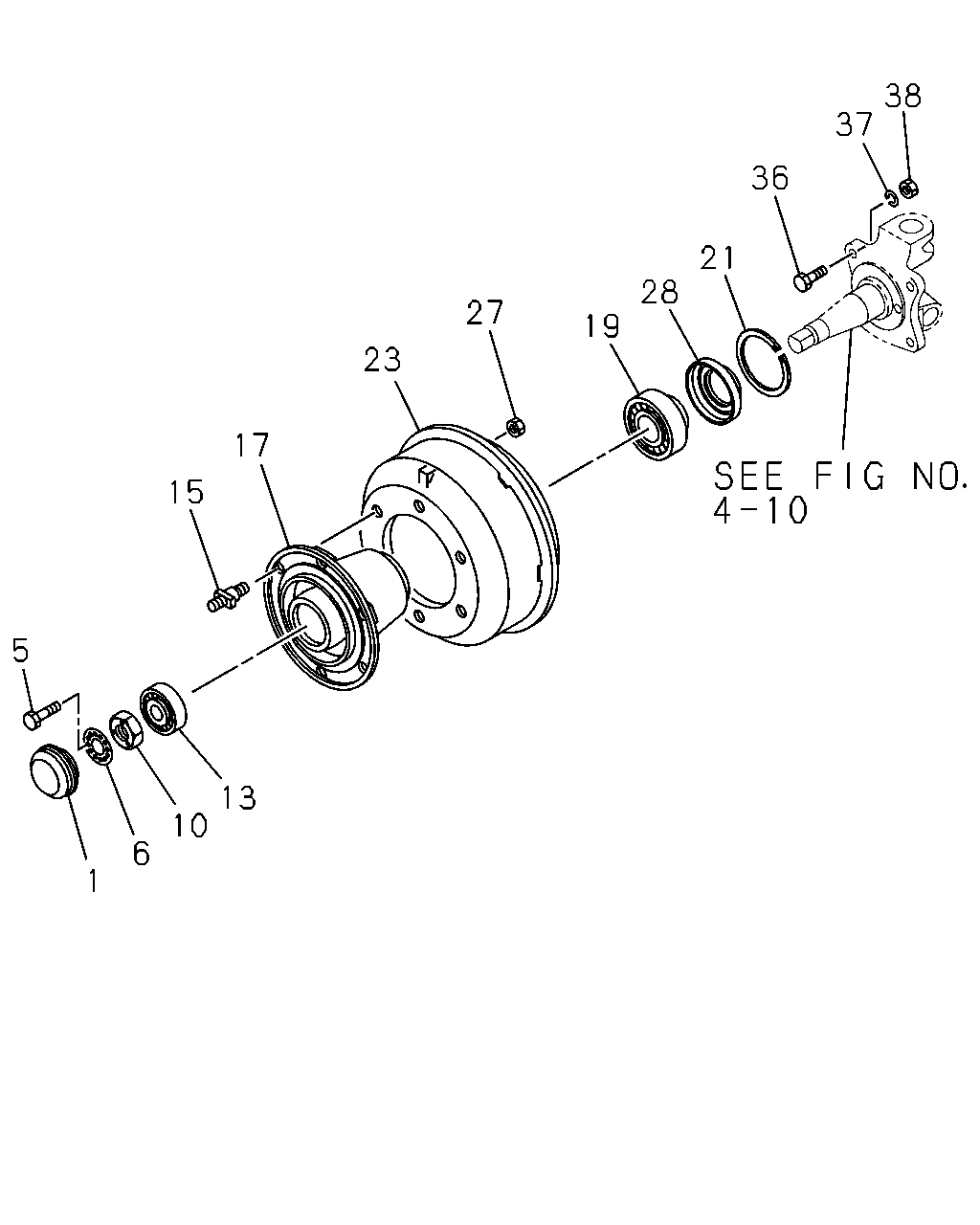

4-11 — FRONT HUB AND DRUM OR ROTOR
(#8476) — 28 parça
38
37
36
21
28
27
19
23
17
15
5
13
10
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-019-1
02
1
9912-0507
1
CAP; HUB,FRT AXLE
1-42313-029-0
02
1
0508-0704
1
CAP; HUB,FRT AXLE
1-42313-030-0
02
1
0705-1511
1
CAP; HUB,FRT AXLE
8-98331-640-0
02
1
1512-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28680-616-0
04
1
9912-0512
5
BOLT; LK WASHER
M6X16 FLANGE
0-28650-616-0
04
1
0601-
6
WASHER; LK,FRT HUB
ID=39
1-09841-003-0
02
1
9912-
10
NUT; FRT HUB BRG
M39
1-09840-019-1
02
1
9912-
13
BEARING; HUB OUTER,FRT AXLE
NSK
1-09812-064-0
02
1
9912-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-065-0
02
1
9912-
15
PIN; WHEEL,FRT AXLE
M20X37.5 LH THREAD,M22X49.5 RH THREAD
1-42332-058-0
06
1
9912-0409
15
PIN; WHEEL,FRT AXLE
M20X37.5 LH THREAD,M22X51.5 RH THREAD
1-42332-062-1
06
1
0410-
15
PIN; WHEEL,FRT AXLE
M20X37.5,M22X49.5 RH THREAD
1-42331-058-0
06
1
9912-0409
15
PIN; WHEEL,FRT AXLE
M20X37.5,M22X51.5 RH THREAD
1-42331-062-1
06
1
0410-
17
HUB; FRT AXLE
1-42312-117-3
02
1
9912-
19
BEARING; HUB INNER,FRT AXLE
NSK
9-00093-031-1
02
1
9912-1002
19
BEARING; HUB INNER,FRT AXLE
JTEKT
9-00093-205-1
02
1
9912-1002
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-206-0
02
1
1003-
21
RING; SNAP,HUB
OD=117
1-09587-001-0
02
1
9912-
23
DRUM; BRK,FRT
1-42315-359-1
02
1
9912-
27
NUT; WHEEL PIN,FRT AXLE
M22
1-09400-037-0
12
1
9912-0409
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-065-0
12
1
0410-
28
SEAL; OIL,FRT HUB
1-09625-568-0
02
1
9912-
36
BOLT; BACK PLATE
M14X45
9-92061-445-0
08
1
9912-
37
WASHER; LK,BACK PLATE
ID=14.2
9-09150-814-0
08
1
9912-0603
37
WASHER; LK,BACK PLATE
ID=14.2
0-91510-814-0
08
1
0604-
38
NUT; BACK PLATE
M14
9-99110-514-0
08
1
9912-0512
38
NUT; BACK PLATE
M14
0-91110-514-0
08
1
0601-
