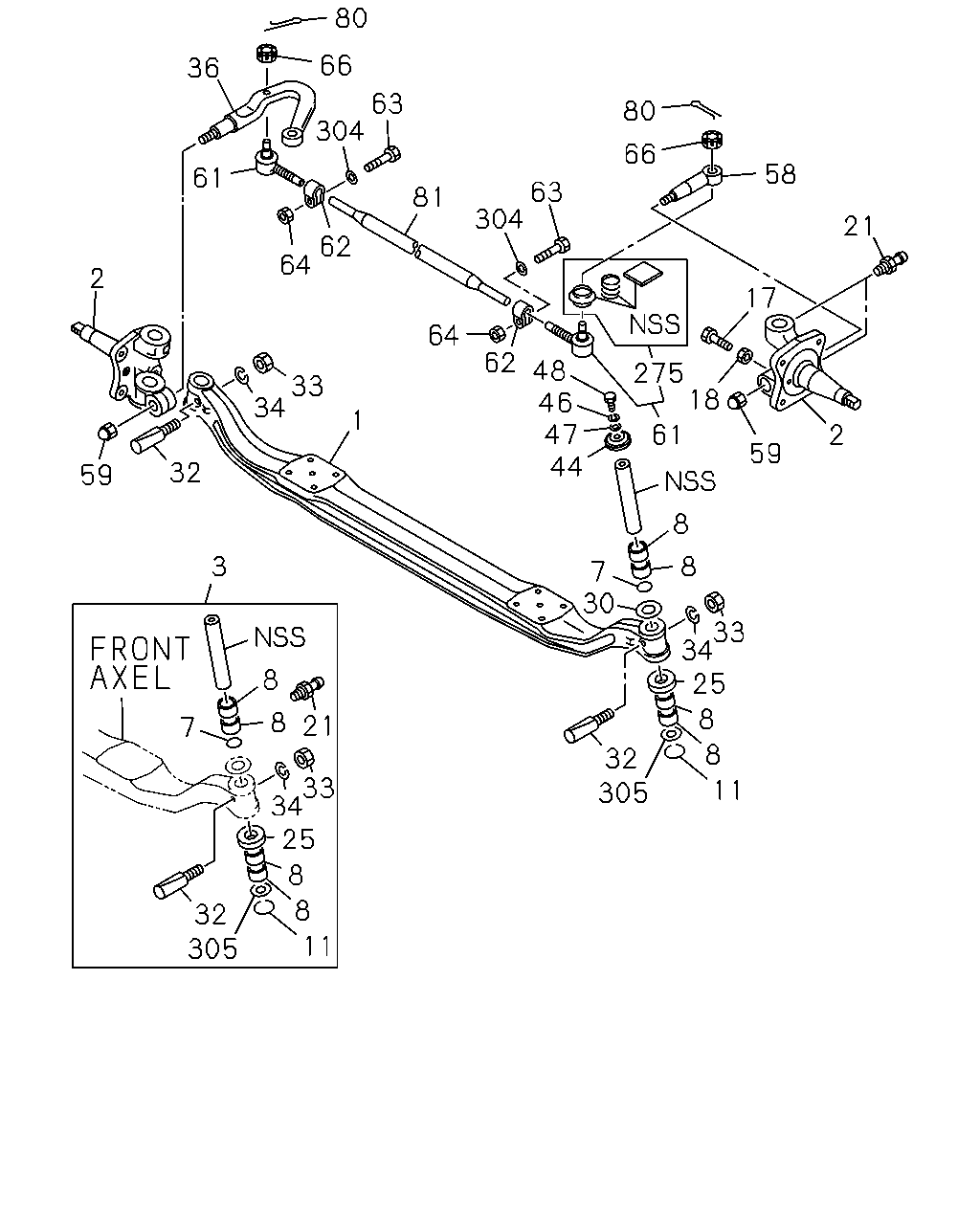

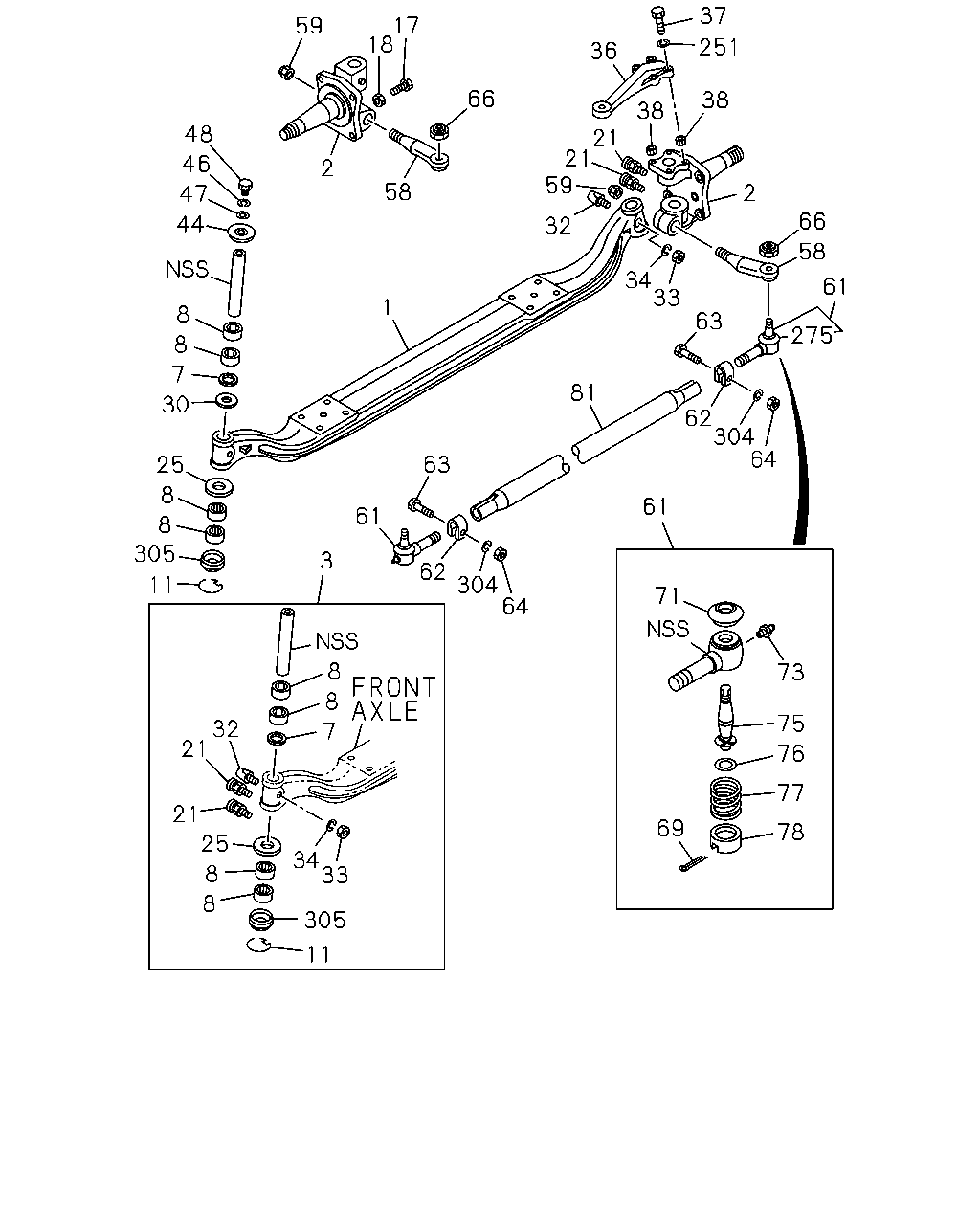

4-10 — FRONT AXLE (#8475) — 217 parça

37 17 18 59 251 36 66 38 38 48 21 21 59 46 2 58 2 47 66 44 32 58 34 33 61 1 8 63 275 8 7 81 30 62 304 64 63 25 8 61 61 8 305 3 62 304 64 11 71 8 73 8 75 32 21 7 76 77 21 69 78 25 34 33 8 8 305 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-084-3	01	1	9912-0409
1	AXLE; FRT	1-43111-126-2	01	1	0410-
2	KNUCKLE; FRT AXLE	1-43132-086-1	01	1	9912-0409
2	KNUCKLE; FRT AXLE	1-43132-097-0	01	1	0410-
2	KNUCKLE; FRT AXLE	1-43131-086-1	01	1	9912-0409
2	KNUCKLE; FRT AXLE	1-43131-097-0	01	1	0410-
3	KING PIN SET	1-87831-145-6	01	1	0410-
3	KING PIN SET	1-87830-716-1	02	1	9912-0409
3	KING PIN SET	1-87831-144-6	01	1	0410-
7	SEAL; OIL,KING PIN	1-09625-005-1	02	1	9912-
8	BEARING; NEEDLE,KING PIN NTN	1-09811-001-0	08	1	9912-
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	9912-
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	9912-
17	BOLT; STOPPER KNUCKLE M14X53	1-09009-062-0	02	1	9912-0409
17	BOLT; STOPPER KNUCKLE M14X42.5	1-09009-008-0	02	1	0410-0503
17	BOLT; STOPPER KNUCKLE M14X53	1-09009-062-0	02	1	0504-0805
17	BOLT; STOPPER KNUCKLE M14X53	8-98065-261-0	02	1	0806-
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	9912-0409
18	NUT; STOPPER BOLT,KNUCKLE M14	5-09400-034-0	02	1	0410-0503
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	0504-0512
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9912-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	0410-
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	02	1	9912-0409
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	0410-
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	0410-
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	9912-
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	9912-
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	9912-
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	9912-
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	9912-
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	9912-
32	BOLT; KEY,KING PIN	1-43116-003-2	02	1	9912-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9912-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9912-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-029-1	01	1	9912-0409
36	ARM; KNUCKLE	1-43133-055-8	01	1	0410-
37	BOLT; KNUCKLE ARM M12X40	9-92061-240-0	04	1	9912-0409
38	KNOCK; KNUCKLE ARM	9-43269-001-0	02	1	9912-0409
44	COVER; KING PIN	1-43175-015-0	02	1	9912-0704
44	COVER; KING PIN	1-43175-031-0	02	1	0705-
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	9912-0603
46	WASHER; LK,COVER ID=12.2	0-91510-512-0	02	1	0604-
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	9912-0605
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0606-
48	BOLT; COVER M12X25	1-09009-081-0	02	1	9912-
58	ARM; TIE ROD	1-43135-016-1	01	1	9912-0409
58	ARM; TIE ROD	1-43134-016-1	01	1	9912-0409
58	ARM; TIE ROD	1-43134-034-4	01	1	0410-
59	NUT; TIE ROD ARM M24	9-09844-669-2	02	1	9912-0409
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	0410-0704
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0705-
61	ROD END; TIE ROD	1-43150-469-0	01	1	9912-0409
61	ROD END; TIE ROD	1-43150-680-2	01	1	0410-
61	ROD END; TIE ROD	1-43150-468-0	01	1	9912-0409
61	ROD END; TIE ROD	1-43150-679-2	01	1	0410-
62	CLAMP; TIE ROD	1-43159-002-3	02	1	9912-
63	BOLT; CLAMP TIE ROD M12X47	9-09801-294-0	02	1	9912-0207
63	BOLT; CLAMP TIE ROD M12X45 FLANGE	0-28091-245-0	02	1	0208-0512
63	BOLT; CLAMP TIE ROD M12X45 FLANGE	0-28061-245-0	02	1	0601-
64	NUT; CLAMP M12	9-99110-512-0	02	1	9912-0512
64	NUT; CLAMP M12	0-91110-512-0	02	1	0601-
66	NUT; TIE ROD END M16	1-09449-014-0	02	1	9912-0409
66	NUT; TIE ROD END M16 SLOTTED	1-09442-021-1	02	1	0410-0805
66	NUT; TIE ROD END M16 SLOTTED	1-09442-031-0	02	1	0806-
69	PIN; SPLIT,TIE ROD END OD=2.8 L=55	9-08113-055-0	02	1	9912-0409
71	BOOT; TIE ROD END D=18.5,29	1-43159-036-0	02	1	9912-0409
73	NIPPLE; GREASE,TIE ROD END M6 STRAIGHT	9-09031-006-0	01	1	9912-0409
73	NIPPLE; GREASE,TIE ROD END PT1/8 STRAIGHT	9-09031-010-0	01	1	9912-0409
75	JOINT; BALL,DRAG LINK	1-87090-211-0	02	1	9912-0409
76	SEAT; SPR,DRAG LINK	1-44373-002-0	02	1	9912-0409
77	SPRING; TIE ROD END	1-09580-080-0	02	1	9912-0409
78	PLUG; ADJ,ROD END	1-44375-001-0	02	1	9912-0409
81	ROD; TIE	1-43151-053-1	01	1	9912-0409
81	ROD; TIE	1-43151-109-0	01	1	0410-
251	WASHER; LK,KNUCKLE ARM ID=12.2	9-09150-612-0	04	1	9912-0409
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	0410-
304	WASHER; PL ID=12.5	9-09164-512-0	02	1	9912-
305	COVER; KNUCKLE	1-43175-022-0	02	1	9912-0704
305	COVER; KNUCKLE	1-43175-030-0	02	1	0705-
