3-78 — FIXING PARTS; AIR PIPING (#8473) — 168 parça

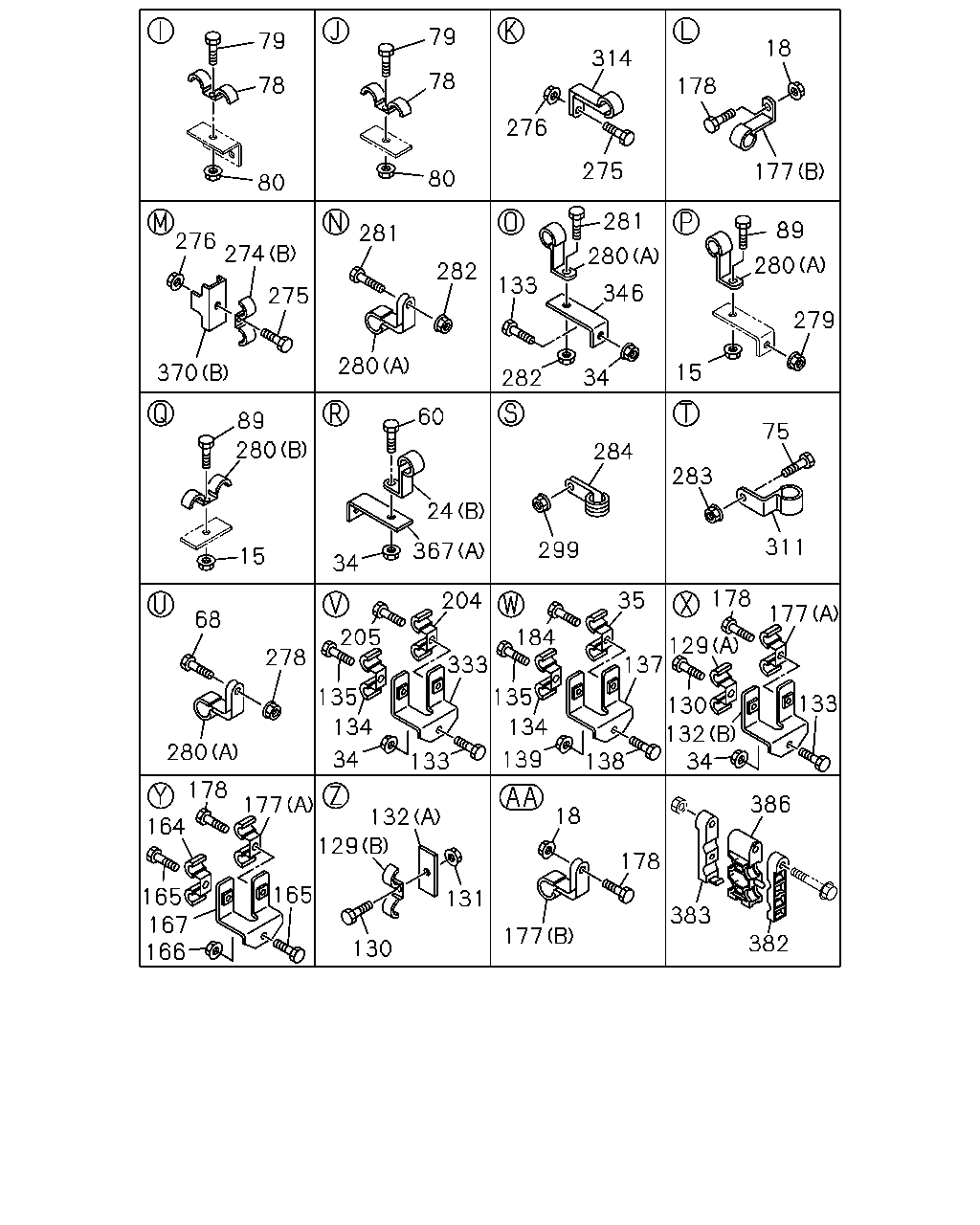

79 79 18 314 78 78 178 276 275 177 80 80 281 89 281 276 274 280 280 282 133 346 275 279 280 15 370 34 282 60 89 75 280 284 283 24 311 299 367 15 34 178 35 204 177 68 205 184 129 137 278 333 135 135 133 130 132 34 134 134 280 34 139 133 138 178 386 177 18 132 164 129 178 165 165 167 166 131 383 177 382 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9912-0602
15	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
18	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9912-0602
18	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
24	CLIP; PIPE (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9912-
24	CLIP; PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9912-0606
24	CLIP; PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	9912-0304
34	NUT; BRKT M8 FLANGE	0-91150-108-0	09	1	0305-0602
34	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	0603-
35	CLIP; AIR PIPE ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	04	1	9912-
60	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	01	1	9912-0512
60	BOLT; CLIP FIX M8X20 FLANGE	0-28050-820-0	01	1	0601-
60	BOLT; CLIP FIX M8X35 FLANGE	0-28080-835-0	01	1	9912-0512
60	BOLT; CLIP FIX M8X35 FLANGE	0-28050-835-0	01	1	0601-
68	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
68	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28050-820-0	02	1	0601-
75	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9912-0512
75	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	0601-
78	CLIP; AIR PIPE ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	9912-
79	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
79	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0601-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9912-0602
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
89	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	03	1	9912-0512
89	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	03	1	0601-
129	CLIP; AIR PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	9912-
129	CLIP; AIR PIPE (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9912-
129	CLIP; AIR PIPE (C) ID=10 & 10	1-09709-221-0	01	1	9912-
130	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
130	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0601-
131	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
131	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
132	BRACKET; PIPE CLIP (A) L=50	1-47475-299-2	01	1	9912-
132	BRACKET; PIPE CLIP (B)	1-47478-774-0	01	1	9912-
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	05	1	9912-0512
133	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	05	1	0601-
134	CLIP; AIR PIPE ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	05	1	9912-
134	CLIP; AIR PIPE ID=10 & 10	1-09709-221-0	01	1	9912-
135	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	05	1	9912-0512
135	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	05	1	0601-
135	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	01	1	9912-0512
135	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	01	1	0601-
137	BRACKET; PIPE CLIP	1-47478-774-0	04	1	9912-
138	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	04	1	9912-0512
138	BOLT; CLIP BRKT M8X20 FLANGE	0-28050-820-0	04	1	0601-
139	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	05	1	9912-0602
139	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
164	CLIP; AIR PIPE ID=11 L=20	9-09525-035-0	01	1	9912-0606
164	CLIP; AIR PIPE ID=11 L=20	0-95235-035-0	01	1	0607-
165	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
165	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0601-
166	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
166	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
167	BRACKET; PIPE CLIP	1-47478-774-0	01	1	9912-
177	CLIP; AIR PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	9912-
177	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	02	1	9912-0707
177	CLIP; AIR PIPE (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-
178	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9912-0512
178	BOLT; PIPE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
178	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9912-0512
178	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
184	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	04	1	9912-0512
184	BOLT; PIPE CLIP M8X16 FLANGE	0-28050-816-0	04	1	0601-
204	CLIP; AIR PIPE ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	9912-
205	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9912-0512
205	BOLT; PIPE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
274	CLIP; AIR PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9912-
274	CLIP; AIR PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9912-
275	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	05	1	9912-0512
275	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	05	1	0601-
275	BOLT; PIPE CLIP M8X35 FLANGE	0-28080-835-0	01	1	9912-0512
275	BOLT; PIPE CLIP M8X35 FLANGE	0-28050-835-0	01	1	0601-
276	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9912-0602
276	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	0603-
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9912-0602
278	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9912-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
280	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	06	1	9912-
280	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9912-
280	CLIP; AIR PIPE (C) ID=6 & 6	1-09709-217-0	01	1	9912-
281	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9912-0512
281	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	03	1	0601-
282	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9912-0602
282	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
283	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
283	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
284	CLIP; FLEX HOSE ID=14.5 L=20	1-09701-012-0	01	1	9912-
299	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
299	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
311	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9912-
314	CLIP; AIR PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9912-
333	BRACKET; BRK AIR PIPE	1-47478-774-0	01	1	9912-
346	BRACKET; BRK PIPE L=95	1-82699-085-0	01	1	9912-
367	BRACKET ASM (A) L=55	1-47475-304-0	01	1	9912-
367	BRACKET ASM (B)	1-47475-427-1	01	1	9912-
370	BRACKET; PIPE CLIP (A) L=55	1-47475-304-0	01	1	9912-
370	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9912-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	01	1	9912-
383	CLIP; LWR ID=10 & 10	1-09709-241-0	01	1	9912-
386	CLIP; CENTER ID=10	1-09709-242-0	01	1	9912-

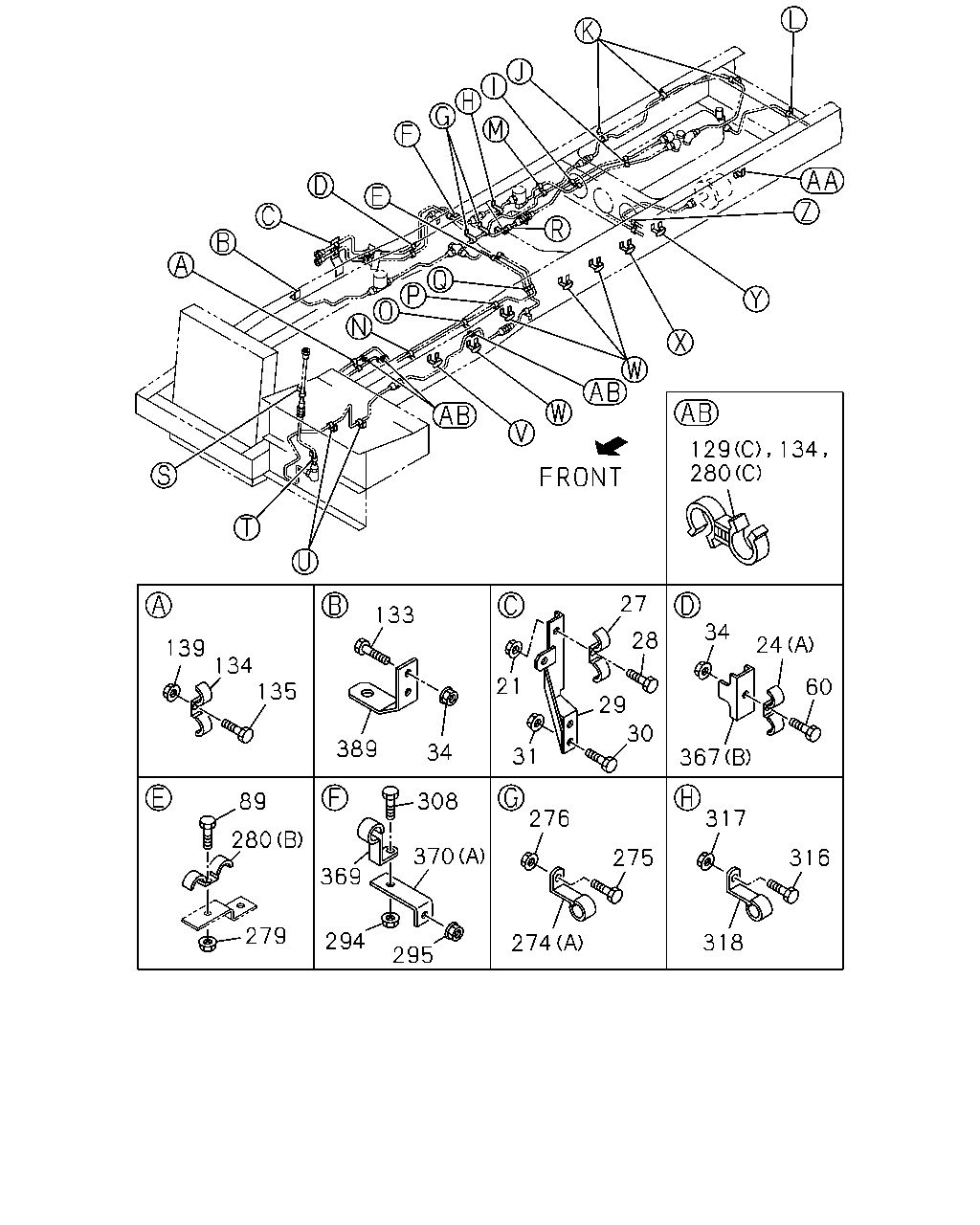

129 280 134 27 133 34 28 24 139 134 135 21 60 29 30 389 34 31 367 308 89 276 317 280 370 275 316 369 279 294 318 274 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
24	CLIP; PIPE (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9912-
24	CLIP; PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9912-0606
24	CLIP; PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
27	CLIP; FLEX HOSE ID=12 & 24	1-09701-248-0	01	1	9912-
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28080-820-0	01	1	9912-0512
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28050-820-0	01	1	0601-
29	BRACKET; CLIP,AIR PIPE	1-47478-679-0	01	1	9912-
30	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
30	BOLT; CLIP BRKT M8X20 FLANGE	0-28050-820-0	02	1	0601-
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9912-0602
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	9912-0304
34	NUT; BRKT M8 FLANGE	0-91150-108-0	09	1	0305-0602
34	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	0603-
60	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	01	1	9912-0512
60	BOLT; CLIP FIX M8X20 FLANGE	0-28050-820-0	01	1	0601-
60	BOLT; CLIP FIX M8X35 FLANGE	0-28080-835-0	01	1	9912-0512
60	BOLT; CLIP FIX M8X35 FLANGE	0-28050-835-0	01	1	0601-
89	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	03	1	9912-0512
89	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	03	1	0601-
129	CLIP; AIR PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	9912-
129	CLIP; AIR PIPE (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9912-
129	CLIP; AIR PIPE (C) ID=10 & 10	1-09709-221-0	01	1	9912-
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	05	1	9912-0512
133	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	05	1	0601-
134	CLIP; AIR PIPE ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	05	1	9912-
134	CLIP; AIR PIPE ID=10 & 10	1-09709-221-0	01	1	9912-
135	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	05	1	9912-0512
135	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	05	1	0601-
135	BOLT; PIPE CLIP M8X70 FLANGE	0-28080-870-0	01	1	9912-0512
135	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	01	1	0601-
139	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	05	1	9912-0602
139	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	05	1	0603-
274	CLIP; AIR PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9912-
274	CLIP; AIR PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9912-
275	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	05	1	9912-0512
275	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	05	1	0601-
275	BOLT; PIPE CLIP M8X35 FLANGE	0-28080-835-0	01	1	9912-0512
275	BOLT; PIPE CLIP M8X35 FLANGE	0-28050-835-0	01	1	0601-
276	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9912-0602
276	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	0603-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9912-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
280	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	06	1	9912-
280	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9912-
280	CLIP; AIR PIPE (C) ID=6 & 6	1-09709-217-0	01	1	9912-
294	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9912-0602
294	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9912-0602
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
308	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	01	1	9912-0512
308	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28050-820-0	01	1	0601-
316	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9912-0512
316	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	01	1	0601-
317	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
317	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
318	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	9912-
367	BRACKET ASM (A) L=55	1-47475-304-0	01	1	9912-
367	BRACKET ASM (B)	1-47475-427-1	01	1	9912-
369	CLIP; AIR PIPE ID=7 L=20	9-09524-635-0	01	1	9912-0606
369	CLIP; AIR PIPE ID=7 L=20	0-95234-635-0	01	1	0607-
370	BRACKET; PIPE CLIP (A) L=55	1-47475-304-0	01	1	9912-
370	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9912-
389	BRACKET; UNION	1-47478-680-0	01	1	9912-
