Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶

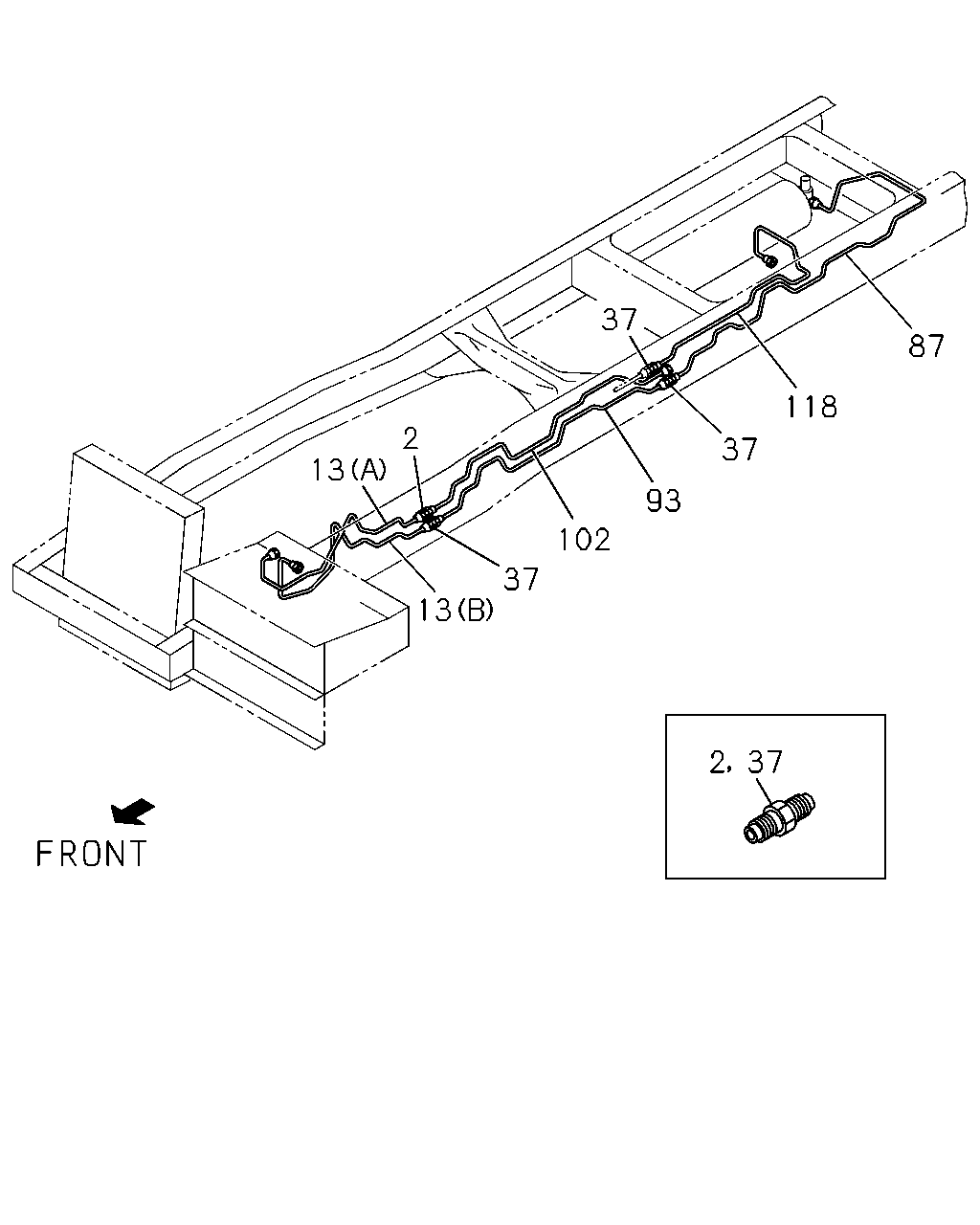

3-77 — BRAKE PIPING; AIR,REAR
(#8472) — 11 parça
37
87
118
2
37
13
93
102
37
13
2
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
M16 L=42
9-09233-010-1
01
1
9912-0607
2
UNION; AIR PIPE
M16 STRAIGHT L=42
0-92123-010-0
01
1
0608-
13
PIPE; AIR,BRK VLV TO UNION
(A) SERVICED BY L=1250
1-47428-791-0
01
1
9912-
13
PIPE; AIR,BRK VLV TO UNION
(B) L=1143 SERVICED BY L=1250
1-47428-791-0
01
1
9912-
37
UNION; AIR PIPE
M16 L=42
9-09233-010-1
03
1
9912-0607
37
UNION; AIR PIPE
M16 STRAIGHT L=42
0-92123-010-0
03
1
0608-
87
PIPE; AIR,AIR TANK TO UNION
1-49122-391-0
01
1
9912-
93
PIPE; AIR,UNION TO UNION
L=2126 SERVICED BY L=2500
1-47428-798-0
01
1
9912-
102
PIPE; AIR,UNION TO UNION
L=2124 SERVICED BY L=2500
1-47428-798-0
01
1
9912-
118
PIPE; AIR,UNION TO AIR MASTER
1-49122-392-0
01
1
9912-0211
118
PIPE; AIR,UNION TO AIR MASTER
SERVICED BY L=1400
1-47428-878-0
01
1
0212-
