3-75 — BRAKE PIPING; AIR,FRONT (#8471) — 9 parça

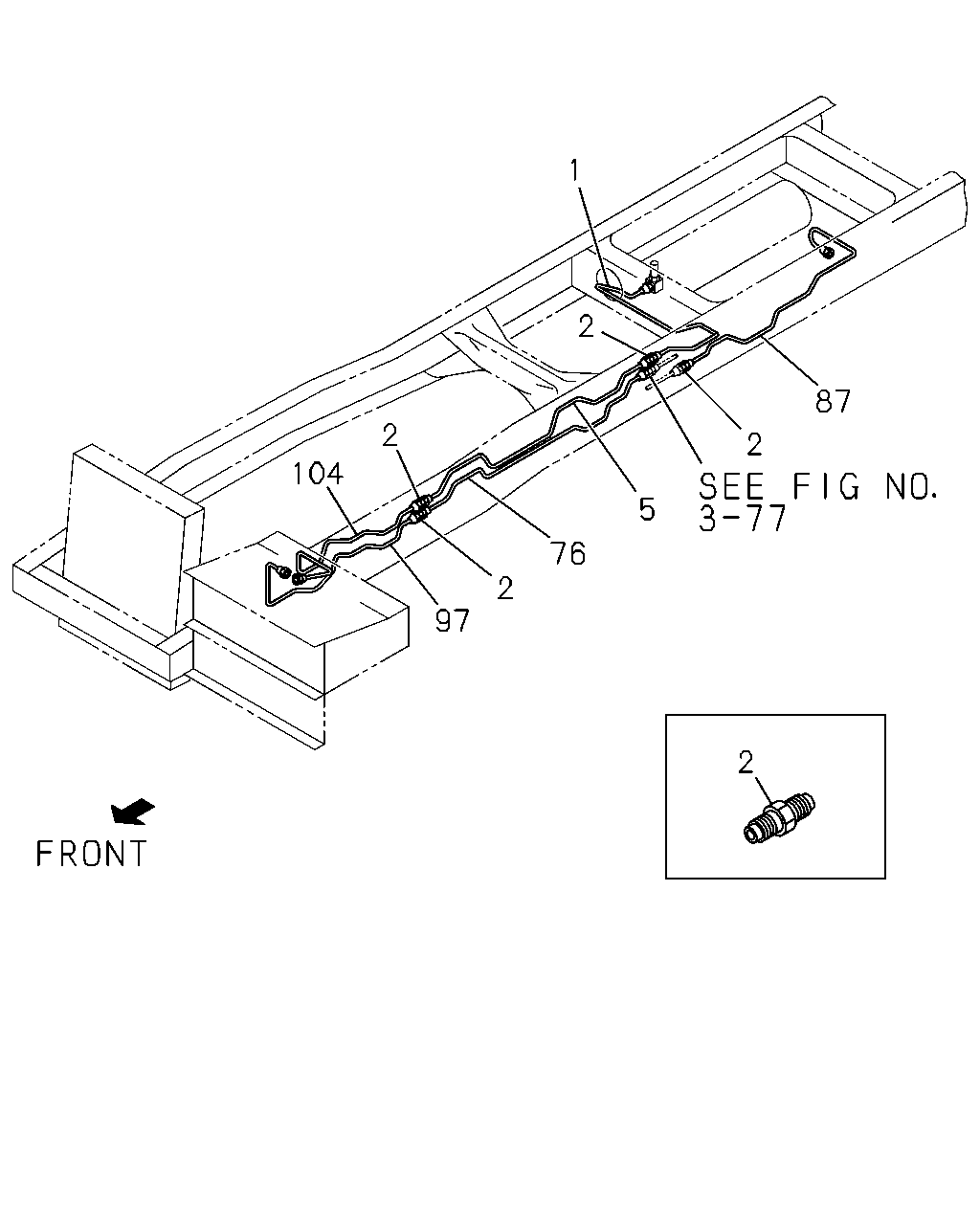

çizim 44213
1 2 87 2 2 104 5 76 2 97 2
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=1155 SERVICED BY L=1250 		1-47428-791-0 01 1 9912-
2 UNION; AIR PIPE
M16 L=42 		9-09233-010-1 04 1 9912-0607
2 UNION; AIR PIPE
M16 STRAIGHT L=42 		0-92123-010-0 04 1 0608-
5 PIPE; AIR,UNION TO UNION
L=1834 SERVICED BY L=1900 		1-47428-796-0 01 1 9912-
76 PIPE; AIR,UNION TO UNION
L=1874 SERVICED BY L=1900 		1-47428-796-0 01 1 9912-
87 PIPE; AIR,UNION TO AIR MASTER
L=1335 SERVICED BY L=1400 		1-47428-793-0 01 1 9912-0211
87 PIPE; AIR,UNION TO AIR MASTER
L=1350 SERVICED BY L=1400 		1-47428-878-0 01 1 0212-
97 PIPE; AIR,BRK VLV TO UNION
L=1160 SERVICED BY L=1250 		1-47428-791-0 01 1 9912-
104 PIPE; AIR,UNION TO BRK VLV
L=1154 SERVICED BY L=1250 		1-47428-791-0 01 1 9912-
