3-70 — BRAKE PIPING; AIR,AIR MASTER (#8470) — 95 parça

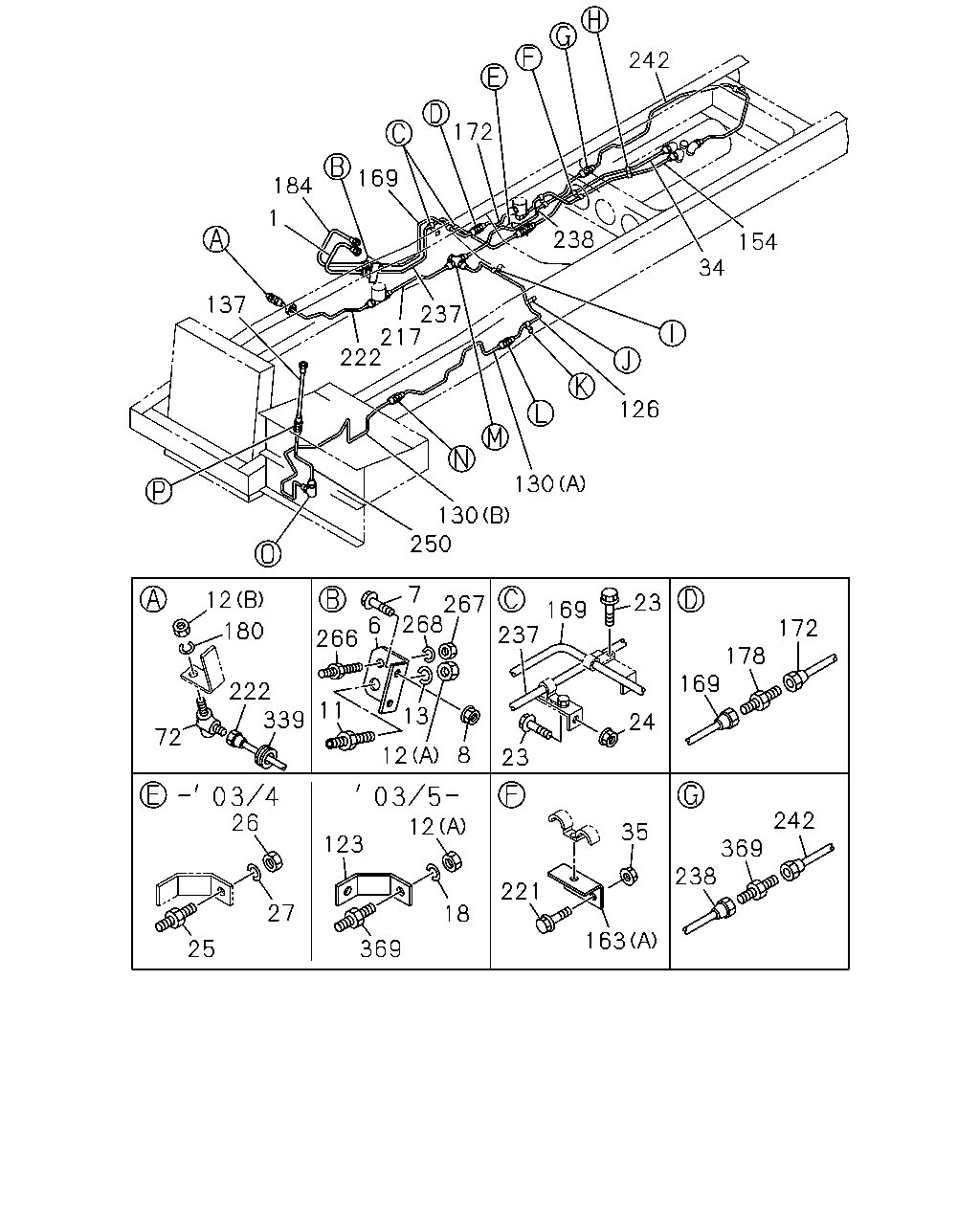

242 172 169 184 1 238 154 34 137 237 217 222 126 130 130 250 7 12 23 267 169 237 172 180 266 178 169 222 339 11 13 24 72 8 12 23 242 26 12 35 123 369 238 221 27 18 163 25 369 268 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	1-09363-800-0	01	1	9912-
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-678-0	01	1	9912-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X20 FLANGE	0-28050-820-0	02	1	0601-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	9912-0602
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0603-
11	UNION; AIR PIPE M22	9-09233-315-1	01	1	9912-0607
11	UNION; AIR PIPE M22	0-92123-315-0	01	1	0608-
12	NUT; UNION (A) M22	9-09111-422-0	01	1	9912-0304
12	NUT; UNION (A) M22	9-09111-422-0	02	1	0305-0512
12	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-
12	NUT; UNION (B) M12	9-09840-280-0	01	1	9912-
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9912-0603
13	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
18	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0305-0603
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
23	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
23	BOLT; BRKT,AIR PIPE M8X20 FLANGE	0-28050-820-0	02	1	0601-
24	NUT; BRKT,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9912-0602
24	NUT; BRKT,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
25	VALVE; CHECK	1-48320-042-1	01	1	9912-0304
26	NUT; CHECK VLV M22	9-09111-422-0	01	1	9912-0304
27	WASHER; LK,CHECK VLV ID=22.5	9-09150-522-0	01	1	9912-0304
34	PIPE; AIR	1-49122-227-0	01	1	9912-0211
34	PIPE; AIR	1-49123-832-0	01	1	0212-0304
34	PIPE; AIR	1-49123-993-0	01	1	0305-
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9912-0602
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
72	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	9912-0607
72	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
123	BRACKET; UNION	1-47478-715-0	01	1	0305-
126	PIPE; AIR,UNION TO UNION L=1253 SERVICED BY L=1370	1-47428-818-0	01	1	9912-
130	PIPE; AIR,UNION TO UNION (A) L=1045 SERVICED BY L=1100	1-47428-815-0	01	1	9912-
130	PIPE; AIR,UNION TO UNION (B) L=1236 SERVICED BY L=1250	1-47428-817-0	01	1	9912-
137	HOSE; FLEX,AIR PRESSURE GAGE L=810	0-07210-810-0	01	1	9912-0605
137	HOSE; FLEX,AIR PRESSURE GAGE L=810	0-57210-810-0	01	1	0606-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-126-0	01	1	9912-0211
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49123-831-0	01	1	0212-
163	BRACKET; AIR PIPE (A)	1-47475-272-1	01	1	9912-
163	BRACKET; AIR PIPE (B) L=50	1-47475-299-2	01	1	9912-
169	PIPE; AIR,UNION TO FLEX HOSE	1-49122-128-0	01	1	9912-
172	PIPE; AIR,GOV TO UNION	1-49122-127-0	01	1	9912-
178	UNION; AIR PIPE M12 L=40	9-09223-006-1	01	1	9912-0607
178	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0608-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9912-0603
180	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
184	HOSE; FLEX,AIR GOV L=720	1-09363-801-0	01	1	9912-
217	PIPE; VAC,UNION TO MAG VLV L=266 SERVICED BY L=300	1-47428-804-0	01	1	9912-
221	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9912-0304
221	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	04	1	0305-0512
221	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	04	1	0601-
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=324 SERVICED BY L=350	1-47428-805-0	01	1	9912-
237	PIPE; AIR,FLEX HOSE TO UNION	1-49122-226-0	01	1	9912-0304
237	PIPE; AIR,FLEX HOSE TO UNION	1-49123-992-0	01	1	0305-
238	PIPE; AIR,UNION TO UNION L=1529 SERVICED BY L=1550	1-47428-851-0	01	1	9912-
242	PIPE; AIR,AIR TANK TO UNION L=1822 SERVICED BY L=1950	1-47426-393-0	01	1	9912-0211
242	PIPE; AIR,AIR TANK TO UNION L=1795 SERVICED BY L=1800	1-47428-853-0	01	1	0212-
250	PIPE; AIR,UNION TO FLEX HOSE L=340 SERVICED BY L=3500 WO/FLARE NUT	1-47417-081-0	01	1	9912-
266	UNION; AIR PIPE M12 L=66.5	9-09223-306-1	01	1	9912-0607
266	UNION; AIR PIPE M12 L=66.5	0-92113-306-0	01	1	0608-
267	NUT; UNION M12	9-09840-280-0	01	1	9912-
268	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9912-0603
268	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
339	GROMMET; AIR PIPE ID=24 OD=30 T=17	9-09956-092-1	01	1	9912-
369	UNION; AIR PIPE M22	9-09233-315-1	01	1	0305-0607
369	UNION; AIR PIPE M22	0-92123-315-0	01	1	0608-
369	UNION; AIR PIPE M14 STRAIGHT	9-09223-008-1	01	1	9912-0607
369	UNION; AIR PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-

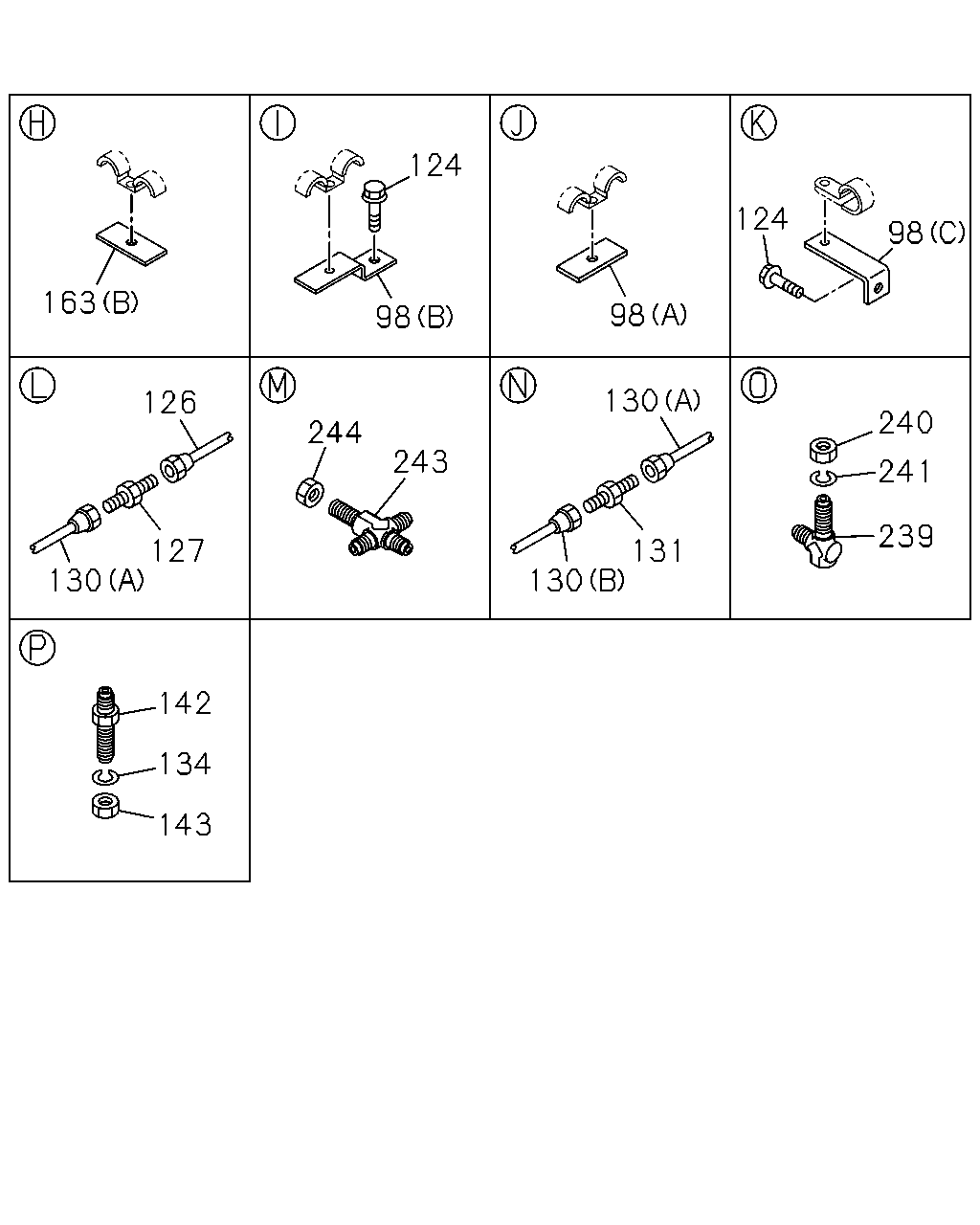

124 124 98 163 98 98 130 126 240 244 243 241 239 127 131 130 130 142 134 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	BRACKET; AIR PIPE (A) L=50	1-47475-299-2	01	1	9912-
98	BRACKET; AIR PIPE (B) 25X77	1-47475-641-1	01	1	9912-
98	BRACKET; AIR PIPE (C) L=95	1-82699-085-0	01	1	9912-
124	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
124	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	0601-
126	PIPE; AIR,UNION TO UNION L=1253 SERVICED BY L=1370	1-47428-818-0	01	1	9912-
127	UNION; AIR PIPE M12 L=40	9-09223-006-1	01	1	9912-0607
127	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0608-
130	PIPE; AIR,UNION TO UNION (A) L=1045 SERVICED BY L=1100	1-47428-815-0	01	1	9912-
130	PIPE; AIR,UNION TO UNION (B) L=1236 SERVICED BY L=1250	1-47428-817-0	01	1	9912-
131	UNION; AIR PIPE M12 L=40	9-09223-006-1	01	1	9912-0607
131	UNION; AIR PIPE M12 L=40	0-92113-006-0	01	1	0608-
134	WASHER; LK,UNION ID=10.2	9-09150-510-0	01	1	9912-0603
134	WASHER; LK,UNION ID=10.2	0-91510-510-0	01	1	0604-
142	NIPPLE; FLEX HOSE M10 & M12 STRAIGHT	1-09650-270-1	01	1	9912-
143	NUT; NIPPLE M10	9-09111-410-0	01	1	9912-0512
143	NUT; NIPPLE M10	0-91111-510-0	01	1	0601-
163	BRACKET; AIR PIPE (A)	1-47475-272-1	01	1	9912-
163	BRACKET; AIR PIPE (B) L=50	1-47475-299-2	01	1	9912-
239	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	9912-0607
239	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
240	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	9912-
241	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9912-0603
241	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	01	1	0604-
243	UNION; AIR PIPE	1-09656-014-1	01	1	9912-
244	NUT; UNION,AIR PIPE M12	9-99110-412-0	01	1	9912-0512
244	NUT; UNION,AIR PIPE M12	0-91110-512-0	01	1	0601-
