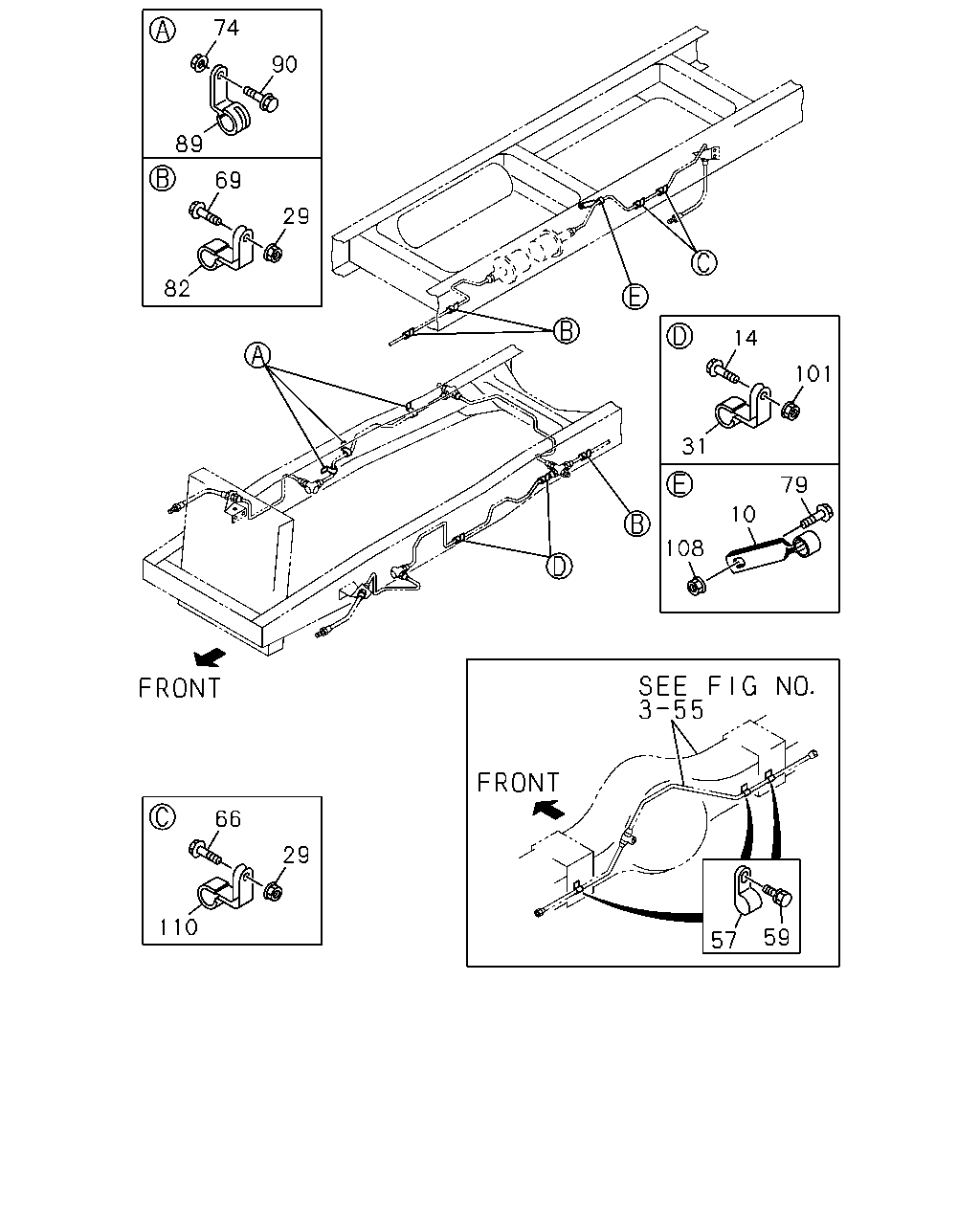

3-58 — FIXING PARTS; OIL PIPING (#8469) — 29 parça

74 90 89 69 29 82 14 101 31 79 10 108 66 29 110 59 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CLIP; OIL PIPE ID=9	1-09700-839-1	01	1	9912-
14	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
14	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28050-820-0	02	1	0601-
29	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	9912-0602
29	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-
31	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	9912-
57	CLIP; BRK PIPE,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) ID=7 L=20	9-09524-635-0	03	1	9912-0202
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	03	1	0203-0606
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	03	1	0607-
59	BOLT; BRK PIPE,RR AXLE FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M8X10 FLANGE	0-28080-810-0	03	1	9912-0202
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	03	1	0203-0512
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28050-810-0	03	1	0601-
66	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	02	1	9912-0512
66	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	02	1	0601-
69	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9912-0512
69	BOLT; CLIP M8X20 FLANGE	0-28050-820-0	03	1	0601-
74	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9912-0602
74	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
79	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	9912-0512
79	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0601-
82	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9912-
89	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9912-
90	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9912-0512
90	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28050-820-0	03	1	0601-
101	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9912-0602
101	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
108	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9912-0602
108	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
110	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	9912-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
