◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10824 - MR-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#8467) — 27 parça

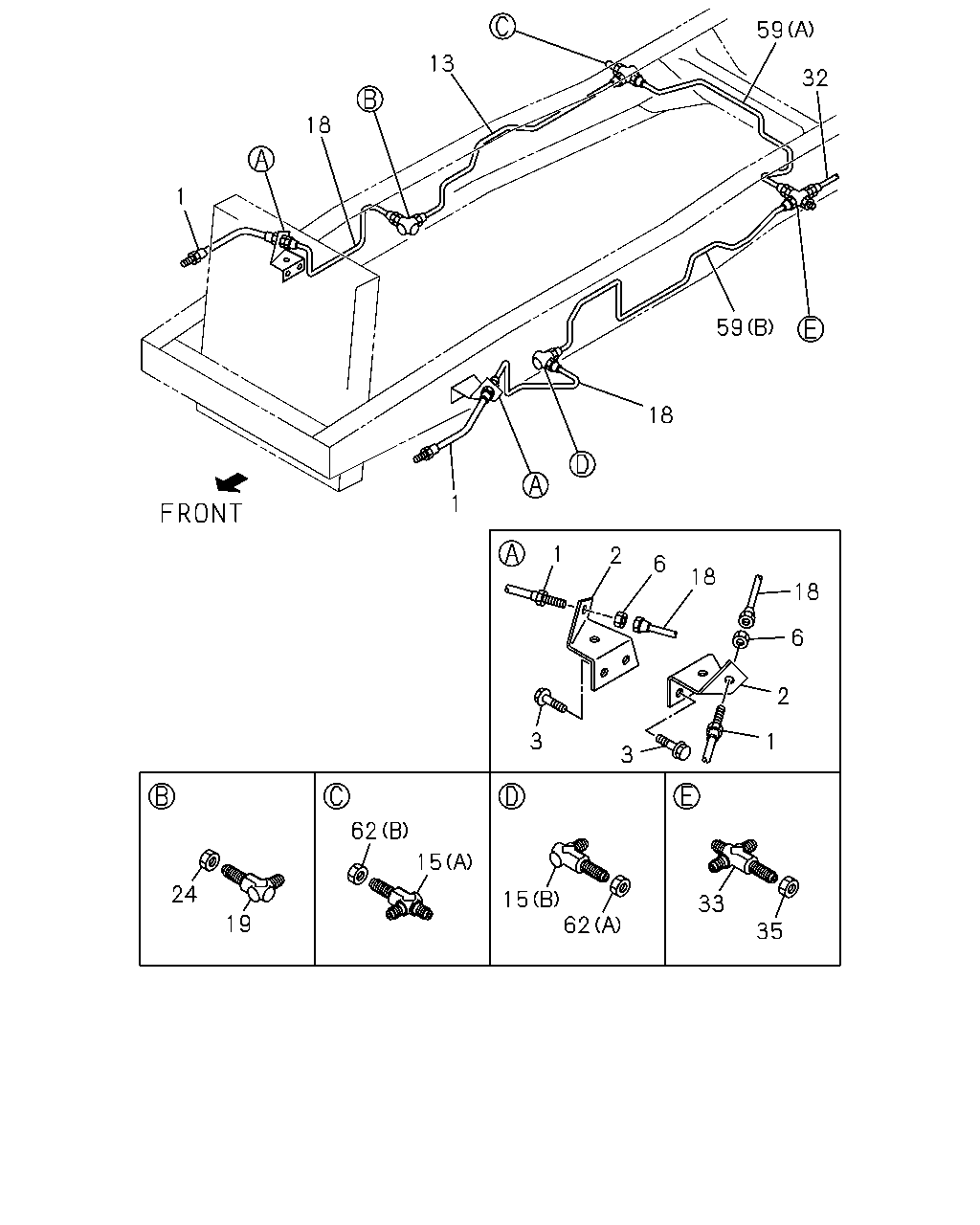

çizim 46435
59 13 32 18 1 59 18 1 1 2 6 18 18 6 2 3 1 3 62 15 24 15 62 33 19 35
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK 1-09364-617-0 02 1 9912-0511
1 HOSE; FLEX,FRT BRK 0-05213-580-0 02 1 0512-
2 BRACKET; FLEX HOSE,FRT BRK 1-47475-003-1 01 1 9912-
2 BRACKET; FLEX HOSE,FRT BRK 1-47475-002-1 01 1 9912-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28080-820-0 04 1 9912-0512
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X20 FLANGE 		0-28050-820-0 04 1 0601-
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 9912-
13 PIPE; OIL,UNION TO UNION
L=1009 SERVICED BY L=1100 		1-47428-731-0 01 1 9912-
15 JOINT; OIL PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 9912-
15 JOINT; OIL PIPE
(B) M12 ELBOW 		9-09225-206-1 01 1 9912-0607
15 JOINT; OIL PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 0608-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=337 		1-49164-778-0 01 1 9912-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
L=337 		1-49164-776-0 01 1 9912-
19 UNION; OIL PIPE
M12 ELBOW 		9-09225-206-1 01 1 9912-0607
19 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 9912-
32 PIPE; OIL,AIR MASTER TO UNION
L=1702 SERVICED BY L=1700 		1-47428-737-0 01 1 9912-0211
32 PIPE; OIL,AIR MASTER TO UNION
L=1702 SERVICED BY L=1820 		1-47428-738-0 01 1 0212-
33 UNION; OIL PIPE 9-09228-206-1 01 1 9912-0607
33 UNION; OIL PIPE 0-92138-206-0 01 1 0608-
35 NUT; UNION,OIL PIPE
M12 		9-99111-412-0 01 1 9912-0512
35 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0601-
59 PIPE; OIL,JOINT TO JOINT
(A) L=950 SERVICED BY L=1000 		1-47428-730-0 01 1 9912-
59 PIPE; OIL,JOINT TO JOINT
(B) 		1-49164-777-0 01 1 9912-
62 NUT; JOINT
(A) M12 		9-09840-280-0 01 1 9912-
62 NUT; JOINT
(B) M12 		9-99111-412-0 01 1 9912-0512
62 NUT; JOINT
(B) M12 		0-91111-512-0 01 1 0601-
