Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#8466) — 42 parça
◀

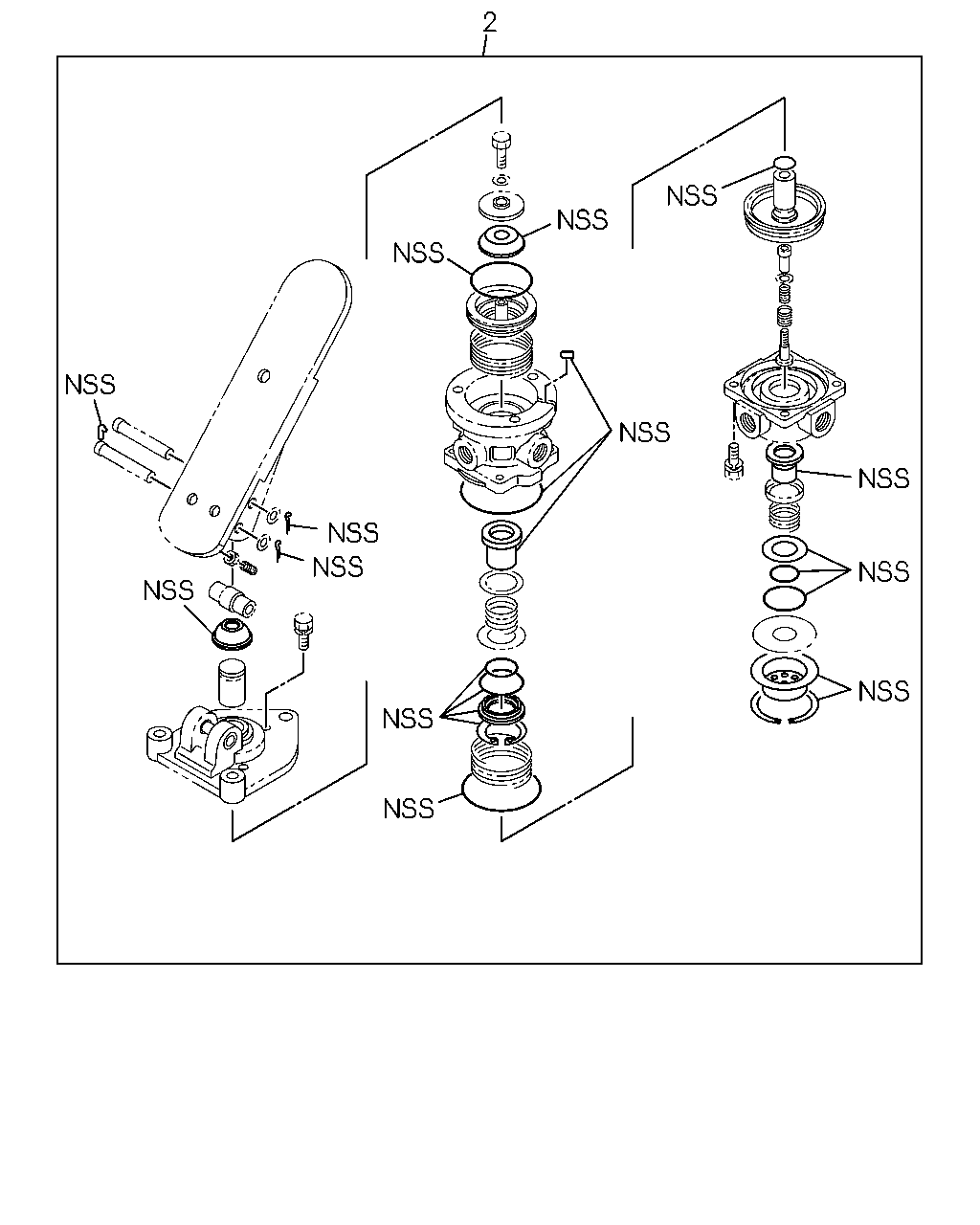

[334A] REPAIR KIT (3 parça)

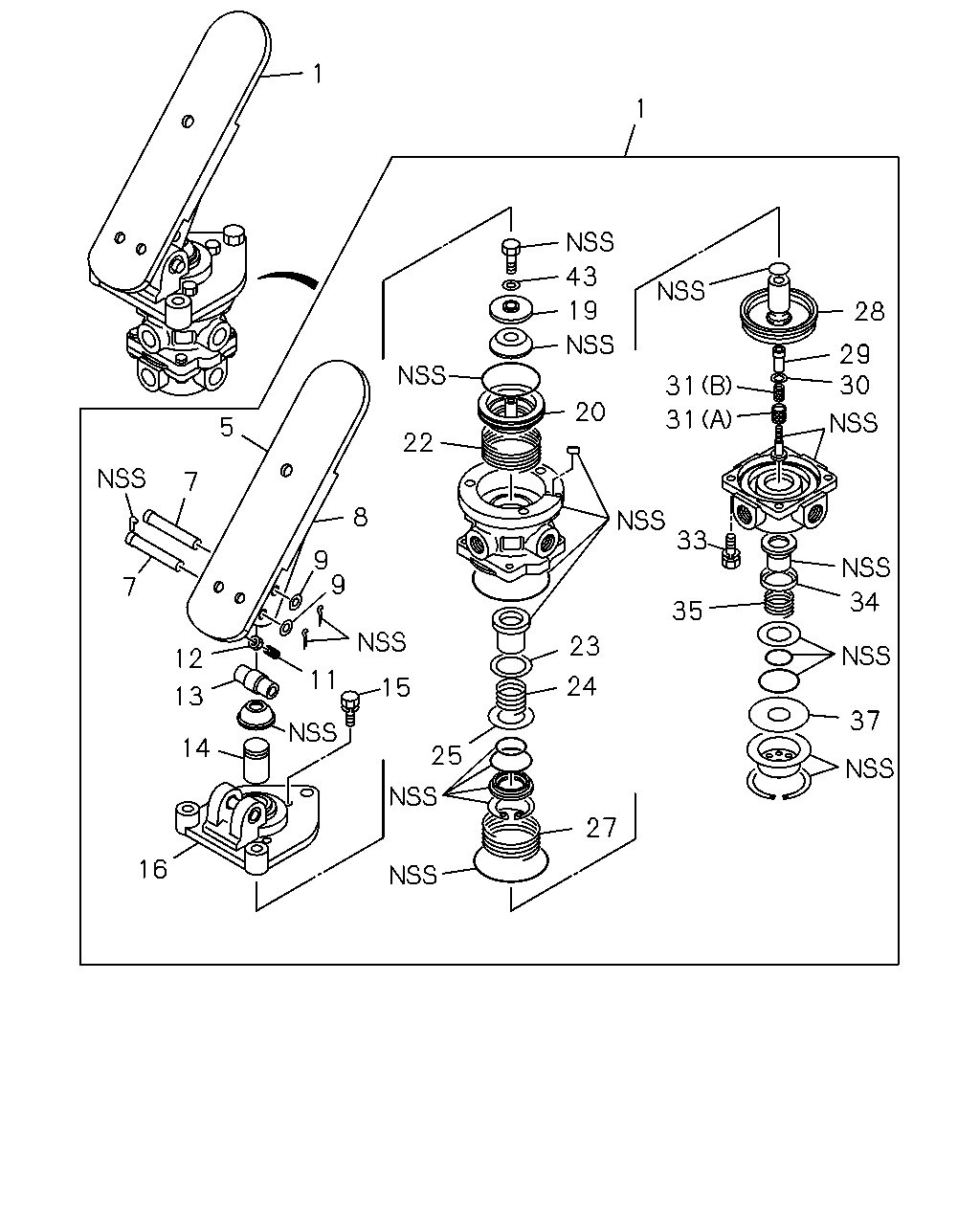

[334A] BRAKE VALVE (39 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; BRK VLV
1-85576-053-0
01
1
9912-0101
2
REPAIR KIT; BRK VLV
1-85576-289-0
01
1
0102-1211
2
REPAIR KIT; BRK VLV
8-98222-818-0
01
1
1212-
1
1
43
19
28
29
30
31
20
31
5
22
7
8
33
9
9
7
34
35
23
12
11
24
15
13
37
14
25
27
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; BRK
1-48100-601-0
01
1
9912-0101
1
VALVE; BRK
1-48100-833-0
01
1
0102-1211
1
VALVE; BRK
8-98222-794-0
01
1
1212-
5
COVER; PEDAL,BRK VLV
1-48119-359-0
01
1
9912-0101
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0102-
7
PIN; PEDAL,BRK VLV
1-48119-244-0
02
1
9912-0101
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0102-
8
PEDAL; BRK VLV
1-48119-357-0
01
1
9912-0101
8
PEDAL; BRK VLV
1-48119-502-0
01
1
0102-
9
WASHER; PIN,BRK VLV
1-48119-106-0
02
1
9912-0101
11
SCREW; SET,BRK VLV
1-48119-300-0
01
1
9912-0101
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0102-
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
9912-
13
ROLLER; PEDAL,BRK VLV
1-48119-243-0
01
1
9912-0101
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0102-
14
PLUNGER; BRK VLV
1-48119-277-0
01
1
9912-0101
14
PLUNGER; BRK VLV
1-48119-548-0
01
1
0102-
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
9912-
16
PLATE; MTG,BRKT VLV
1-48119-268-0
01
1
9912-0101
16
PLATE; MTG,BRKT VLV
1-48119-547-0
01
1
0102-
19
SEAT; SPRING,BRK VLV
1-48119-270-0
01
1
9912-
20
PISTON; UPR,BRK VLV
1-48119-272-0
01
1
9912-0101
20
PISTON; UPR,BRK VLV
1-48119-546-0
01
1
0102-
22
SPRING; PISTON,LWR,BRK VLV
1-48143-009-0
01
1
9912-
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
9912-
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
9912-
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
9912-
27
SPRING; PISTON,LWR,BRK VLV
1-48123-055-0
01
1
9912-
28
PISTON; LWR,BRK VLV
1-48129-140-0
01
1
9912-0101
28
PISTON; LWR,BRK VLV
1-48129-313-0
01
1
0102-
29
SLEEVE; VLV,BRK VLV
1-48129-083-1
01
1
9912-
30
WASHER; SLEEVE,BRK VLV
1-48129-082-0
01
1
9912-
31
SPRING; VLV,BRK VLV
(A)
1-48123-032-0
01
1
9912-
31
SPRING; VLV,BRK VLV
(B)
1-48123-033-0
01
1
9912-
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
9912-
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
9912-
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
9912-
37
WASHER; VLV LWR,BRK VLV
1-48129-080-0
01
1
9912-
43
WASHER; SPR SEAT,BRK VLV
1-48419-002-0
01
1
9912-
