3-20 — AIR TANK (#8462) — 110 parça

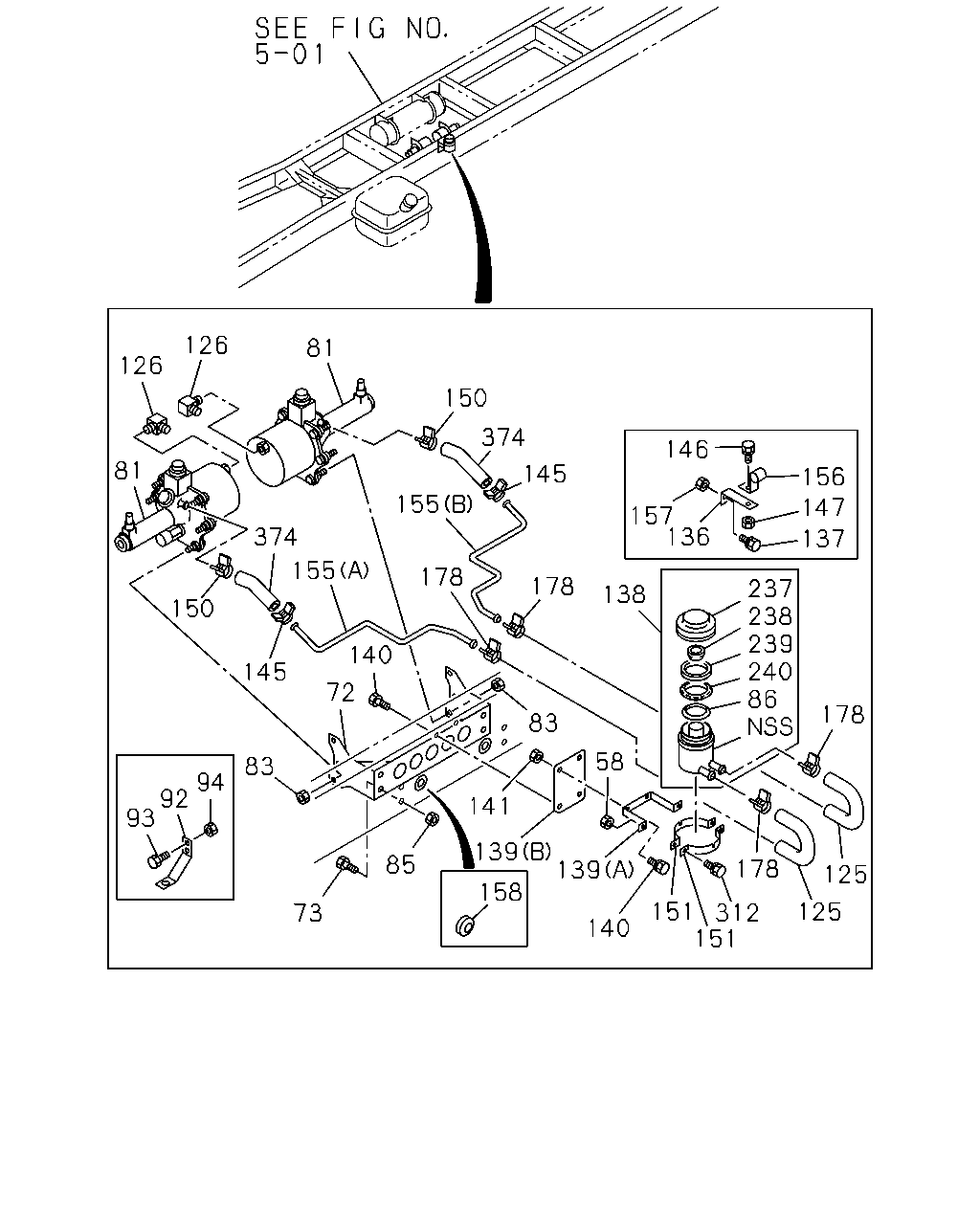

çizim 9564
126 81 126 150 374 146 81 145 156 155 147 157 136 374 137 155 178 178 237 238 239 240 86 138 150 140 145 72 178 83 58 83 94 92 93 141 85 139 139 178 125 158 151 125 73 140 151 312
BalonParca AdiParca NoAdetTipApplied Date
58 NUT; BAND,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9912-0602
58 NUT; BAND,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603-
72 BRACKET; AIR MASTER 1-53318-373-1 01 1 9912-
73 BOLT; BRKT TO FRAME,AIR MASTER
M10X25 FLANGE 		0-28681-025-0 04 1 9912-0512
73 BOLT; BRKT TO FRAME,AIR MASTER
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-500-2 02 1 9912-0211
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-789-0 02 1 0212-0901
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-827-0 02 1 0902-
83 NUT; AIR MASTER
M8 FLANGE 		0-91150-108-0 06 1 9912-0602
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 06 1 0603-
85 NUT; BRKT TO FRAME,AIR MASTER
M10 FLANGE 		0-91150-110-0 04 1 9912-0602
85 NUT; BRKT TO FRAME,AIR MASTER
M10 FLANGE 		0-91180-110-0 04 1 0603-
86 SEAL; DUST 1-47529-019-0 01 1 9912-
92 BRACKET; CHECK VLV 1-47478-715-0 01 1 9912-0304
93 BOLT; FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9912-0304
94 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 9912-0304
125 HOSE; OIL TANK TO AIR MASTER 1-47469-065-1 02 1 9912-
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 9912-
136 BRACKET; CLIP
L=55 		1-47475-304-0 02 1 9912-
137 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9912-0512
137 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0601-
138 TANK ASM; OIL,AIR MASTER 1-47530-170-1 01 1 9912-0011
138 TANK ASM; OIL,AIR MASTER 1-47530-184-0 01 1 0012-0206
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0207-
139 BRACKET; OIL TANK
(A) 		1-47537-069-1 01 1 9912-0212
139 BRACKET; OIL TANK
(A) 		1-47537-088-0 01 1 0301-
139 BRACKET; OIL TANK
(B) 		1-53319-021-1 01 1 9912-
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9912-0512
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE 		0-28051-025-0 04 1 0601-
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9912-0602
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91180-110-0 04 1 0603-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 02 1 9912-
146 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 02 1 9912-0512
146 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 02 1 0601-
147 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9912-0602
147 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
150 CLIP; BAND,RUBBER SLEEVE
ID=14 		1-09704-102-0 02 1 9912-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 9912-
155 PIPE; OIL,HOSE TO AIR MASTER
(A) L=492 SERVICED BY L=500 		1-47426-406-0 01 1 9912-
155 PIPE; OIL,HOSE TO AIR MASTER
(B) L=492 SERVICED BY L=500 		1-47426-406-0 01 1 9912-
156 CLIP; OIL PIPE
ID=11 H=20 L=20 		5-09700-351-0 02 1 9912-0707
156 CLIP; OIL PIPE
ID=11 H=20 L=20 		8-98033-780-0 02 1 0708-
157 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9912-0602
157 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
158 GROMMET; PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 9912-
178 CLIP; HOSE
ID=14 		1-09704-102-0 04 1 9912-
237 CAP; OIL TANK 1-47525-024-0 01 1 9912-0011
237 CAP; OIL TANK 1-47525-030-0 01 1 0012-
238 PLATE; BAFFLE 1-47529-022-0 01 1 9912-
239 FILTER; DUST 1-47529-017-0 01 1 9912-
240 HOLDER; FILTER 1-47529-018-0 01 1 9912-
312 BOLT; BAND TO FRAME
M8X20 FLANGE 		0-28080-820-0 02 1 9912-0512
312 BOLT; BAND TO FRAME
M8X20 FLANGE 		0-28050-820-0 02 1 0601-
374 HOSE; RUBBER
L=80 SERVICED BY L=1800 		1-09360-320-0 02 1 9912-

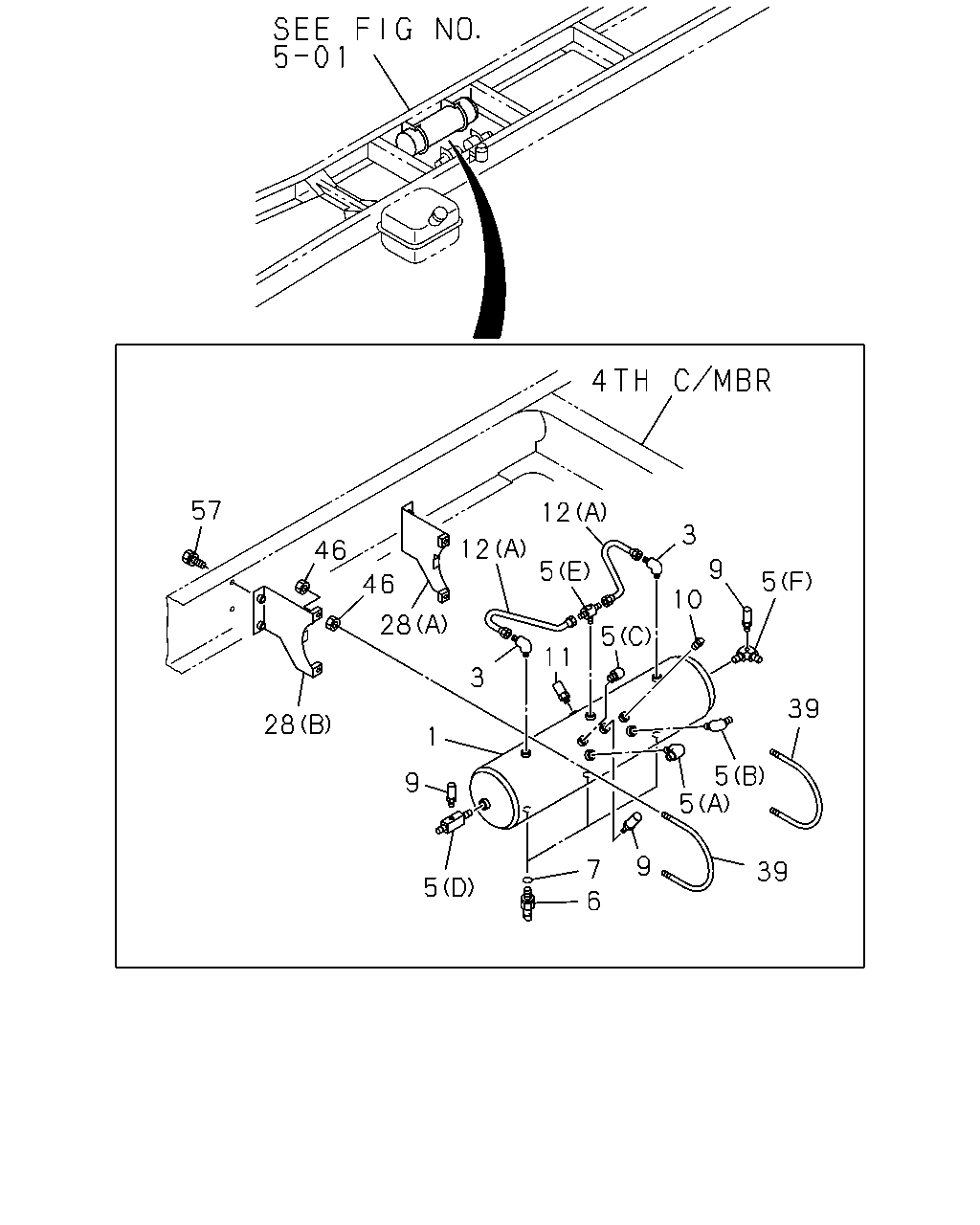

çizim 45580
57 12 3 12 46 46 9 10 5 5 28 5 11 3 39 28 1 5 5 9 9 7 6 39 5
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR 1-48330-461-3 01 1 9912-0211
1 TANK ASM; AIR 1-48371-289-0 01 1 0212-0901
1 TANK ASM; AIR 8-98137-069-0 01 1 0902-
3 VALVE; CHECK,AIR TANK
M20 & PT3/4 ELBOW 		1-48410-412-0 02 1 9912-
5 UNION; AIR TANK
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9912-
5 UNION; AIR TANK
(B) M14 & PT1/4 ELBOW 		1-09650-432-0 01 1 9912-
5 UNION; AIR TANK
(C) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9912-0211
5 UNION; AIR TANK
(G) M16 & PT1/4X2 3WAY 		1-09656-668-0 01 1 0212-
5 UNION; AIR TANK
(D) 		1-09656-446-0 01 1 9912-0211
5 UNION; AIR TANK
(E) 		1-09656-530-1 01 1 9912-0211
5 UNION; AIR TANK
(F) 		1-09656-673-0 01 1 9912-0211
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 9912-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 9912-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA 		1-48340-054-1 03 1 9912-
10 PLUG; AIR TANK
PT1/2 		9-09204-521-0 01 1 9912-0204
10 PLUG; AIR TANK
PT1/4 		9-99204-513-0 01 1 9912-0104
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 9912-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-49123-833-0 01 1 0212-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47496-760-0 02 1 9912-0211
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(C) 		1-47497-009-0 01 1 0212-
28 BRACKET; AIR TANK
(A) 		1-48317-416-1 01 1 9912-
28 BRACKET; AIR TANK
(B) 		1-48317-421-1 01 1 9912-
39 U-BOLT; AIR TANK
L=210 		1-48317-458-1 02 1 9912-
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 9912-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0601-
57 BOLT; BRKT,AIR TANK TO FRAME
M12X25 FLANGE 		0-28081-225-0 04 1 9912-0512
57 BOLT; BRKT,AIR TANK TO FRAME
M12X25 FLANGE 		0-28051-225-0 04 1 0601-

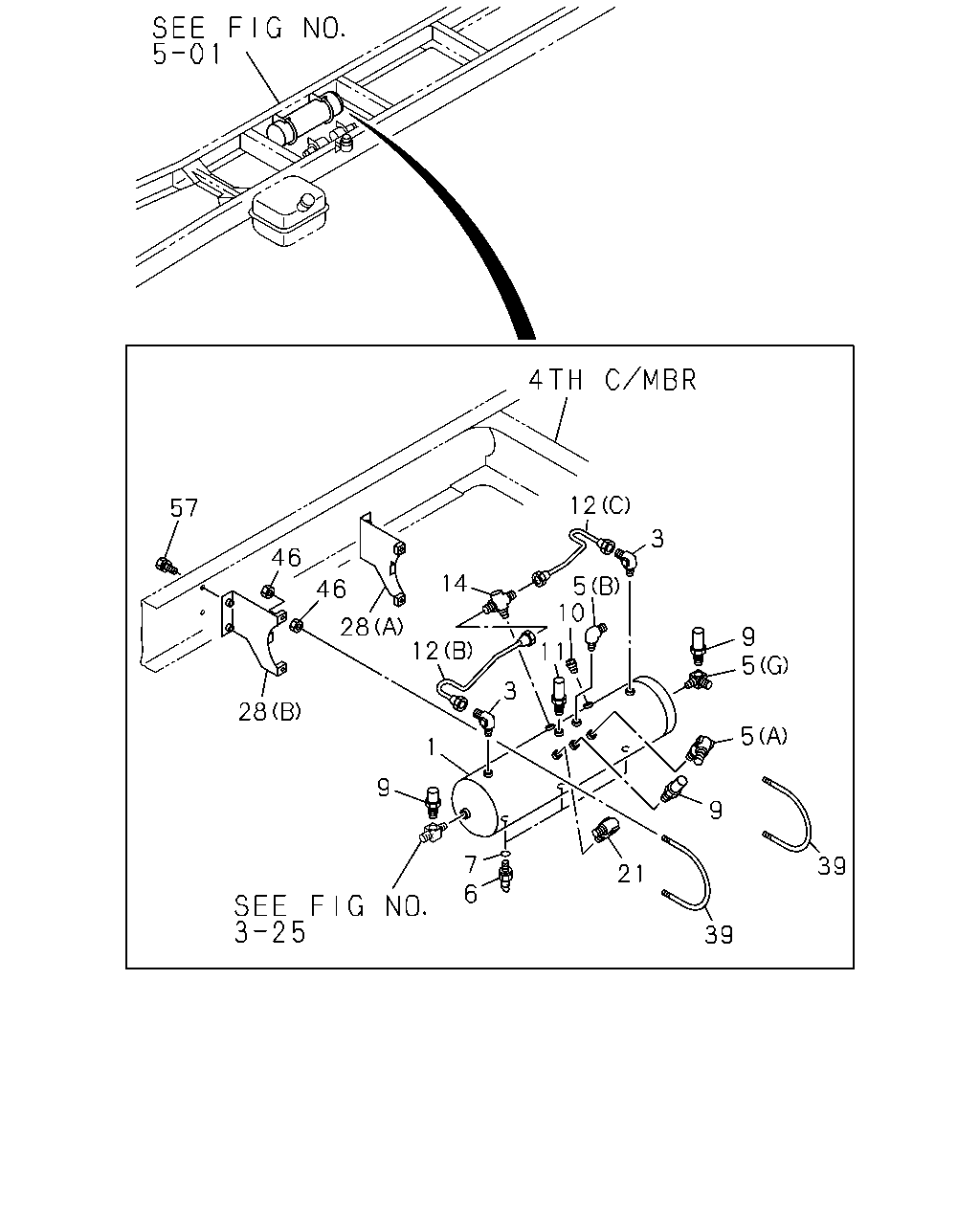

çizim 46354
12 57 3 46 46 14 5 10 28 12 9 5 11 3 28 5 1 9 9 7 6 39 21 39
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR 1-48330-461-3 01 1 9912-0211
1 TANK ASM; AIR 1-48371-289-0 01 1 0212-0901
1 TANK ASM; AIR 8-98137-069-0 01 1 0902-
3 VALVE; CHECK,AIR TANK
M20 & PT3/4 ELBOW 		1-48410-412-0 02 1 9912-
5 UNION; AIR TANK
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9912-
5 UNION; AIR TANK
(B) M14 & PT1/4 ELBOW 		1-09650-432-0 01 1 9912-
5 UNION; AIR TANK
(C) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9912-0211
5 UNION; AIR TANK
(G) M16 & PT1/4X2 3WAY 		1-09656-668-0 01 1 0212-
5 UNION; AIR TANK
(D) 		1-09656-446-0 01 1 9912-0211
5 UNION; AIR TANK
(E) 		1-09656-530-1 01 1 9912-0211
5 UNION; AIR TANK
(F) 		1-09656-673-0 01 1 9912-0211
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 9912-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 9912-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA 		1-48340-054-1 03 1 9912-
10 PLUG; AIR TANK
PT1/2 		9-09204-521-0 01 1 9912-0204
10 PLUG; AIR TANK
PT1/4 		9-99204-513-0 01 1 9912-0104
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 9912-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-49123-833-0 01 1 0212-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47496-760-0 02 1 9912-0211
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(C) 		1-47497-009-0 01 1 0212-
14 UNION; 3 WAY,AIR TANK
M20X2 & PT3/8 3WAY 		1-09656-340-1 01 1 0212-
21 VALVE; CHECK,AIR TANK
M22 & PT3/4 ELBOW 		1-48410-134-3 01 1 0212-
28 BRACKET; AIR TANK
(A) 		1-48317-416-1 01 1 9912-
28 BRACKET; AIR TANK
(B) 		1-48317-421-1 01 1 9912-
39 U-BOLT; AIR TANK
L=210 		1-48317-458-1 02 1 9912-
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 9912-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0601-
57 BOLT; BRKT,AIR TANK TO FRAME
M12X25 FLANGE 		0-28081-225-0 04 1 9912-0512
57 BOLT; BRKT,AIR TANK TO FRAME
M12X25 FLANGE 		0-28051-225-0 04 1 0601-
