1 |

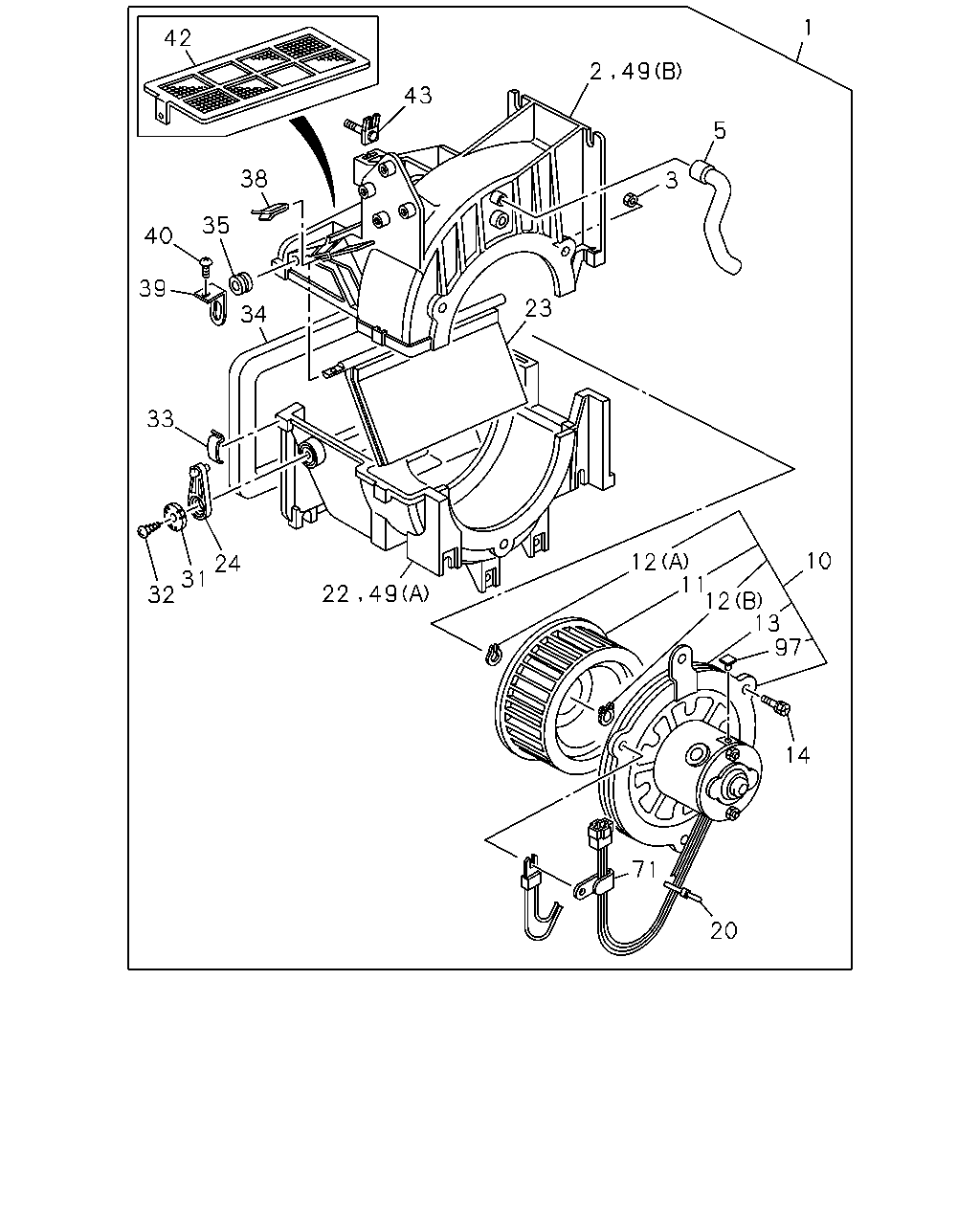

BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83561-040-6 |
01 |
1 |
9202- |
● |
● |
| |
1 |
BLOWER ASM
HEATER & DEFROSTER(C41)
BLOWER UNIT HIGH CAPACITY VAR 1<SFX>
|
1-83561-040-6 |
01 |
1 |
9202- |
● |
● |
| |
1 |
BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
EXC. BLOWER UNIT HIGH CAPACITY VAR 1<SFX>
|
1-83561-049-3 |
01 |
1 |
9202- |
● |
● |
| |
2 |
CASE; BLOWER UNIT,FRT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83563-119-0 |
01 |
1 |
9202- |
● |
● |
| |
3 |
NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
8-94233-154-0 |
04 |
1 |
9202- |
● |
● |
| |
5 |
HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83563-105-0 |
01 |
1 |
9202- |
● |
● |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83561-070-1 |
01 |
1 |
9202- |
● |
● |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41)
BLOWER UNIT HIGH CAPACITY VAR 1<SFX>
|
1-83561-070-1 |
01 |
1 |
9202- |
● |
● |
| |
10 |
MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
EXC. BLOWER UNIT HIGH CAPACITY VAR 1<SFX>
|
1-83561-068-1 |
01 |
1 |
9202- |
● |
● |
| |
11 |
IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-226-0 |
01 |
1 |
9202- |
● |
● |
| |
12 |
RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
5-83569-088-0 |
01 |
1 |
9202- |
● |
● |
| |
12 |
RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
8-94243-962-0 |
01 |
1 |
9202- |
● |
● |
| |
13 |
LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94243-963-0 |
01 |
1 |
9202- |
● |
● |
| |
13 |
LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
8-94233-165-0 |
01 |
1 |
9202- |
● |
● |
| |
14 |
SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X25
|
5-15729-279-0 |
04 |
1 |
9202- |
● |
● |
| |
20 |
BAND; CLIP,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-263-0 |
01 |
1 |
9202- |
● |
● |
| |
22 |
CASE; BLOWER UNIT,RR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83563-115-0 |
01 |
1 |
9202- |
● |
● |
| |
23 |
SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-234-1 |
01 |
1 |
9202- |
● |
● |
| |
24 |
LEVER; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83564-189-0 |
01 |
1 |
9202- |
● |
● |
| |
31 |
WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-095-0 |
01 |
1 |
9202- |
● |
● |
| |
32 |
SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X16
|
8-94248-820-0 |
01 |
1 |
9202- |
● |
● |
| |
33 |
CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94315-776-0 |
05 |
1 |
9202-9301 |
● |
● |
| |
33 |
CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-83574-148-0 |
05 |
1 |
9202-9301 |
● |
● |
| |
33 |
CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83574-148-0 |
05 |
1 |
9302- |
● |
● |
| |
34 |
LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-286-0 |
01 |
1 |
9202- |
● |
● |
| |
35 |
BUSHING; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83576-028-0 |
01 |
1 |
9202- |
● |
● |
| |
38 |
CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83574-149-0 |
01 |
1 |
9202- |
● |
● |
| |
39 |
LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83564-191-0 |
01 |
1 |
9202- |
● |
● |
| |
40 |
SCREW; LEVER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
5-83571-160-0 |
01 |
1 |
9202- |
● |
● |
| |
42 |
FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83579-267-1 |
01 |
1 |
9202- |
● |
● |
| |
42 |
FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41)
BLOWER UNIT HIGH CAPACITY VAR 1<SFX>
|
1-83579-267-1 |
01 |
1 |
9202- |
● |
● |
| |
43 |
BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-175-0 |
03 |
1 |
9202- |
● |
● |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
(A)
|
1-83563-115-0 |
01 |
1 |
9202- |
● |
● |
| |
49 |
CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
(B)
|
1-83563-119-0 |
01 |
1 |
9202- |
● |
● |
| |
71 |
CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83574-080-0 |
01 |
1 |
9202- |
● |
● |
| |
97 |
PLUG; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-248-0 |
01 |
1 |
9202- |
● |
● |
