◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10824 - MR-LHD ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#8458) — 77 parça

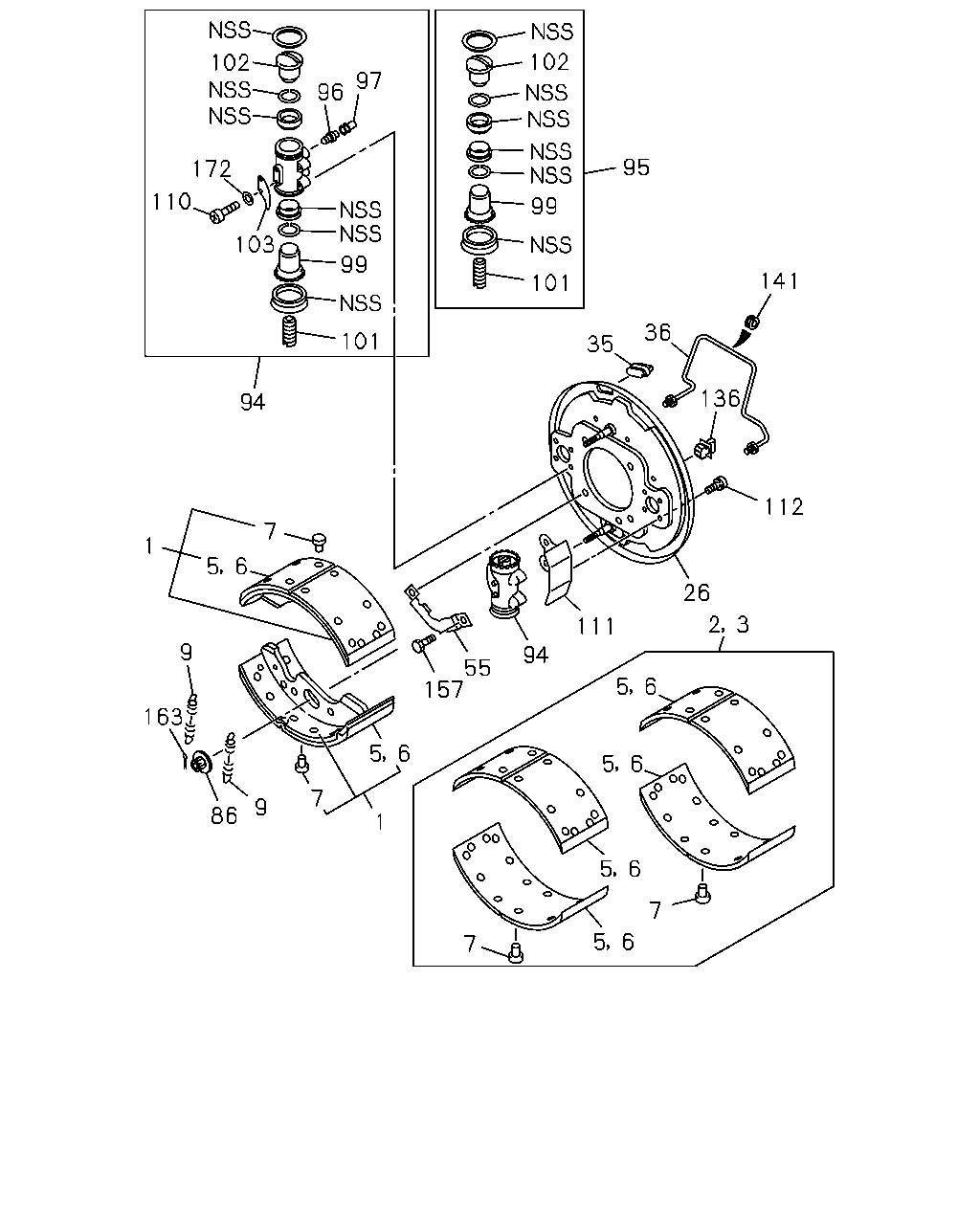

çizim 7442
102 102 97 96 95 172 110 99 103 99 141 101 36 101 35 136 94 112 7 1 5 6 26 2 3 111 9 94 55 157 5 6 163 5 6 5 6 7 9 86 1 5 6 7 5 6 7
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47120-555-0 04 1 9912-0007
1 SHOE; BRK,RR
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47120-561-0 04 1 0008-0202
1 SHOE; BRK,RR 1-47120-561-0 04 1 0203-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-88310-464-0 01 1 9912-0007
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-88310-480-0 01 1 0008-0202
2 LINING SET; RR BRK,STANDARD 1-88310-480-0 01 1 0203-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-88310-465-0 01 1 9912-0007
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-88310-481-0 01 1 0008-0202
3 LINING SET; RR BRK,OVER SIZE 1-88310-481-0 01 1 0203-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47125-633-0 04 1 9912-0007
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47125-696-0 04 1 0008-0202
5 LINING; RR BRK SHOE,STANDARD 1-47125-696-0 04 1 0203-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47125-635-0 04 1 9912-0007
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47125-697-0 04 1 0008-0202
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-697-0 04 1 0203-
7 RIVET; LINING,RR BRK
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) L=11.5 		1-09732-015-0 64 1 9912-0202
7 RIVET; LINING,RR BRK
L=11.5 		1-09732-015-0 64 1 0203-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-09583-182-0 04 1 9912-0202
9 SPRING; RETURN,BRK SHOE 1-09583-182-0 04 1 0203-
26 PLATE; BACK,RR BRK
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47150-425-0 01 1 9912-0202
26 PLATE; BACK,RR BRK 1-47150-425-0 01 1 0203-
26 PLATE; BACK,RR BRK
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47150-424-0 01 1 9912-0202
26 PLATE; BACK,RR BRK 1-47150-424-0 01 1 0203-
35 GROMMET; CHECK HOLE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-09333-033-0 04 1 9912-0202
35 GROMMET; CHECK HOLE 1-09333-033-0 04 1 0203-
36 PIPE; OIL,RR BRK
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47414-245-0 02 1 9912-0202
36 PIPE; OIL,RR BRK 1-47414-245-0 02 1 0203-
55 PLATE; LK,RR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47139-064-0 04 1 9912-0202
55 PLATE; LK,RR WHEEL CYL 1-47139-064-0 04 1 0203-
86 NUT; FLANGE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-09440-003-0 04 1 9912-0202
86 NUT; FLANGE 1-09440-003-0 04 1 0203-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) FORWARD 		1-47600-949-0 01 1 9912-0202
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47600-949-0 01 1 0203-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) BACKWARD 		1-47600-951-0 01 1 9912-0202
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47600-951-0 01 1 0203-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) FORWARD 		1-47600-948-0 01 1 9912-0202
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47600-948-0 01 1 0203-
94 CYLINDER; WHEEL,RR BRK
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) BACKWARD 		1-47600-950-0 01 1 9912-0202
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47600-950-0 01 1 0203-
95 CUP SET; RR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-87830-678-0 04 1 9912-0202
95 CUP SET; RR WHEEL CYL 1-87830-678-0 04 1 0203-
96 SCREW; BLEEDER,RR BRK
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		9-47615-027-0 02 1 9912-0202
96 SCREW; BLEEDER,RR BRK 9-47615-027-0 02 1 0203-0703
96 SCREW; BLEEDER,RR BRK 8-98050-476-0 02 1 0704-
97 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47619-009-0 02 1 9912-0202
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 0203-0703
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0704-
99 PISTON; RR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47624-306-0 02 1 9912-0202
99 PISTON; RR WHEEL CYL 1-47624-306-1 02 1 0203-
99 PISTON; RR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47624-305-0 02 1 9912-0202
99 PISTON; RR WHEEL CYL 1-47624-305-1 02 1 0203-
101 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47622-021-0 02 1 9912-0202
101 SCREW; ADJ,RR WHEEL CYL
RH THREAD 		1-47622-021-0 02 1 0203-
101 SCREW; ADJ,RR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47622-020-0 02 1 9912-0202
101 SCREW; ADJ,RR WHEEL CYL
LH THREAD 		1-47622-020-0 02 1 0203-
102 PISTON; REAR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47624-307-0 04 1 9912-0202
102 PISTON; REAR WHEEL CYL 1-47624-307-1 04 1 0203-
103 SPRING; LK,RR WHEEL CYL,ADJ
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47629-056-1 02 1 9912-0202
103 SPRING; LK,RR WHEEL CYL,ADJ 1-47629-056-1 02 1 0203-
103 SPRING; LK,RR WHEEL CYL,ADJ
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47629-055-1 02 1 9912-0202
103 SPRING; LK,RR WHEEL CYL,ADJ 1-47629-055-1 02 1 0203-
110 SCREW; LOCK SPRING,RR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-09164-004-0 08 1 9912-0202
110 SCREW; LOCK SPRING,RR WHEEL CYL 1-09164-004-0 08 1 0203-
111 COVER; WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-47159-063-1 02 1 9912-0202
111 COVER; WHEEL CYL 1-47159-063-1 02 1 0203-
112 BOLT; WHEEL CYL SETTING
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-09030-002-0 16 1 9912-0202
112 BOLT; WHEEL CYL SETTING 1-09030-002-0 16 1 0203-
136 GROMMET
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		9-09956-640-0 04 1 9912-0202
136 GROMMET 9-09956-640-0 04 1 0203-
141 PROTECTOR; RR BRK PIPE
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		9-47461-158-0 02 1 9912-0202
141 PROTECTOR; RR BRK PIPE 9-47461-158-0 02 1 0203-
157 BOLT; RR BRK SET
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) M14X45 SQUARE HEAD 		1-09060-015-0 12 1 9912-0202
157 BOLT; RR BRK SET
M14X45 SQUARE HEAD 		1-09060-015-0 12 1 0203-
163 PIN; SPLIT,SHOE HOLD
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		9-09874-040-0 04 1 9912-0202
163 PIN; SPLIT,SHOE HOLD 9-09874-040-0 04 1 0203-
172 WASHER; LK,SPR,RR WHEEL CYL
FINAL GEAR 38/8 13.5"(W1A) P46 PROP SHAFT(C4Z) 		1-09509-029-0 08 1 9912-0202
172 WASHER; LK,SPR,RR WHEEL CYL 1-09509-029-0 08 1 0203-
