Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-55 - AUTO TRANS SHIFT CONTROL LEVER
▶

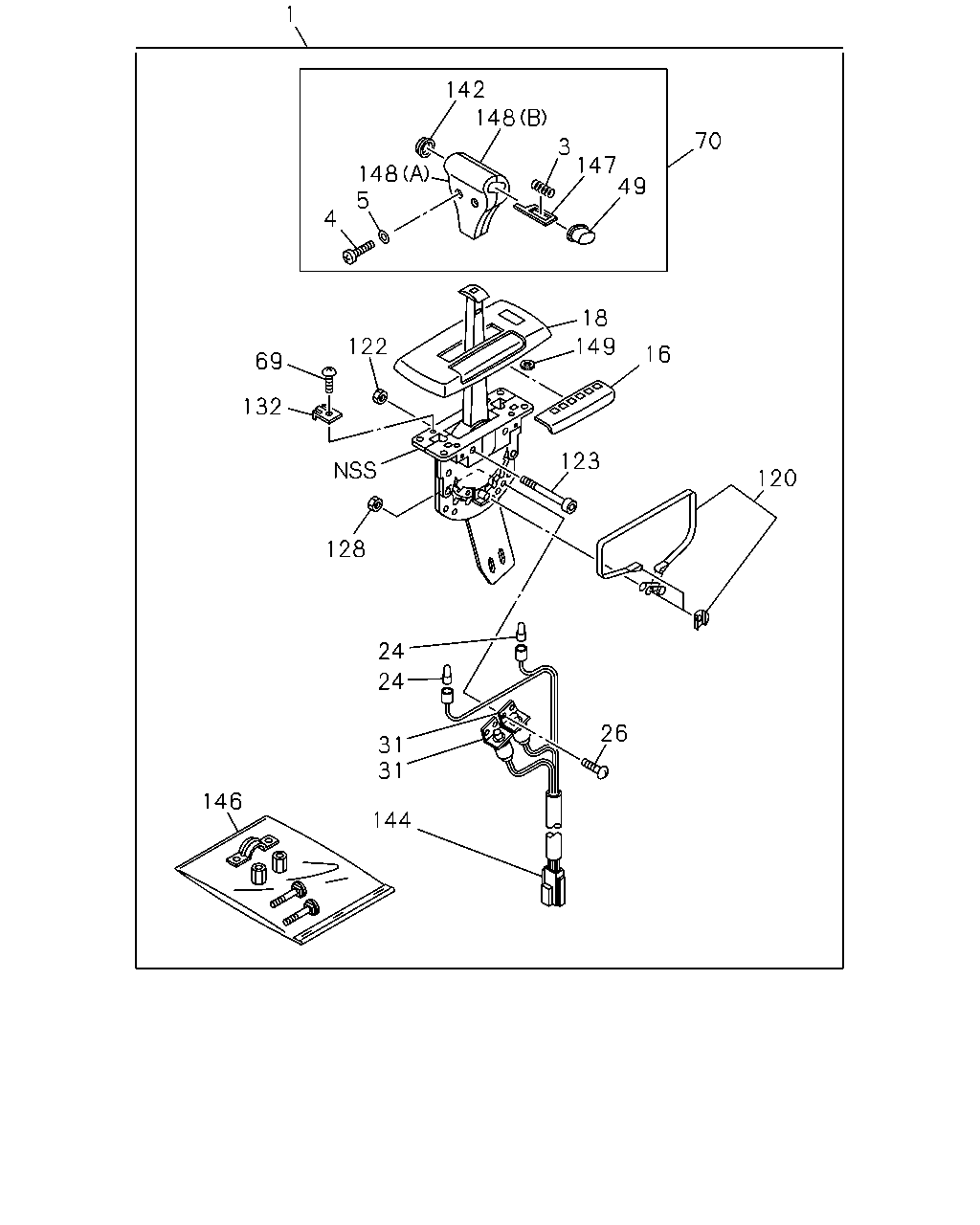

2-55 — AUTO TRANS SHIFT CONTROL LEVER
(#8455) — 38 parça
◀
[255A] NO.2 (25 parça)
[255A] NO.1 (13 parça)
▶
1
142
148
70
3
147
49
148
5
4
18
149
122
16
69
132
123
120
128
24
24
26
31
31
146
144
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; SHIFT,A/T
1-34610-069-1
01
1
9912-0104
1
LEVER; SHIFT,A/T
1-34610-074-0
01
1
0105-
3
SPRING; RETURN,KNOB
1-34619-104-0
01
1
9912-
4
SCREW; KNOB TO LEVER
1-34619-106-0
02
1
9912-
5
WASHER; KNOB TO LEVER
1-34619-107-0
02
1
9912-
16
LENS; INDICATOR
1-34619-058-0
01
1
9912-
18
COVER; INDICATOR,UPR
1-34615-003-0
01
1
9912-
24
BULB; SHIFT LEVER,A/T
12V 3.4W
1-34619-115-0
02
1
9912-
26
SCREW; SW TO BRKT
1-34619-097-0
04
1
9912-
31
SWITCH; SHIFT LEVER,A/T
1-34619-022-0
02
1
9912-
49
BUTTON; PUSH,KNOB
1-34619-102-0
01
1
9912-
69
SCREW; COVER,SHIFT LEVER
1-34619-056-0
04
1
9912-
70
KNOB; SHIFT LEVER
1-34612-003-0
01
1
9912-
120
BELT; INDICATOR
1-34619-096-0
01
1
9912-
122
NUT; SHIFT LEVER
1-34619-109-0
02
1
9912-
123
BOLT; SHIFT LEVER
1-34619-108-0
02
1
9912-
128
NUT; BRKT
1-34619-098-0
04
1
9912-
132
CLIP; COVER
1-34619-057-0
04
1
9912-
142
CAP; KNOB,SHIFT LEVER
1-34619-105-0
01
1
9912-
144
CONNECTOR KIT; HARNESS
8-94437-417-0
01
1
9912-
146
ATTACHMENT KIT; SHIFT LEVER
1-34619-099-0
01
1
9912-
147
PLATE; SLIDE,SHIFT LEVER
1-34619-103-0
01
1
9912-
148
GRIP; SHIFT LEVER
(A)
1-34619-100-0
01
1
9912-
148
GRIP; SHIFT LEVER
(B)
1-34619-101-0
01
1
9912-
149
NUT; INDICATOR BELT
1-34619-094-0
02
1
9912-
1
41
33
39
59
41
41
60
60
59
59
60
1
41
33
39
59
59
59
41
60
60
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; SHIFT,A/T
1-34610-069-1
01
1
9912-0104
1
LEVER; SHIFT,A/T
1-34610-074-0
01
1
0105-
33
WASHER; PL,CONT LEVER TO BODY
1-09500-043-0
04
1
9912-
39
SCREW; SHIFT LEVER
M6X13
1-09981-540-0
04
1
9912-
41
BRACKET; A/T CONT LEVER
(A)
1-34631-004-2
01
1
9912-0112
41
BRACKET; A/T CONT LEVER
(A)
1-34631-016-0
01
1
0201-
41
BRACKET; A/T CONT LEVER
(B)
1-34631-005-1
01
1
9912-0112
41
BRACKET; A/T CONT LEVER
(B)
1-34631-017-0
01
1
0201-
41
BRACKET; A/T CONT LEVER
(C)
1-34631-006-1
01
1
9912-0112
59
BOLT; STAY
M8X25 FLANGE
0-28680-825-0
03
1
9912-0512
59
BOLT; STAY
M8X25 FLANGE
0-28650-825-0
03
1
0601-
60
NUT; STAY
M8 FLANGE
0-91150-108-0
03
1
9912-0602
60
NUT; STAY
M8 FLANGE
0-91180-108-0
03
1
0603-
