2-53 — TRANSMISSION OIL COOLER SYSTEM (#8454) — 150 parça

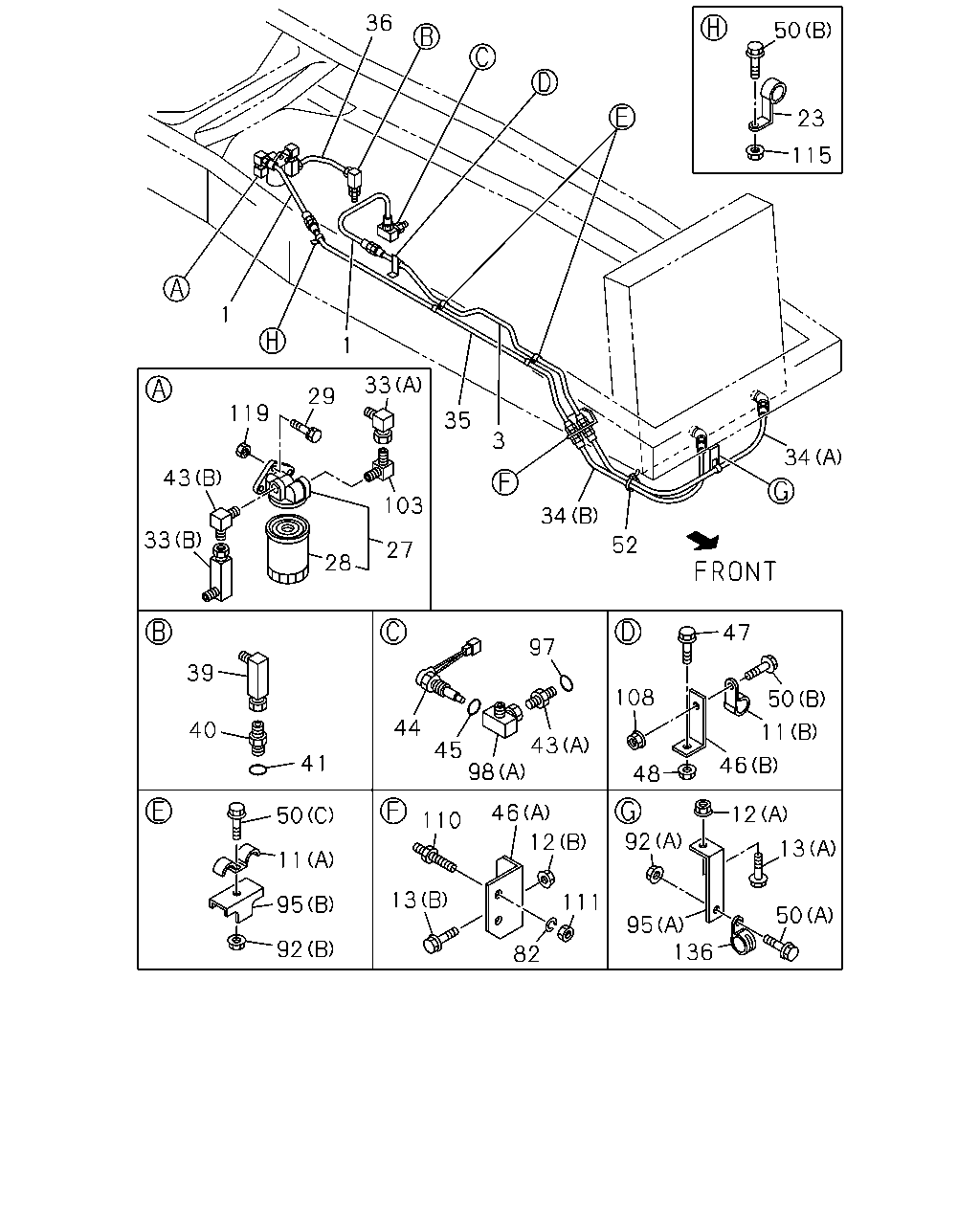

36 50 23 115 1 1 33 29 119 35 3 34 43 103 34 33 52 27 28 47 97 39 108 50 44 40 11 43 45 98 41 46 48 46 12 50 110 92 12 13 11 13 111 95 50 95 136 92 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF L=425	1-09364-880-0	02	1	9912-
3	PIPE; OIL,A/T TO OIL COOLER	1-21116-545-0	01	1	9912-
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	9912-
11	CLIP; PIPE (B) ID=16	9-09525-525-0	01	1	9912-0606
11	CLIP; PIPE (B) ID=16 L=16	0-95235-525-0	01	1	0607-
12	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9912-0602
12	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0603-
12	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9912-0602
12	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
13	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
13	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
13	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9912-0512
13	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
23	CLIP; OIL PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	9912-
27	FILTER ASM; OIL	1-32569-024-0	01	1	9912-
28	CARTRIDGE; OIL FILTER	1-32569-025-0	01	1	9912-
29	BOLT; FILTER TO BRKT M8X35 W/LK&PL WASHER	0-50140-835-0	03	1	9912-0512
29	BOLT; FILTER TO BRKT M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	0601-
33	UNION; OIL FILTER (B)	1-09660-144-0	01	1	9912-0204
33	UNION; OIL FILTER (C)	1-09664-258-0	01	1	0205-
33	UNION; OIL FILTER (A)	1-09661-043-0	01	1	9912-0204
33	UNION; OIL FILTER (D)	1-09664-259-1	01	1	0205-
34	HOSE; FLEX,RAD TO OIL COOLER PIPE (A) L=750	1-09364-887-0	01	1	9912-
34	HOSE; FLEX,RAD TO OIL COOLER PIPE (B) L=500	1-09365-090-0	01	1	9912-
35	PIPE; OIL,OIL COOLER TO FILTER	1-21116-546-0	01	1	9912-
36	PIPE; OIL,FILTER TO A/T	1-21111-998-0	01	1	9912-0204
36	PIPE; OIL,FILTER TO A/T	1-21117-204-0	01	1	0205-
39	CONNECTOR; FLEX HOSE,A/T	1-09660-047-0	01	1	9912-0204
39	CONNECTOR; FLEX HOSE,A/T M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0205-
40	CONNECTOR; FLEX HOSE,A/T M27 & SAE3/4	1-09654-063-0	01	1	9912-0204
40	CONNECTOR; FLEX HOSE,A/T	1-09654-421-0	01	1	0205-
41	GASKET; FLEX HOSE,A/T	9-09562-217-0	01	1	9912-
43	CONNECTOR; FLEX HOSE,A/T (A) M27 & SAE3/4	1-09654-063-0	01	1	9912-0204
43	CONNECTOR; FLEX HOSE,A/T (C)	1-09654-421-0	01	1	0205-
43	CONNECTOR; FLEX HOSE,A/T (B) M27 & NPTF3/4 ELBOW	1-09660-127-0	01	1	9912-0204
43	CONNECTOR; FLEX HOSE,A/T (D)	1-09664-260-0	01	1	0205-
44	SWITCH; OIL THERMO	1-82450-047-1	01	1	9912-
45	GASKET; OIL THERMO SW ID=26.8	1-09623-058-0	01	1	9912-
46	BRACKET; OIL PIPE (A)	1-34656-036-0	01	1	9912-
46	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	9912-
47	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
47	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9912-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
50	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512
50	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
50	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	9912-0512
50	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-
52	CLIP; FLEX HOSE,A/T L=250	5-09707-030-1	01	1	9912-
82	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9912-0603
82	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-
92	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	01	1	9912-0602
92	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	01	1	0603-
92	NUT; CLIP (B) M8 FLANGE	0-91150-108-0	02	1	9912-0602
92	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	02	1	0603-
95	BRACKET; CLIP (A)	1-34656-009-0	01	1	9912-
95	BRACKET; CLIP (B)	1-47475-427-1	02	1	9912-
97	GASKET; CONNECTOR	9-09562-217-0	01	1	9912-
98	CONNECTOR; HOSE & SW (C)	9-99220-612-0	01	1	0205-
98	CONNECTOR; HOSE & SW (A)	1-09664-204-1	01	1	9912-0204
98	CONNECTOR; HOSE & SW (B)	1-09664-261-0	01	1	0205-
103	CONNECTOR; OIL PIPE M27 & NPTF3/4 ELBOW	1-09660-127-0	01	1	9912-0204
103	CONNECTOR; OIL PIPE	1-09664-260-0	01	1	0205-
108	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
108	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
110	UNION; OIL PIPE	1-09654-261-1	02	1	9912-
111	NUT; UNION M22	9-09111-422-0	02	1	9912-0512
111	NUT; UNION M22	0-91111-522-0	02	1	0601-
115	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
115	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
119	NUT; FILTER TO BRKT M8	9-09110-408-0	03	1	9912-0512
119	NUT; FILTER TO BRKT M8	0-91110-508-0	03	1	0601-
136	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	9912-

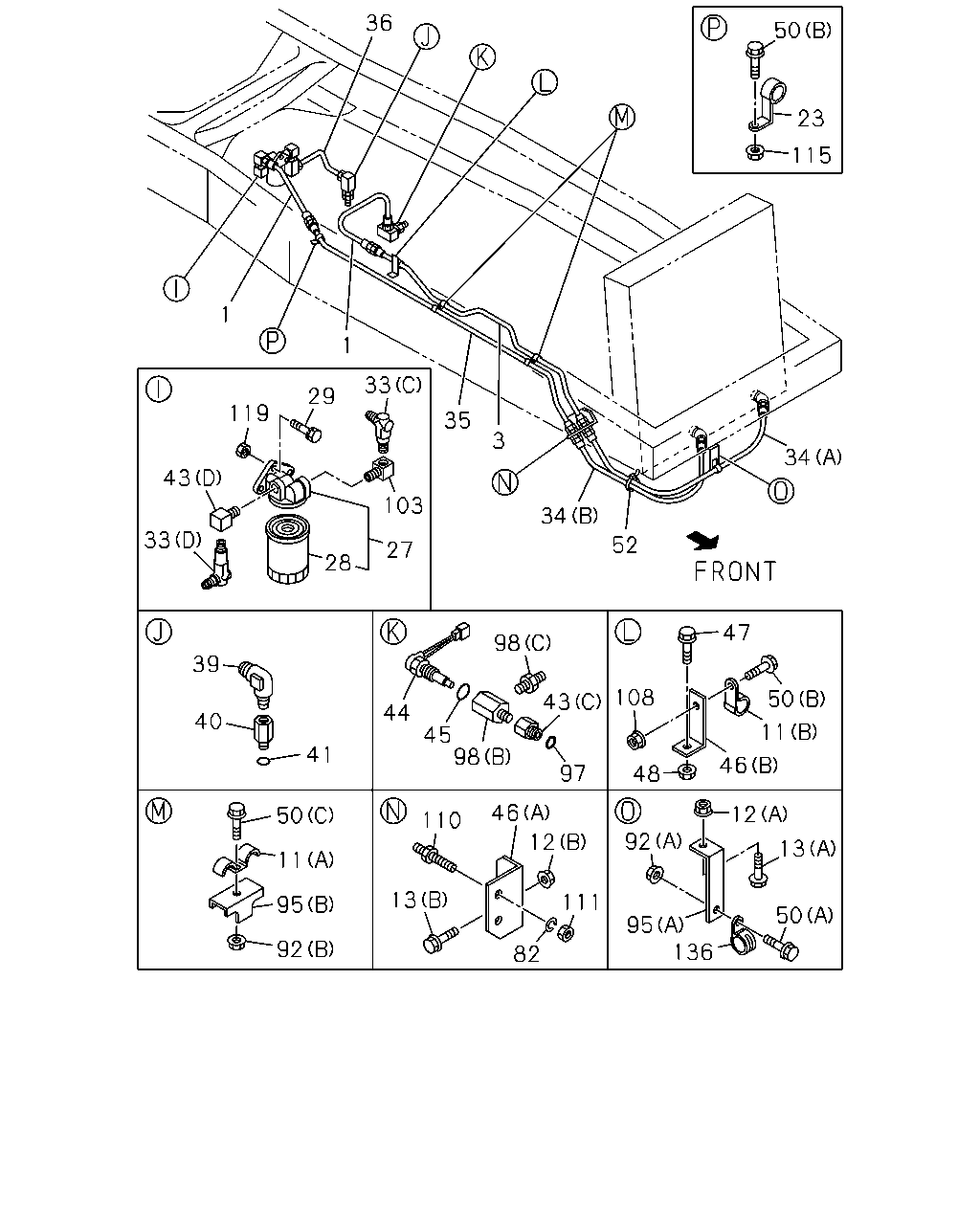

36 50 23 115 1 1 33 29 119 35 3 34 43 103 34 33 52 27 28 47 98 39 108 50 43 44 40 11 45 98 41 46 97 48 46 12 50 110 92 12 13 11 13 111 95 50 95 136 92 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF L=425	1-09364-880-0	02	1	9912-
3	PIPE; OIL,A/T TO OIL COOLER	1-21116-545-0	01	1	9912-
11	CLIP; PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	9912-
11	CLIP; PIPE (B) ID=16	9-09525-525-0	01	1	9912-0606
11	CLIP; PIPE (B) ID=16 L=16	0-95235-525-0	01	1	0607-
12	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9912-0602
12	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0603-
12	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9912-0602
12	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
13	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
13	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
13	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9912-0512
13	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
23	CLIP; OIL PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	9912-
27	FILTER ASM; OIL	1-32569-024-0	01	1	9912-
28	CARTRIDGE; OIL FILTER	1-32569-025-0	01	1	9912-
29	BOLT; FILTER TO BRKT M8X35 W/LK&PL WASHER	0-50140-835-0	03	1	9912-0512
29	BOLT; FILTER TO BRKT M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	0601-
33	UNION; OIL FILTER (B)	1-09660-144-0	01	1	9912-0204
33	UNION; OIL FILTER (C)	1-09664-258-0	01	1	0205-
33	UNION; OIL FILTER (A)	1-09661-043-0	01	1	9912-0204
33	UNION; OIL FILTER (D)	1-09664-259-1	01	1	0205-
34	HOSE; FLEX,RAD TO OIL COOLER PIPE (A) L=750	1-09364-887-0	01	1	9912-
34	HOSE; FLEX,RAD TO OIL COOLER PIPE (B) L=500	1-09365-090-0	01	1	9912-
35	PIPE; OIL,OIL COOLER TO FILTER	1-21116-546-0	01	1	9912-
36	PIPE; OIL,FILTER TO A/T	1-21111-998-0	01	1	9912-0204
36	PIPE; OIL,FILTER TO A/T	1-21117-204-0	01	1	0205-
39	CONNECTOR; FLEX HOSE,A/T	1-09660-047-0	01	1	9912-0204
39	CONNECTOR; FLEX HOSE,A/T M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0205-
40	CONNECTOR; FLEX HOSE,A/T M27 & SAE3/4	1-09654-063-0	01	1	9912-0204
40	CONNECTOR; FLEX HOSE,A/T	1-09654-421-0	01	1	0205-
41	GASKET; FLEX HOSE,A/T	9-09562-217-0	01	1	9912-
43	CONNECTOR; FLEX HOSE,A/T (A) M27 & SAE3/4	1-09654-063-0	01	1	9912-0204
43	CONNECTOR; FLEX HOSE,A/T (C)	1-09654-421-0	01	1	0205-
43	CONNECTOR; FLEX HOSE,A/T (B) M27 & NPTF3/4 ELBOW	1-09660-127-0	01	1	9912-0204
43	CONNECTOR; FLEX HOSE,A/T (D)	1-09664-260-0	01	1	0205-
44	SWITCH; OIL THERMO	1-82450-047-1	01	1	9912-
45	GASKET; OIL THERMO SW ID=26.8	1-09623-058-0	01	1	9912-
46	BRACKET; OIL PIPE (A)	1-34656-036-0	01	1	9912-
46	BRACKET; OIL PIPE (B) L=55	1-47475-304-0	01	1	9912-
47	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
47	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9912-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
50	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9912-0512
50	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
50	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	02	1	9912-0512
50	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
50	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	02	1	9912-0512
50	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-
52	CLIP; FLEX HOSE,A/T L=250	5-09707-030-1	01	1	9912-
82	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	9912-0603
82	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-
92	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	01	1	9912-0602
92	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	01	1	0603-
92	NUT; CLIP (B) M8 FLANGE	0-91150-108-0	02	1	9912-0602
92	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	02	1	0603-
95	BRACKET; CLIP (A)	1-34656-009-0	01	1	9912-
95	BRACKET; CLIP (B)	1-47475-427-1	02	1	9912-
97	GASKET; CONNECTOR	9-09562-217-0	01	1	9912-
98	CONNECTOR; HOSE & SW (C)	9-99220-612-0	01	1	0205-
98	CONNECTOR; HOSE & SW (A)	1-09664-204-1	01	1	9912-0204
98	CONNECTOR; HOSE & SW (B)	1-09664-261-0	01	1	0205-
103	CONNECTOR; OIL PIPE M27 & NPTF3/4 ELBOW	1-09660-127-0	01	1	9912-0204
103	CONNECTOR; OIL PIPE	1-09664-260-0	01	1	0205-
108	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
108	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
110	UNION; OIL PIPE	1-09654-261-1	02	1	9912-
111	NUT; UNION M22	9-09111-422-0	02	1	9912-0512
111	NUT; UNION M22	0-91111-522-0	02	1	0601-
115	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9912-0602
115	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
119	NUT; FILTER TO BRKT M8	9-09110-408-0	03	1	9912-0512
119	NUT; FILTER TO BRKT M8	0-91110-508-0	03	1	0601-
136	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	9912-
