2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#8451) — 11 parça

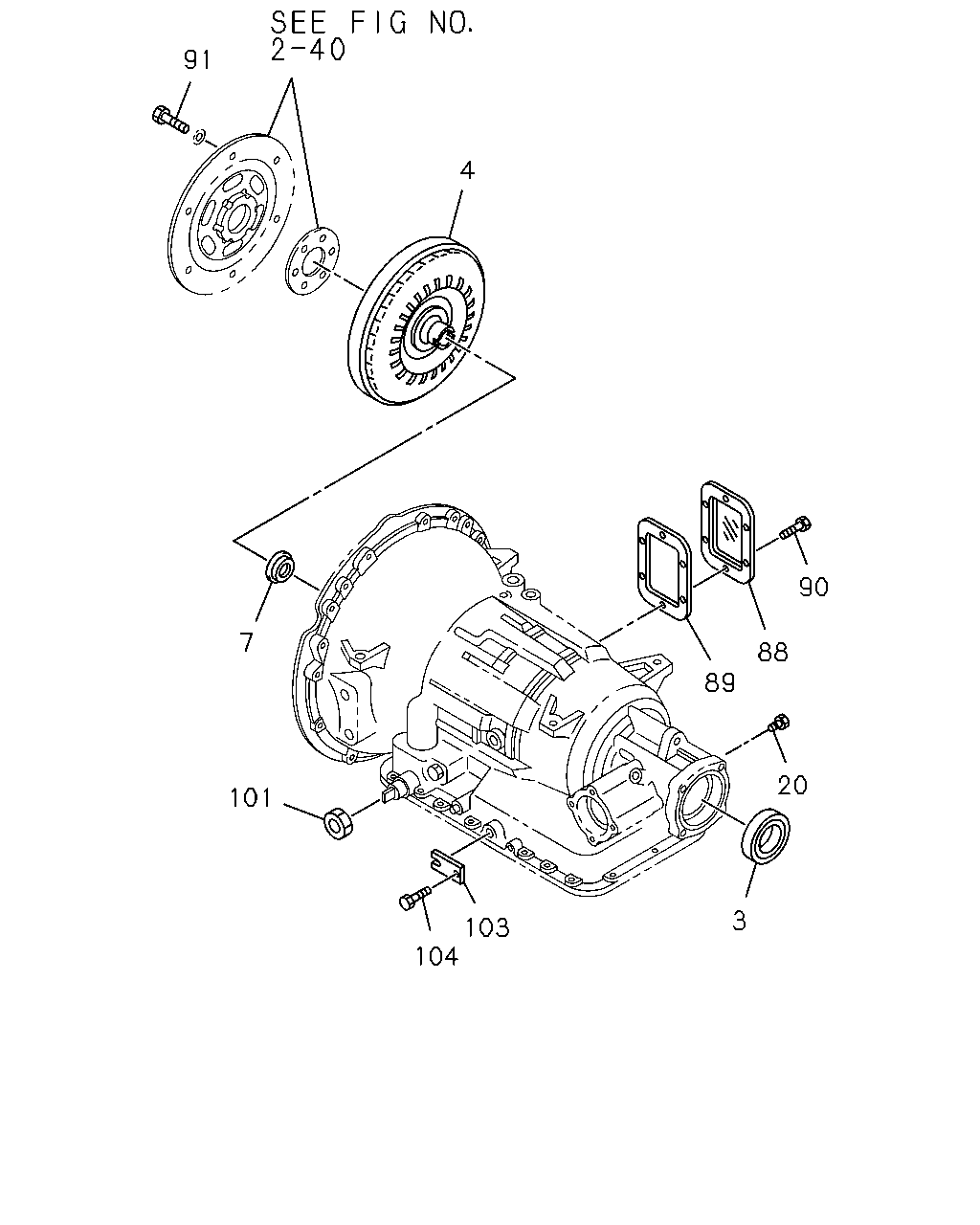

çizim 46159
91 4 90 7 88 89 20 101 3 103 104
BalonParca AdiParca NoAdetTipApplied Date
3 SEAL; OIL,RR COVER,A/T
P46 PROP SHAFT(C4Z) 		1-09625-052-0 01 1 9912-
4 CONVERTER ASM; TORQUE,A/T
P46 PROP SHAFT(C4Z) 		1-32100-006-0 01 1 9912-
7 SEAL; OIL,LIP,A/T
P46 PROP SHAFT(C4Z) 		1-09625-050-0 01 1 9912-
20 PLUG; TAPER,A/T CASE
P46 PROP SHAFT(C4Z) 		1-38129-009-0 02 1 9912-
88 COVER; SIDE,A/T
P46 PROP SHAFT(C4Z) 		1-38131-007-0 01 1 9912-
89 GASKET; SIDE COVER
P46 PROP SHAFT(C4Z) 		1-38183-007-0 01 1 9912-
90 BOLT; SIDE COVER
P46 PROP SHAFT(C4Z) 		1-34139-015-0 06 1 9912-
91 BOLT; FLEX PLATE
P46 PROP SHAFT(C4Z) THIS P/N CONSISTS OF 6 BOLTS 		1-09009-078-0 01 1 9912-
101 NUT; CONT ARM
P46 PROP SHAFT(C4Z) 		1-09464-003-0 01 1 9912-
103 RETAINER; A/T
P46 PROP SHAFT(C4Z) 		1-34559-004-0 01 1 9912-
104 BOLT; RET
P46 PROP SHAFT(C4Z) 		1-34139-024-0 01 1 9912-
