Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

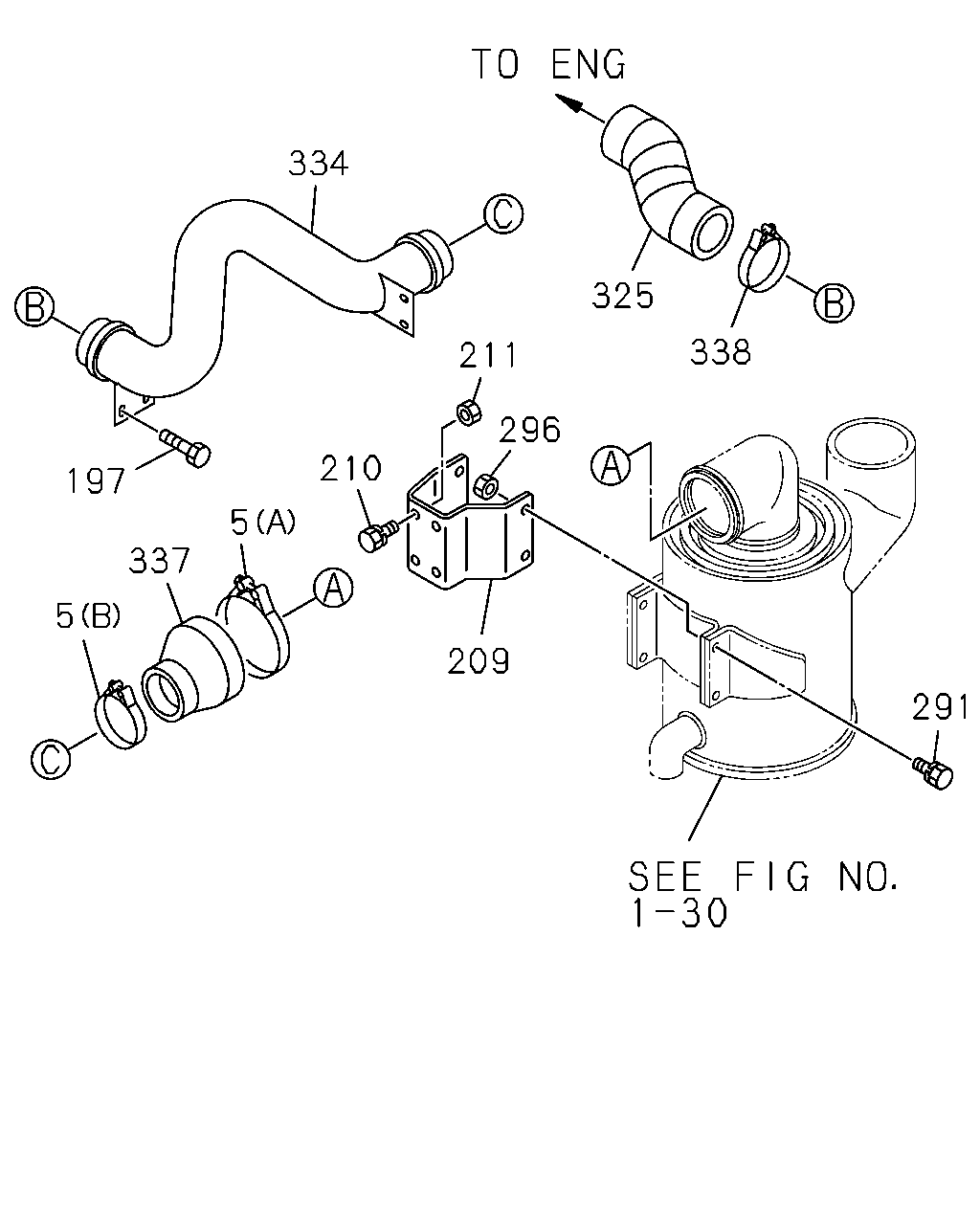

1-31 — AIR DUCT
(#8442) — 25 parça
334
325
338
211
296
210
197
5
337
5
209
291
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=77-95
1-09707-114-0
01
1
9912-0306
5
CLIP; AIR DUCT
(B) ID=77-95
1-09707-198-0
01
1
0307-0810
5
CLIP; AIR DUCT
(B) ID=75-95
8-98133-357-0
01
1
0811-
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-155-0
01
1
9912-0306
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
01
1
0307-0812
5
CLIP; AIR DUCT
(A) ID=100-120
8-98133-366-0
01
1
0901-
197
BOLT; CLAMP
M8X25 FLANGE
0-28680-825-0
04
1
9912-0512
197
BOLT; CLAMP
M8X25 FLANGE
0-28650-825-0
04
1
0601-
209
BRACKET; ACL
1-53497-200-1
01
1
9912-
210
BOLT; ACL BRKT
M10X25 W/LK WASHER
0-50041-025-0
04
1
9912-0512
210
BOLT; ACL BRKT
M10X25 W/LK WASHER
0-50541-025-0
04
1
0601-
211
NUT; BRKT
M10
9-09110-510-0
04
1
9912-0512
211
NUT; BRKT
M10
0-91110-510-0
04
1
0601-
291
BOLT; ACL
M8X25
1-09030-030-2
04
1
9912-
296
NUT; ACL
M8
9-09110-408-0
04
1
9912-0512
296
NUT; ACL
M8
0-91110-508-0
04
1
0601-
325
HOSE; RUBBER,ENG TO PIPE
1-14232-082-0
01
1
9912-
334
PIPE; JOINT,AIR DUCT
1-14134-379-0
01
1
9912-
337
HOSE; CONN,DUCT TO RESONATOR
1-09360-564-0
01
1
9912-
338
CLIP; PIPE
ID=77-95
1-09707-114-0
01
1
9912-0306
338
CLIP; PIPE
ID=77-95
1-09707-198-0
01
1
0307-0810
338
CLIP; PIPE
ID=75-95
8-98133-357-0
01
1
0811-
338
CLIP; PIPE
ID=104-142
1-09707-155-0
01
1
9912-0306
338
CLIP; PIPE
ID=104-139
1-09707-200-0
01
1
0307-0812
338
CLIP; PIPE
ID=110-130
8-98133-359-0
01
1
0901-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
