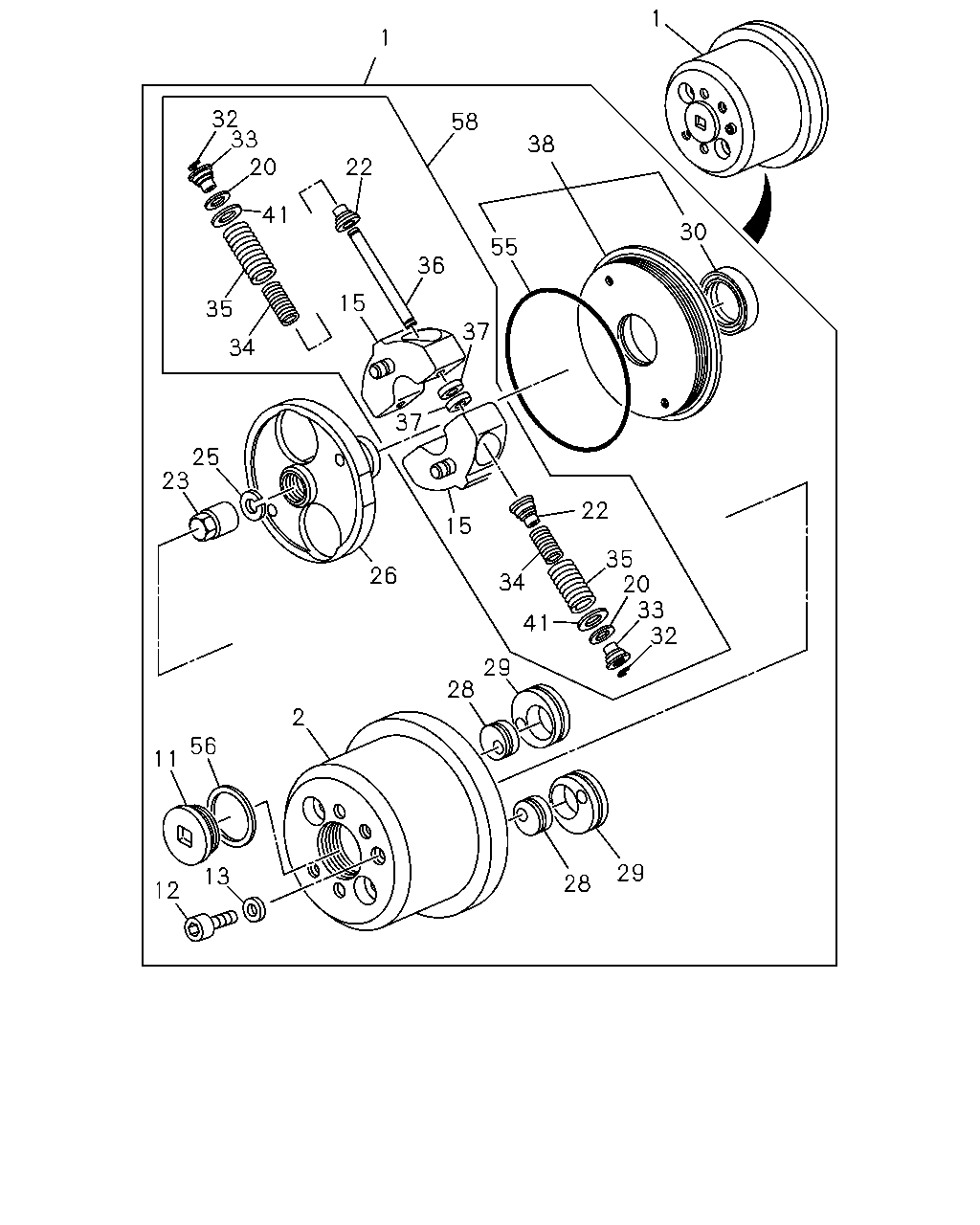

0-85 — AUTO TIMER; INJECTION PUMP (#8436) — 39 parça

1 1 32 33 20 58 38 22 41 30 55 36 15 35 37 34 37 25 23 22 15 35 20 33 32 26 34 41 29 28 2 56 11 29 13 28 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 8-97600-630-0	1-15740-483-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15741-077-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-594-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15743-146-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97600-630-0	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97600-630-0	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97600-630-0	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97600-630-0	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-97600-630-0	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-97600-630-0	1-15749-496-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	8-97085-026-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-318-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15742-151-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-592-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-159-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	8-97085-026-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-860-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=1.9 L=37.0 ASM PART: A = 8-97600-630-0	1-15749-859-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=1.7 L=39.5 ASM PART: A = 8-97600-630-0	1-15749-861-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=1.8 L=38.0 ASM PART: A = 8-97600-630-0	1-15749-862-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=2.0 L=36.0 ASM PART: A = 8-97600-630-0	1-15749-863-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP D=2.1 L=36.0 ASM PART: A = 8-97600-630-0	1-15749-864-0	01	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-868-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-418-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15749-591-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97600-630-0	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97600-630-0	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97600-630-0	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97600-630-0	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-97600-630-0	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-97600-630-0	1-15749-494-0	AR	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 8-97600-630-0	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: A = 8-97600-630-0	1-15749-453-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 8-97600-630-0	1-15743-144-0	01	1	-
