0-66 — GENERATOR (#8432) — 38 parça

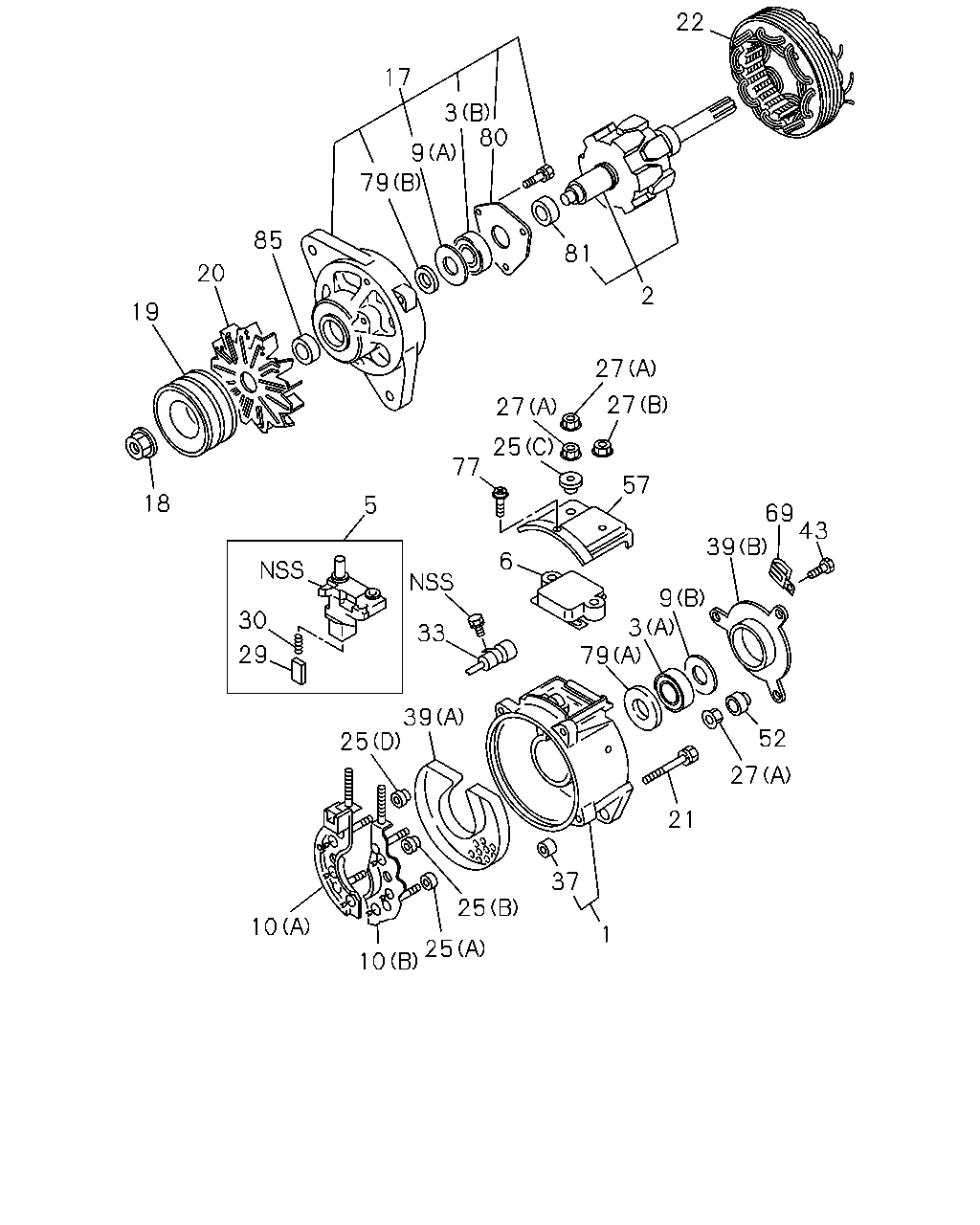

çizim 8508
22 17 3 80 9 79 85 81 20 2 19 27 27 27 25 77 57 18 5 69 43 39 6 9 30 3 79 33 29 39 25 52 27 21 37 25 10 1 25 10
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-291-0 		1-81229-536-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 1-81200-291-0 		1-81221-059-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-291-0 		5-81229-017-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-291-0 		5-81229-104-0 01 1 -
5 HOLDER; BRUSH,GEN
ASM PART: A = 1-81200-291-0 		1-81217-041-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 1-81200-291-0 		1-81270-011-0 01 1 -
9 COVER; FELT WASHER,ROTOR,GEN
(A) ASM PART: A = 1-81200-291-0 		1-81214-102-0 01 1 -
9 COVER; FELT WASHER,ROTOR,GEN
(B) ASM PART: A = 1-81200-291-0 		5-81214-059-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 1-81200-291-0 		1-81217-045-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: A = 1-81200-291-0 		1-81217-046-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-291-0 		1-81213-065-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 1-81200-291-0 		8-94167-948-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 1-81200-291-0 		1-81222-030-0 01 1 -
20 FAN; GEN
ASM PART: A = 1-81200-291-0 		5-81223-007-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 1-81200-291-0 		5-81229-106-0 04 1 -
22 STATOR; GEN
ASM PART: A = 1-81200-291-0 		1-81211-068-0 01 1 -
25 BUSHING; INSULATION TERMINAL
(A) ASM PART: A = 1-81200-291-0 		1-81229-410-0 02 1 -
25 BUSHING; INSULATION TERMINAL
(B) ASM PART: A = 1-81200-291-0 		1-81229-411-0 02 1 -
25 BUSHING; INSULATION TERMINAL
(C) ASM PART: A = 1-81200-291-0 		1-81229-413-0 01 1 -
25 BUSHING; INSULATION TERMINAL
(D) ASM PART: A = 1-81200-291-0 		5-81229-105-0 02 1 -
27 NUT; RECTIFIER,GEN
(A), M6 ASM PART: A = 1-81200-291-0 		8-94206-186-0 02 1 -
27 NUT; RECTIFIER,GEN
(B) ASM PART: A = 1-81200-291-0 		8-94206-188-0 06 1 -
29 BRUSH; GEN
ASM PART: A = 1-81200-291-0 		5-81215-018-0 01 1 -
30 SPRING; BRUSH,GEN
ASM PART: A = 1-81200-291-0 		5-81216-002-0 01 1 -
33 WIRE; LEAD,GEN
ASM PART: A = 1-81200-291-0 		1-81215-040-0 01 1 -
37 BUSHING; RR COVER,GEN
ASM PART: A = 1-81200-291-0 		9-82215-879-0 01 1 -
39 COVER; END,RR COVER,GEN
(A) ASM PART: A = 1-81200-291-0 		1-81214-188-0 01 1 -
39 COVER; END,RR COVER,GEN
(B) ASM PART: A = 1-81200-291-0 		5-81214-028-1 01 1 -
43 SCREW; RR END COVER
ASM PART: A = 1-81200-291-0 		1-81229-416-0 03 1 -
52 CAP; RUBBER,TERMINAL
ASM PART: A = 1-81200-291-0 		1-81229-417-0 02 1 -
57 COVER; BRUSH,GEN
ASM PART: A = 1-81200-291-0 		1-81217-047-0 01 1 -
69 CLIP; WIRE,GEN
ASM PART: A = 1-81200-291-0 		1-81229-634-0 01 1 -
77 SCREW; REG
ASM PART: A = 1-81200-291-0 		1-81229-419-0 05 1 -
79 WASHER; FELT,ROTOR,GEN
(A) ASM PART: A = 1-81200-291-0 		5-81229-039-0 01 1 -
79 WASHER; FELT,ROTOR,GEN
(B) ASM PART: A = 1-81200-291-0 		9-82215-707-0 01 1 -
80 PLATE; ROTOR,GEN
ASM PART: A = 1-81200-291-0 		1-81229-405-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 1-81200-291-0 		1-81229-403-0 01 1 -
85 SPACER; PULLEY,GEN
ASM PART: A = 1-81200-291-0 		1-81229-415-0 01 1 -
