0-65 — STARTER (#8431) — 29 parça

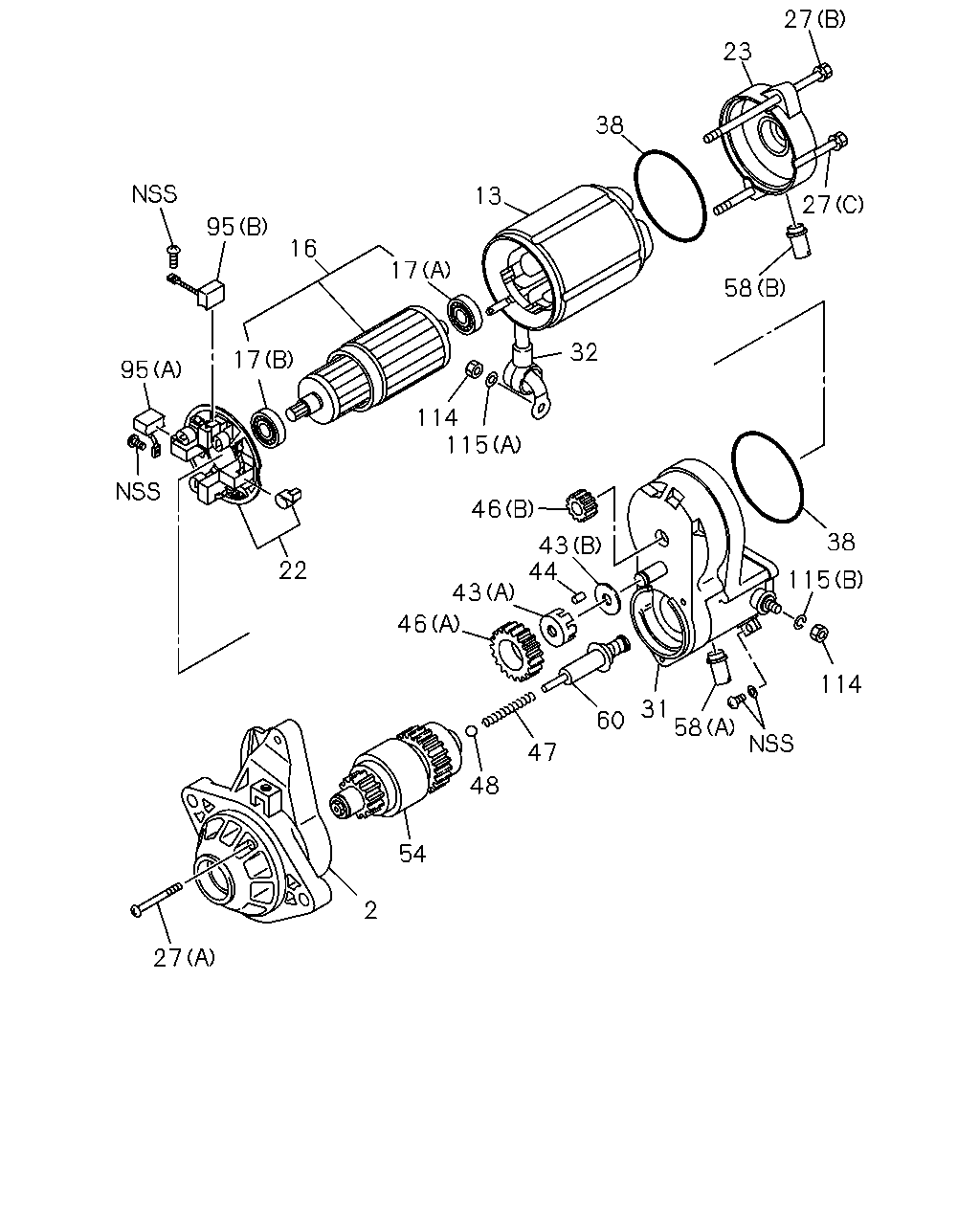

çizim 46854
27 23 38 13 27 95 16 17 58 32 17 95 114 115 46 38 43 44 22 115 43 46 114 31 58 60 47 48 54 2 27
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 1-81100-412-1 		1-81114-043-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 1-81100-412-1 		1-81111-003-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 1-81100-412-1 		1-81121-042-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 1-81100-412-1 		1-81129-495-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 1-81100-412-1 		5-09800-081-0 01 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 1-81100-412-1 		1-81118-043-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 1-81100-412-1 		1-81129-861-0 01 1 -
27 BOLT; THROUGH,STARTER
(B) ASM PART: A = 1-81100-412-1 		1-81129-625-0 03 1 -
27 BOLT; THROUGH,STARTER
(A) ASM PART: A = 1-81100-412-1 		1-81129-675-0 01 1 -
27 BOLT; THROUGH,STARTER
(C) ASM PART: A = 1-81100-412-1 		1-81129-676-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 1-81100-412-1 		1-81151-121-0 01 1 -
32 COVER; RUBBER,STARTER
ASM PART: A = 1-81100-412-1 		1-81129-504-0 01 1 -
38 GASKET; RR COVER,STARTER
ASM PART: A = 1-81100-412-1 		1-81129-502-0 02 1 -
43 RETAINER; PINION STARTER
(A) ASM PART: A = 1-81100-412-1 		5-81129-121-0 01 1 -
43 RETAINER; PINION STARTER
(B) ASM PART: A = 1-81100-412-1 		5-81129-127-0 01 1 -
44 ROLLER; PINION STARTER
ASM PART: A = 1-81100-412-1 		5-81129-120-0 05 1 -
46 GEAR; CLU STARTER
(A) ASM PART: A = 1-81100-412-1 		1-81123-034-0 01 1 -
46 GEAR; CLU STARTER
(B) ASM PART: A = 1-81100-412-1 		1-81123-035-0 01 1 -
47 SPRING; PINION STARTER
ASM PART: A = 1-81100-412-1 		5-81129-119-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: A = 1-81100-412-1 		5-81129-092-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 1-81100-412-1 		1-81122-049-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
(A) ASM PART: A = 1-81100-412-1 		1-81129-668-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
(B) ASM PART: A = 1-81100-412-1 		1-81129-737-0 01 1 -
60 PLUNGER; ENGAGE SW STARTER
ASM PART: A = 1-81100-412-1 		1-81129-669-0 01 1 -
95 BRUSH ASM; STARTER
(A) ASM PART: A = 1-81100-412-1 		1-81116-048-0 02 1 -
95 BRUSH ASM; STARTER
(B) ASM PART: A = 1-81100-412-1 		1-81116-049-0 02 1 -
114 NUT; TERMINAL
ASM PART: A = 1-81100-412-1 		5-81129-126-0 02 1 -
115 WASHER; TERMINAL
(A) ASM PART: A = 1-81100-412-1 		5-81129-129-0 01 1 -
115 WASHER; TERMINAL
(B) ASM PART: A = 1-81100-412-1 		5-81129-134-0 01 1 -
