8-60 — HEATER UNIT; FRONT (#843) — 40 parça

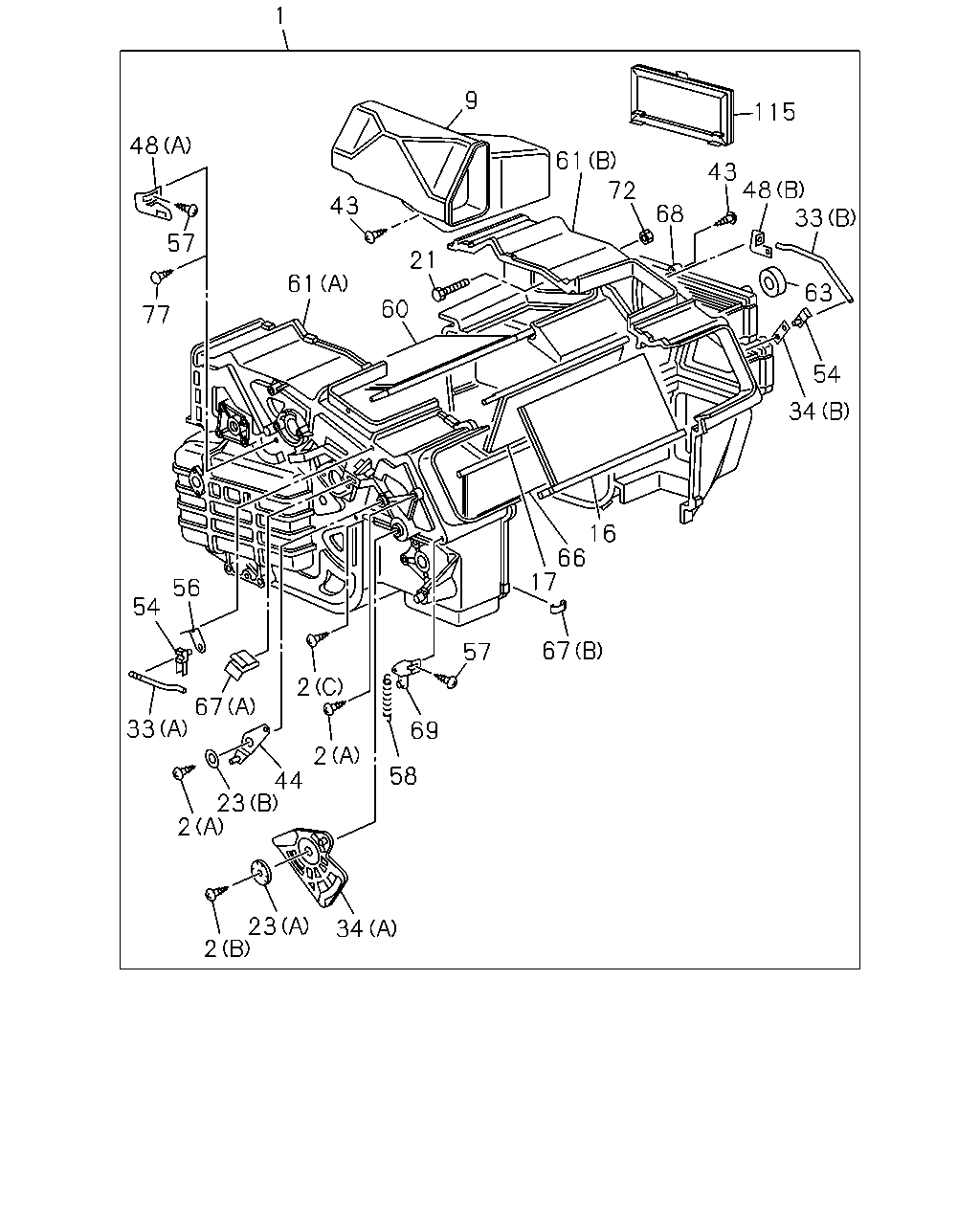

çizim 94167
1 48 57 77 61 60 21 43 9 61 72 68 43 48 115 33 63 54 34 16 66 67 17 57 69 58 2 2 44 56 54 67 33 23 2 34 23 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83511-095-6 01 1 9202- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83511-103-3 01 1 9202- ● ●
2 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-133-0 02 1 9202- ● ●
2 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 		8-94248-820-0 01 1 9202- ● ●
2 SCREW; LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-157-0 01 1 9202- ● ●
9 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-104-0 01 1 9202- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-225-0 01 1 9202- ● ●
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-226-0 01 1 9202- ● ●
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-15619-060-0 03 1 9202- ● ●
23 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-095-0 01 1 9202- ● ●
23 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-94129-950-0 01 1 9202- ● ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-373-0 01 1 9202- ● ●
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-155-0 01 1 9202- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-163-0 01 1 9202- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-198-0 01 1 9202- ● ●
43 SCREW; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-807-0 03 1 9202- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-199-0 01 1 9202- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-161-0 01 1 9202- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-162-0 01 1 9202- ● ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-143-0 02 1 9202- ● ●
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-143-0 01 1 9202- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-197-0 01 1 9202- ● ●
57 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		5-83571-160-0 05 1 9202- ● ●
57 SCREW; LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		5-83571-160-0 02 1 9202- ● ●
58 SPRING; HTR LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-196-0 01 1 9202- ● ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-228-0 01 1 9202- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-299-0 01 1 9202- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-301-0 01 1 9202- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-160-0 01 1 9202- ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-219-0 01 1 9202- ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-237-0 02 1 9202- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-227-0 01 1 9202- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-149-0 02 1 9202- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83574-148-0 10 1 9202- ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83574-149-0 01 1 9202- ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-066-0 01 1 9202- ● ●
69 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-164-0 01 1 9202- ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-88410-525-0 03 1 9202- ● ●
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-275-0 01 1 9202- ● ●
115 CAP; DUCT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-018-0 04 1 9202- ● ●
