Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

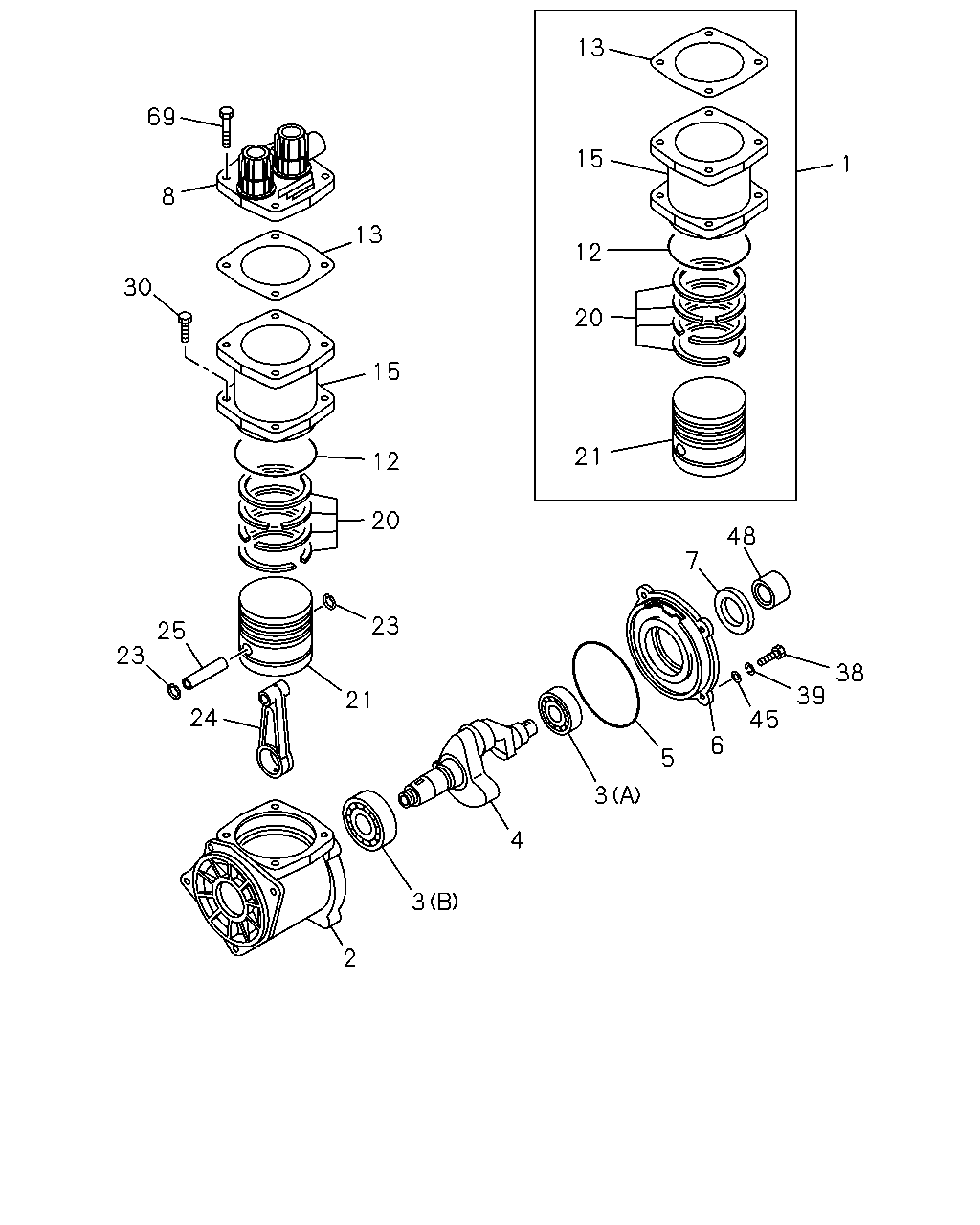

0-39 — AIR COMPRESSOR; BRAKE
(#8422) — 26 parça
13
69
15
1
8
13
12
30
20
15
21
12
20
48
7
23
25
23
38
39
21
24
45
6
5
3
4
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-050-1
01
1
9912-
2
CRANKCASE; AIR CMPR
1-19151-266-1
01
1
9912-
3
BEARING; AIR CMPR
(A)
9-00006-206-0
01
1
9912-
3
BEARING; AIR CMPR
(B)
9-00090-152-0
01
1
9912-
4
CRANKSHAFT; AIR CMPR
1-19171-047-1
01
1
9912-
5
GASKET; AIR CMPR
1-09623-361-0
01
1
9912-1107
5
GASKET; AIR CMPR
8-98192-460-0
01
1
1108-
6
COVER ASM; BRG,AIR CMPR
1-19156-058-1
01
1
9912-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-19158-026-0
01
1
9912-
8
HEAD ASM; CYL,AIR CMPR
1-19110-019-0
01
1
9912-
12
GASKET; AIR CMPR
1-09623-539-0
01
1
9912-1107
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1108-
13
GASKET; AIR CMPR
8-98113-036-0
01
1
9912-
15
CYLINDER; AIR CMPR
1-19151-250-0
01
1
9912-
20
RING KIT; PISTON,AIR CMPR
1-19163-043-0
01
1
9912-
21
PISTON; AIR CMPR
1-19161-021-0
01
1
9912-
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
9912-1107
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1108-
24
ROD ASM; CONN,AIR CMPR
1-19173-017-0
01
1
9912-
25
PIN; PISTON,AIR CMPR
9-19167-006-0
01
1
9912-
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
9912-
38
BOLT; COVER FIX
9-81385-023-0
04
1
9912-
39
WASHER; LK,COVER FIX
ID=8.2
9-09150-608-0
04
1
9912-
45
WASHER; PL,COVER FIX,AIR CMPR
ID=8.4
9-09160-508-0
04
1
9912-
48
SLEEVE; CR/SHF
1-19179-014-0
01
1
9912-
69
BOLT ASM; AIR COMP
1-19119-031-0
04
1
9912-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
