Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

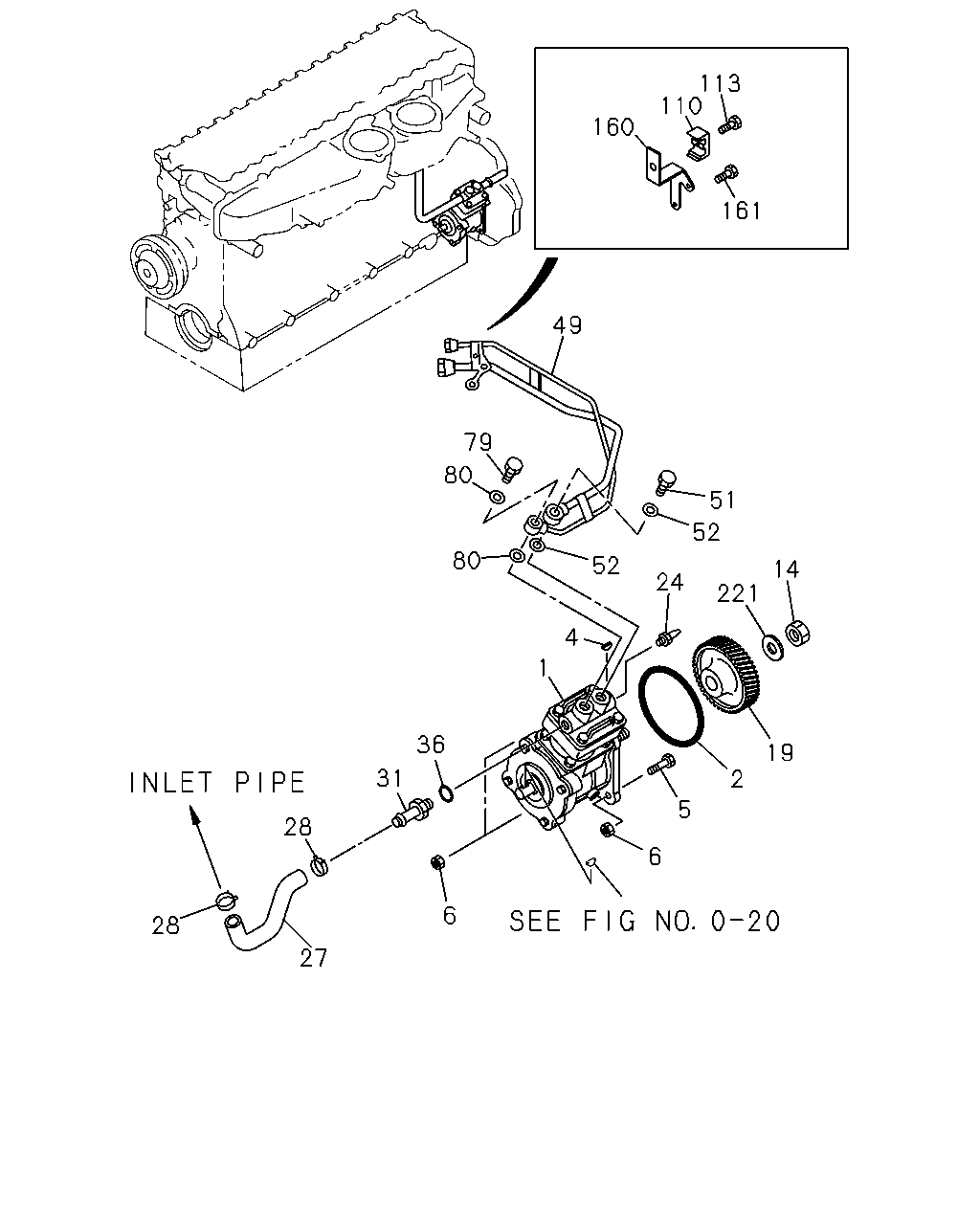

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#8421) — 31 parça
113
110
160
161
49
79
80
51
52
80
52
14
24
221
4
1
36
19
31
2
5
28
6
6
28
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-94396-891-4
01
1
9912-1107
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98187-309-1
01
1
1108-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6
1-09623-464-0
01
1
9912-
4
KEY; INJ PUMP GEAR
9-08055-516-0
01
1
9912-
5
BOLT; AIR CMPR FIX
M12X95 FLANGE
8-94396-485-1
01
1
9912-
6
NUT; AIR CMPR
M10 FLANGE
0-91150-110-0
02
1
9912-0602
6
NUT; AIR CMPR
M10 FLANGE
0-91180-110-0
02
1
0603-
6
NUT; AIR CMPR
M12 FLANGE
0-91150-112-0
01
1
9912-0602
6
NUT; AIR CMPR
M12 FLANGE
0-91180-112-0
01
1
0603-
14
NUT; GEAR
M20
9-99110-520-0
01
1
9912-0512
14
NUT; GEAR
M20
0-91110-520-0
01
1
0601-
19
GEAR; INJ PUMP
Z=35
8-94336-157-4
01
1
9912-
24
POINTER; AIR CMPR
L=21
9-11327-602-0
01
1
9912-
27
HOSE; AIR CMPR,SUCTION
8-94394-809-1
01
1
9912-
28
CLIP; HOSE,AIR CMPR
ID=26
1-09707-091-0
02
1
9912-
31
PIPE; AIR,AIR CMPR SUCTION
8-94399-942-1
01
1
9912-
36
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
01
1
9912-
49
PIPE; AIR,CHARGE
8-94390-063-1
01
1
9912-0112
49
PIPE; AIR,CHARGE
8-94394-275-1
01
1
0201-
51
BOLT; EYE,AIR PIPE TO CMPR
M20X38
1-09675-133-1
01
1
9912-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0
9-09571-420-0
02
1
9912-
79
BOLT; EYE,AIR PIPE TO CMPR
M18X33
1-09675-058-0
01
1
9912-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4
1-09630-087-0
02
1
9912-
110
CLIP; AIR PIPE
8-94393-037-0
01
1
9912-
113
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
0-28080-640-0
01
1
9912-0512
113
BOLT; CLIP,AIR PIPE
M6X40 FLANGE
0-28050-640-0
01
1
0601-
160
BRACKET; AIR PIPE
8-94394-569-0
01
1
9912-
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE
0-28080-816-0
02
1
9912-0512
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE
0-28050-816-0
02
1
0601-
221
WASHER; PL,GEAR
ID=21
9-09160-520-0
01
1
9912-0605
221
WASHER; PL,GEAR
ID=21
0-91610-520-0
01
1
0606-
