Isuzu WW
▶
BUSES
▶
MR
▶
10824 - MR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

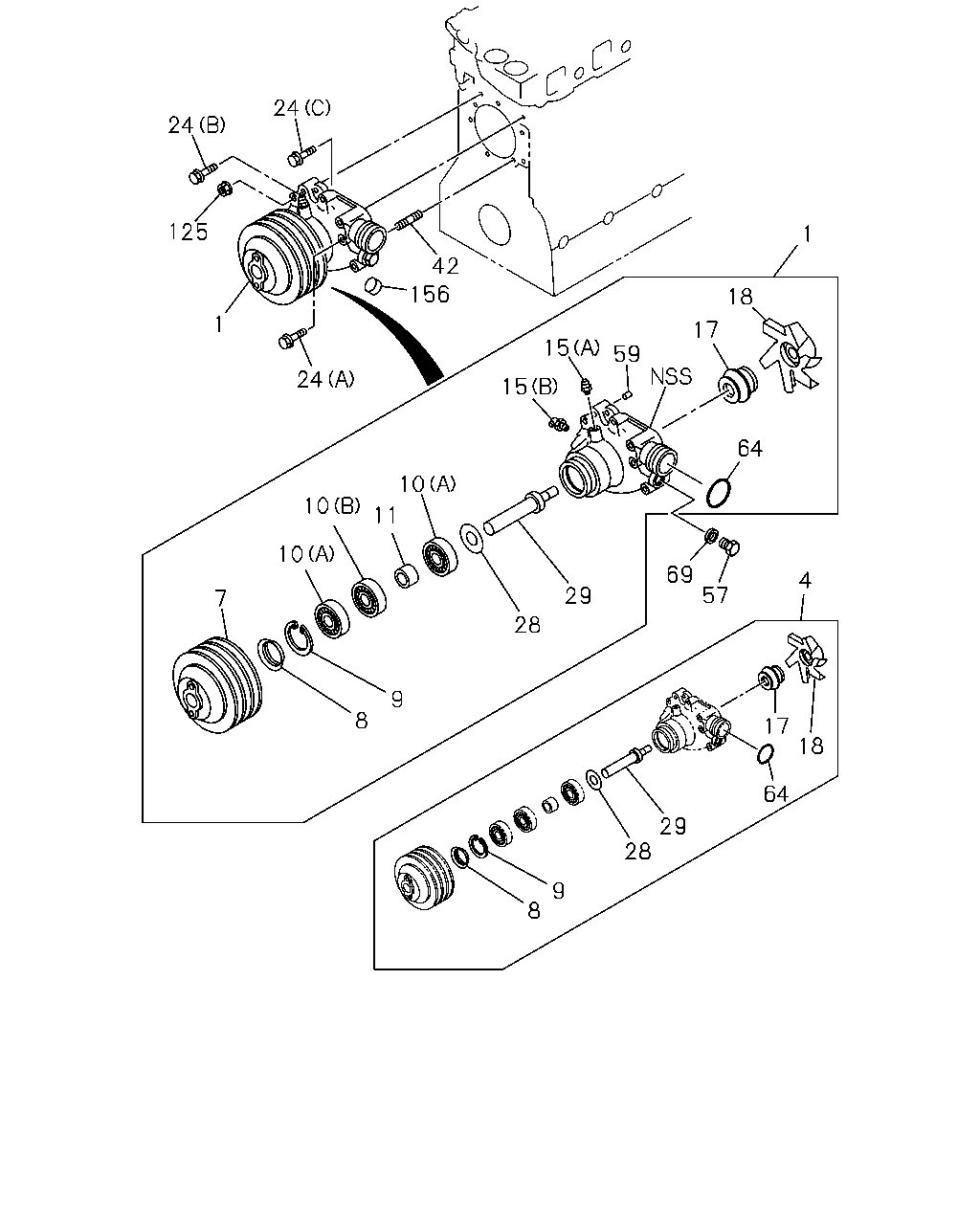

0-30 — WATER PUMP AND CORROSION RESISTOR
(#8416) — 39 parça
24
24
125
1
42
156
18
1
17
15
59
24
15
64
10
10
11
10
69
4
57
29
7
28
9
8
17
18
64
29
28
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
8-94391-060-5
01
1
9912-0301
1
PUMP ASM; WATER,W/GASKET
8-97602-781-2
01
1
0302-1208
1
PUMP ASM; WATER,W/GASKET
1-87310-839-0
01
1
1209-1312
1
PUMP ASM; WATER,W/GASKET
1-87310-911-0
01
1
1401-1405
1
PUMP ASM; WATER,W/GASKET
1-87310-983-0
01
1
1406-
4
REPAIR KIT; WATER PUMP
1-87812-028-1
01
1
9912-1208
4
REPAIR KIT; WATER PUMP
1-87813-946-0
01
1
1209-1312
4
REPAIR KIT; WATER PUMP
1-87814-172-0
01
1
1401-1405
4
REPAIR KIT; WATER PUMP
1-87814-612-0
01
1
1406-
7
PULLEY; WATER PUMP
4-GROOVE
8-94394-927-0
01
1
9912-
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
9912-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
9912-
10
BEARING; WATER PUMP
(A)
8-94391-298-0
02
1
9912-
10
BEARING; WATER PUMP
(B)
8-94391-299-0
01
1
9912-
11
SPACER; BRG,WATER PUMP
1-13634-040-0
01
1
9912-
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
1-09380-002-0
01
1
9912-
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
9-09031-010-0
01
1
9912-0512
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
0-90301-410-0
01
1
0601-
17
SEAL UNIT; WATER PUMP
8-94395-036-0
01
1
9912-9912
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0001-1208
17
SEAL UNIT; WATER PUMP
8-98221-159-0
01
1
1209-1312
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1401-1405
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1406-
18
IMPELLER; WATER PUMP
8-94397-375-0
01
1
9912-
24
BOLT; WATER PUMP
(A) M8X80 FLANGE
0-28080-880-0
01
1
9912-0512
24
BOLT; WATER PUMP
(A) M8X80 FLANGE
0-28050-880-0
01
1
0601-
24
BOLT; WATER PUMP
(B) M8X58 FLANGE
8-94130-055-1
03
1
9912-
24
BOLT; WATER PUMP
(C) M10X85 FLANGE
8-94397-359-1
01
1
9912-
28
WASHER; WATER PUMP
ID=25.5 OD=50
8-94397-097-0
01
1
9912-
29
SHAFT; WATER PUMP
8-94396-130-1
01
1
9912-
42
STUD; WATER PUMP
M8X30 L=46
9-04010-830-0
01
1
9912-0604
42
STUD; WATER PUMP
M8X30 L=46
0-40110-830-0
01
1
0605-
57
PLUG; HTR,WATER PUMP
M20
9-99202-320-0
01
1
0302-
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
9912-
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7
1-09623-383-0
01
1
9912-
69
GASKET; PLUG,HTR
ID=20.5 OD=28.0
9-09571-420-0
01
1
0302-
125
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
04
1
9912-0602
125
NUT; WATER PUMP
M8 FLANGE
0-91180-108-0
04
1
0603-
156
CUP; SEALING
OD=25
1-09600-016-0
01
1
0004-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
