◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#841) — 46 parça

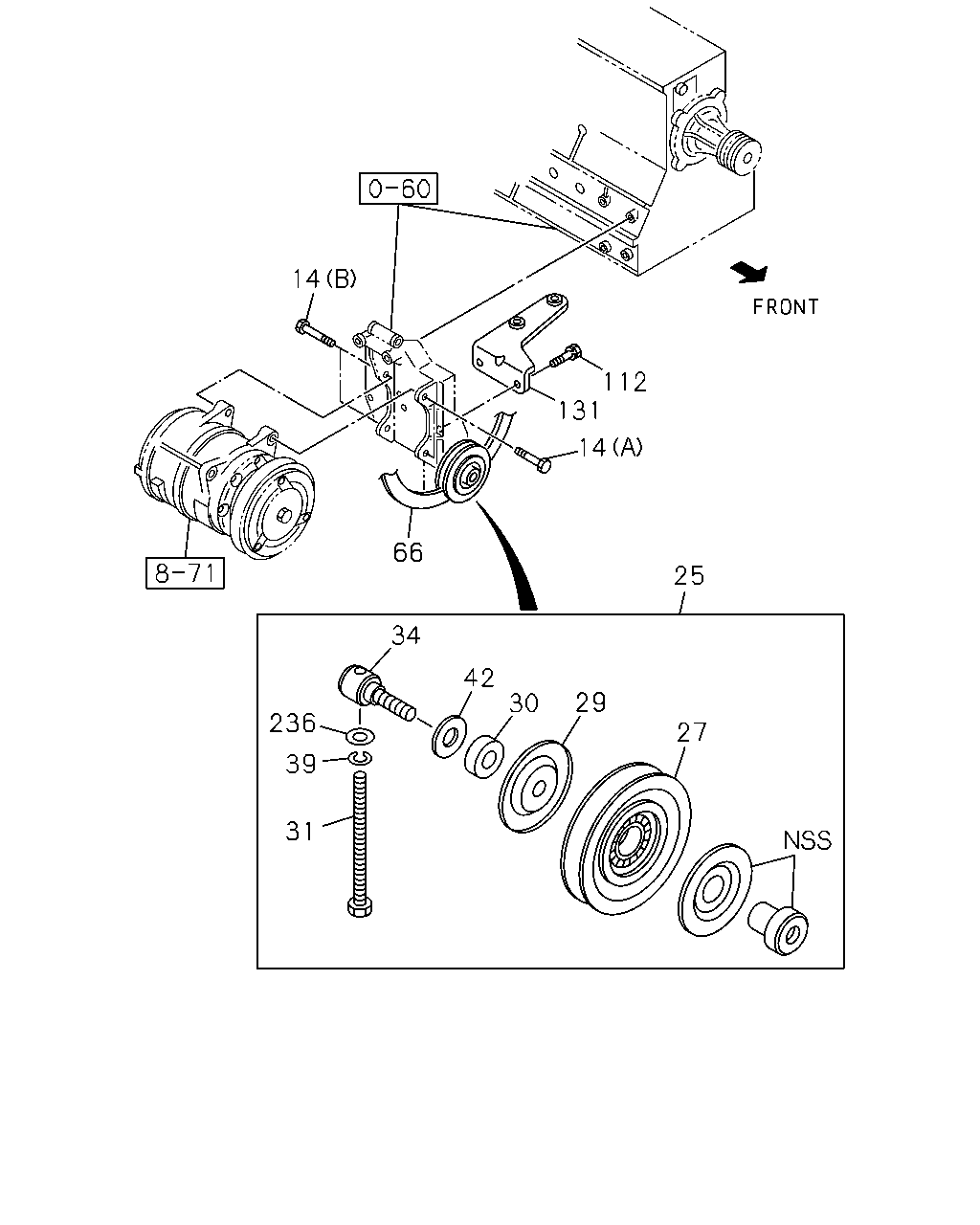

çizim 94412
14 112 14 131 66 25 34 42 30 29 27 236 39 31
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X30 FLANGE 		0-28081-030-0 02 1 9202-9411 ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE 		0-28681-035-0 02 1 9412- ● ●
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X45 FLANGE 		0-28081-045-0 02 1 9202- ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94399-957-0 01 1 9202- ● ●
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-116-0 01 1 9202- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		9-13369-603-0 01 1 9202- ● ●
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-144-0 01 1 9202- ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-143-0 01 1 9202- ● ●
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-236-0 01 1 9202- ● ●
39 WASHER; LK,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		9-09150-608-0 01 1 9202- ● ●
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97014-636-0 01 1 9202- ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 9202- ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 9202- ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 02 1 9202-9301 ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9302- ● ●
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94396-990-0 01 1 9202-9410 ● ●
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94393-451-0 01 1 9411- ● ●
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09503-216-0 01 1 9202- ● ●

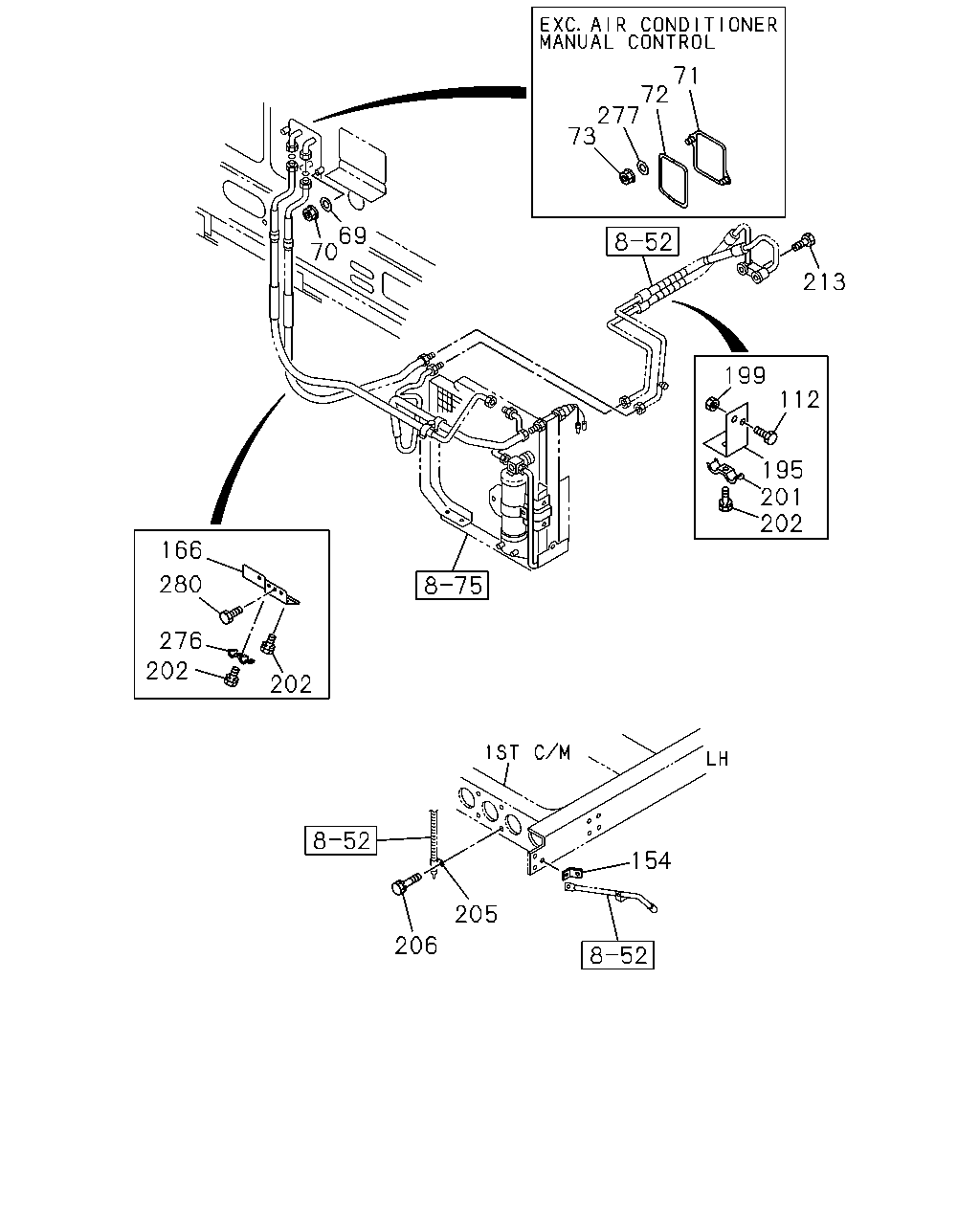

çizim 95374
73 277 72 71 213 199 112 195 202 201 69 70 166 280 276 202 202 154 205 206
BalonParca AdiParca NoAdetTipApplied Date A B
69 WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=20 		1-09509-047-0 01 1 9202- ● ●
69 WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=14 		1-09509-048-0 02 1 9202- ● ●
70 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 03 1 9202- ● ●
71 COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-71997-460-1 01 1 9202- ● ●
72 SEAL; COVER,EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-71998-221-0 01 1 9202- ● ●
73 NUT; COVER,A/C EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 02 1 9202- ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 9202- ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 02 1 9202-9301 ● ●
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9302- ● ●
154 BRACKET; STAY
AIR CONDITIONER MANUAL CONTROL(C60) EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> 		1-83571-421-0 01 1 9202- ● ●
154 BRACKET; STAY
AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> 		1-83571-770-0 01 1 9202-9301 ●
166 BRACKET; FLEX HOSE
L=200 		1-71118-359-3 01 1 9202- ● ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) WO/NUT 		1-83571-482-0 01 1 9202-9301 ● ●
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-824-0 01 1 9302- ● ●
199 NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9202- ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-157-0 01 1 9202-9301 ● ●
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-190-0 01 1 9302- ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE 		0-28080-620-0 01 1 9202-9301 ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 01 1 9302- ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ●
205 CLIP; BAND,DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=35 L=35 		1-09700-908-0 01 1 9202- ● ●
206 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9202- ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 02 1 9202- ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER 		9-01961-040-0 01 1 9202-9204 ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9205- ● ●
276 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-116-0 01 1 9202- ● ●
277 WASHER; EVAP COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=14 		1-09509-048-0 02 1 9202- ● ●
280 BOLT; BRKT,A/C FLEX HOSE
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ●
