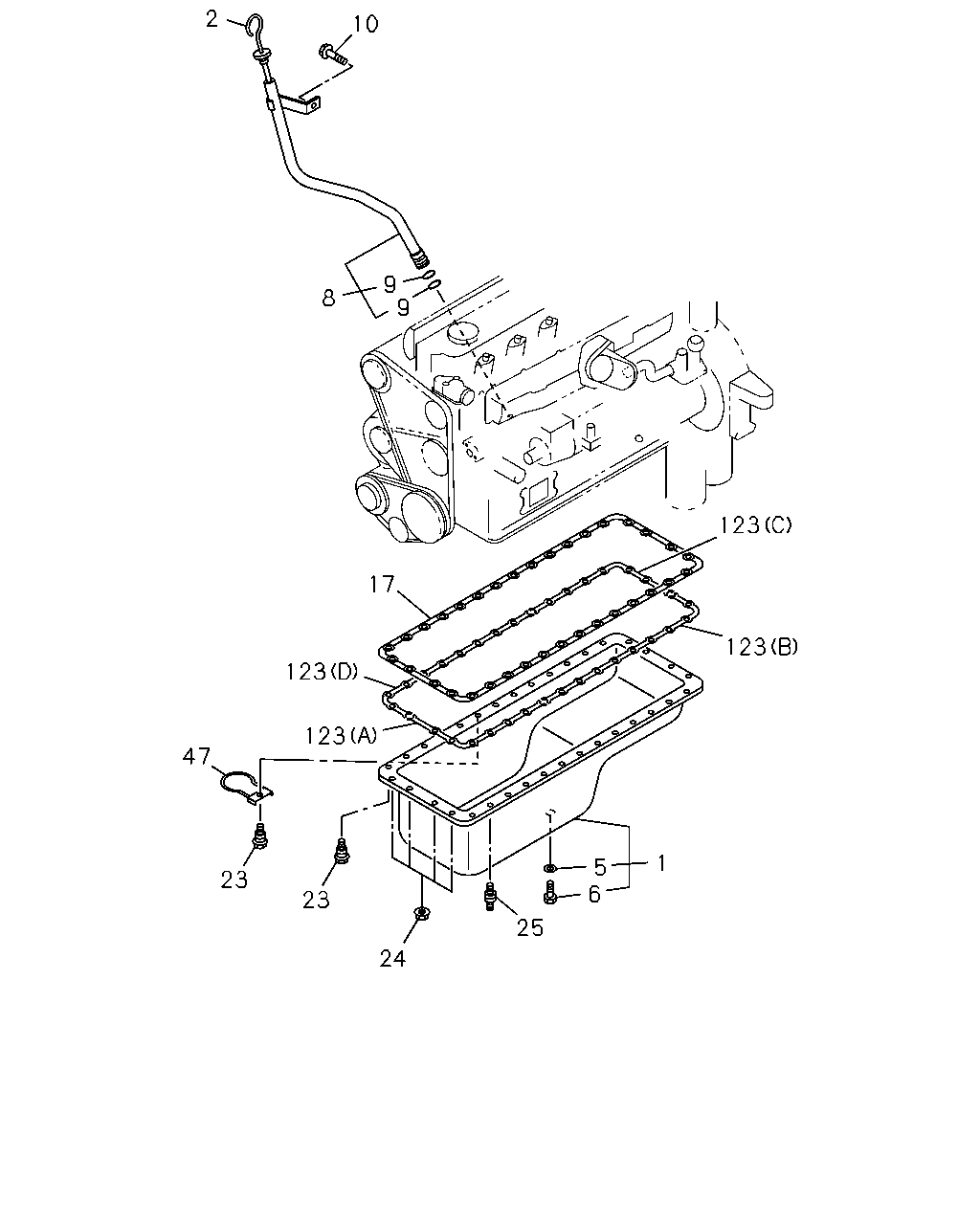

0-13 — OIL PAN AND LEVEL GAUGE
(#8408) — 19 parça
2
10
9
9
8
123
17
123
123
123
47
1
5
6
23
23
25
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-97600-581-1
01
1
9912-
2
GAUGE; OIL LEVEL
8-94393-166-1
01
1
9912-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
9912-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
9912-
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-97600-629-1
01
1
9912-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
9912-
10
BOLT; GUIDE TUBE
M8X16 FLANGE
0-28080-816-0
01
1
9912-0512
10
BOLT; GUIDE TUBE
M8X16 FLANGE
0-28050-816-0
01
1
0601-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94390-617-1
01
1
9912-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97087-634-0
23
1
9912-
24
NUT; OIL PAN
M8 FLANGE
0-91150-108-0
11
1
9912-0602
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
11
1
0603-
25
STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER
8-97087-632-2
04
1
9912-
47
CLIP; HOSE,AIR BREATHER
1-11369-115-0
01
1
9912-1506
47
CLIP; HOSE,AIR BREATHER
8-98303-447-0
01
1
1507-
123
RUBBER; SEAL OIL
(A)
8-94391-755-0
01
1
9912-
123
RUBBER; SEAL OIL
(B)
8-94391-757-0
01
1
9912-
123
RUBBER; SEAL OIL
(C)
8-94391-758-0
01
1
9912-
123
RUBBER; SEAL OIL
(D)
8-94392-548-0
01
1
9912-
