0-12 — CYLINDER BLOCK (#8407) — 71 parça

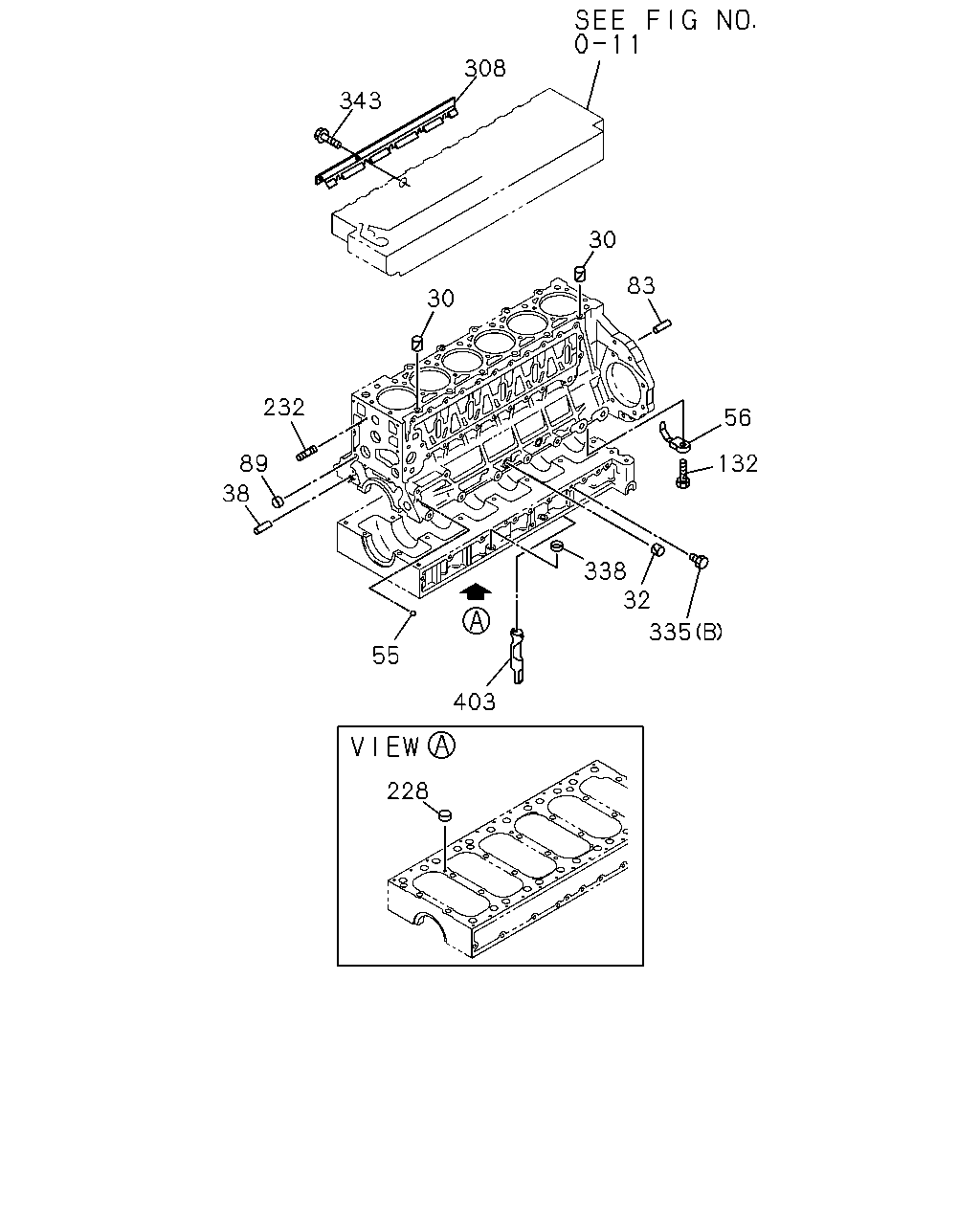

308 343 30 83 30 232 56 132 89 38 338 32 335 55 403 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9912-
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9912-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9912-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9912-
56	JET; OIL,PISTON COOLING	8-94399-187-1	06	1	9912-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9912-0306
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9912-0908
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9912-0704
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-
228	NIPPLE; ELEC TIMER OD=15.6	5-11129-003-0	01	1	0005-
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9912-0604
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	9912-1005
308	PROTECTOR; HEAT,HD COVER	8-98171-339-0	01	1	1006-
335	PLUG; C/BL,SIDE (A) M14	8-94399-225-0	04	1	9912-0703
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	04	1	0704-
335	PLUG; C/BL,SIDE (B) M8X6	8-94399-421-0	01	1	9912-0501
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	0502-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9912-
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9912-0512
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	05	1	0601-
403	GUIDE; GALLERY	8-94395-351-1	01	1	9912-

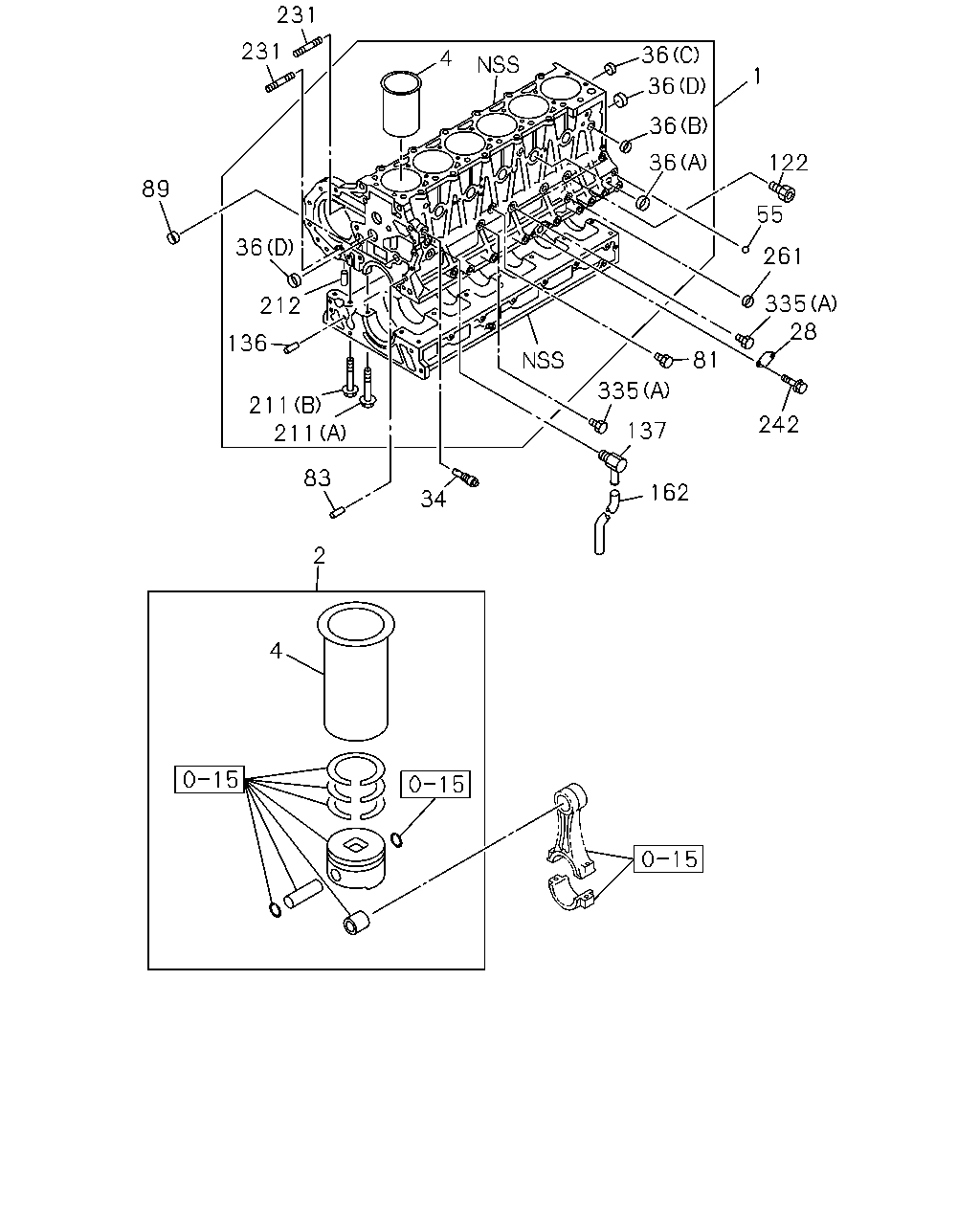

242 28 335 261 122 55 1 36 36 36 36 4 231 231 89 36 212 136 211 211 83 2 4 34 137 162 335 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-97601-298-0	01	1	9912-0004
1	BLOCK ASM; CYL	8-97601-353-2	01	1	0005-0504
1	BLOCK ASM; CYL	8-98005-411-0	01	1	0505-0607
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0608-1012
1	BLOCK ASM; CYL	8-98180-710-0	01	1	1101-1209
1	BLOCK ASM; CYL	8-98206-961-0	01	1	1210-
2	LINER SET; ENG CYL GRADE=1X	1-87811-665-9	06	1	9912-
2	LINER SET; ENG CYL GRADE=3X	1-87811-666-9	06	1	9912-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	9912-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	9912-
28	COVER; OIL PORT	1-11219-163-0	01	1	9912-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9912-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	9912-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	9912-
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	9912-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94399-639-0	04	1	9912-0502
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	0503-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9912-
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9912-0703
81	PLUG; WATER JACKET M14X16.5	8-97329-617-0	01	1	0704-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9912-0306
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9912-0908
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9912-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	9912-0812
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9912-
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9912-0206
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0207-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9912-0905
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9912-
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9912-0306
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9912-0301
231	STUD; AIR CMPR M10X25 L=40	0-49841-025-0	02	1	0302-0512
231	STUD; AIR CMPR M10X25 L=48.5	0-49241-025-0	02	1	0601-
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9912-0512
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28050-816-0	02	1	0601-
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9912-0307
335	PLUG; C/BL,SIDE (A) M14	8-94399-225-0	04	1	9912-0703
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	04	1	0704-
335	PLUG; C/BL,SIDE (B) M8X6	8-94399-421-0	01	1	9912-0501
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	0502-
