9-01 — TOOLS (#8402) — 156 parça

232 227 230 218 219 237 246 329 248 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
218	PLUG EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15629-043-0	01	1	9908-9910
218	PLUG	1-15629-043-0	01	1	9911-
219	GASKET EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-09720-555-0	01	1	9908-9910
219	GASKET	9-09720-555-0	01	1	9911-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9908-
230	PUMP; GREASE	1-85556-007-2	01	1	9908-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	9909-
237	BAG; TOOL	8-97130-902-0	01	1	9908-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	9908-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	9908-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	9908-
329	PULLER ASM; SLINGER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> ID=124	1-85220-052-0	01	1	9908-9910
329	PULLER ASM; SLINGER ID=124	1-85220-052-0	01	1	9911-

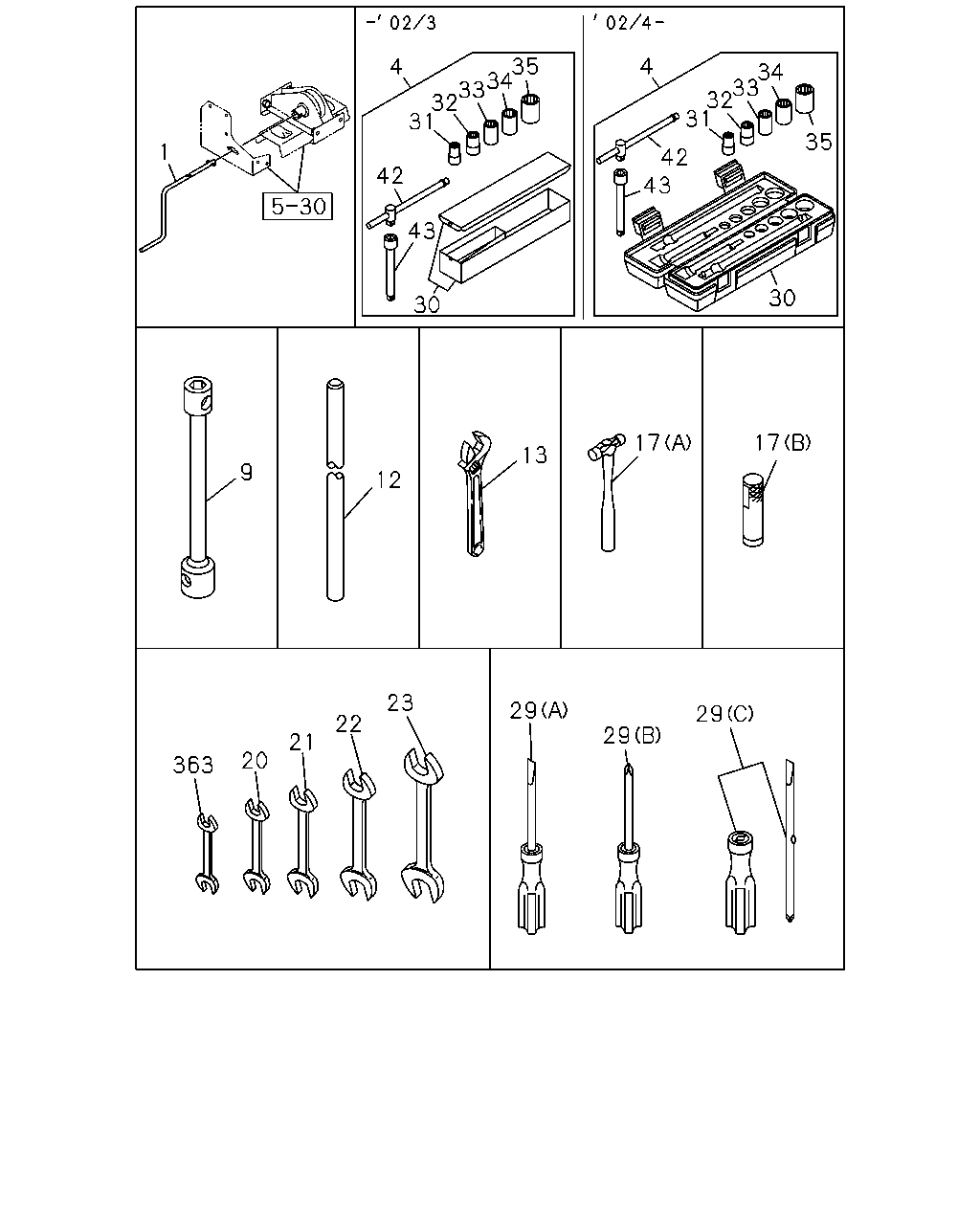

4 35 34 33 32 31 4 34 33 32 31 35 1 42 43 42 43 30 30 17 17 13 9 12 23 29 29 22 29 21 20 363

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	9908-
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9908-0203
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	0204-
9	WRENCH; WHEEL PIN 41X21 L=440	1-85113-015-1	01	1	9908-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9908-
13	WRENCH; MONKEY	1-85117-002-1	01	1	9908-
17	HAMMER (A) L=310	9-85121-406-0	01	1	9908-
17	HAMMER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) L=150	1-85220-021-0	01	1	9908-9910
17	HAMMER (B) L=150	1-85220-021-0	01	1	9911-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9908-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9908-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9908-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9908-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	9908-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9908-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	9908-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9908-0203
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	0204-
31	WRENCH; 12	9-09590-012-0	01	1	9908-0203
31	WRENCH; 12	1-85000-495-0	01	1	0204-
32	WRENCH; 14	9-09590-014-0	01	1	9908-0203
32	WRENCH; 14	1-85000-496-0	01	1	0204-
33	WRENCH; 17	9-09590-017-0	01	1	9908-0203
33	WRENCH; 17	1-85000-497-0	01	1	0204-
34	WRENCH; 19	9-09590-019-0	01	1	9908-0203
34	WRENCH; 19	1-85000-498-0	01	1	0204-
35	WRENCH; 22	9-09590-022-0	01	1	9908-0203
35	WRENCH; 22	1-85000-499-0	01	1	0204-
42	HANDLE; SLIDING	9-09590-512-0	01	1	9908-0203
42	HANDLE; SLIDING	1-85000-500-0	01	1	0204-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9908-0203
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	0204-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	9908-

40 47 39 38 37 49 36 50 57 54 51 63 70 73 61 82 81 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	9908-
37	WRENCH; 27	9-85111-375-0	01	1	9908-
38	WRENCH; 32	9-85111-358-0	01	1	9908-
39	WRENCH; 36	9-85111-374-0	01	1	9908-
40	WRENCH; 41	9-85111-356-0	01	1	9908-
47	WRENCH ASM; UNIVERSAL,INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85220-018-0	01	1	9908-9910
47	WRENCH ASM; UNIVERSAL,INJ PUMP	1-85220-018-0	01	1	9911-
49	REPLACER ASM; VALVE EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85235-001-0	01	1	9908-9910
49	REPLACER ASM; VALVE	1-85235-001-0	01	1	9911-
50	REPLACER; NOZZLE HOLDER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=500	1-85230-007-0	01	1	9908-9910
50	REPLACER; NOZZLE HOLDER L=500	1-85230-007-0	01	1	9911-
51	PULLER ASM; WATER PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85210-028-0	01	1	9908-9910
51	PULLER ASM; WATER PUMP	1-85210-028-0	01	1	9911-
54	PULLER; THERMOSTAT SEAL EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85210-029-0	01	1	9908-9910
54	PULLER; THERMOSTAT SEAL	1-85210-029-0	01	1	9911-
57	TOOL; SETTING CRANK GEAR EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> OD=175	1-85221-028-0	01	1	9908-9910
57	TOOL; SETTING CRANK GEAR OD=175	1-85221-028-0	01	1	9911-
61	PULLER ASM; PILOT BRG EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-85210-157-0	01	1	9908-9910
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	9911-
63	PULLER; NOZZLE SLEEVE EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85210-026-0	01	1	9908-9910
63	PULLER; NOZZLE SLEEVE	1-85210-026-0	01	1	9911-
70	TOOL; SETTING,OIL SEAL EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> FOR OIL SEAL	1-85220-051-0	01	1	9908-9910
70	TOOL; SETTING,OIL SEAL FOR OIL SEAL	1-85220-051-0	01	1	9911-
70	TOOL; SETTING,OIL SEAL EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> FOR OIL THROWER	1-85220-053-0	01	1	9908-9910
70	TOOL; SETTING,OIL SEAL FOR OIL THROWER	1-85220-053-0	01	1	9911-
73	TOOL; SETTING,THERMOSTAT SEAL EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85221-034-0	01	1	9908-9910
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	9911-
74	TOOL; SETTING,INJ PUMP BRG EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (A)	1-85220-019-0	01	1	9908-9910
74	TOOL; SETTING,INJ PUMP BRG (A)	1-85220-019-0	01	1	9911-
74	TOOL; SETTING,INJ PUMP BRG EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-85220-020-1	01	1	9908-9910
74	TOOL; SETTING,INJ PUMP BRG (B)	1-85220-020-1	01	1	9911-
81	PULLER; BRG CAP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85210-015-0	01	1	9908-9910
81	PULLER; BRG CAP	1-85210-015-0	01	1	9911-
82	PULLER ASM; CR/SHF GEAR EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-85211-139-0	01	1	9908-9910
82	PULLER ASM; CR/SHF GEAR	9-85211-139-0	01	1	9911-

90 86 89 88 87 115 114 99 93 106 121 120 119 122 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
86	REPLACER; FLYWHEEL EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85230-006-0	01	1	9908-9910
86	REPLACER; FLYWHEEL	1-85230-006-0	01	1	9911-
87	TOOL; PISTON EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85220-082-0	01	1	9908-9910
87	TOOL; PISTON	1-85220-082-0	01	1	9911-
88	TOOL; CONNROD BUSHING EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85220-002-0	01	1	9908-9910
88	TOOL; CONNROD BUSHING	1-85220-002-0	01	1	9911-
89	TOOL; PISTON RING EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85221-029-0	01	1	9908-9910
89	TOOL; PISTON RING	1-85221-029-0	01	1	9911-
90	PULLER; INJ PUMP BRG EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85210-039-0	01	1	9908-9910
90	PULLER; INJ PUMP BRG	1-85210-039-0	01	1	9911-
93	SETTING KIT; VALVE GUIDE EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> L=260	9-85231-202-0	01	1	9908-9910
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	9911-
99	WRENCH; CYL HD BOLT EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85115-013-0	01	1	9908-9910
99	WRENCH; CYL HD BOLT	1-85115-013-0	01	1	9911-
106	TOOL; SETTING PILOT BRG EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85221-057-0	01	1	9908-9910
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	9911-
114	WRENCH; INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85220-027-0	01	1	9908-9910
114	WRENCH; INJ PUMP	1-85220-027-0	01	1	9911-
115	PLIER	5-85171-001-0	01	1	9908-0212
115	PLIER	5-85171-002-0	01	1	0301-
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	9908-
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	9908-
121	PULLER ASM; COUNTER REAR	1-85210-069-0	01	1	9908-
122	PULLER ASM; COUNTER FRT	9-85210-129-1	01	1	9908-
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	9908-

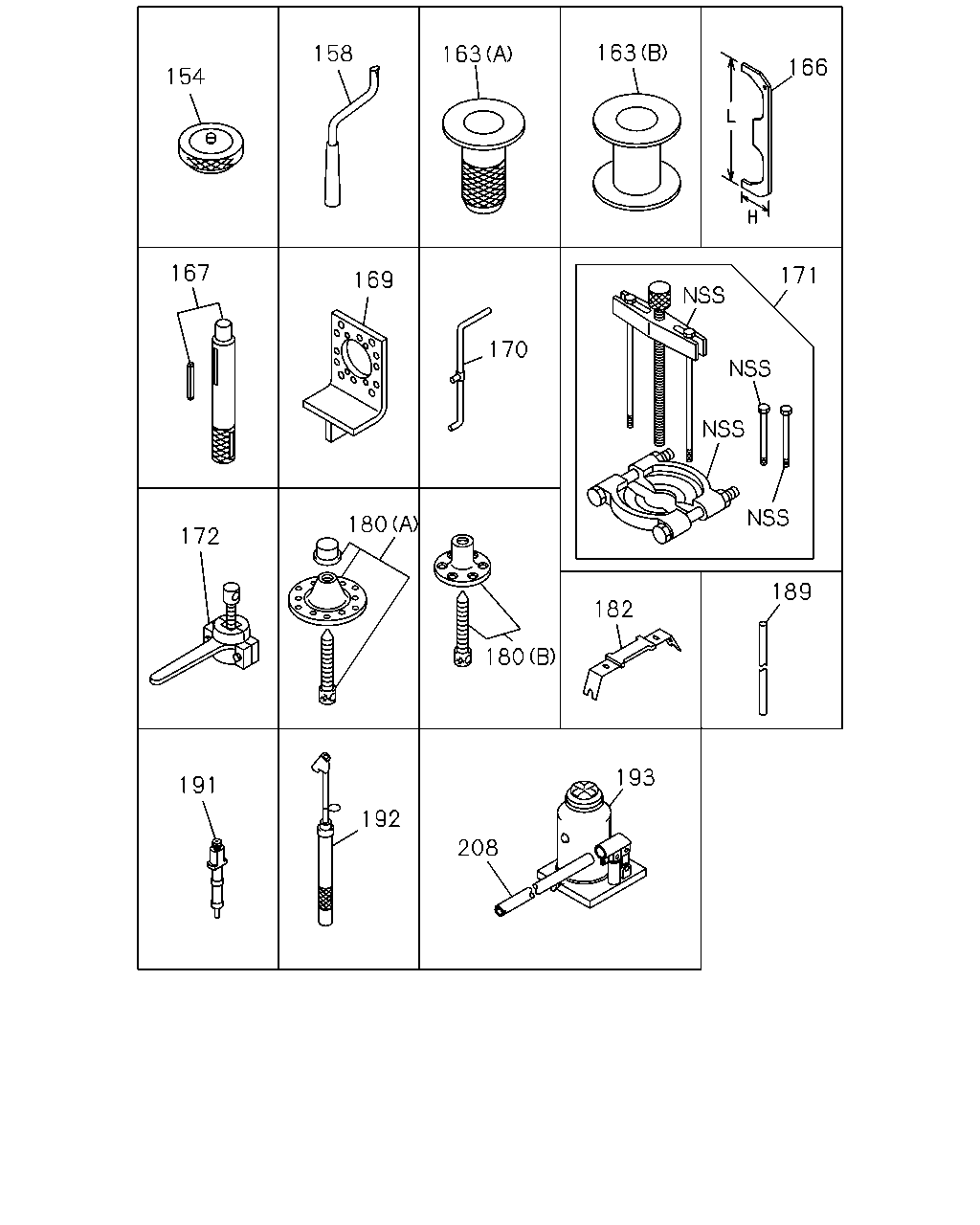

163 158 163 166 154 167 171 169 170 180 172 189 182 180 193 191 192 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9908-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9908-
163	TOOL; SETTING (A) L=195	1-85221-162-1	01	1	9908-
163	TOOL; SETTING (B) L=150	1-85221-163-0	01	1	9908-
166	ALIGNER; CLU RELEASE LEVER L=550 H=17.5	1-85253-010-0	01	1	9908-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	9908-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9908-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9908-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9908-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9908-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9908-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9908-
182	REMOVER ASM	1-85239-008-0	01	1	9908-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9908-
191	ADAPTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85317-002-0	01	1	9908-9910
191	ADAPTER	1-85317-002-0	01	1	9911-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9908-9908
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9909-9912
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9909-9912
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0001-
193	JACK ASM 15TON	1-85510-019-1	01	1	9908-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9908-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-

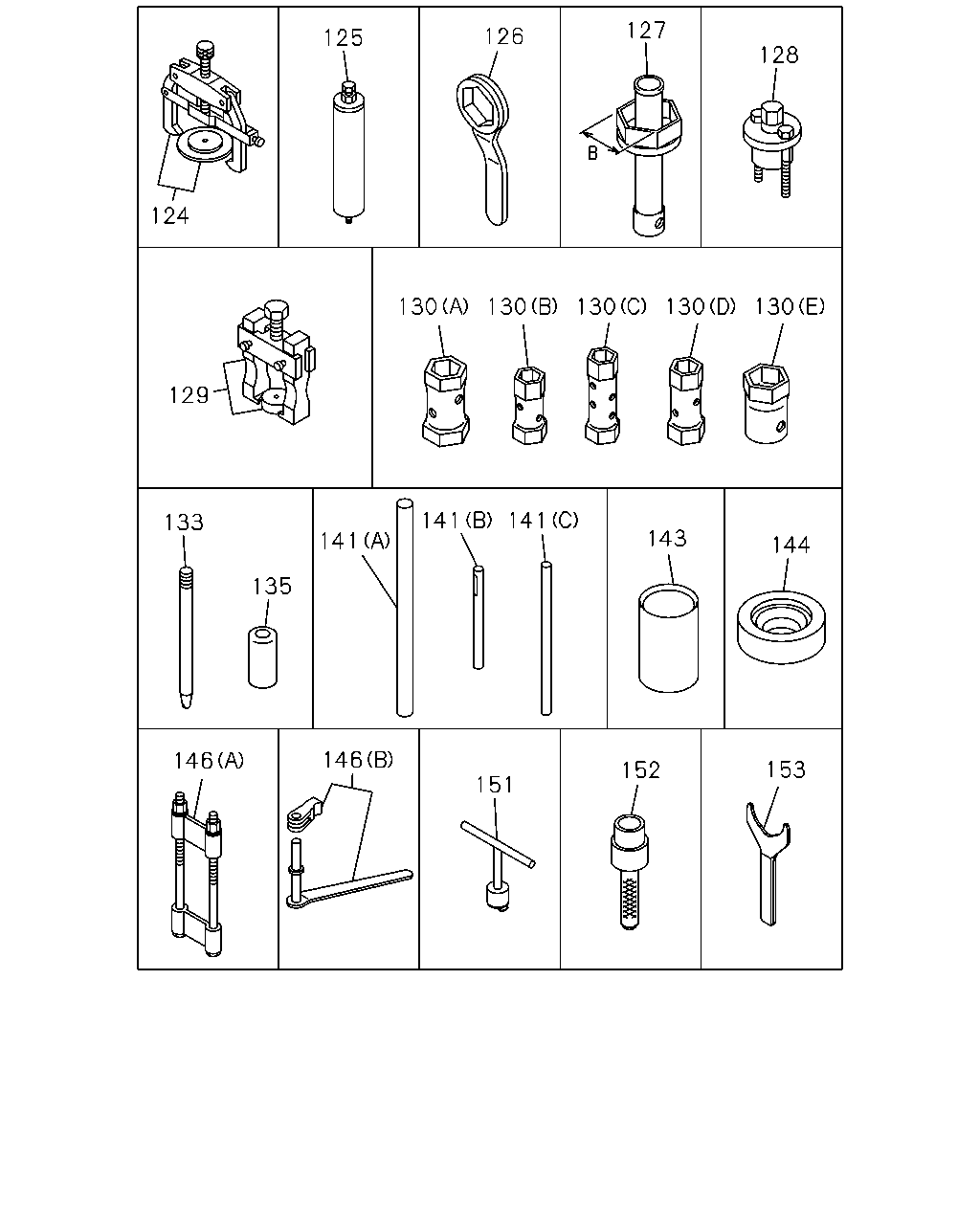

127 126 125 128 124 130 130 130 130 130 129 141 141 133 143 141 144 135 146 146 153 152 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9908-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9908-
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	9908-
127	WRENCH ASM; HUB BRG NUT REARWARD B=105	9-85113-509-0	01	1	9908-
127	WRENCH ASM; HUB BRG NUT FORWARD B=116	9-85113-524-0	01	1	9908-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	9908-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9908-
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	9908-
130	WRENCH; BOX (A) B=46 & 54 L=165	9-85112-320-0	01	1	9908-
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	9908-
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	9908-
130	WRENCH; BOX (D) B=41 & 46 L=165	9-85113-401-0	01	1	9908-
133	WRENCH; NUT STARTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-85221-030-0	02	1	9908-9910
133	WRENCH; NUT STARTER	1-85221-030-0	02	1	9911-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9908-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9908-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9908-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	9908-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	9908-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	9908-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	9908-
146	REPLACER KIT; LEAF SPR (B)	1-85237-016-0	01	1	9908-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9908-
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	9908-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9908-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9908-
