Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

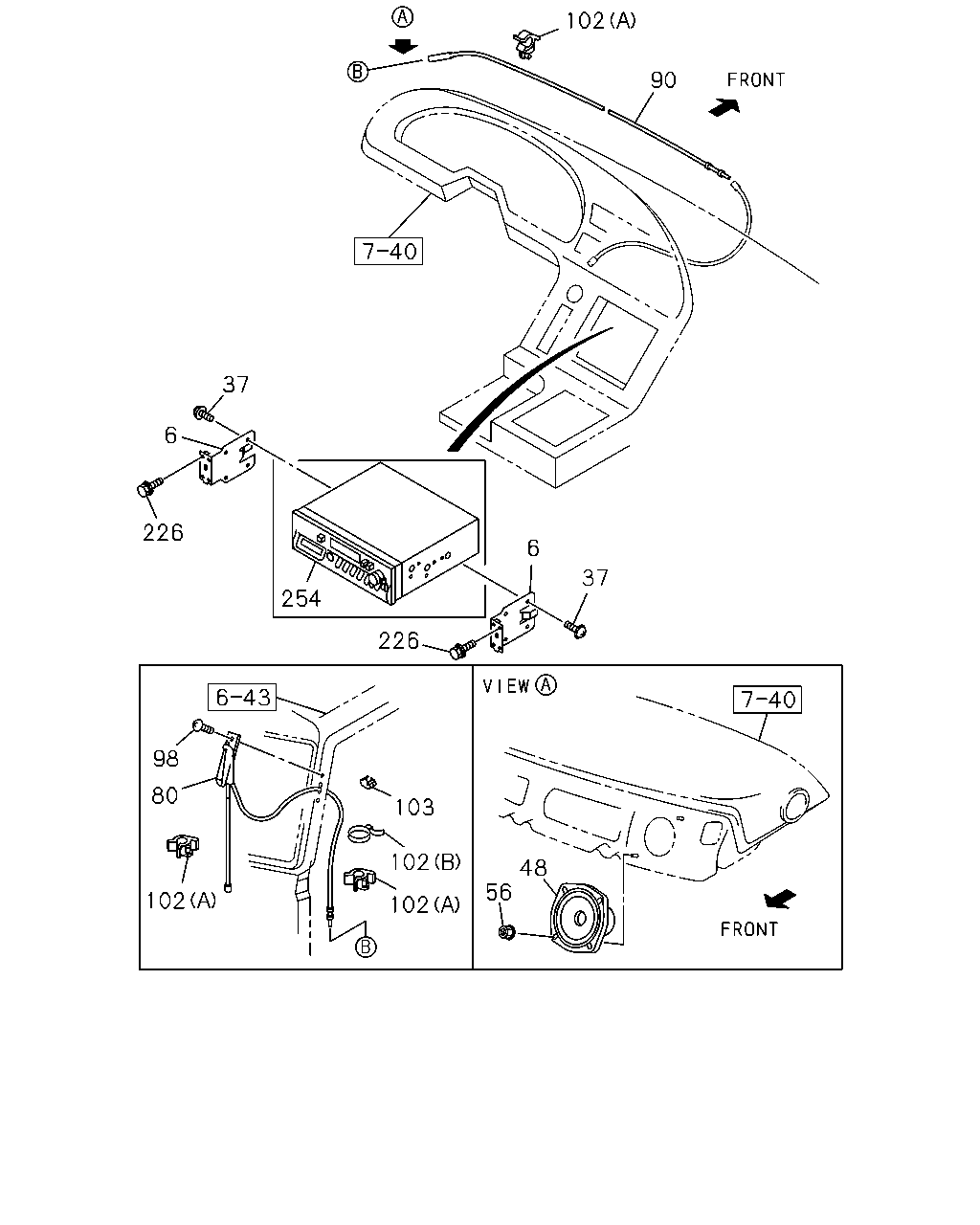

8-90 — RADIO AND TV
(#8401) — 13 parça
102
90
37
6
226
6
37
254
226
98
80
103
102
48
56
102
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BRACKET; RADIO TO PANEL
1-65671-551-4
02
1
9908-
37
SCREW; CASSETTE & RADIO
M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
9908-
48
SPEAKER; AUDIO
1-84114-050-0
02
1
9908-
56
NUT; SPEAKER,RADIO OR STEREO
M5 FLANGE
1-09984-170-0
04
1
9908-
80
ANTENNA
1-84115-055-2
01
1
9908-
90
CABLE; ANTENNA,FEEDER
1-84113-011-2
01
1
9908-
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
9908-
102
CLIP; CABLE
(A) W/PACKING ID=4.8
1-73907-618-0
05
1
9908-
102
CLIP; CABLE
(B) L=140
5-09707-031-1
01
1
9908-
102
CLIP; CABLE
(A) WO/PACKING ID=4.8
8-94128-483-0
02
1
9908-
103
GROMMET; ANTENNA HOLE,FRT
8-97027-381-0
01
1
9908-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
9908-
254
RADIO CONTROL ASM; STEREO,AM-FM
CLARION
1-84122-032-3
01
1
9908-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
