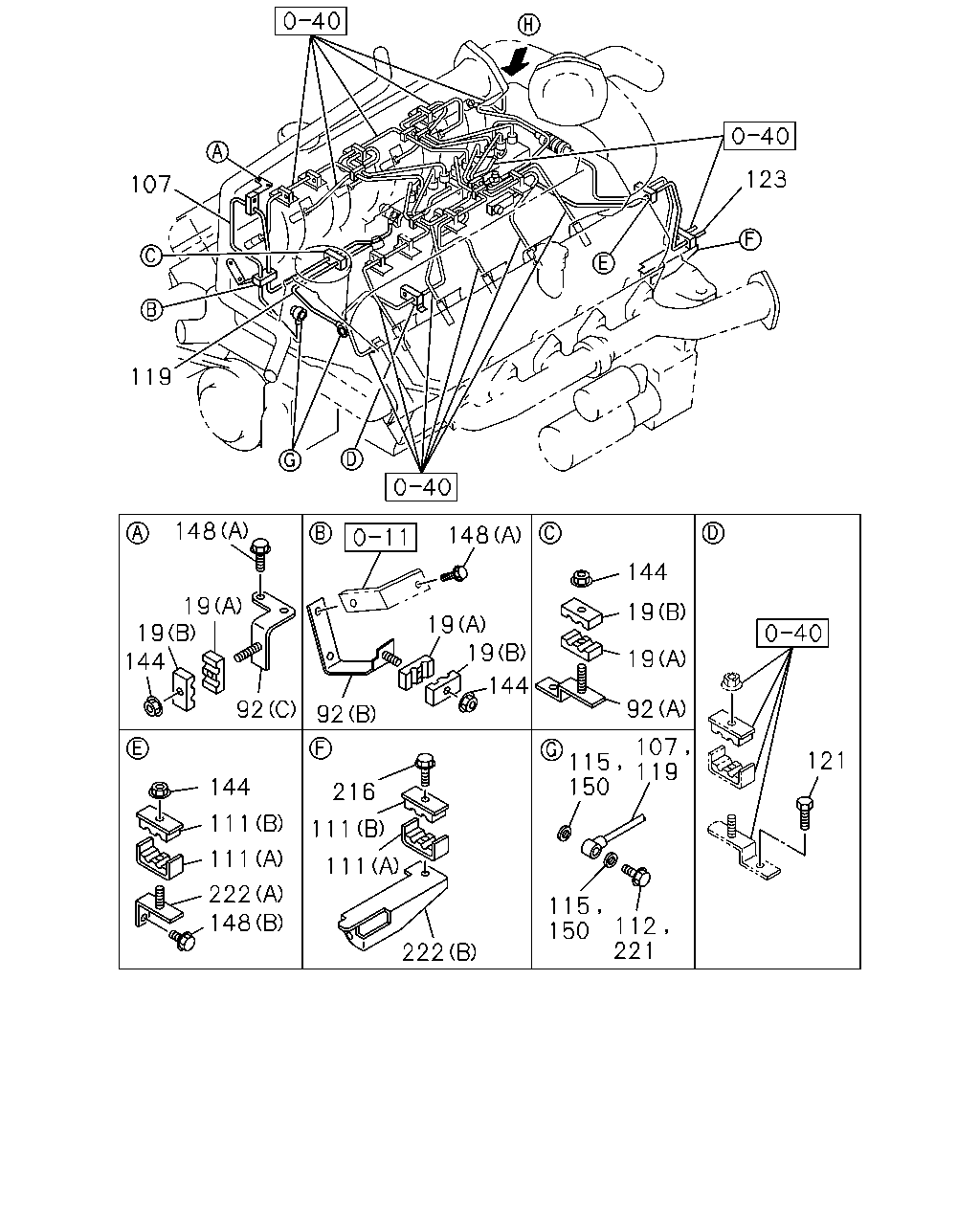

0-42 — FUEL PUMP AND PIPE (#8398) — 36 parça

123 107 119 148 148 144 19 19 144 19 19 19 19 144 92 92 92 107 119 121 115 150 144 216 111 111 111 111 222 148 115 150 112 221 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9908-
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	9908-
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9908-9910
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9908-
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9908-
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9908-
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9908-
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9908-
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	9908-
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9908-
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	9908-
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9908-
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9908-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	9908-
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9908-
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-722-1	01	1	9908-
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-659-1	01	1	9908-
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9908-
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9908-
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	04	1	9908-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9908-
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9908-
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9908-
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9908-
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (B)	1-13319-027-0	01	1	9908-
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	9908-

92 148 92 148 92 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9908-9910
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9908-
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9908-
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9908-
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9908-
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9908-
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9908-
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	04	1	9908-
