10820 - CXZ LHD CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

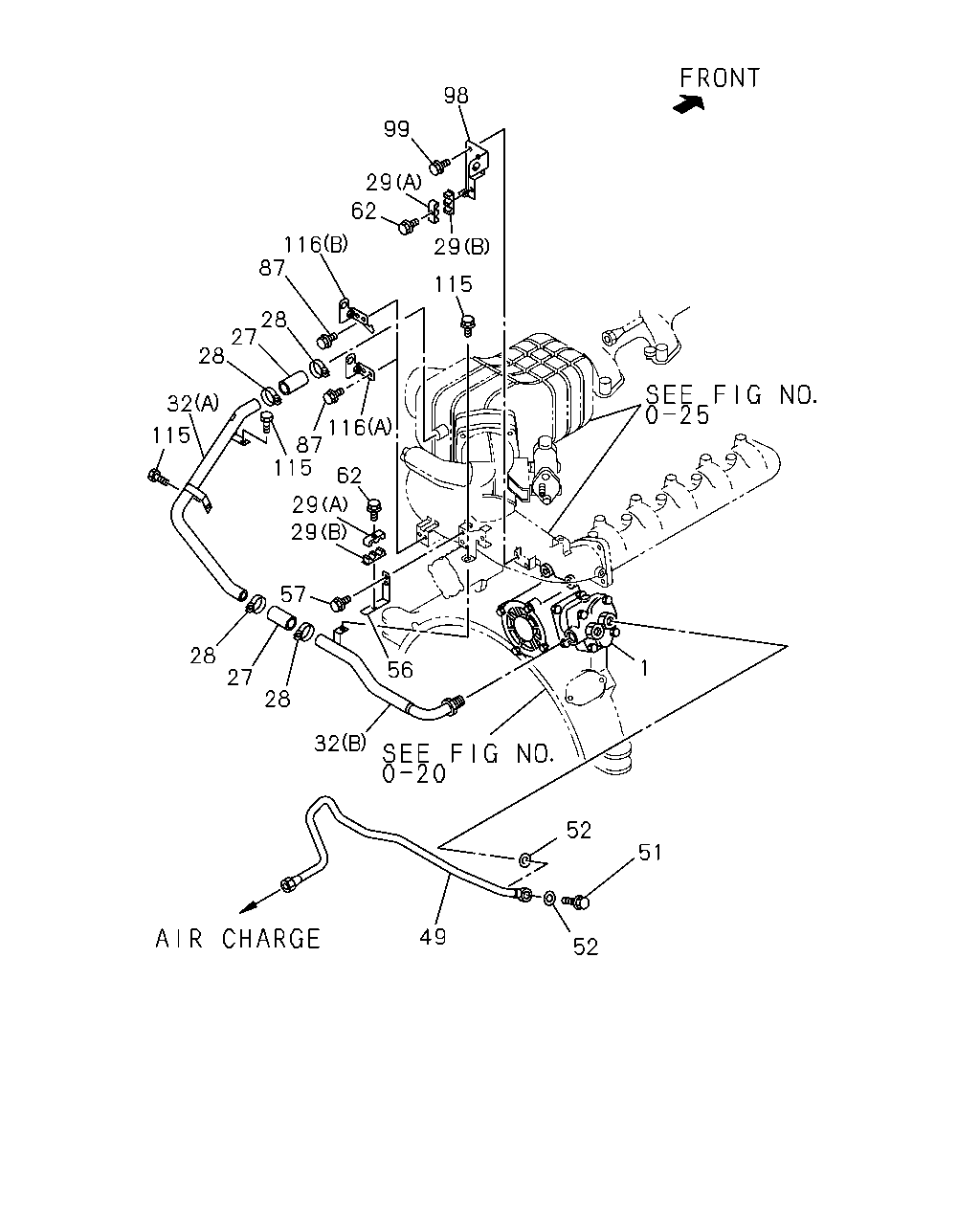

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#8394) — 28 parça
◀
[038A] FIXING;PIPE,CLIP AND BRACKET (20 parça)
[038A] FIXING;AIR CMPR (8 parça)
▶
98
99
29
29
115
62
116
87
28
27
28
32
115
116
87
115
62
29
29
57
28
27
28
56
32
1
52
51
49
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-177-5
01
1
9908-
27
HOSE; AIR CMPR,SUCTION
L=55
1-09360-784-0
02
1
9908-
28
CLIP; HOSE,AIR CMPR
ID=28.5
1-09707-150-0
04
1
9908-
29
CLIP; AIR PIPE
(A)
1-09701-193-1
02
1
9908-
29
CLIP; AIR PIPE
(B)
1-09701-194-1
02
1
9908-
32
PIPE; AIR,AIR CMPR
(A)
1-19192-902-0
01
1
9908-
32
PIPE; AIR,AIR CMPR
(B)
1-19192-983-0
01
1
9908-
49
PIPE; AIR,CHARGE
ENGINE REAR PTO(SV1)
1-19192-956-0
01
1
9908-
49
PIPE; AIR,CHARGE
EXC. ENGINE REAR PTO(SV1)
1-19192-928-0
01
1
9908-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-1
01
1
9908-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
9908-
56
BRACKET; AIR PIPE FIX
1-19199-228-0
01
1
9908-
57
BOLT; BRKT,AIR PIPE
M6X12 FLANGE
0-28080-612-0
02
1
9908-
62
BOLT; CLIP
M6X35 FLANGE
0-28080-635-0
02
1
9908-
87
BOLT; BRKT FIX
M8X16 FLANGE
0-28080-816-0
02
1
9908-
98
BRACKET; AIR & OIL PIPE
1-19199-227-0
01
1
9908-
99
BOLT; BRKT AIR PIPE
M8X16 FLANGE
0-28080-816-0
02
1
9908-
115
BOLT; AIR PIPE
M6X12 FLANGE
0-28080-612-0
03
1
9908-
116
BRACKET; AIR PIPE
ENGINE REAR PTO(SV1) (B)
1-13319-028-0
01
1
9908-
116
BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) (A)
1-22196-326-1
01
1
9908-
5
1
2
12
13
15
14
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-177-5
01
1
9908-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
9908-
5
BOLT; AIR CMPR FIX
M12X35 FLANGE
0-28181-235-0
04
1
9908-
12
KEY; AIR CMPR GEAR
9-08055-516-0
01
1
9908-
13
GEAR; AIR CMPR DRIVE
Z=26
1-12524-044-1
01
1
9908-
14
NUT; GEAR
M20
9-99111-520-0
01
1
9908-
15
WASHER; GEAR
ID=21
9-09164-520-0
01
1
9908-
16
ADAPTER
1-12539-010-0
01
1
9908-
