0-35 — ENGINE CONTROL VALVE AND LEVER (#8393) — 27 parça

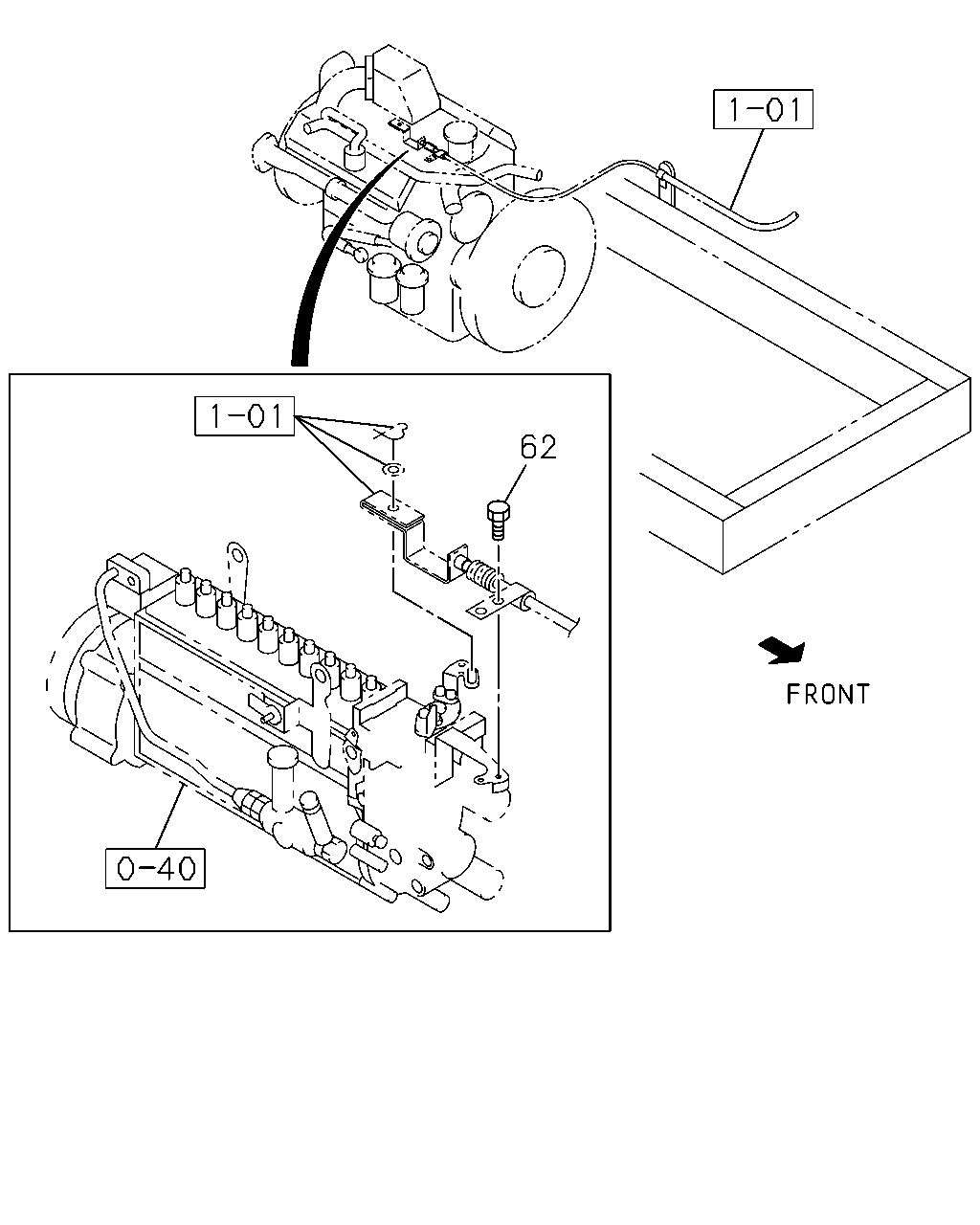

çizim 5819
62
BalonParca AdiParca NoAdetTipApplied Date
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 9908-

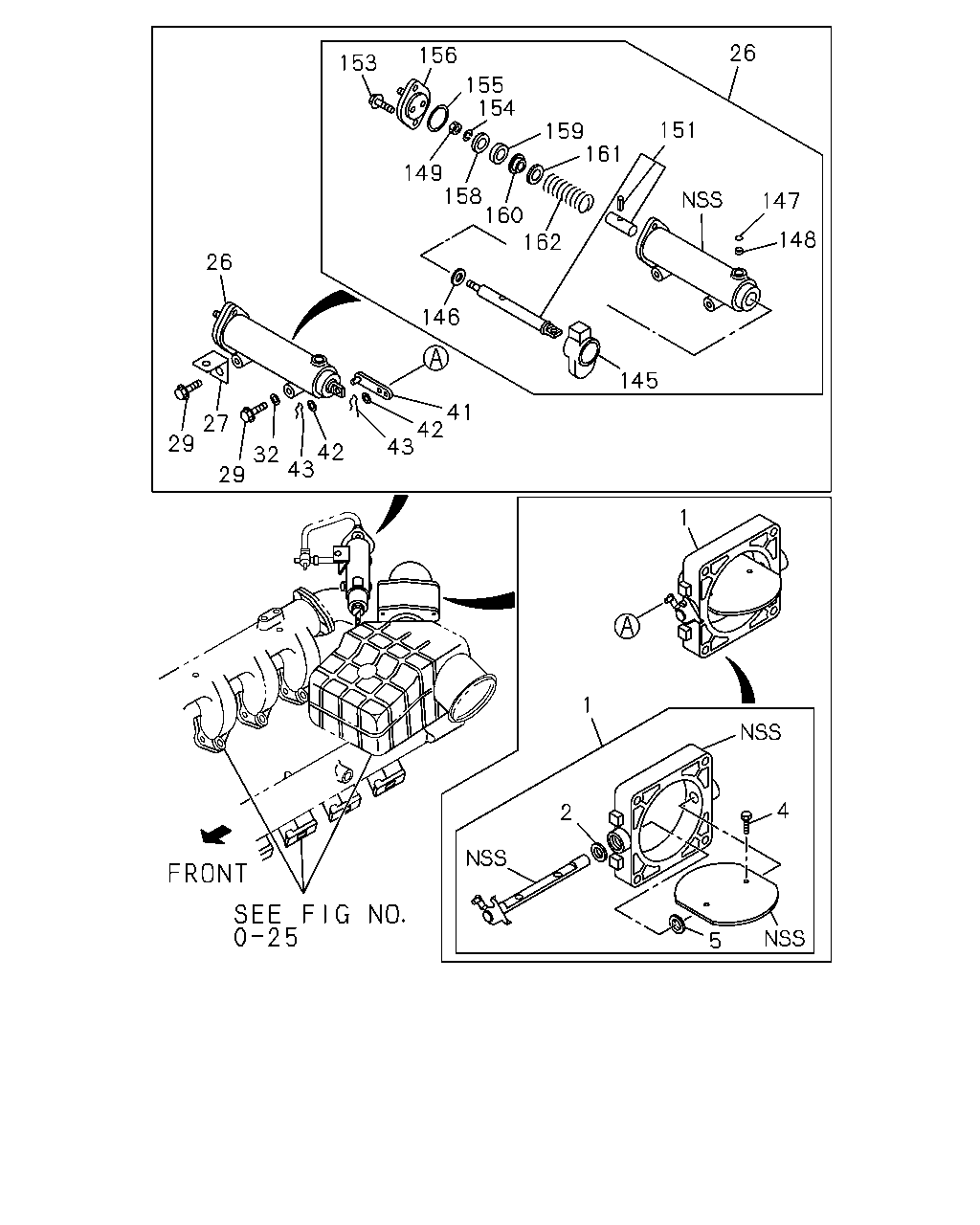

çizim 44595
26 156 153 155 154 159 161 151 147 148 149 158 160 162 145 146 26 29 27 29 32 43 42 43 42 41 1 1 2 4 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHUTTER ASM; INT 1-14310-219-1 01 1 9908-
2 COVER; DUST,SHAFT 9-14319-316-0 01 1 9908-
4 SCREW; VLV FIX 9-92050-514-0 02 1 9908-
5 WASHER; THRUST,INT SHUTTER
ID=12.5 		9-09160-512-0 01 1 9908-
26 CYLINDER ASM; CONT 1-22190-527-1 01 1 9908-
27 BRACKET; WIRE CLIP 1-83129-087-0 01 1 9908-
29 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-1 02 1 9908-
32 WASHER; LK,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 01 1 9908-
41 LINK; INT SHUTTER 1-14319-133-0 01 1 9908-
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 9908-
43 PIN; SNAP ROD LK
L=21.2 		1-09747-003-0 02 1 9908-
145 COVER; BREATHER 1-22199-008-0 01 1 9908-
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9908-
147 RING; RET 9-88510-331-0 01 1 9908-
148 FILTER; CONT CYL 9-88510-330-0 01 1 9908-
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9908-
151 SHAFT; CONT CYL 1-22196-256-0 01 1 9908-
153 BOLT; CONT CYL 1-33739-326-0 02 1 9908-
154 WASHER; LK,CYL
ID=8.2 		9-09150-508-0 01 1 9908-
155 GASKET; CONT CYL 9-88510-372-0 01 1 9908-
156 COVER; CONT CYL 1-22189-162-1 01 1 9908-
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 9908-
159 GASKET; CONT CYL 9-88510-373-0 01 1 9908-
160 PLATE 1-22199-020-0 01 1 9908-
161 RING; WEAR 1-22199-002-0 01 1 9908-
162 SPRING; CONT CYL 1-22199-018-0 01 1 9908-
