Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

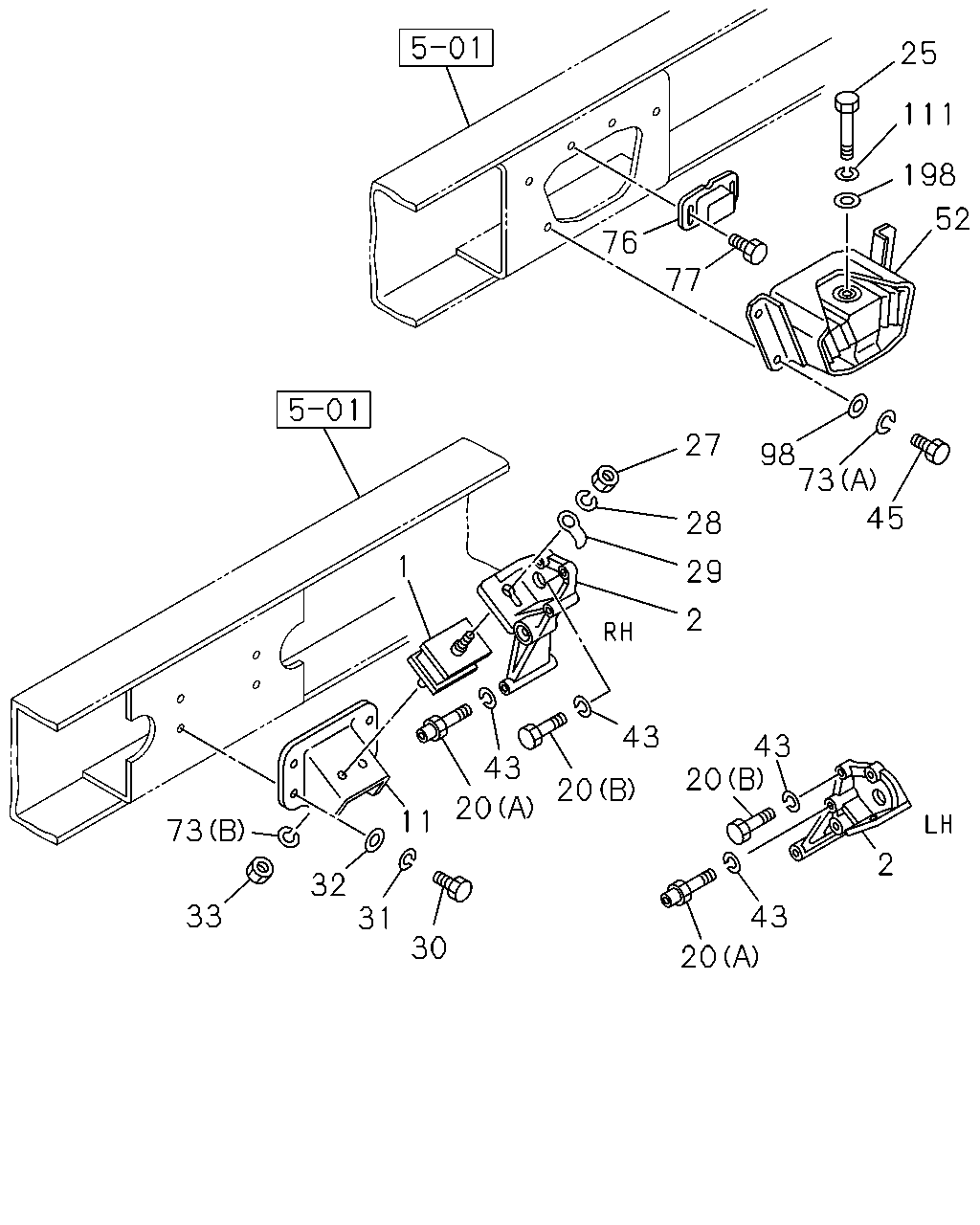

0-22 — ENGINE MOUNTING
(#8384) — 25 parça
25
111
198
76
52
77
27
98
73
45
28
1
29
2
43
43
20
43
20
20
11
73
2
32
31
33
43
30
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-132-2
02
1
9908-
2
FOOT; ENG
1-11771-218-1
01
1
9908-
2
FOOT; ENG
1-11771-217-1
01
1
9908-
11
BRACKET; CUSHION RUBBER,FRT
1-53211-222-0
02
1
9908-
20
BOLT; ENG FOOT
(A) M14X110
1-09020-007-0
02
1
9908-
20
BOLT; ENG FOOT
(B) M14X45
9-92361-445-0
04
1
9908-
25
BOLT; CUSHION RUBBER TO BRKT
M22X105
9-09804-230-1
02
1
9908-
27
NUT; CUSHION RUBBER TO ENG FOOT
M18
9-99110-518-0
02
1
9908-
28
WASHER; LK,SUPPORT BRKT
ID=18.2
9-09150-518-0
02
1
9908-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-040-0
02
1
9908-
30
BOLT; BRKT TO FRAME
M14X35
9-92061-435-0
08
1
9908-
31
WASHER; LK,BRKT TO FRAME
ID=14.2
9-09150-814-0
08
1
9908-
32
WASHER; PL,BRKT TO FRAME
ID=15
9-09651-069-0
08
1
9908-
33
NUT; CUSHION RUBBER TO BRKT
M14
9-99110-514-0
04
1
9908-0006
33
NUT; CUSHION RUBBER TO BRKT
M14
9-99110-414-0
04
1
0007-
43
WASHER; ENG FOOT
ID=14.2
1-09503-050-0
06
1
9908-
45
BOLT; CUSHION RUBBER TO FRAME
M14X40
9-92061-440-0
08
1
9908-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-236-3
02
1
9908-
73
WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2
9-09150-514-0
04
1
9908-
73
WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=14.2
9-09150-814-0
08
1
9908-
76
STOPPER; ENG MTG RUBBER
1-53229-056-1
02
1
9908-
77
BOLT; STOPPER
M8X16 FLANGE
0-28080-816-0
04
1
9908-
98
WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15
9-09651-069-0
08
1
9908-
111
WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5
9-09150-622-0
02
1
9908-
198
WASHER; PL,CUSHION TO BRKT,RR
9-09164-622-0
02
1
9908-
