0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#8383) — 92 parça

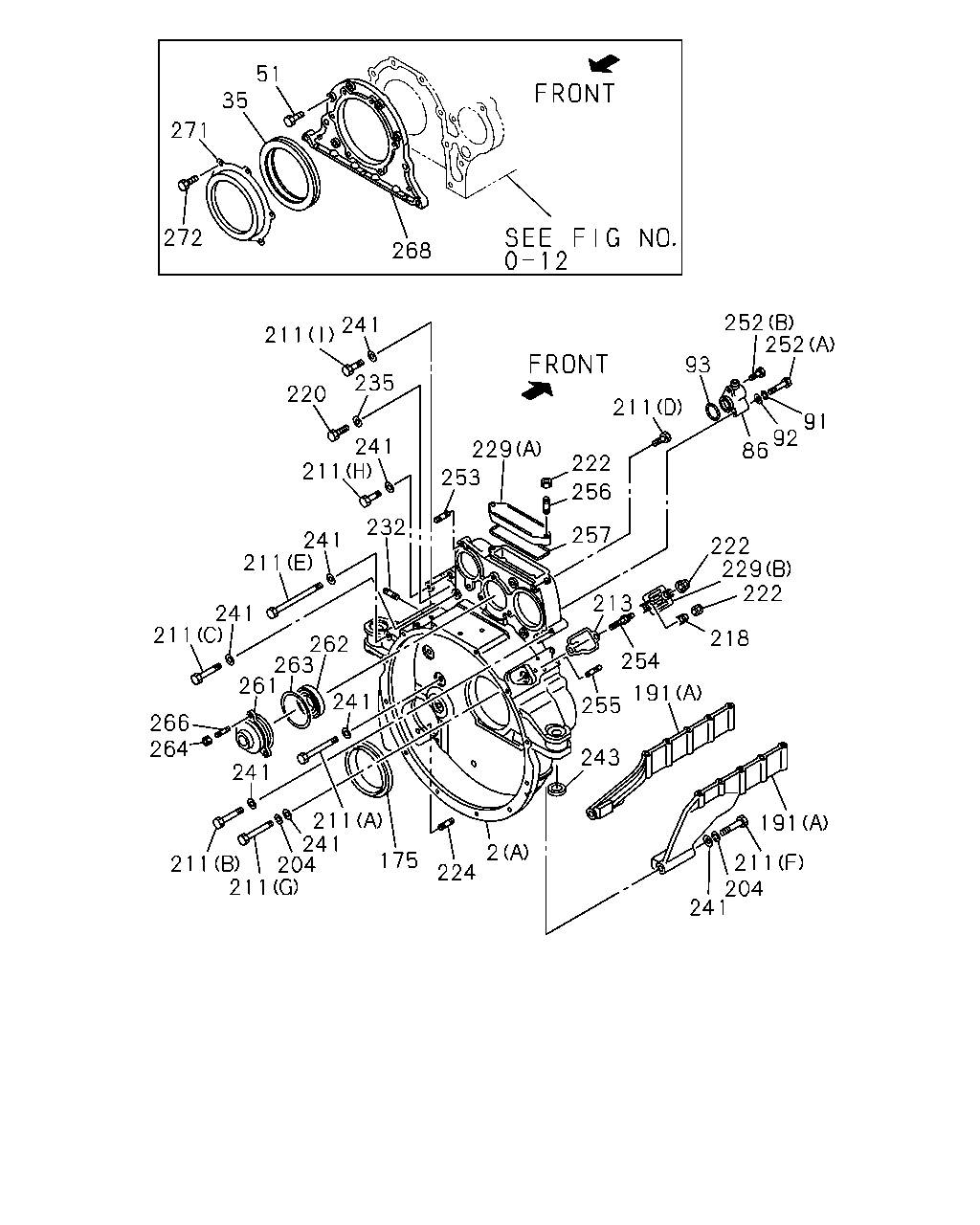

çizim 9075
51 35 271 272 268 241 211 235 220 211 241 229 253 232 241 211 241 211 266 264 261 263 262 241 241 211 211 204 241 211 211 175 224 2 222 256 257 213 254 255 191 243 241 204 211 191 218 222 229 222 211 93 252 252 91 92 86
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-11341-453-5 01 1 9908-0004
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-11341-619-0 01 1 0005-0007
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-11341-630-0 01 1 0008-0209
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-11341-681-2 01 1 0210-
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		1-11341-450-4 01 1 9908-0005
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		1-11341-597-0 01 1 0006-
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-3 01 1 9908-
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9908-
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9908-
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9908-
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9908-
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9908-
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9908-
191 STAY; FLYWHEEL HSG
(A) 		1-11349-167-0 01 1 9908-
191 STAY; FLYWHEEL HSG
(A) 		1-11349-168-0 01 1 9908-
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO(SV1) (B) 		1-11349-169-0 01 1 9908-0301
204 WASHER; LK,HSG
ID=10.2 		9-09150-510-0 01 1 9908-
204 WASHER; LK,HSG
ID=14.2 		9-09150-514-0 02 1 9908-
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9908-
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9908-
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9908-
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9908-
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9908-
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9908-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (J) M10X22 FLANGE 		0-28181-022-0 01 1 9908-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 11 1 9908-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		0-16806-455-0 01 1 9908-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 FLANGE 		0-28181-028-0 01 1 9908-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 09 1 9908-
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 9908-
218 WASHER; PL,COVER 1-11349-127-0 01 1 9908-
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 9908-
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 04 1 9908-
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9908-
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 9908-
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 9908-
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9908-0302
232 STUD; OIL FILTER
EXC. ENGINE REAR PTO(SV1) M10X25 L=40 		9-04411-025-0 02 1 0303-
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9908-
241 WASHER; PL,HSG
ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 9908-
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 02 1 9908-
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=10.5 OD=18 		9-09160-510-0 01 1 9908-
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=10.5 OD=18 		9-09160-510-0 02 1 9908-
243 SEAT; ENG FOOT 1-11349-016-1 02 1 9908-0209
243 SEAT; ENG FOOT
EXC. ENGINE REAR PTO(SV1) 		1-11349-016-1 02 1 0210-
252 BOLT; GEAR BOX
(A) M8X70 		0-10805-870-0 01 1 9908-
252 BOLT; GEAR BOX
(B) M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9908-
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9908-
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9908-
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 9908-
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 9908-
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9908-
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 9908-
262 BEARING 1-09810-126-0 01 1 9908-
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9908-
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9908-
266 STUD; COVER & TACHO BOX
M8X36 		1-09305-005-0 03 1 9908-
268 COVER; FRT 1-11320-056-1 01 1 9908-
271 COVER; DUST 1-11329-004-0 01 1 9908-
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9908-

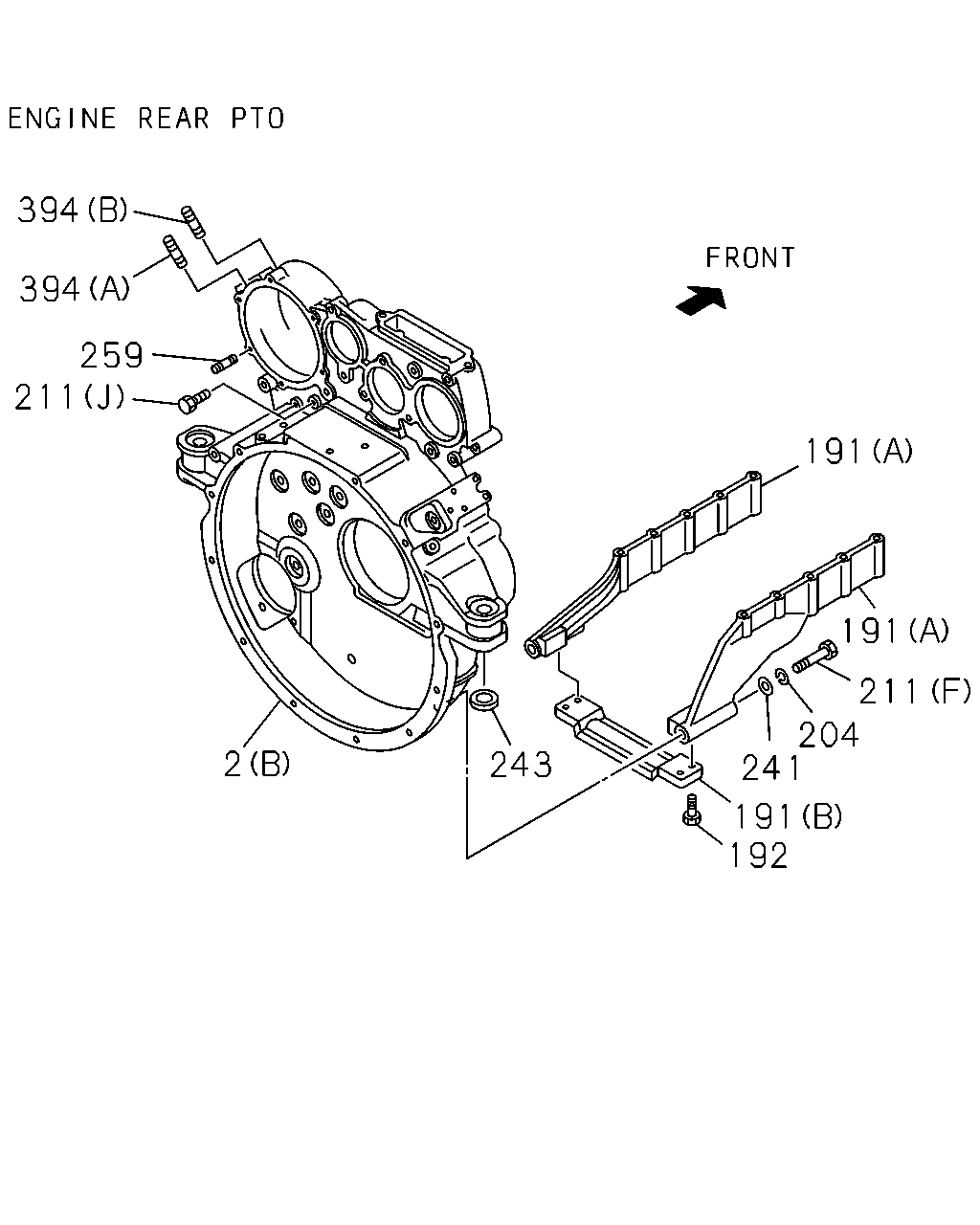

çizim 44145
394 394 259 211 191 191 211 204 241 2 243 191 192
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-11341-453-5 01 1 9908-0004
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-11341-619-0 01 1 0005-0007
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-11341-630-0 01 1 0008-0209
2 HOUSING; FLYWHEEL
ENGINE REAR PTO(SV1) (B) 		1-11341-681-2 01 1 0210-
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		1-11341-450-4 01 1 9908-0005
2 HOUSING; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A) 		1-11341-597-0 01 1 0006-
191 STAY; FLYWHEEL HSG
(A) 		1-11349-167-0 01 1 9908-
191 STAY; FLYWHEEL HSG
(A) 		1-11349-168-0 01 1 9908-
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO(SV1) (B) 		1-11349-169-0 01 1 9908-0301
192 BOLT; STAY TO HSG
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28181-030-0 04 1 9908-0301
204 WASHER; LK,HSG
ID=10.2 		9-09150-510-0 01 1 9908-
204 WASHER; LK,HSG
ID=14.2 		9-09150-514-0 02 1 9908-
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9908-
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9908-
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9908-
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9908-
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9908-
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9908-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (J) M10X22 FLANGE 		0-28181-022-0 01 1 9908-
211 BOLT; HSG
ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 11 1 9908-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (H) M14X55 		0-16806-455-0 01 1 9908-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (I) M10X28 FLANGE 		0-28181-028-0 01 1 9908-
211 BOLT; HSG
EXC. ENGINE REAR PTO(SV1) (A) M14X125 		9-09804-234-0 09 1 9908-
241 WASHER; PL,HSG
ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 9908-
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 02 1 9908-
241 WASHER; PL,HSG
ENGINE REAR PTO(SV1) ID=10.5 OD=18 		9-09160-510-0 01 1 9908-
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO(SV1) ID=10.5 OD=18 		9-09160-510-0 02 1 9908-
243 SEAT; ENG FOOT 1-11349-016-1 02 1 9908-0209
243 SEAT; ENG FOOT
EXC. ENGINE REAR PTO(SV1) 		1-11349-016-1 02 1 0210-
259 STUD; PTO
ENGINE REAR PTO(SV1) M10X35 L=55 		9-04311-035-0 06 1 9908-
394 STUD; SOLENOID VLV
ENGINE REAR PTO(SV1) (A) M10X25 L=40 		9-04411-025-0 01 1 9908-
394 STUD; SOLENOID VLV
ENGINE REAR PTO(SV1) (B) M10X35 L=50 		9-04411-035-0 01 1 9908-
