Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#8380) — 30 parça
◀

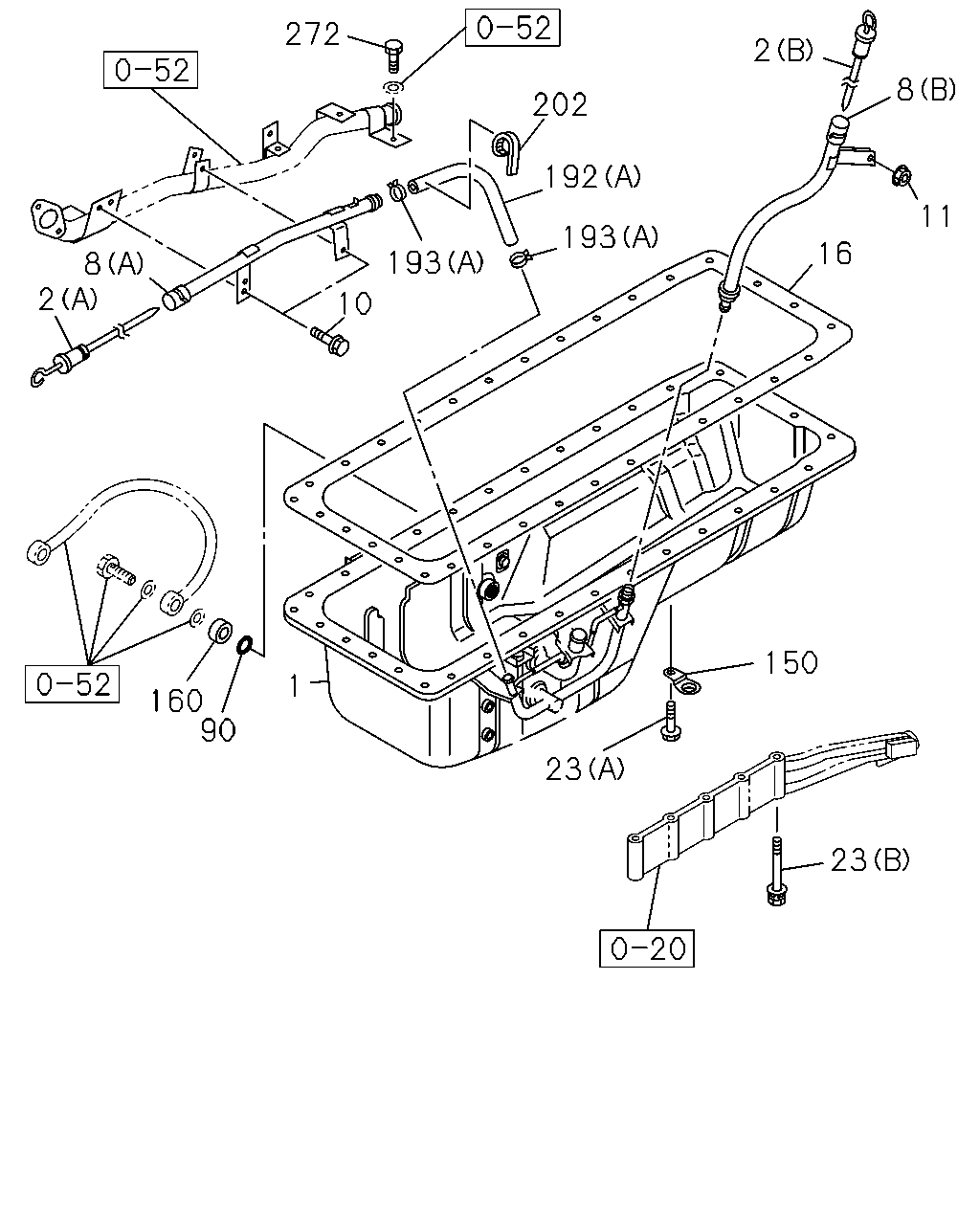

[013A] LEVEL GAUGE AND OTHER PARTS (22 parça)

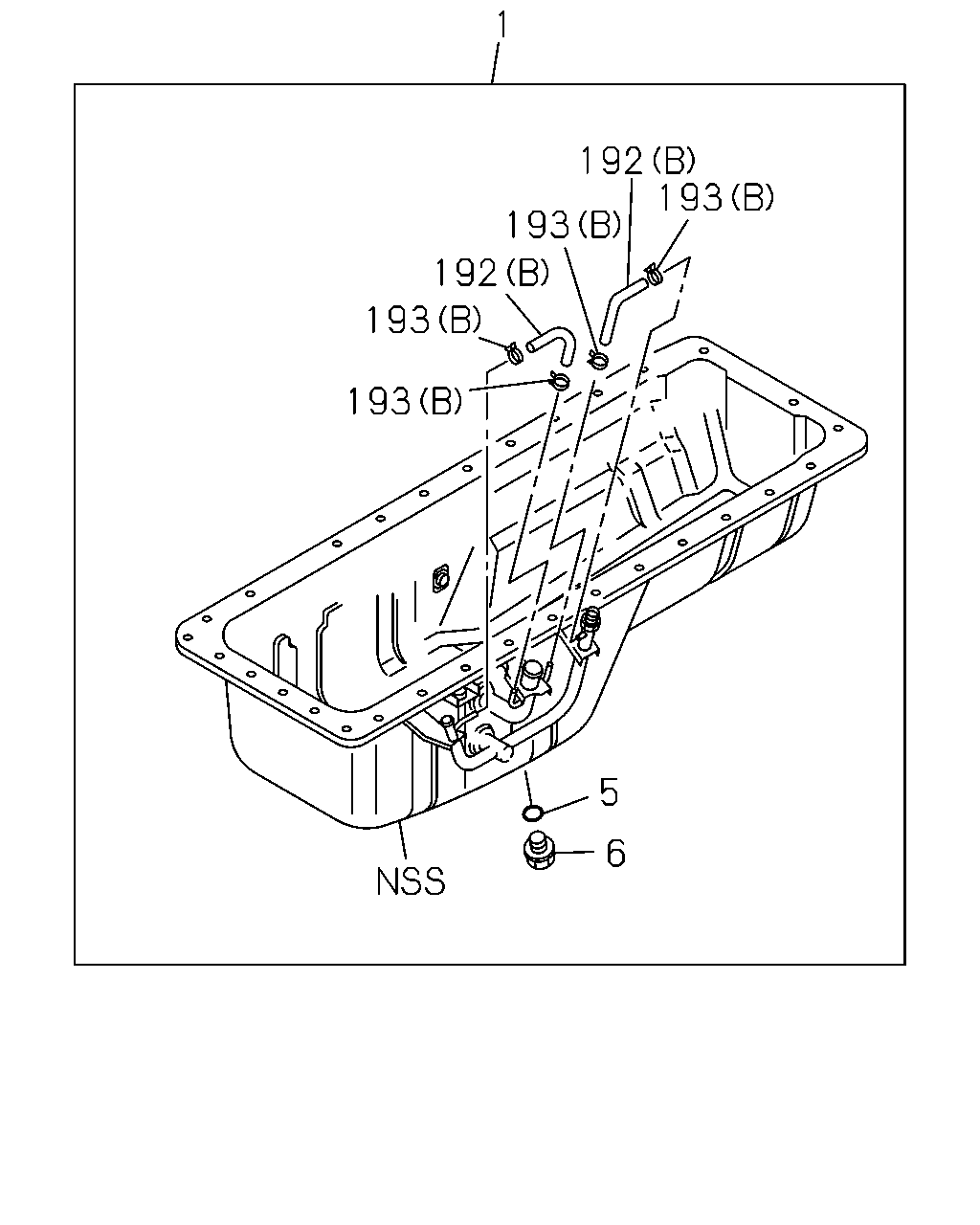

[013A] COMPONENT;OIL PAN ASM (8 parça)
▶
272
2
8
202
192
11
193
16
193
8
10
2
150
1
160
90
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-826-3
01
1
9908-
2
GAUGE; OIL LEVEL
(B)
1-11760-394-1
01
1
9908-
2
GAUGE; OIL LEVEL
(A)
1-11760-398-0
01
1
9908-0110
2
GAUGE; OIL LEVEL
(A)
1-11760-439-1
01
1
0111-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-429-2
01
1
9908-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
1-11766-458-1
01
1
9908-0110
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
1-11766-599-0
01
1
0111-
10
BOLT; GUIDE TUBE
M8X20 FLANGE
0-28680-820-0
02
1
9908-
11
NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE
0-91150-108-0
01
1
9908-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-105-0
01
1
9908-
23
BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER
1-09030-004-0
22
1
9908-
23
BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER
1-09030-078-0
10
1
9908-
90
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-588-0
01
1
9908-
150
CLIP; WATER,OIL DRAIN
9-11229-070-0
01
1
9908-
160
ADAPTER
1-11369-126-0
01
1
9908-
192
HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000
0-02365-300-0
01
1
9908-
192
HOSE; GUIDE TUBE
(B)
1-09360-297-0
02
1
9908-
193
CLIP; HOSE,GUIDE TUBE
(B) ID=11.6
1-09707-087-0
04
1
9908-
193
CLIP; HOSE,GUIDE TUBE
(A) ID=20.8
8-94125-862-1
02
1
9908-
202
CLIP; BAND,RUBBER COVER
L=250
5-09707-030-1
01
1
9908-
272
BOLT; STAY
M8X30
1-09009-020-1
01
1
9908-0208
272
BOLT; STAY
M8X26
1-09009-175-0
01
1
0209-
1
192
193
193
192
193
193
5
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-826-3
01
1
9908-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8
1-09623-415-0
01
1
9908-
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-064-1
01
1
9908-0111
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-022-0
01
1
0112-
192
HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000
0-02365-300-0
01
1
9908-
192
HOSE; GUIDE TUBE
(B)
1-09360-297-0
02
1
9908-
193
CLIP; HOSE,GUIDE TUBE
(B) ID=11.6
1-09707-087-0
04
1
9908-
193
CLIP; HOSE,GUIDE TUBE
(A) ID=20.8
8-94125-862-1
02
1
9908-
