Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

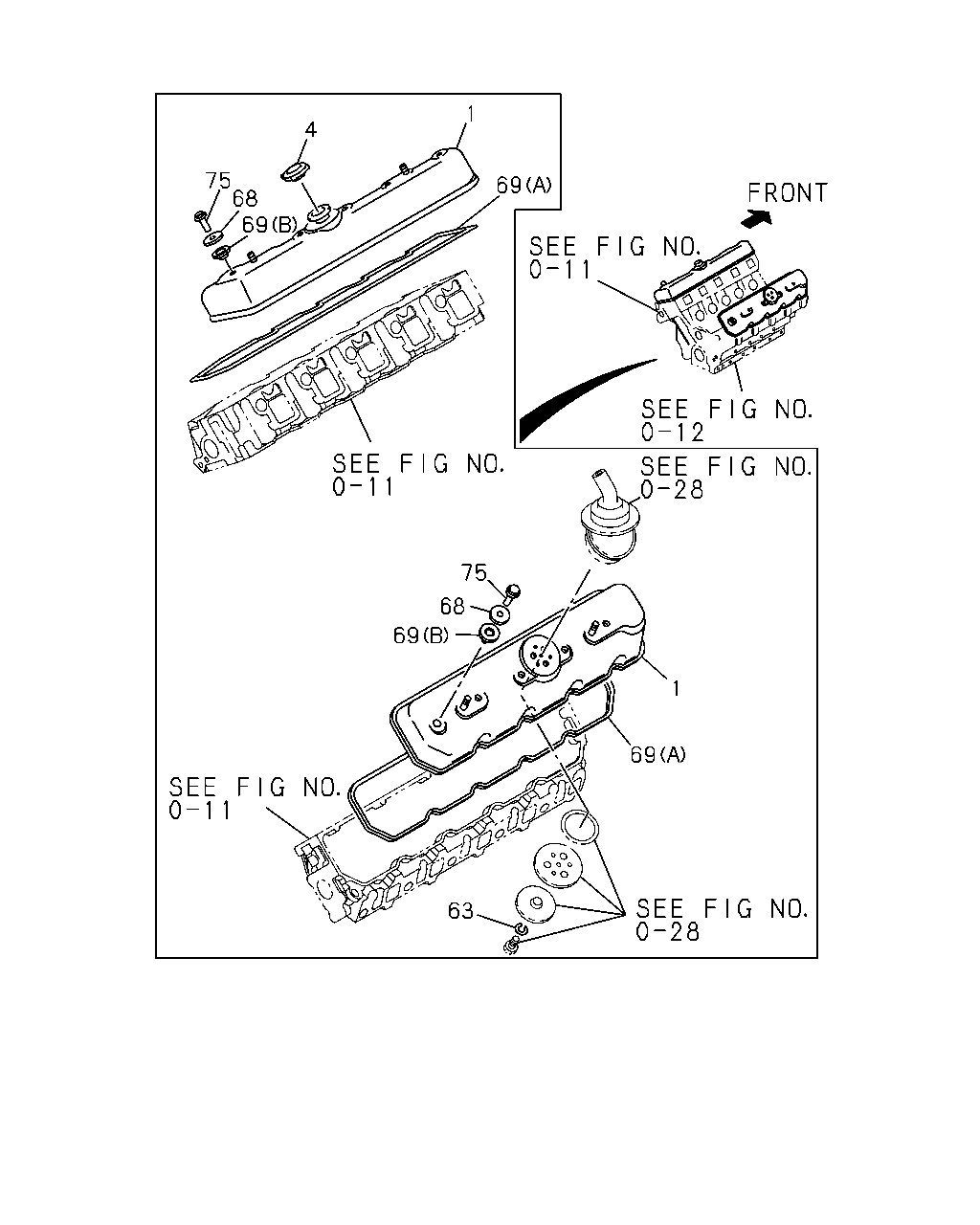

0-10 — CYLINDER HEAD COVER
(#8377) — 8 parça
1
69
4
75
68
69
75
68
69
63
69
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
RH BANK
1-11171-340-2
01
1
9908-
1
COVER; CYL HD
LH BANK
1-11171-345-2
01
1
9908-
4
CAP; OIL FILLER
1-11750-020-0
01
1
9908-
63
WASHER; LK,BAFFLE PLATE
ID=6.1
9-09150-506-0
04
1
9908-
68
WASHER; CAP NUT,HD COVER
1-11179-048-0
10
1
9908-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-09639-031-0
10
1
9908-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
1-11173-105-0
02
1
9908-
75
NUT; CAP,HD COVER
1-11175-008-0
10
1
9908-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
