9-01 — TOOLS (#8375) — 140 parça

227 237 218 219 329 388 408 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
218	PLUG DUMP TRUCK<RA1>	1-15629-043-0	01	1	9906-9906
218	PLUG DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-15629-043-0	01	1	9907-
219	GASKET DUMP TRUCK<RA1>	9-09720-555-0	01	1	9906-9906
219	GASKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	9-09720-555-0	01	1	9907-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9906-
237	BAG; TOOL	8-97130-902-0	01	1	9906-
329	PULLER ASM; SLINGER DUMP TRUCK<RA1> ID=124	1-85220-052-0	01	1	9906-9906
329	PULLER ASM; SLINGER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> ID=124	1-85220-052-0	01	1	9907-
388	WRENCH; U-BOLT	9-85111-957-0	01	1	9906-
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	0006-
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	0006-

5 9 1 23 22 21 20 17 12 29 40 39 38 37 36 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	9906-
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	9906-
9	WRENCH; WHEEL PIN 41X21 L=440	1-85113-015-1	01	1	9906-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-94430-092-0	01	1	9906-
17	HAMMER DUMP TRUCK<RA1>	1-85220-021-0	01	1	9906-9906
17	HAMMER DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85220-021-0	01	1	9907-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9906-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9906-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9906-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9906-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	9906-9909
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9906-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	9906-9909
36	WRENCH; 24	9-85111-377-0	01	1	9906-
37	WRENCH; 27	9-85111-375-0	01	1	9906-
38	WRENCH; 32	9-85111-358-0	01	1	9906-
39	WRENCH; 36	9-85111-374-0	01	1	9906-
40	WRENCH; 41	9-85111-356-0	01	1	9906-

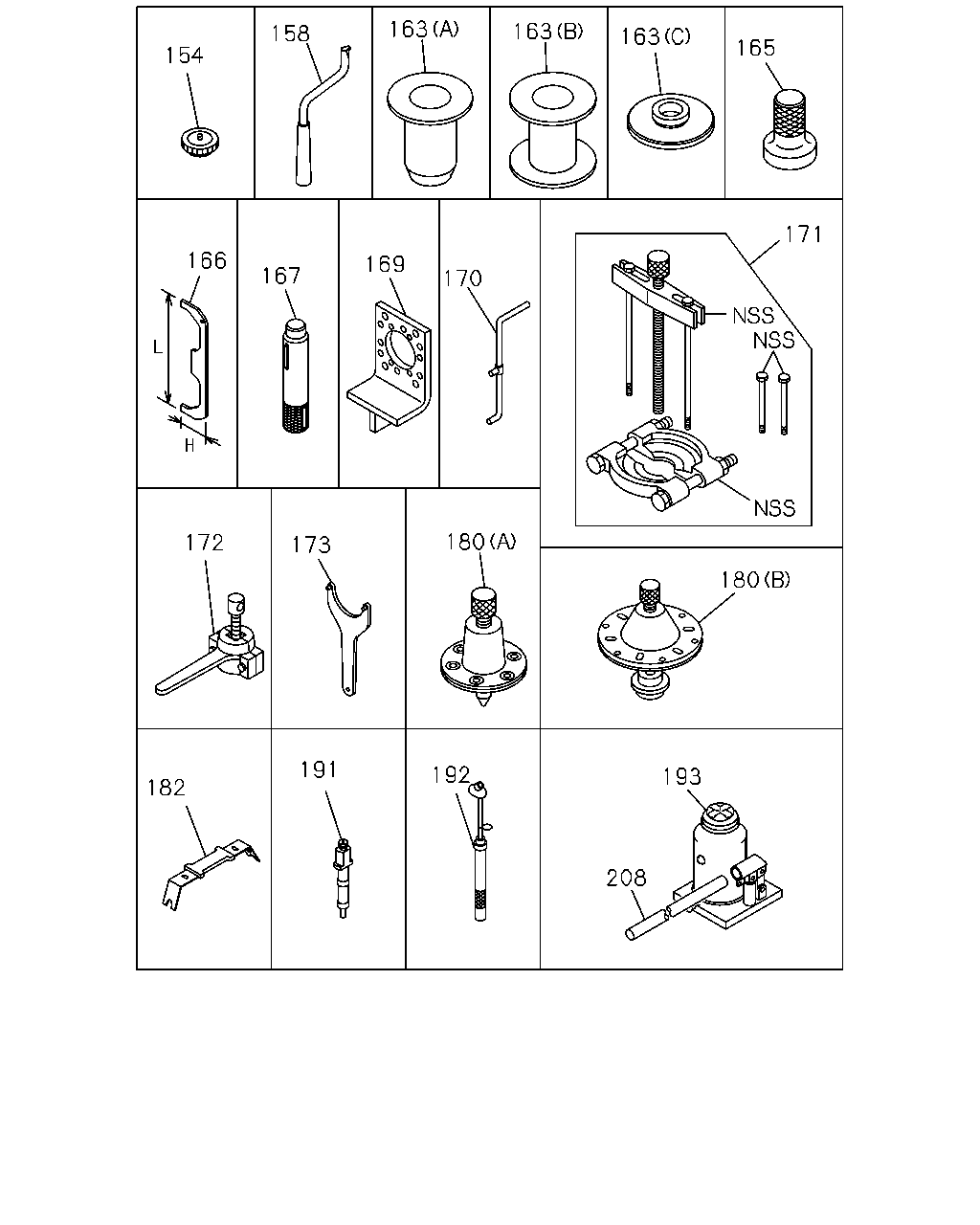

163 163 158 163 165 154 171 166 169 167 170 180 172 173 180 191 192 193 182 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9906-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9906-
163	TOOL; SETTING (A) L=195	1-85221-162-1	01	1	9906-
163	TOOL; SETTING (B) L=150	1-85221-163-0	01	1	9906-
163	TOOL; SETTING (C) OD=150	1-85221-167-0	01	1	9906-
165	SETTING TOOL; PTO	1-85221-177-0	01	1	9906-
166	ALIGNER; CLU RELEASE LEVER L=550 H=17.5	1-85253-010-0	01	1	9906-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	9906-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9906-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9906-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9906-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9906-
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	9906-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9906-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9906-
182	REMOVER ASM	1-85239-008-0	01	1	9906-
191	ADAPTER DUMP TRUCK<RA1>	1-85317-002-0	01	1	9906-9906
191	ADAPTER DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85317-002-0	01	1	9907-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9906-9912
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-
193	JACK ASM 15TON	1-85510-019-1	01	1	9906-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9906-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-

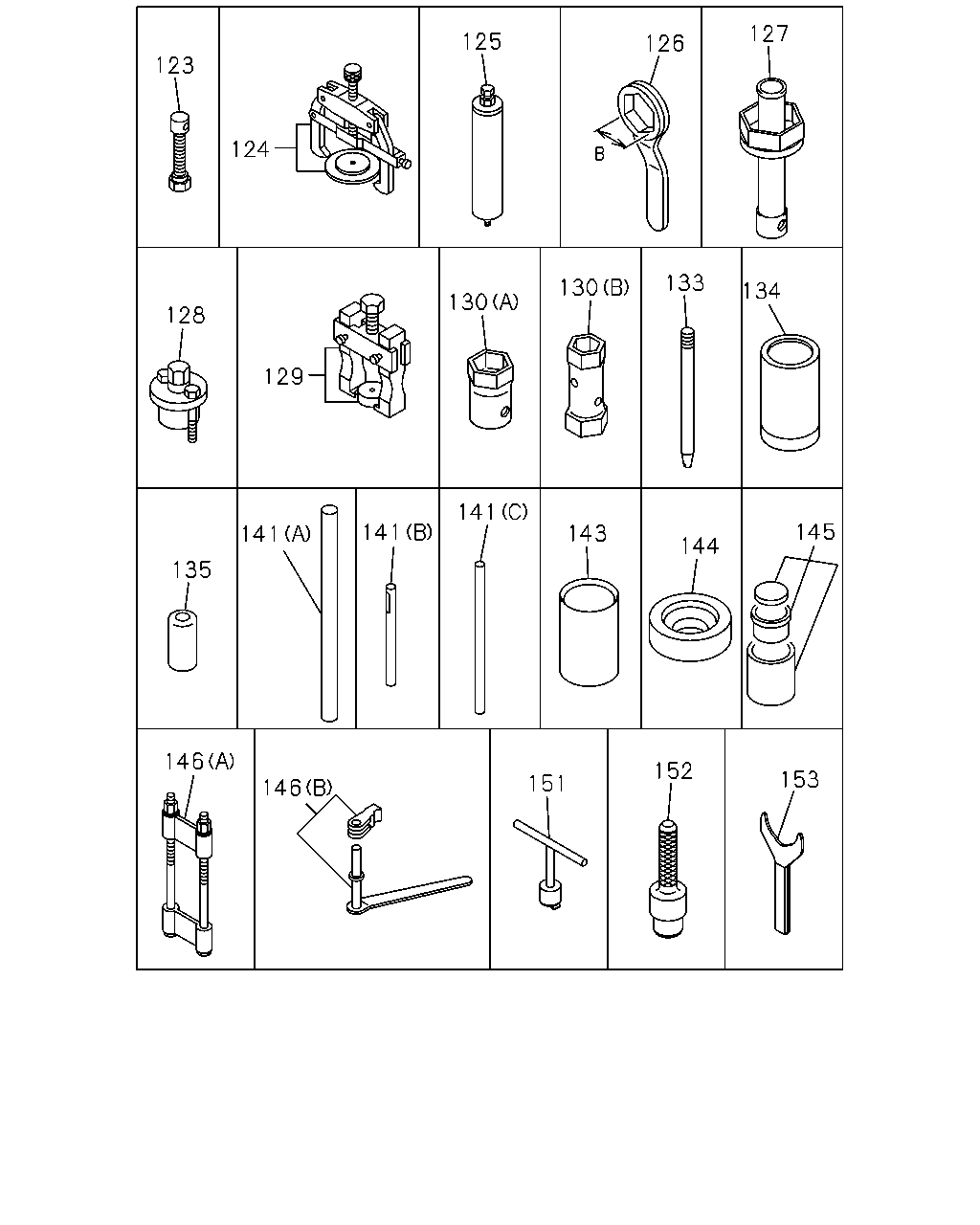

127 125 126 123 124 133 130 134 130 128 129 141 145 141 143 141 144 135 146 152 153 151 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	9906-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9906-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9906-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	9906-
127	WRENCH ASM; HUB BRG NUT B=105	9-85113-509-0	01	1	9906-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	9906-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9906-
130	WRENCH; BOX (A) B=63	9-85111-368-0	01	1	9906-
130	WRENCH; BOX (B) B=46 & 54 L=165	9-85112-320-0	01	1	9906-
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	9906-
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9906-
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	9906-
133	WRENCH; NUT STARTER DUMP TRUCK<RA1>	1-85221-030-0	02	1	9906-9906
133	WRENCH; NUT STARTER DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85221-030-0	02	1	9907-
134	SETTING TOOL; OUTPUT BRG	1-85220-003-0	01	1	9906-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9906-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9906-
141	HANDLE; WRENCH (A) OD=25 L=480	9-85114-301-0	01	1	9906-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	9906-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	9906-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	9906-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	9906-
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	9906-
146	REPLACER KIT; LEAF SPR (B)	1-85237-016-0	01	1	9906-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9906-
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	9906-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9906-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9906-

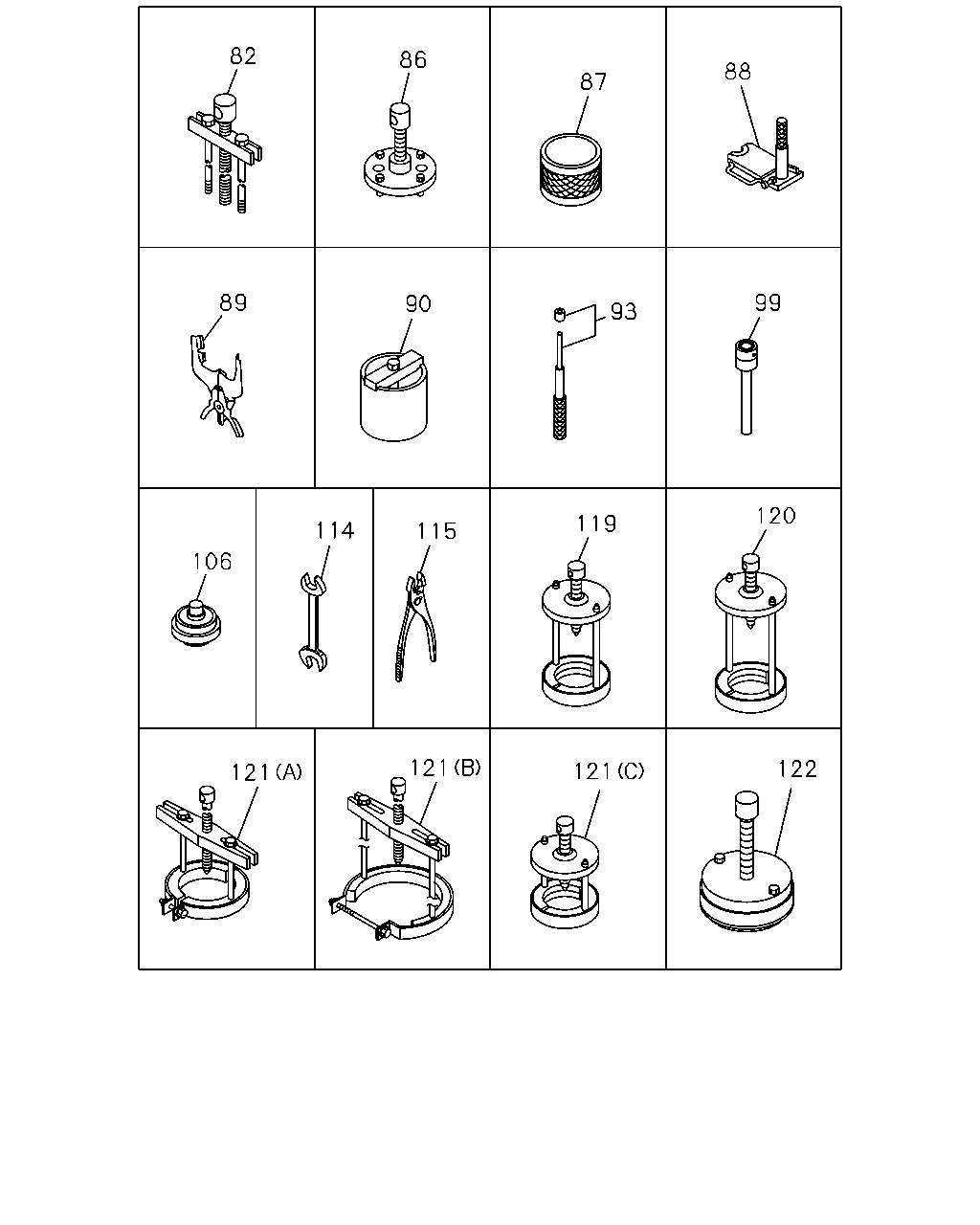

82 86 88 87 89 99 90 93 120 119 114 115 106 121 122 121 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	PULLER ASM; CR/SHF GEAR DUMP TRUCK<RA1>	9-85211-139-0	01	1	9906-9906
82	PULLER ASM; CR/SHF GEAR DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	9-85211-139-0	01	1	9907-
86	REPLACER; FLYWHEEL DUMP TRUCK<RA1>	1-85230-006-0	01	1	9906-9906
86	REPLACER; FLYWHEEL DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85230-006-0	01	1	9907-
87	TOOL; PISTON DUMP TRUCK<RA1>	1-85220-082-0	01	1	9906-9906
87	TOOL; PISTON DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85220-082-0	01	1	9907-
88	TOOL; CONNROD BUSHING DUMP TRUCK<RA1>	1-85220-002-0	01	1	9906-9906
88	TOOL; CONNROD BUSHING DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85220-002-0	01	1	9907-
89	TOOL; PISTON RING DUMP TRUCK<RA1>	1-85221-029-0	01	1	9906-9906
89	TOOL; PISTON RING DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85221-029-0	01	1	9907-
90	PULLER; INJ PUMP BRG DUMP TRUCK<RA1>	1-85210-039-0	01	1	9906-9906
90	PULLER; INJ PUMP BRG DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85210-039-0	01	1	9907-
93	SETTING KIT; VALVE GUIDE DUMP TRUCK<RA1> L=260	9-85231-202-0	01	1	9906-9906
93	SETTING KIT; VALVE GUIDE DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=260	9-85231-202-0	01	1	9907-
99	WRENCH; CYL HD BOLT DUMP TRUCK<RA1>	1-85115-013-0	01	1	9906-9906
99	WRENCH; CYL HD BOLT DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85115-013-0	01	1	9907-
106	TOOL; SETTING PILOT BRG DUMP TRUCK<RA1>	1-85221-057-0	01	1	9906-9906
106	TOOL; SETTING PILOT BRG DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85221-057-0	01	1	9907-
114	WRENCH; INJ PUMP DUMP TRUCK<RA1>	1-85220-027-0	01	1	9906-9906
114	WRENCH; INJ PUMP DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85220-027-0	01	1	9907-
115	PLIER	5-85171-002-0	01	1	9906-
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	9906-
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	9906-
121	PULLER ASM; COUNTER REAR (A) OD=162	1-85210-068-0	01	1	9906-
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	9906-
121	PULLER ASM; COUNTER REAR (A) OD=146	1-85210-074-0	01	1	9906-
121	PULLER ASM; COUNTER REAR (C)	9-85210-185-0	01	1	9906-
122	PULLER ASM; COUNTER FRT	1-85210-010-0	01	1	9906-

50 47 51 54 49 63 57 61 61 70 73 74 70 75 81 75 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	WRENCH ASM; UNIVERSAL,INJ PUMP DUMP TRUCK<RA1>	1-85220-018-0	01	1	9906-9906
47	WRENCH ASM; UNIVERSAL,INJ PUMP DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85220-018-0	01	1	9907-
49	REPLACER ASM; VALVE DUMP TRUCK<RA1>	1-85235-001-0	01	1	9906-9906
49	REPLACER ASM; VALVE DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85235-001-0	01	1	9907-
50	REPLACER; NOZZLE HOLDER DUMP TRUCK<RA1> L=500	1-85230-007-0	01	1	9906-9906
50	REPLACER; NOZZLE HOLDER DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=500	1-85230-007-0	01	1	9907-
51	PULLER ASM; WATER PUMP DUMP TRUCK<RA1>	1-85210-028-0	01	1	9906-9906
51	PULLER ASM; WATER PUMP DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85210-028-0	01	1	9907-
54	PULLER; THERMOSTAT SEAL DUMP TRUCK<RA1>	1-85210-029-0	01	1	9906-9906
54	PULLER; THERMOSTAT SEAL DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85210-029-0	01	1	9907-
57	TOOL; SETTING CRANK GEAR DUMP TRUCK<RA1> OD=175	1-85221-028-0	01	1	9906-9906
57	TOOL; SETTING CRANK GEAR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> OD=175	1-85221-028-0	01	1	9907-
61	PULLER ASM; PILOT BRG (B)	1-85210-050-0	01	1	9906-
61	PULLER ASM; PILOT BRG DUMP TRUCK<RA1> (A)	9-85210-157-0	01	1	9906-9906
61	PULLER ASM; PILOT BRG DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	9-85210-157-0	01	1	9907-
63	PULLER; NOZZLE SLEEVE DUMP TRUCK<RA1>	1-85210-026-0	01	1	9906-9906
63	PULLER; NOZZLE SLEEVE DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85210-026-0	01	1	9907-
70	TOOL; SETTING,OIL SEAL (A)	1-85221-172-0	01	1	9906-
70	TOOL; SETTING,OIL SEAL DUMP TRUCK<RA1> (B) FOR OIL SEAL	1-85220-051-0	01	1	9906-9906
70	TOOL; SETTING,OIL SEAL DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) FOR OIL SEAL	1-85220-051-0	01	1	9907-
70	TOOL; SETTING,OIL SEAL DUMP TRUCK<RA1> (B) FOR OIL THROWER	1-85220-053-0	01	1	9906-9906
70	TOOL; SETTING,OIL SEAL DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) FOR OIL THROWER	1-85220-053-0	01	1	9907-
73	TOOL; SETTING,THERMOSTAT SEAL DUMP TRUCK<RA1>	1-85221-034-0	01	1	9906-9906
73	TOOL; SETTING,THERMOSTAT SEAL DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85221-034-0	01	1	9907-
74	TOOL; SETTING,INJ PUMP BRG DUMP TRUCK<RA1> (A)	1-85220-019-0	01	1	9906-9906
74	TOOL; SETTING,INJ PUMP BRG DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	1-85220-019-0	01	1	9907-
74	TOOL; SETTING,INJ PUMP BRG DUMP TRUCK<RA1> (B)	1-85220-020-1	01	1	9906-9906
74	TOOL; SETTING,INJ PUMP BRG DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	1-85220-020-1	01	1	9907-
75	TOOL; SETTING,OIL SEAL (A)	1-85221-168-0	01	1	9906-
75	TOOL; SETTING,OIL SEAL (B)	1-85221-169-0	01	1	9906-
81	PULLER; BRG CAP DUMP TRUCK<RA1>	1-85210-015-0	01	1	9906-9906
81	PULLER; BRG CAP DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-85210-015-0	01	1	9907-
