◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10819 - CXZ RHD SINGAPORE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#8372) — 96 parça
çizim 43344
35 150 30 1 150
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 1-83534-213-2 01 1 9906-0209
1 CONDENSER; A/C 1-83534-211-2 01 1 0210-
30 BOLT; CONDENSER,A/C
M8X20 W/LK&PL WASHER 		8-94279-208-0 04 1 9906-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91150-108-0 05 1 9906-
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-826-0 01 1 9906-
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-827-1 01 1 9906-
150 BRACKET; CONDENSER,MTG
(A) 		1-83571-909-0 01 1 9906-

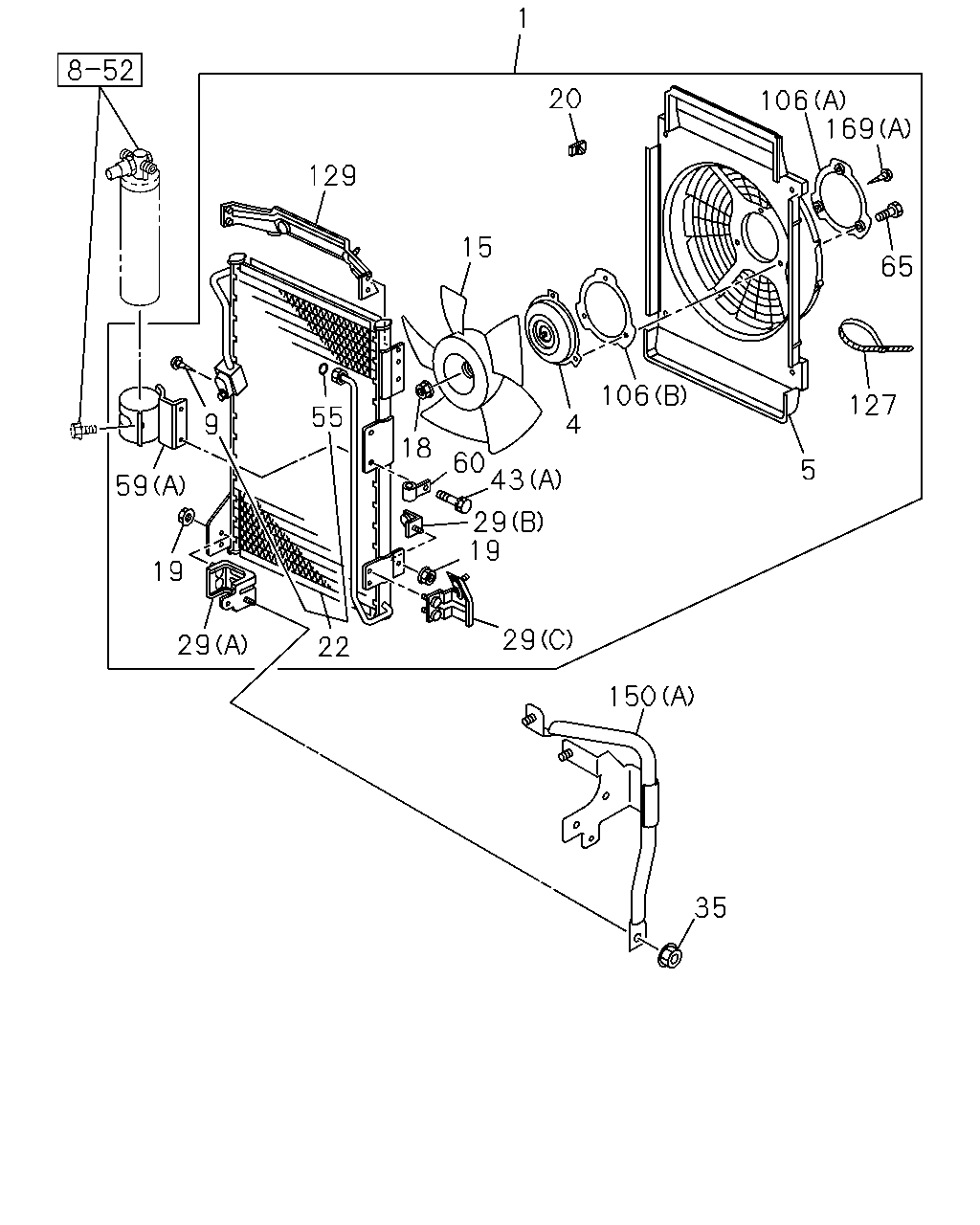

çizim 44121
1 20 106 169 129 15 65 106 127 55 4 9 18 60 43 5 59 29 19 19 29 29 22 150 35
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 1-83534-213-2 01 1 9906-0209
1 CONDENSER; A/C 1-83534-211-2 01 1 0210-
4 MOTOR ASM; FAN 1-83539-231-0 01 1 9906-0209
4 MOTOR ASM; FAN 1-83561-156-1 01 1 0210-
5 SHROUD; FAN MOTOR 1-83539-230-2 01 1 9906-0209
5 SHROUD; FAN MOTOR 1-83539-343-0 01 1 0210-
9 BOLT; BRKT 1-83539-374-0 01 1 0104-0209
15 FAN; MOTOR 1-83539-232-0 01 1 9906-0209
15 FAN; MOTOR 1-83561-158-0 01 1 0210-
18 NUT; FAN,CENTER 8-97018-672-0 01 1 9906-
19 NUT; BRKT 1-83539-235-0 11 1 9906-0209
19 NUT; BRKT 1-83539-235-0 02 1 0210-
20 CLIP; CONDENSER 8-94364-751-0 01 1 9906-0209
22 CONDENSER ASM; A/C 1-83534-222-1 01 1 9906-0209
22 CONDENSER ASM; A/C 1-83534-224-0 01 1 0210-
29 BRACKET; SIDE
(A) 		1-83539-227-1 01 1 9906-
29 BRACKET; SIDE
(B) 		1-83539-236-0 04 1 9906-0209
29 BRACKET; SIDE
(C) 		1-83539-311-1 01 1 9906-0209
29 BRACKET; SIDE
(D) 		1-83539-348-1 01 1 0210-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91150-108-0 05 1 9906-
43 BOLT; BRKT,CONDENSER
(A) M6X16 W/FLANGE 		1-83539-260-0 06 1 9906-0209
43 BOLT; BRKT,CONDENSER
(B) 		8-97018-671-0 03 1 0210-
43 BOLT; BRKT,CONDENSER
(C) 		1-83579-975-0 02 1 0210-
55 GASKET; PIPE 8-97161-776-0 02 1 9906-0001
55 GASKET; PIPE 8-97161-776-0 01 1 0002-
59 BRACKET; CONDENSER
(A) 		1-83539-228-2 01 1 9906-
59 BRACKET; CONDENSER
(B) 		1-83539-344-0 01 1 0210-
59 BRACKET; CONDENSER
(C) 		1-83539-346-0 01 1 0210-
60 CLIP; PIPE 1-83539-234-0 01 1 9906-
65 BOLT; SHROUD 1-83539-242-0 03 1 9906-0209
65 BOLT; SHROUD 8-97117-796-0 03 1 0210-
106 BRACKET; FAN MOTOR
(A) 		1-83539-243-0 01 1 9906-0209
106 BRACKET; FAN MOTOR
(C) 		1-83539-345-0 01 1 0210-
106 BRACKET; FAN MOTOR
(B) 		1-83539-244-0 01 1 9906-0209
127 CLIP; SHROUD
L=140 		5-09707-008-0 01 1 9906-0209
127 CLIP; SHROUD 8-94158-260-0 01 1 0210-
129 BRACKET; UPR 1-83539-237-1 01 1 9906-0209
129 BRACKET; UPR 1-83539-347-1 01 1 0210-
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-826-0 01 1 9906-
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-827-1 01 1 9906-
150 BRACKET; CONDENSER,MTG
(A) 		1-83571-909-0 01 1 9906-
169 SCREW; SHROUD
(A) 		8-94248-807-0 01 1 9906-0209
169 SCREW; SHROUD
(B) 		1-83579-974-0 08 1 0210-
169 SCREW; SHROUD
(C) 		1-83579-975-0 04 1 0210-

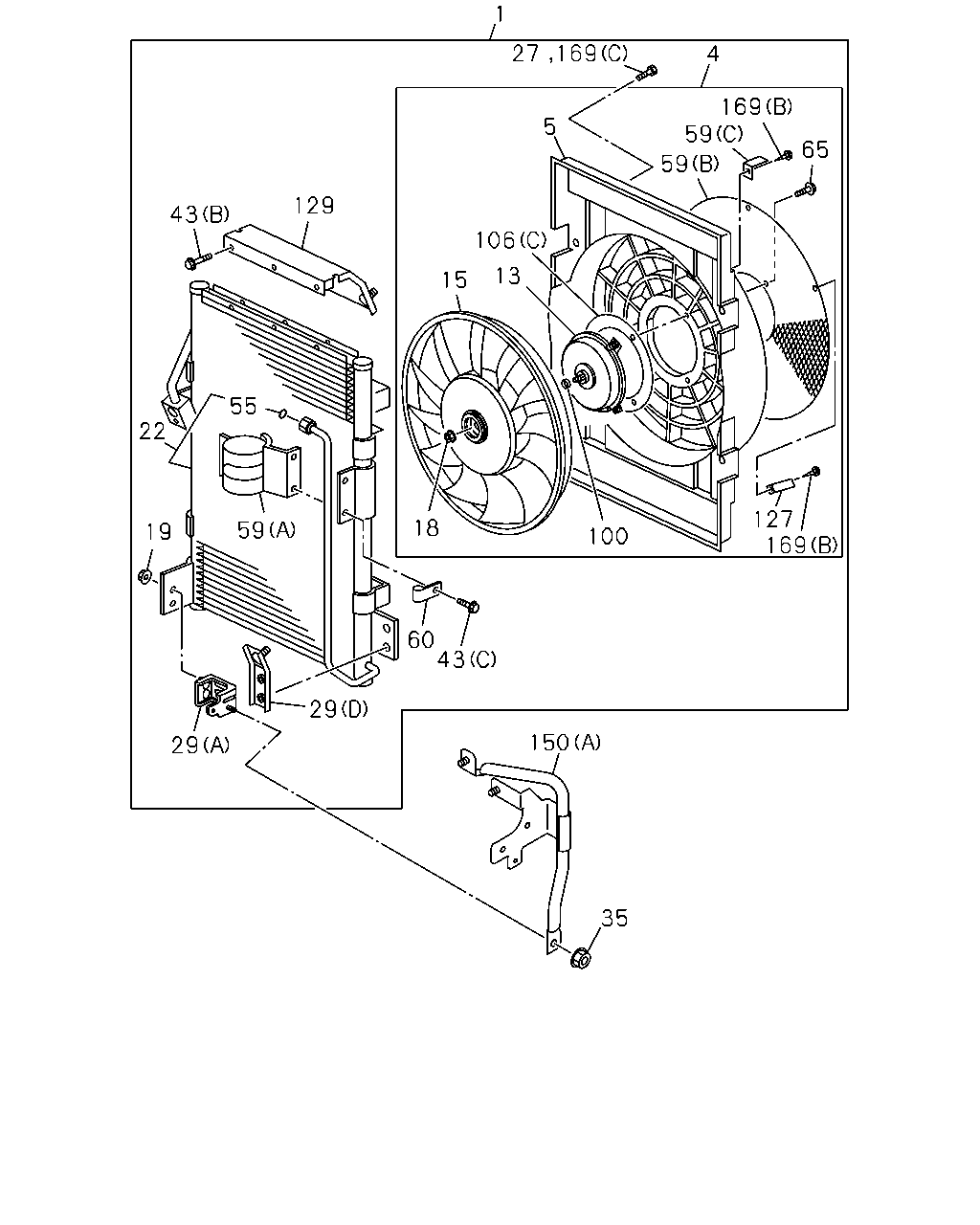

çizim 45030
1 27 169 4 169 59 5 65 59 129 43 106 13 15 55 22 127 169 18 59 19 100 60 43 29 150 29 35
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 1-83534-213-2 01 1 9906-0209
1 CONDENSER; A/C 1-83534-211-2 01 1 0210-
4 MOTOR ASM; FAN 1-83539-231-0 01 1 9906-0209
4 MOTOR ASM; FAN 1-83561-156-1 01 1 0210-
5 SHROUD; FAN MOTOR 1-83539-230-2 01 1 9906-0209
5 SHROUD; FAN MOTOR 1-83539-343-0 01 1 0210-
13 MOTOR; FAN 1-83561-157-1 01 1 0210-
15 FAN; MOTOR 1-83539-232-0 01 1 9906-0209
15 FAN; MOTOR 1-83561-158-0 01 1 0210-
18 NUT; FAN,CENTER 8-97018-672-0 01 1 9906-
19 NUT; BRKT 1-83539-235-0 11 1 9906-0209
19 NUT; BRKT 1-83539-235-0 02 1 0210-
22 CONDENSER ASM; A/C 1-83534-222-1 01 1 9906-0209
22 CONDENSER ASM; A/C 1-83534-224-0 01 1 0210-
27 BOLT; BRKT,LOW SIDE 1-83579-975-0 02 1 0210-
29 BRACKET; SIDE
(A) 		1-83539-227-1 01 1 9906-
29 BRACKET; SIDE
(B) 		1-83539-236-0 04 1 9906-0209
29 BRACKET; SIDE
(C) 		1-83539-311-1 01 1 9906-0209
29 BRACKET; SIDE
(D) 		1-83539-348-1 01 1 0210-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91150-108-0 05 1 9906-
43 BOLT; BRKT,CONDENSER
(A) M6X16 W/FLANGE 		1-83539-260-0 06 1 9906-0209
43 BOLT; BRKT,CONDENSER
(B) 		8-97018-671-0 03 1 0210-
43 BOLT; BRKT,CONDENSER
(C) 		1-83579-975-0 02 1 0210-
55 GASKET; PIPE 8-97161-776-0 02 1 9906-0001
55 GASKET; PIPE 8-97161-776-0 01 1 0002-
59 BRACKET; CONDENSER
(A) 		1-83539-228-2 01 1 9906-
59 BRACKET; CONDENSER
(B) 		1-83539-344-0 01 1 0210-
59 BRACKET; CONDENSER
(C) 		1-83539-346-0 01 1 0210-
60 CLIP; PIPE 1-83539-234-0 01 1 9906-
65 BOLT; SHROUD 1-83539-242-0 03 1 9906-0209
65 BOLT; SHROUD 8-97117-796-0 03 1 0210-
100 COLLAR; FAN MOTOR 1-83539-349-0 01 1 0210-
106 BRACKET; FAN MOTOR
(A) 		1-83539-243-0 01 1 9906-0209
106 BRACKET; FAN MOTOR
(C) 		1-83539-345-0 01 1 0210-
106 BRACKET; FAN MOTOR
(B) 		1-83539-244-0 01 1 9906-0209
127 CLIP; SHROUD
L=140 		5-09707-008-0 01 1 9906-0209
127 CLIP; SHROUD 8-94158-260-0 01 1 0210-
129 BRACKET; UPR 1-83539-237-1 01 1 9906-0209
129 BRACKET; UPR 1-83539-347-1 01 1 0210-
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-826-0 01 1 9906-
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-827-1 01 1 9906-
150 BRACKET; CONDENSER,MTG
(A) 		1-83571-909-0 01 1 9906-
169 SCREW; SHROUD
(A) 		8-94248-807-0 01 1 9906-0209
169 SCREW; SHROUD
(B) 		1-83579-974-0 08 1 0210-
169 SCREW; SHROUD
(C) 		1-83579-975-0 04 1 0210-
