8-73 — BLOWER UNIT (#8370) — 45 parça

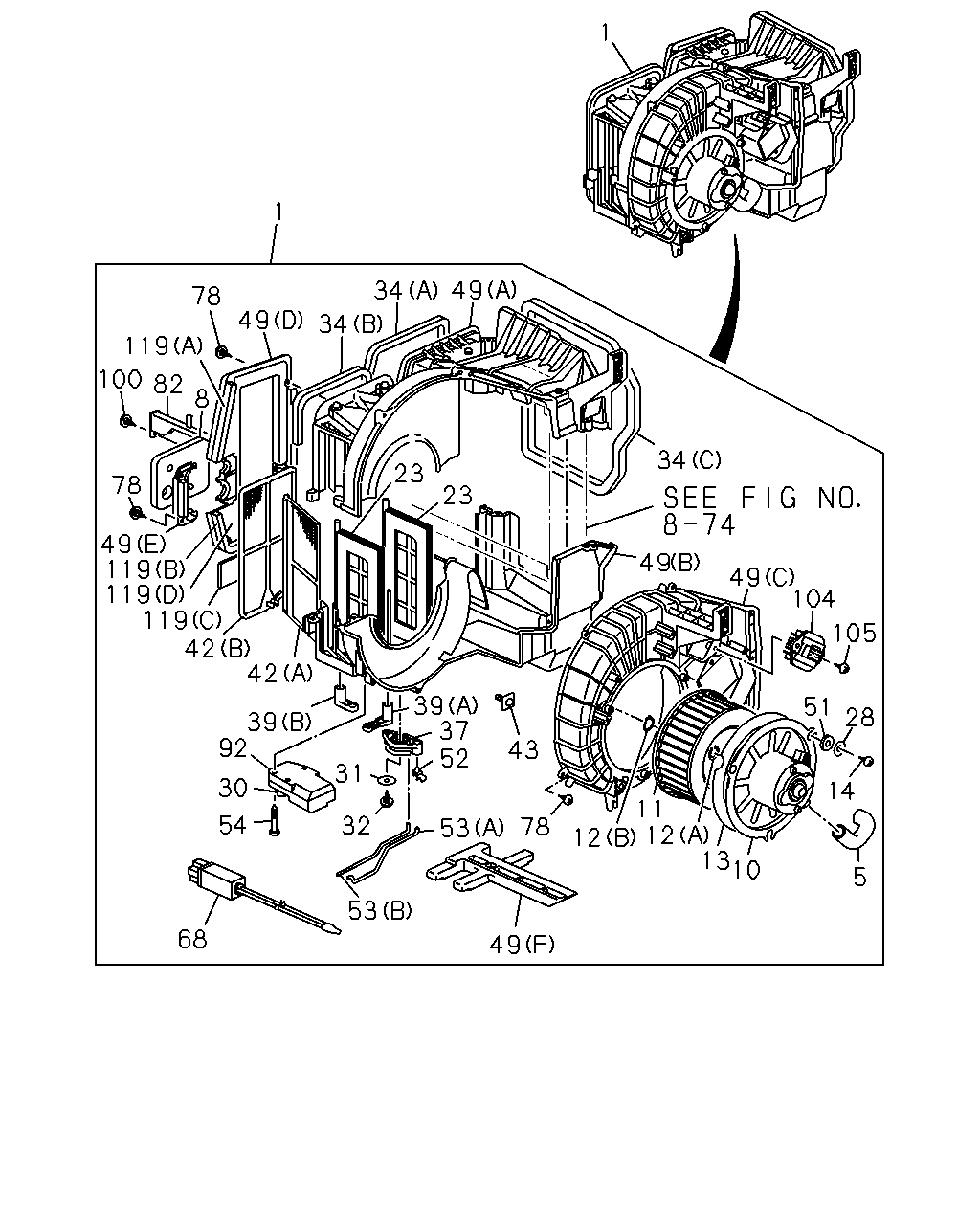

çizim 7952
1 1 49 34 78 49 34 119 100 82 8 34 23 78 23 49 119 119 119 42 42 49 49 104 105 39 37 52 51 28 39 92 43 31 30 14 11 12 12 54 32 78 53 13 10 5 53 68 49
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM 1-83561-150-3 01 1 9906-
5 HOSE; AIR 1-83563-140-0 01 1 9906-
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 9906-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 9906-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 9906-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9906-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9906-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 9906-
14 SCREW; COVER TO CASE 8-97130-601-0 03 1 9906-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 9906-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 9906-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 9906-
31 WASHER; LEVER 1-83579-095-0 01 1 9906-
32 SCREW; LEVER 8-97130-601-0 01 1 9906-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 9906-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 9906-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 9906-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 9906-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 9906-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 9906-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-2 01 1 9906-
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 9906-
43 BOLT; CASE 1-83579-657-2 04 1 9906-
49 CASE; BLOWER UNIT
(B) 		1-83564-336-6 01 1 9906-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 9906-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 9906-
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 9906-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 9906-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 9906-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 9906-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 9906-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 9906-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 9906-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 9906-
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 9906-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 9906-
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 9906-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 9906-
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 9906-
104 RESISTOR; BLOWER UNIT 1-83519-073-1 01 1 9906-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 9906-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 9906-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 9906-
119 LINING; CASE
(C) 		1-83579-672-0 01 1 9906-0007
119 LINING; CASE
(D) 		1-83579-673-2 01 1 9906-
