8-71 — COMPRESSOR; AIR CONDITIONING (#8369) — 30 parça

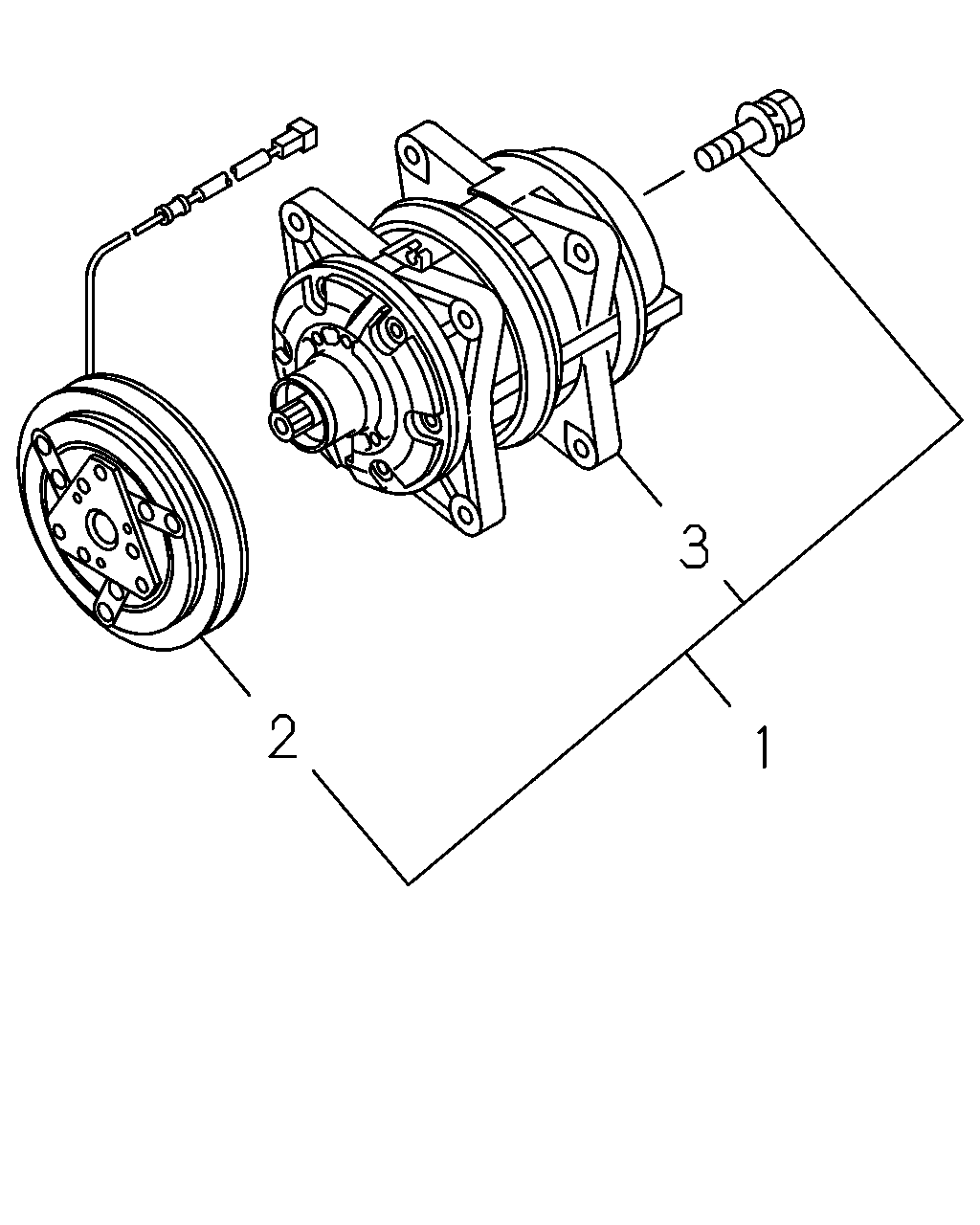

3 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>	1-83532-278-0	01	1	9906-9906
1	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83532-278-0	01	1	9907-0209
1	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83532-270-2	01	1	0210-
2	CLUTCH; MAGNET,A/C DUMP TRUCK<RA1>	1-83533-041-0	01	1	9906-9906
2	CLUTCH; MAGNET,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83533-041-0	01	1	9907-0209
2	CLUTCH; MAGNET,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83533-043-0	01	1	0210-
3	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>	1-83532-292-0	01	1	9906-9906
3	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83532-292-0	01	1	9907-0209
3	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83532-274-0	01	1	0210-

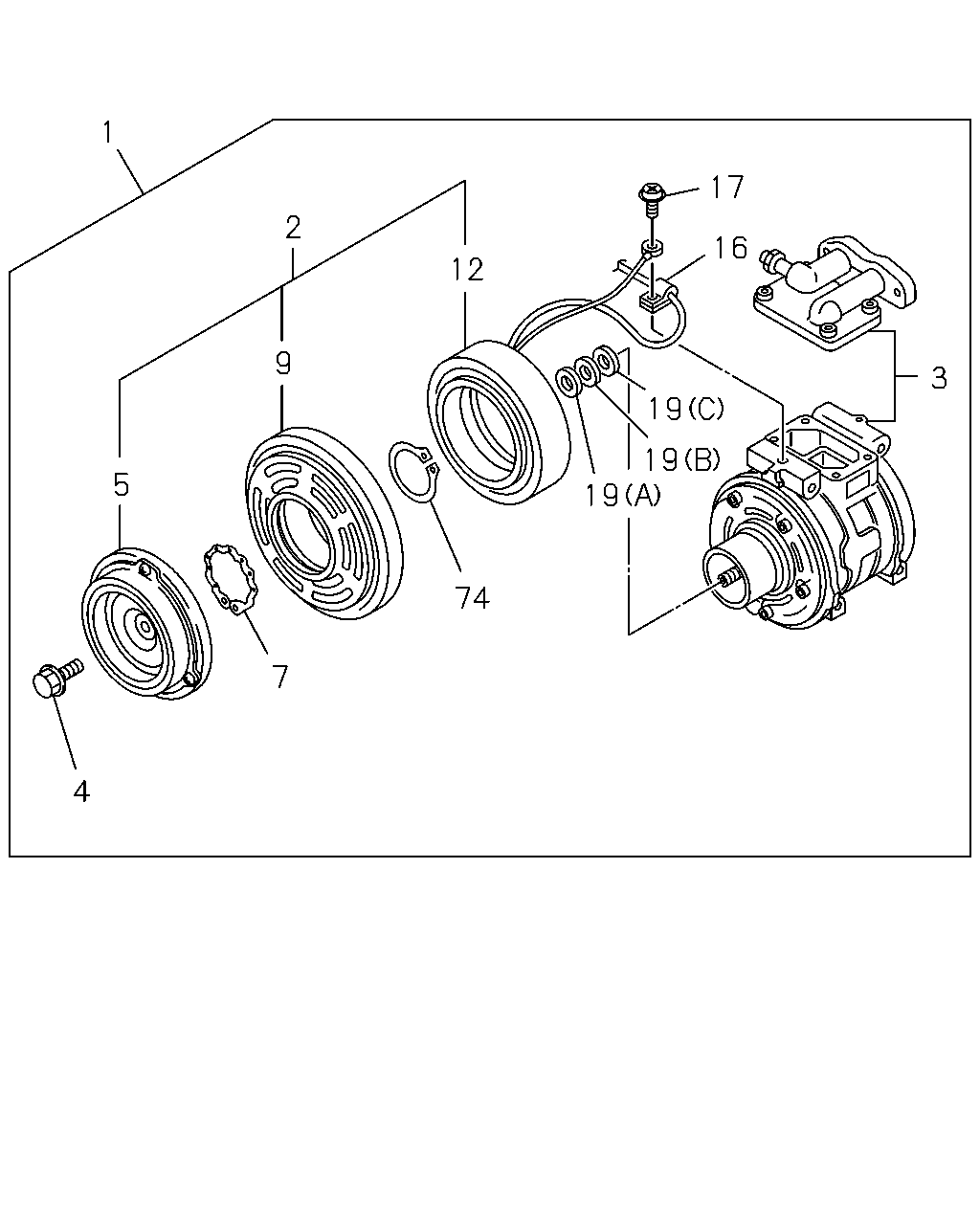

1 17 2 16 12 9 3 19 19 19 5 74 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>	1-83532-278-0	01	1	9906-9906
1	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83532-278-0	01	1	9907-0209
1	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83532-270-2	01	1	0210-
2	CLUTCH; MAGNET,A/C DUMP TRUCK<RA1>	1-83533-041-0	01	1	9906-9906
2	CLUTCH; MAGNET,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83533-041-0	01	1	9907-0209
2	CLUTCH; MAGNET,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83533-043-0	01	1	0210-
3	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>	1-83532-292-0	01	1	9906-9906
3	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83532-292-0	01	1	9907-0209
3	COMPRESSOR ASM; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83532-274-0	01	1	0210-
4	BOLT; MAGNET CLU DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83539-323-0	01	1	0210-
5	ARMATURE ASM; MAGNET CLU,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2> PRESS	1-83579-886-0	01	1	0210-
5	ARMATURE ASM; MAGNET CLU,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FORGING	1-83579-887-0	01	1	0210-
7	RING; SNAP,PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83579-888-0	01	1	0210-
9	PULLEY; MAGNET CLU DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83579-885-0	01	1	0210-
12	COIL; FIELD,MAGNET CLU DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83539-322-0	01	1	0210-
16	CLIP; WIRE,MAGNET CLU DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83579-893-0	01	1	0210-
17	SCREW; WIRE CLIP MAGNET CLU DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	5-81129-130-0	01	1	0210-
19	WASHER; LK,PULLEY,MAGNET CLU DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) T=0.1	1-83579-890-0	01	1	0210-
19	WASHER; LK,PULLEY,MAGNET CLU DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) T=0.3	1-83579-891-0	01	1	0210-
19	WASHER; LK,PULLEY,MAGNET CLU DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) T=0.5	1-83579-892-0	01	1	0210-
74	RING; SNAP,MAGNET CLU DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83579-889-0	01	1	0210-
