8-50 — AIR CONDITIONING SYSTEM; FRONT (#8366) — 127 parça

213 84 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	CLIP; PIPE (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9906-
84	CLIP; PIPE (B) ID=20 & 20	1-83574-195-1	01	1	9906-
84	CLIP; PIPE (C) ID=9 L=20	9-09524-835-0	02	1	9906-
213	BOLT; FLEX HOSE TO CMPR M8X16 FLANGE	0-28080-816-0	01	1	9906-

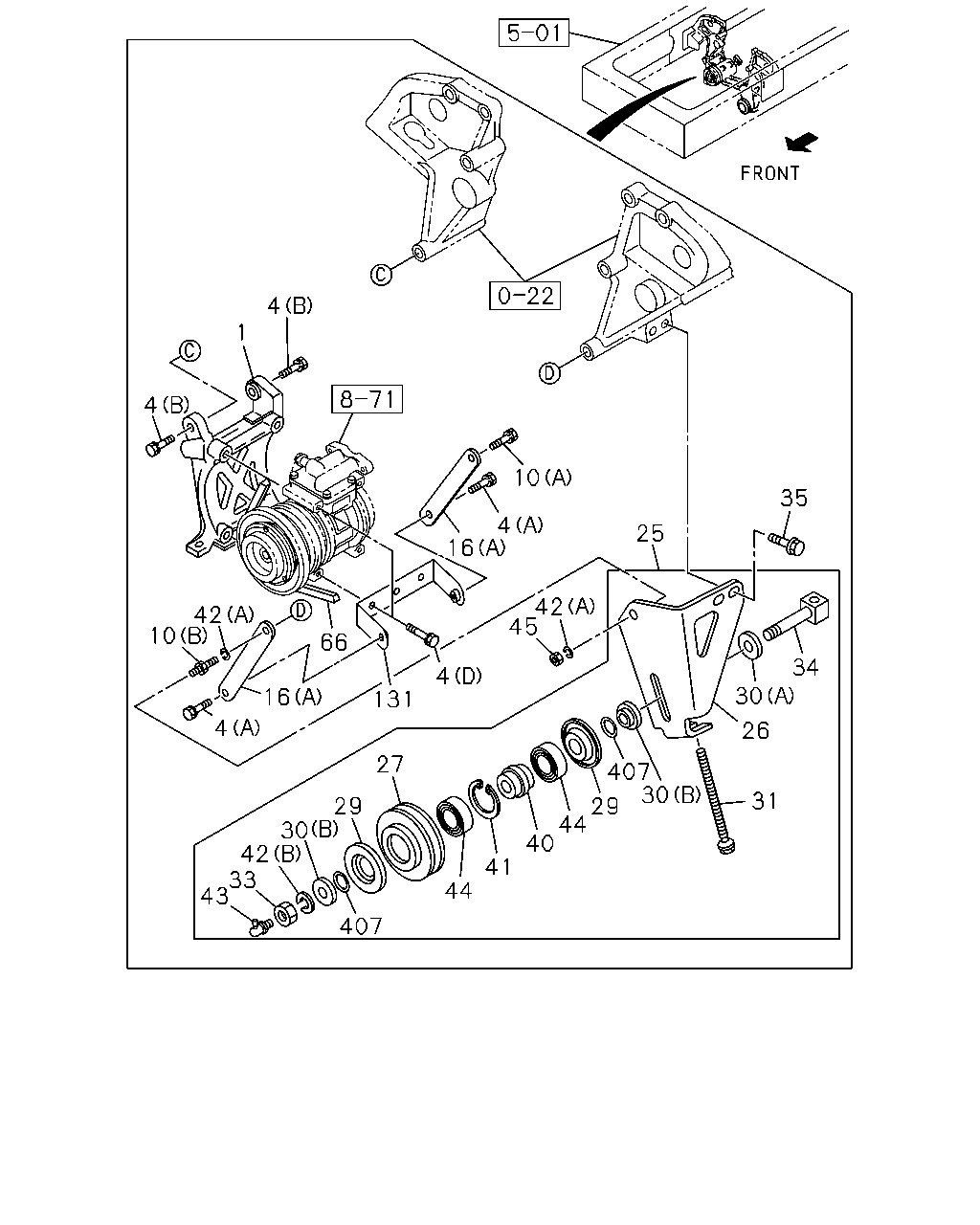

4 1 4 10 35 4 25 16 42 45 42 10 66 34 4 30 16 131 4 26 27 407 30 31 29 42 33 43 29 44 40 41 44 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; A/C DUMP TRUCK<RA1>	1-83571-590-0	01	1	9906-9906
1	BRACKET; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83571-590-0	01	1	9907-0209
1	BRACKET; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83573-011-0	01	1	0210-
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1> (A) M10X20 FLANGE	0-28081-020-0	02	1	9906-9906
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M10X20 FLANGE	0-28081-020-0	02	1	9907-
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1> (B) M12X40 FLANGE	0-28081-240-0	02	1	9906-9906
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X40 FLANGE	0-28081-240-0	02	1	9907-
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1> (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9906-9906
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9907-0209
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (D) M8X90 WASHER	1-83539-327-0	04	1	0210-
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1> (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9906-9906
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9907-0209
10	BOLT; ADJ PLATE DUMP TRUCK<RA1> (A) M12X25 FLANGE	0-28681-225-0	01	1	9906-9906
10	BOLT; ADJ PLATE DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M12X25 FLANGE	0-28681-225-0	01	1	9907-
10	BOLT; ADJ PLATE DUMP TRUCK<RA1> (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9906-9906
10	BOLT; ADJ PLATE DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9907-
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1> (A)	1-13674-189-1	01	1	9906-9906
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	1-13674-189-1	01	1	9907-0209
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	1-13674-189-1	02	1	0210-
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1> (B)	1-13674-190-1	01	1	9906-9906
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	1-13674-190-1	01	1	9907-0209
25	PULLEY ASM; IDLER,CMPR DUMP TRUCK<RA1>	1-13660-298-0	01	1	9906-9906
25	PULLEY ASM; IDLER,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13660-298-0	01	1	9907-
26	BRACKET; IDLE PULLEY,A/C DUMP TRUCK<RA1>	1-13668-028-0	01	1	9906-9906
26	BRACKET; IDLE PULLEY,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13668-028-0	01	1	9907-
27	PULLEY; IDLE,A/C DUMP TRUCK<RA1>	1-13663-057-0	01	1	9906-9906
27	PULLEY; IDLE,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13663-057-0	01	1	9907-
29	COVER; DUST,IDLE PULLEY DUMP TRUCK<RA1>	1-13669-175-0	02	1	9906-9906
29	COVER; DUST,IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13669-175-0	02	1	9907-
30	COLLAR; IDLE PULLEY DUMP TRUCK<RA1> (A)	1-13666-021-1	01	1	9906-9906
30	COLLAR; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	1-13666-021-1	01	1	9907-
30	COLLAR; IDLE PULLEY DUMP TRUCK<RA1> (B)	1-13666-040-0	02	1	9906-9906
30	COLLAR; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	1-13666-040-0	02	1	9907-
31	BOLT; ADJ,IDLE PULLEY DUMP TRUCK<RA1> M10X135	1-09009-113-0	01	1	9906-9906
31	BOLT; ADJ,IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M10X135	1-09009-113-0	01	1	9907-
33	NUT; IDLER PULLEY DUMP TRUCK<RA1> M18	9-99111-518-0	01	1	9906-9906
33	NUT; IDLER PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M18	9-99111-518-0	01	1	9907-
34	SHAFT; IDLE PULLEY DUMP TRUCK<RA1>	1-13665-026-2	01	1	9906-9906
34	SHAFT; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13665-026-2	01	1	9907-
35	BOLT; IDLER PULLEY TO C/BL DUMP TRUCK<RA1> M12X35 FLANGE	0-28091-235-0	02	1	9906-9906
35	BOLT; IDLER PULLEY TO C/BL DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M12X35 FLANGE	0-28091-235-0	02	1	9907-
40	BUSHING; IDLE PULLEY DUMP TRUCK<RA1>	1-13669-128-0	01	1	9906-9906
40	BUSHING; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13669-128-0	01	1	9907-
41	RING; SNAP,IDLE PULLEY DUMP TRUCK<RA1> OD=56.2	9-09180-152-0	01	1	9906-9906
41	RING; SNAP,IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> OD=56.2	9-09180-152-0	01	1	9907-
42	WASHER; PULLEY DUMP TRUCK<RA1> (A) ID=12.2	9-09150-512-0	02	1	9906-9906
42	WASHER; PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) ID=12.2	9-09150-512-0	02	1	9907-
42	WASHER; PULLEY DUMP TRUCK<RA1> (B) ID=18.2	9-09150-818-0	01	1	9906-9906
42	WASHER; PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) ID=18.2	9-09150-818-0	01	1	9907-
43	NIPPLE; IDLE PULLEY DUMP TRUCK<RA1> PT1/8 ELBOW	9-09031-210-0	01	1	9906-9906
43	NIPPLE; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> PT1/8 ELBOW	9-09031-210-0	01	1	9907-
44	BEARING; IDLE PULLEY DUMP TRUCK<RA1>	1-09800-217-0	02	1	9906-9906
44	BEARING; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-09800-217-0	02	1	9907-
45	NUT; BOLT,IDLE PULLEY DUMP TRUCK<RA1> M12	9-99110-412-0	01	1	9906-9906
45	NUT; BOLT,IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M12	9-99110-412-0	01	1	9907-
66	BELT; A/C CMPR DUMP TRUCK<RA1> L=1335	1-13671-404-0	01	1	9906-9906
66	BELT; A/C CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=1335	1-13671-404-0	01	1	9907-
131	STAY; CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83573-012-0	01	1	0210-
407	RUBBER; IDLE PULLEY DUMP TRUCK<RA1>	1-13669-174-0	02	1	9906-9906
407	RUBBER; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13669-174-0	02	1	9907-

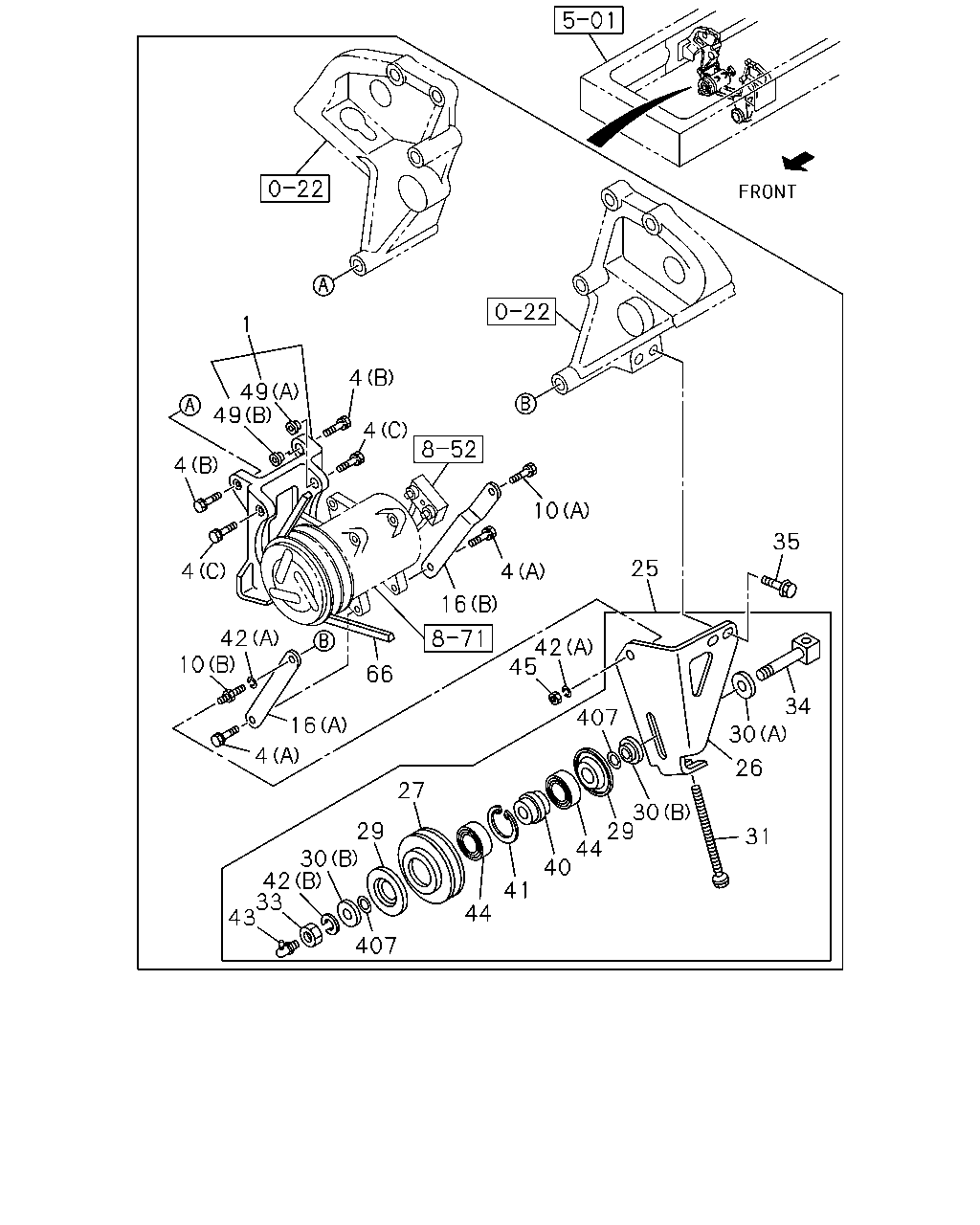

1 4 49 49 4 4 10 35 25 4 4 16 42 10 42 45 66 34 407 16 30 4 26 27 30 29 44 40 29 30 42 33 43 31 41 44 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; A/C DUMP TRUCK<RA1>	1-83571-590-0	01	1	9906-9906
1	BRACKET; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83571-590-0	01	1	9907-0209
1	BRACKET; A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-83573-011-0	01	1	0210-
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1> (A) M10X20 FLANGE	0-28081-020-0	02	1	9906-9906
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M10X20 FLANGE	0-28081-020-0	02	1	9907-
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1> (B) M12X40 FLANGE	0-28081-240-0	02	1	9906-9906
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X40 FLANGE	0-28081-240-0	02	1	9907-
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1> (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9906-9906
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) M10X30 W/LK WASHER	9-01911-030-0	02	1	9907-0209
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (D) M8X90 WASHER	1-83539-327-0	04	1	0210-
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1> (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9906-9906
4	BOLT; A/C CMPR BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) M10X40 W/LK WASHER	9-01911-040-0	02	1	9907-0209
10	BOLT; ADJ PLATE DUMP TRUCK<RA1> (A) M12X25 FLANGE	0-28681-225-0	01	1	9906-9906
10	BOLT; ADJ PLATE DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M12X25 FLANGE	0-28681-225-0	01	1	9907-
10	BOLT; ADJ PLATE DUMP TRUCK<RA1> (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9906-9906
10	BOLT; ADJ PLATE DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M12X19,M12X19 L=60	1-09029-055-3	01	1	9907-
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1> (A)	1-13674-189-1	01	1	9906-9906
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	1-13674-189-1	01	1	9907-0209
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	1-13674-189-1	02	1	0210-
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1> (B)	1-13674-190-1	01	1	9906-9906
16	PLATE; ADJ,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	1-13674-190-1	01	1	9907-0209
25	PULLEY ASM; IDLER,CMPR DUMP TRUCK<RA1>	1-13660-298-0	01	1	9906-9906
25	PULLEY ASM; IDLER,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13660-298-0	01	1	9907-
26	BRACKET; IDLE PULLEY,A/C DUMP TRUCK<RA1>	1-13668-028-0	01	1	9906-9906
26	BRACKET; IDLE PULLEY,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13668-028-0	01	1	9907-
27	PULLEY; IDLE,A/C DUMP TRUCK<RA1>	1-13663-057-0	01	1	9906-9906
27	PULLEY; IDLE,A/C DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13663-057-0	01	1	9907-
29	COVER; DUST,IDLE PULLEY DUMP TRUCK<RA1>	1-13669-175-0	02	1	9906-9906
29	COVER; DUST,IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13669-175-0	02	1	9907-
30	COLLAR; IDLE PULLEY DUMP TRUCK<RA1> (A)	1-13666-021-1	01	1	9906-9906
30	COLLAR; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	1-13666-021-1	01	1	9907-
30	COLLAR; IDLE PULLEY DUMP TRUCK<RA1> (B)	1-13666-040-0	02	1	9906-9906
30	COLLAR; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	1-13666-040-0	02	1	9907-
31	BOLT; ADJ,IDLE PULLEY DUMP TRUCK<RA1> M10X135	1-09009-113-0	01	1	9906-9906
31	BOLT; ADJ,IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M10X135	1-09009-113-0	01	1	9907-
33	NUT; IDLER PULLEY DUMP TRUCK<RA1> M18	9-99111-518-0	01	1	9906-9906
33	NUT; IDLER PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M18	9-99111-518-0	01	1	9907-
34	SHAFT; IDLE PULLEY DUMP TRUCK<RA1>	1-13665-026-2	01	1	9906-9906
34	SHAFT; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13665-026-2	01	1	9907-
35	BOLT; IDLER PULLEY TO C/BL DUMP TRUCK<RA1> M12X35 FLANGE	0-28091-235-0	02	1	9906-9906
35	BOLT; IDLER PULLEY TO C/BL DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M12X35 FLANGE	0-28091-235-0	02	1	9907-
40	BUSHING; IDLE PULLEY DUMP TRUCK<RA1>	1-13669-128-0	01	1	9906-9906
40	BUSHING; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13669-128-0	01	1	9907-
41	RING; SNAP,IDLE PULLEY DUMP TRUCK<RA1> OD=56.2	9-09180-152-0	01	1	9906-9906
41	RING; SNAP,IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> OD=56.2	9-09180-152-0	01	1	9907-
42	WASHER; PULLEY DUMP TRUCK<RA1> (A) ID=12.2	9-09150-512-0	02	1	9906-9906
42	WASHER; PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) ID=12.2	9-09150-512-0	02	1	9907-
42	WASHER; PULLEY DUMP TRUCK<RA1> (B) ID=18.2	9-09150-818-0	01	1	9906-9906
42	WASHER; PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) ID=18.2	9-09150-818-0	01	1	9907-
43	NIPPLE; IDLE PULLEY DUMP TRUCK<RA1> PT1/8 ELBOW	9-09031-210-0	01	1	9906-9906
43	NIPPLE; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> PT1/8 ELBOW	9-09031-210-0	01	1	9907-
44	BEARING; IDLE PULLEY DUMP TRUCK<RA1>	1-09800-217-0	02	1	9906-9906
44	BEARING; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-09800-217-0	02	1	9907-
45	NUT; BOLT,IDLE PULLEY DUMP TRUCK<RA1> M12	9-99110-412-0	01	1	9906-9906
45	NUT; BOLT,IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2> M12	9-99110-412-0	01	1	9907-
49	COLLAR; BRKT,CMPR DUMP TRUCK<RA1> (A)	1-83571-601-0	02	1	9906-9906
49	COLLAR; BRKT,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A)	1-83571-601-0	02	1	9907-0209
49	COLLAR; BRKT,CMPR DUMP TRUCK<RA1> (B)	1-83571-602-0	01	1	9906-9906
49	COLLAR; BRKT,CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B)	1-83571-602-0	01	1	9907-0209
66	BELT; A/C CMPR DUMP TRUCK<RA1> L=1335	1-13671-404-0	01	1	9906-9906
66	BELT; A/C CMPR DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=1335	1-13671-404-0	01	1	9907-
407	RUBBER; IDLE PULLEY DUMP TRUCK<RA1>	1-13669-174-0	02	1	9906-9906
407	RUBBER; IDLE PULLEY DUMP TRUCK<RA1>,MIXER TRUCK<RA2>	1-13669-174-0	02	1	9907-
