Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10819 - CXZ RHD SINGAPORE
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

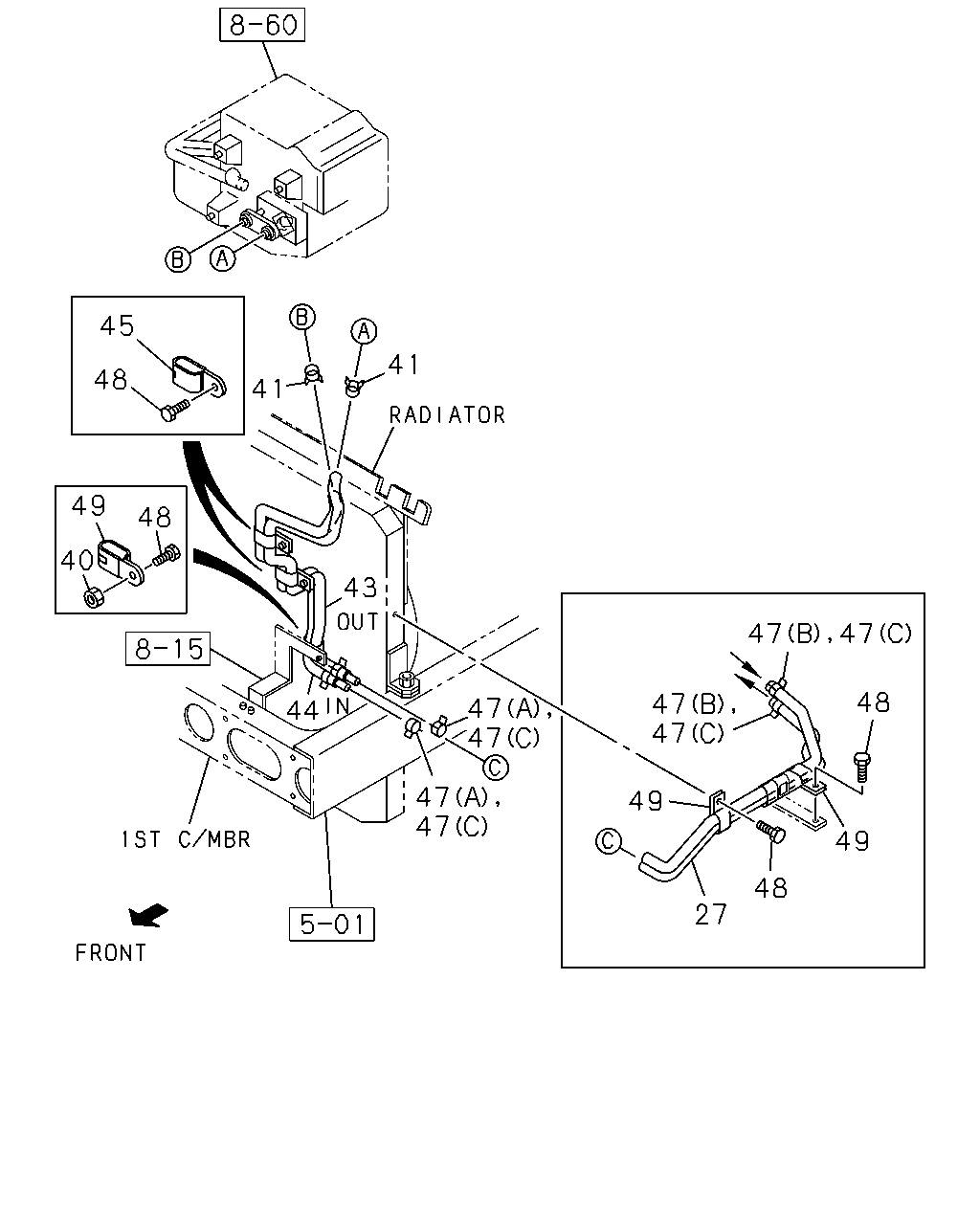

8-45 — HEATER PIPING
(#8365) — 12 parça
45
41
48
41
49
48
40
43
48
47
47
44
47
47
47
47
49
49
48
27
47
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-598-1
01
1
9906-
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
9906-
41
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
02
1
9906-
43
HOSE; WATER,OUTLET,HTR
1-83565-570-3
01
1
9906-
44
HOSE; WATER,HTR,INL
1-83565-569-4
01
1
9906-
45
CLIP; WATER PIPE
1-09701-238-0
02
1
9906-
47
CLAMP; WATER HOSE,HTR
(A)
1-09707-181-0
02
1
9906-0108
47
CLAMP; WATER HOSE,HTR
(B) ID=22
8-94382-401-0
02
1
9906-0108
47
CLAMP; WATER HOSE,HTR
(C) ID=22
8-94382-401-0
04
1
0109-
48
BOLT; CLIP FIX
M8X20 FLANGE
0-28680-820-0
03
1
9906-
48
BOLT; CLIP FIX
M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
9906-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
9906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
