Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#8364) — 37 parça

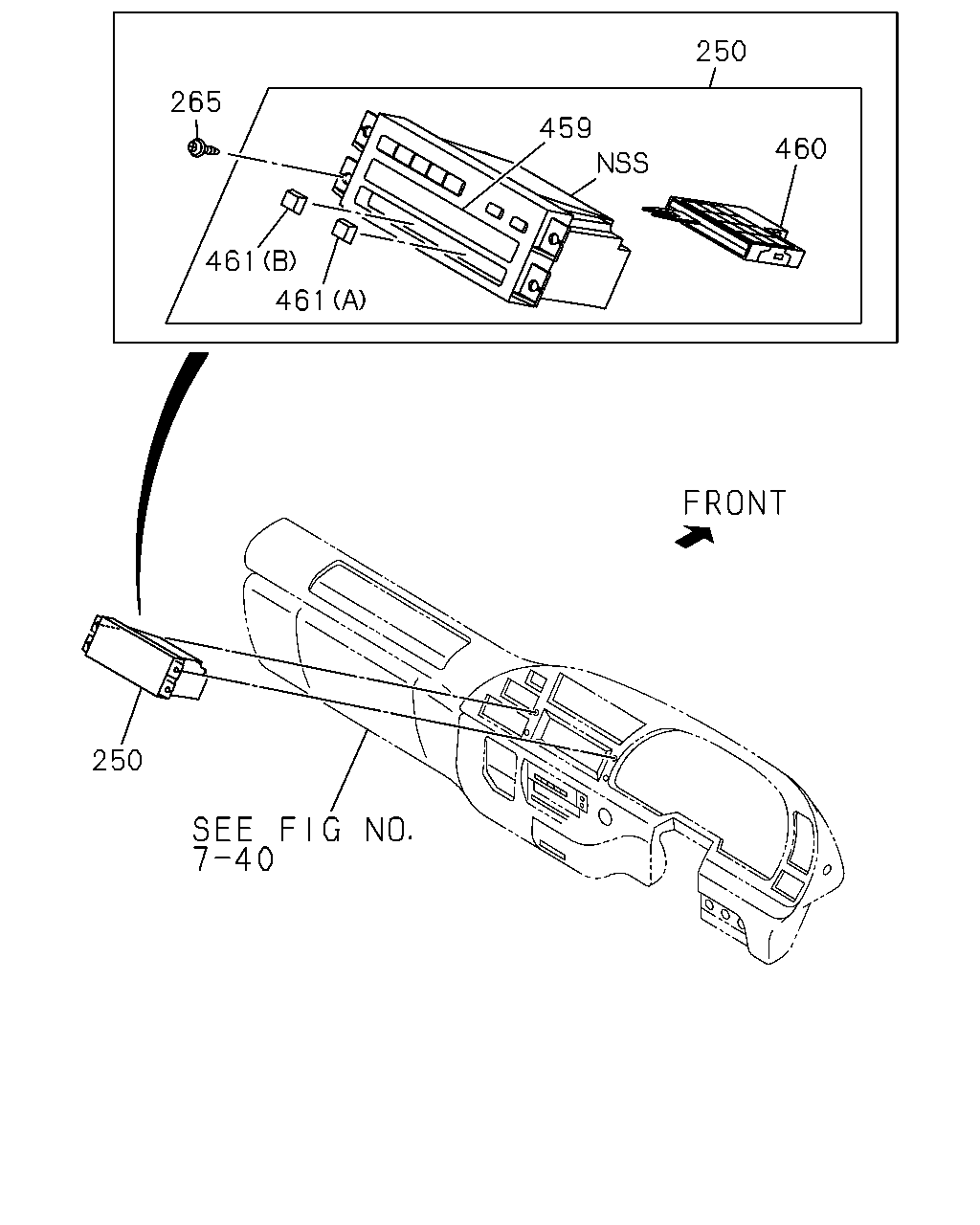

250 265 459 460 461 461 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	CONTROL ASM; A/C	1-83543-033-2	01	1	9906-9909
250	CONTROL ASM; A/C	1-83543-050-0	01	1	9910-
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9906-
459	PANEL; CONTROL ASM,A/C	1-83549-013-0	01	1	9906-
460	SWITCH; CONTROL ASM,A/C	1-82489-006-0	01	1	9906-
461	KNOB; CONTROL ASM,A/C (B)	1-83549-015-0	01	1	9906-
461	KNOB; CONTROL ASM,A/C (A)	1-83549-016-0	01	1	9906-

135 12 186 186 135 123 223 223 12 123 123 223 123 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	9906-
12	NOZZLE; DEFROSTER	1-76377-172-6	01	1	9906-
123	SCREW; DUCT M5X14	8-94279-325-0	12	1	9906-
135	HOSE; DEFROSTER	1-76378-253-4	01	1	9906-
135	HOSE; DEFROSTER	1-76378-252-7	01	1	9906-
186	DUCT; VENTILATOR	1-76377-155-9	01	1	9906-
186	DUCT; VENTILATOR	1-76377-173-6	01	1	9906-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	9906-
223	GROMMET; SCREW (B)	8-94279-084-2	04	1	9906-

374 375 57 57 71 26 77 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9906-
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	9906-
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	9906-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9906-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	9906-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-
343	SEAL; AIR DUCT OD=25 BLACK	1-76798-019-0	05	1	9906-
374	HOLDER; DUCT	1-76398-012-1	01	1	9906-
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	9906-

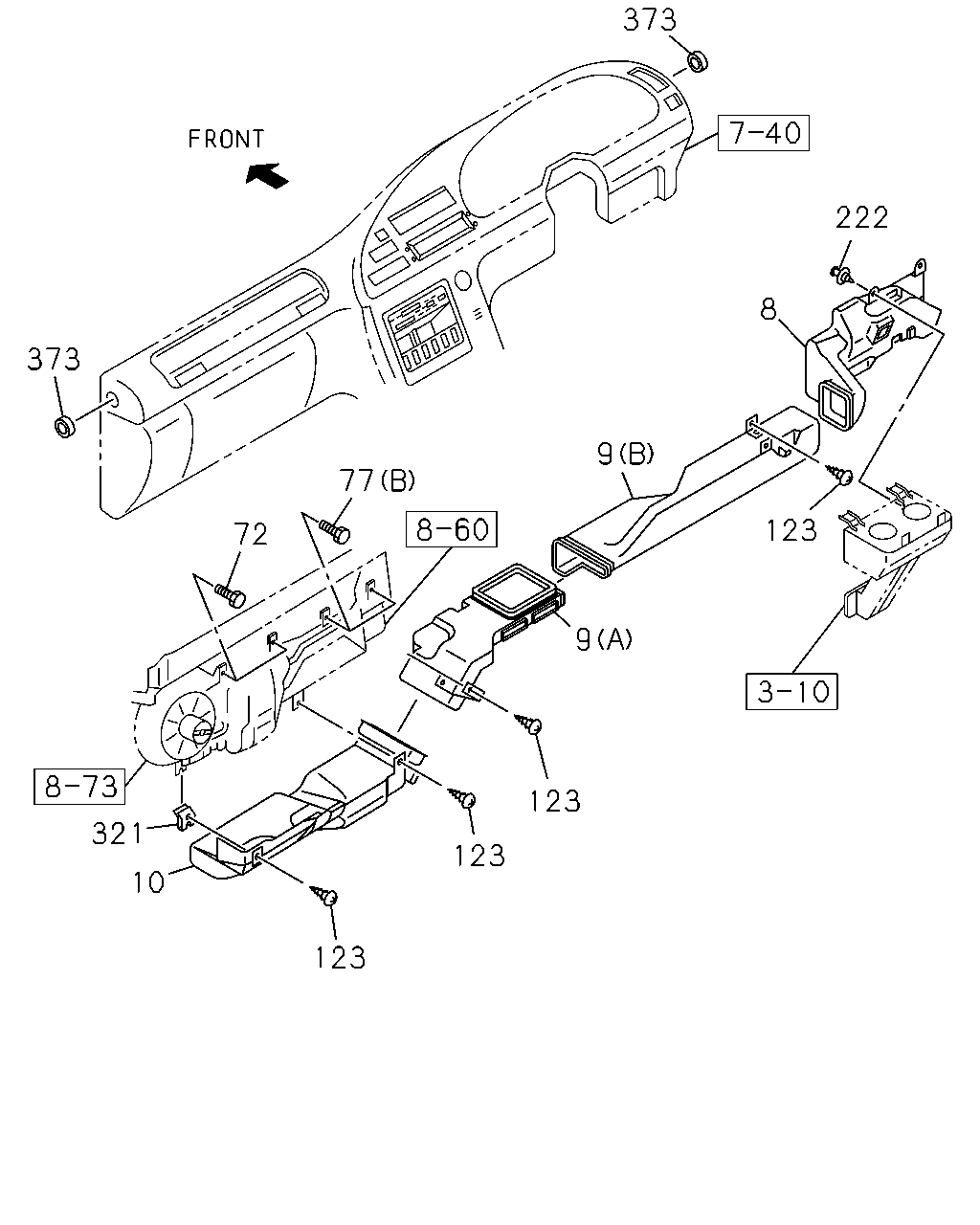

373 222 8 373 9 77 123 72 9 123 321 123 10 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	9906-
9	DUCT; HTR AIR,FOOT CENTER (A)	1-76377-194-3	01	1	9906-0006
9	DUCT; HTR AIR,FOOT CENTER (A)	1-76377-226-2	01	1	0007-
9	DUCT; HTR AIR,FOOT CENTER (B)	1-76377-210-1	01	1	9906-
10	DUCT; HTR AIR,ASSIST FOOT	1-76377-204-2	01	1	9906-
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	9906-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-
123	SCREW; DUCT M5X14	8-94279-325-0	12	1	9906-
222	FASTENER; DUCT D6X12.5	8-94146-425-0	02	1	9906-
321	NUT; DUCT FIX M5	1-09984-150-0	01	1	9906-
373	RUBBER; JOINT	1-76378-291-0	02	1	9906-
