◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10819 - CXZ RHD SINGAPORE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#8362) — 27 parça

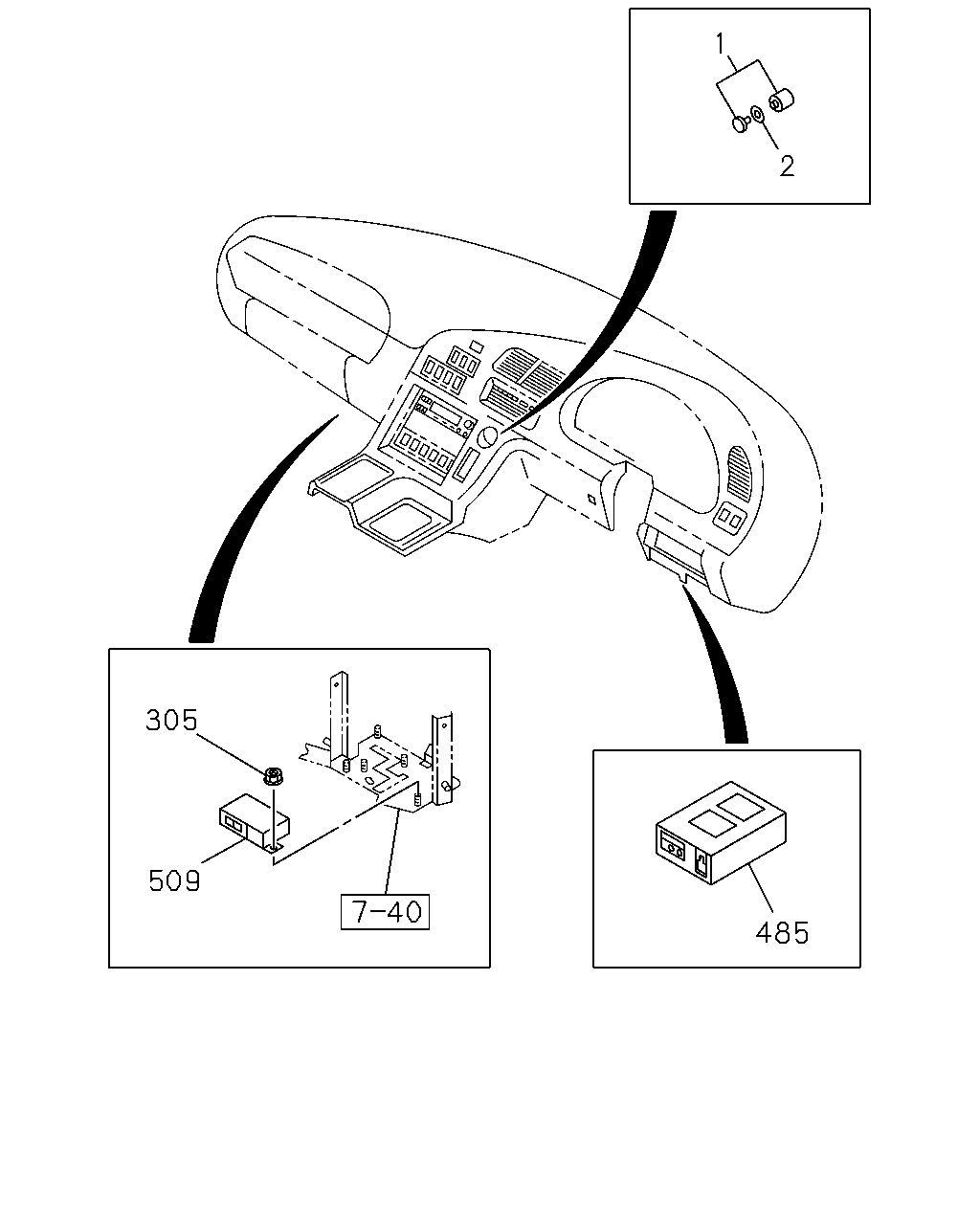

çizim 43694
1 2 305 509 485
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9906-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9906-
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 9906-
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9906-
509 CONTROL UNIT; CAB SUS 1-80150-032-0 01 1 9906-
çizim 44077
447 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 9906-0202
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-
447 SENSOR; HEIGHT
(A) 		1-81541-067-4 01 1 9906-
447 SENSOR; HEIGHT
(B) 		1-81541-069-3 01 1 9906-

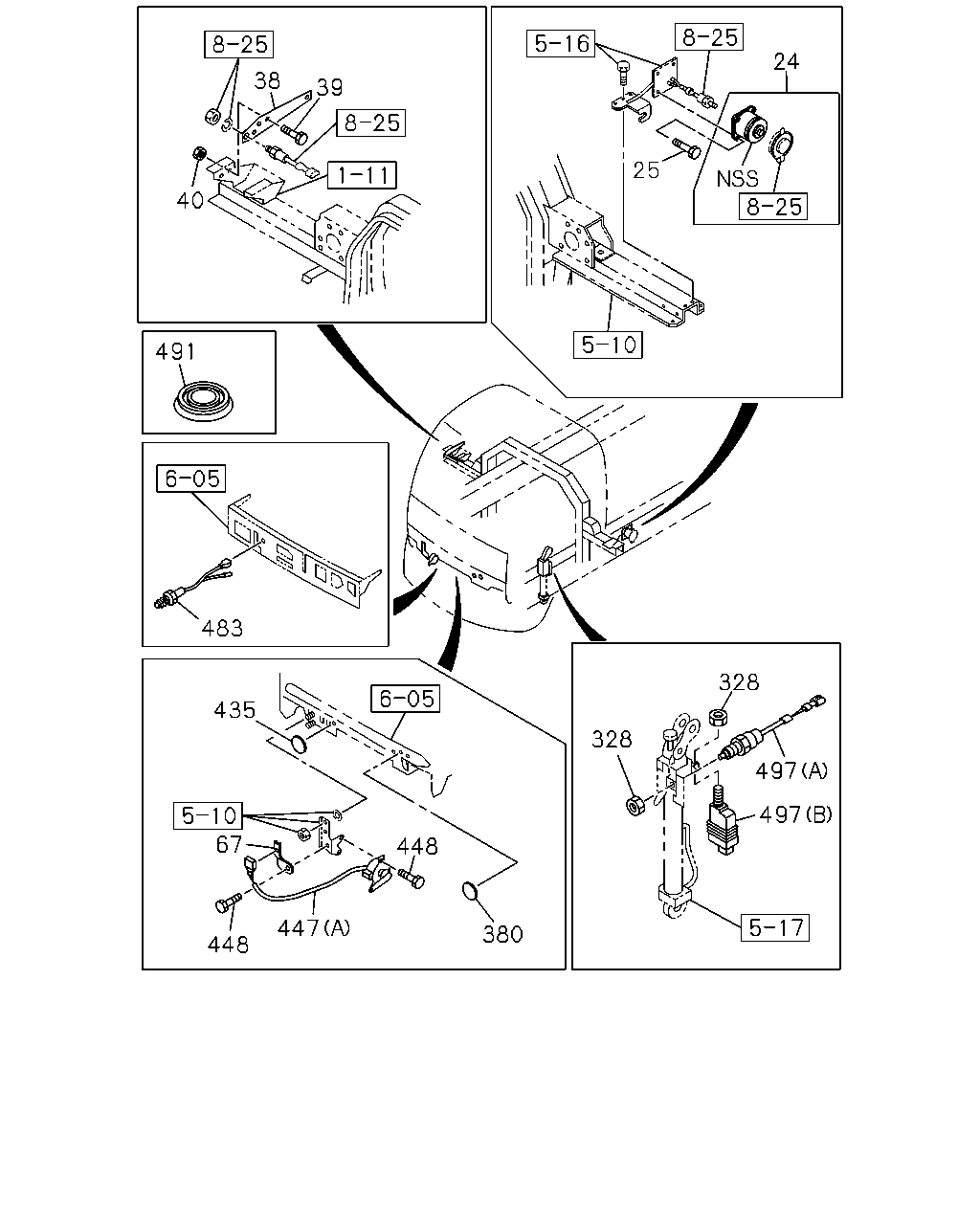

çizim 44115
24 38 39 25 40 491 483 328 435 328 497 497 67 448 447 380 448
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9906-
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9906-
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9906-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9906-
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9906-
67 BRACKET; CONT UNIT 1-82699-355-1 01 1 9906-
328 NUT
M16 		9-99111-416-0 02 1 9906-
380 SEAL
OD=25 BLACK 		1-76798-019-0 06 1 9906-
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0104-
447 SENSOR; HEIGHT
(A) 		1-81541-067-4 01 1 9906-
447 SENSOR; HEIGHT
(B) 		1-81541-069-3 01 1 9906-
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9906-
483 SWITCH 1-82440-092-0 01 1 9906-0003
483 SWITCH 1-82440-118-0 01 1 0004-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9906-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9906-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9906-
