8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#8361) — 24 parça

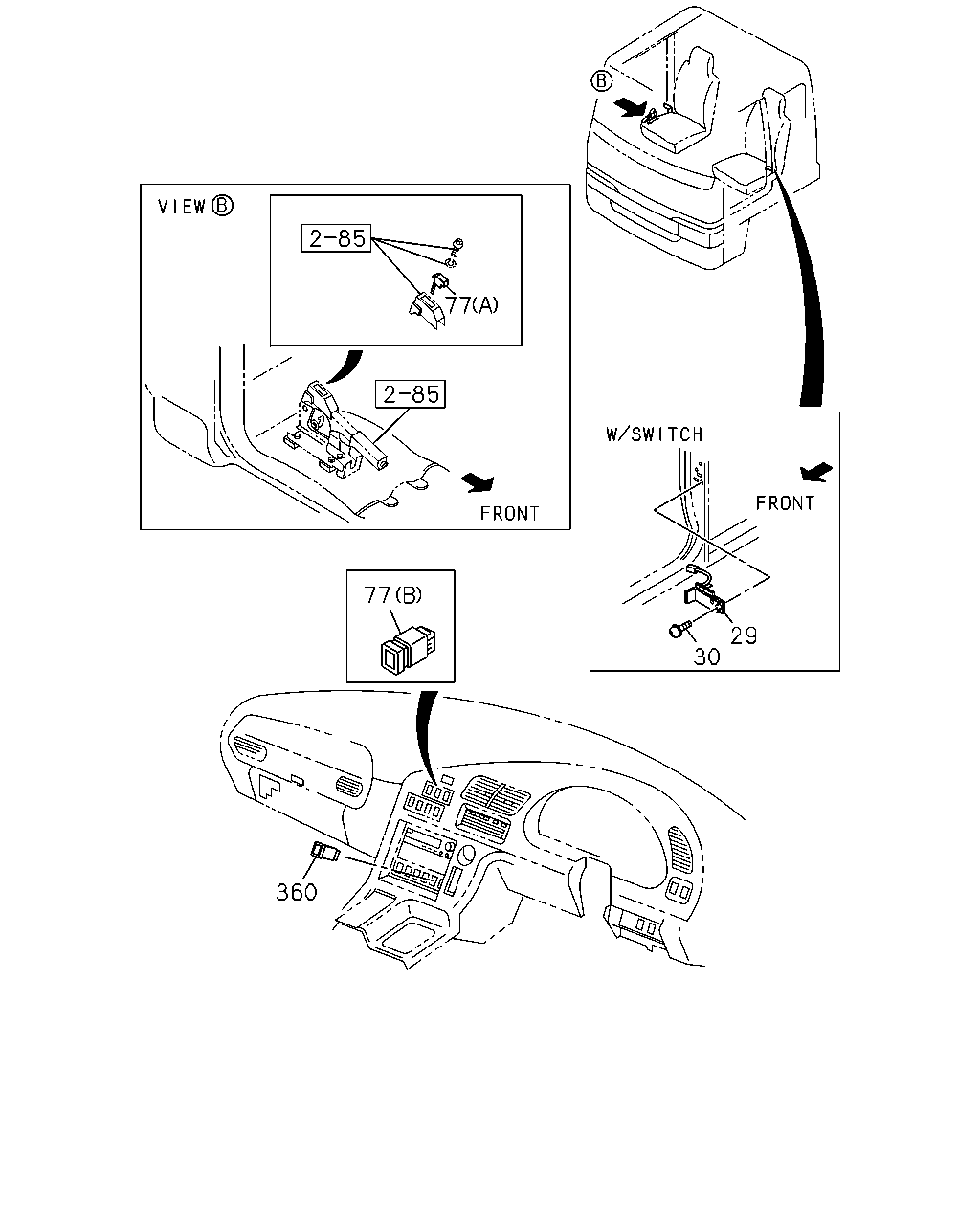

77 77 29 30 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR	8-97855-032-3	02	1	9906-
30	SCREW; DOOR SW M5X16	8-94279-341-0	02	1	9906-9906
30	SCREW; DOOR SW M5X11	1-09981-536-1	02	1	9907-
77	SWITCH; PTO DUMP TRUCK<RA1> (A)	1-82380-112-0	01	1	9906-
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B)	1-82340-413-0	01	1	9907-
360	SWITCH ASM; DIFF LK	1-82340-404-0	01	1	9906-

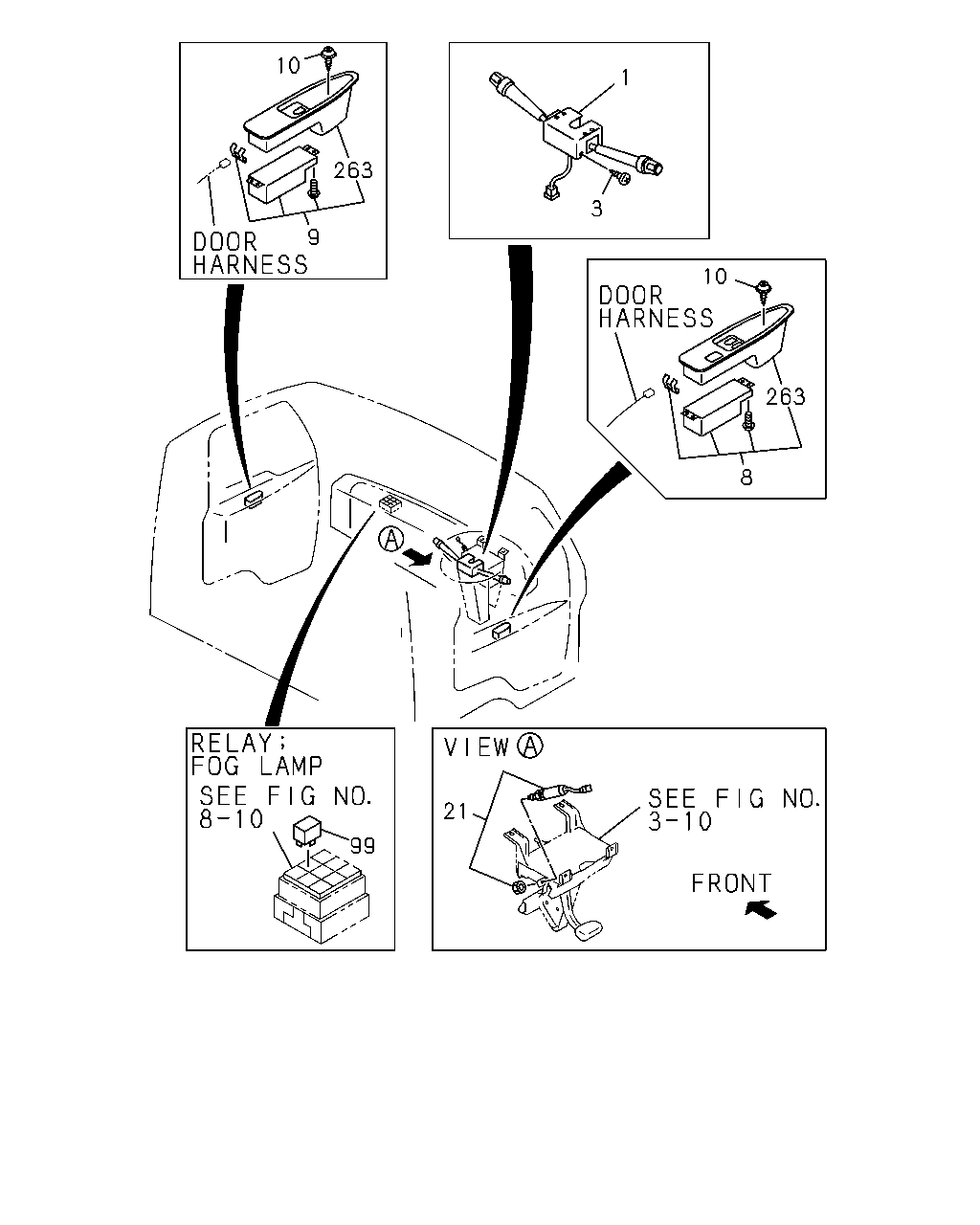

10 263 9 3 1 10 263 8 21 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB	1-82360-412-3	01	1	9906-0103
1	SWITCH; COMB	1-82360-619-0	01	1	0104-
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	9906-
8	SWITCH; POWER WINDOW DRIVER	1-82380-155-3	01	1	9906-
9	SWITCH; POWER WINDOW PASSENGER	1-82380-154-3	01	1	9906-
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9906-
21	SWITCH; CLU	1-82380-114-2	01	1	9906-
99	RELAY; FOG LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-0111
99	RELAY; FOG LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
263	COVER; SW DRIVER	1-82385-005-2	01	1	9906-
263	COVER; SW PASSENGER	1-82385-006-3	01	1	9906-

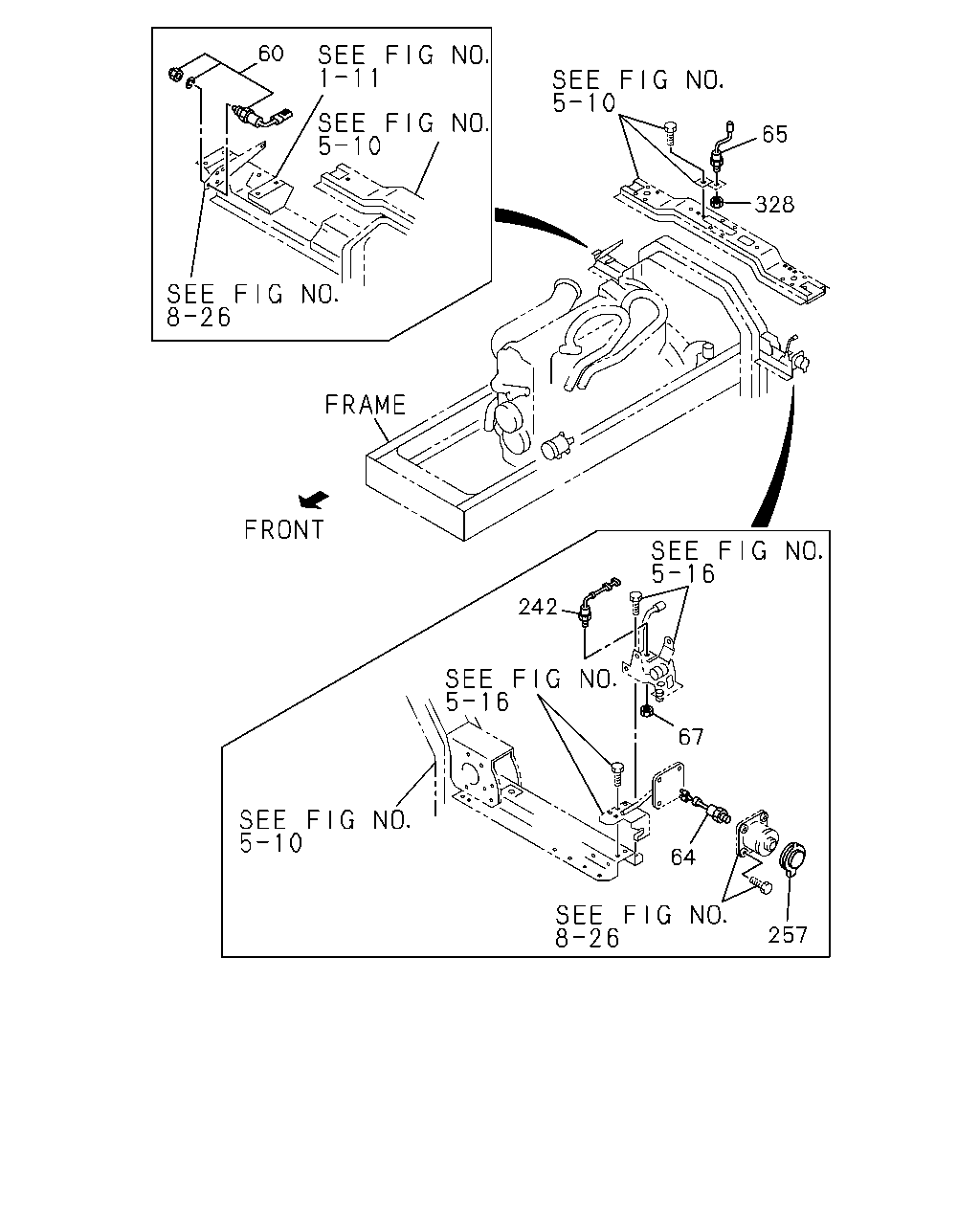

60 242 67 64 257 328 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	SWITCH; IGNITION SUB	1-82380-107-1	01	1	9906-
64	SWITCH; CAB TILT MAIN	1-82380-108-0	01	1	9906-
65	SWITCH; CAB TILT LK STAMP NC	1-82380-125-1	01	1	9906-
67	NUT; SW,CAB TILT M16 H=18.5	1-09409-013-0	01	1	9906-
242	SWITCH STAMP NO	1-82380-126-0	01	1	9906-
257	COVER; HOLE,SW	1-82389-008-0	01	1	9906-
328	NUT; SW M16	9-99110-416-0	01	1	9906-
