◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#836) — 50 parça

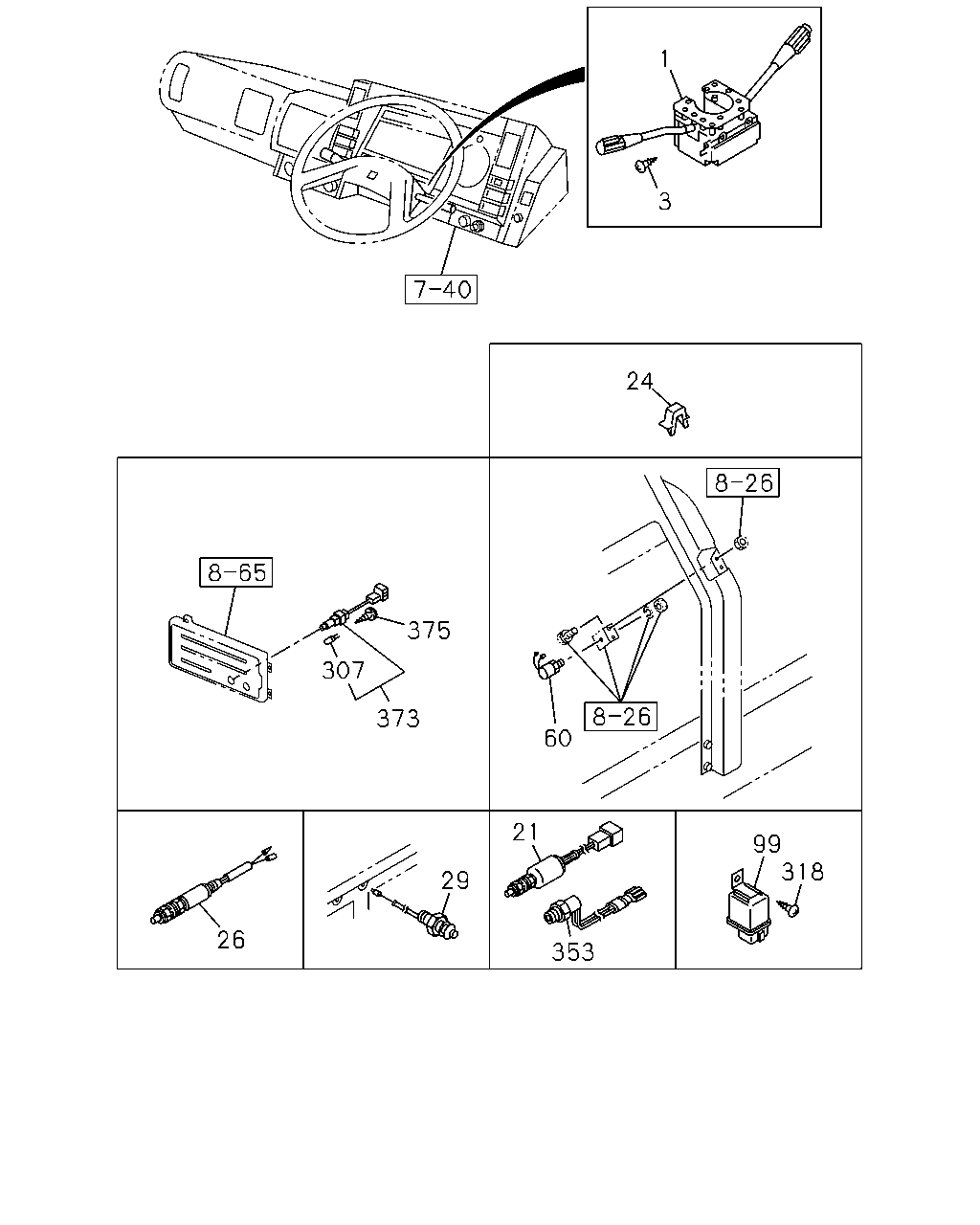

çizim 27855
1 3 24 375 307 373 60 21 99 318 29 26 353
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-301-3 01 1 9202-9409 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-338-0 01 1 9410- ● ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) 		1-82360-325-1 01 1 9202-9409 ● ●
1 SWITCH; COMB
EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) 		1-82360-386-0 01 1 9410- ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) 		1-82360-314-1 01 1 9202-9409 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) 		1-82360-383-0 01 1 9410- ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. EXHAUST BRAKE<NF8> 		1-82360-329-1 01 1 9202-9409 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. EXHAUST BRAKE<NF8> 		1-82360-389-0 01 1 9410- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 03 1 9202-9409 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9410- ● ●
21 SWITCH; CLU
EXHAUST BRAKE<NF8> 		1-82380-009-3 01 1 9202- ● ●
21 SWITCH; CLU
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8> 		1-82380-009-3 01 1 9202- ● ●
24 CLIP; CLU SW,EXH BRK 1-09987-161-0 01 1 9202- ● ●
26 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 		1-82380-089-0 01 1 9202- ● ●
29 SWITCH; DOOR 1-82440-091-0 01 1 9202- ● ●
60 SWITCH; IGNITION SUB 1-82380-065-0 01 1 9202- ● ●
99 RELAY; FOG LAMP
NEW ZEALAND EQUIPMENT(PK5) 24V 12.5A JIDECO 		1-82550-197-0 01 1 9202- ●
307 BULB ASM; SW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82194-082-0 01 1 9202- ● ●
318 SCREW; RELAY
NEW ZEALAND EQUIPMENT(PK5) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-138-0 01 1 9202-9502 ● ●
353 SWITCH ASM; PARKING BRAKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82410-163-0 01 1 9503- ● ●
373 SWITCH; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-82340-197-0 01 1 9202- ● ●
375 SCREW; A/C SW
AIR CONDITIONER MANUAL CONTROL(C60) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9202- ● ●
çizim 92250
9 9 9 9 16 11 12
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) DRIVER 		1-82380-123-0 02 1 9206- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) PASSENGER 		1-82380-124-0 02 1 9206- ● ●
11 BOLT; POWER WINDOW
POWER WINDOW<A30> M6X16 W/PL WASHER 		1-09981-438-0 02 1 9206-9209 ● ●
12 RELAY; POWER WINDOW
POWER WINDOW<A30> 		1-82550-264-0 01 1 9208- ● ●
16 SCREW; RELAY,POWER WINDOW
POWER WINDOW<A30> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9210- ● ●

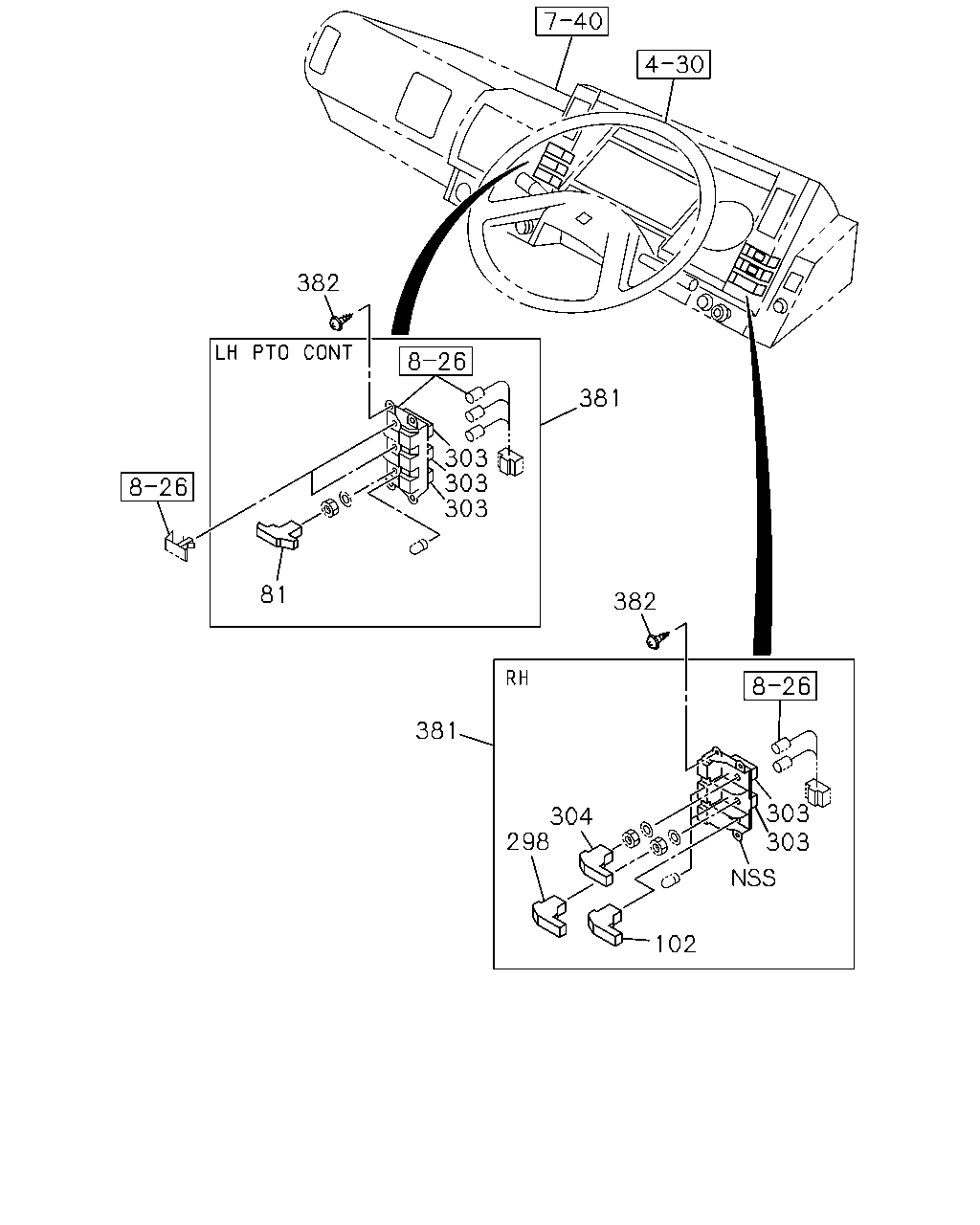

çizim 95376
382 381 303 303 303 81 382 381 303 303 304 298 102
BalonParca AdiParca NoAdetTipApplied Date A B
81 KNOB ASM; PTO
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82356-073-0 01 1 9202- ● ●
81 KNOB ASM; PTO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-82356-080-0 01 1 9202- ●
102 KNOB ASM; FOG LAMP 1-82356-031-0 01 1 9202- ●
102 KNOB ASM; FOG LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82356-031-0 01 1 9202- ●
298 KNOB ASM; PARKING LAMP 1-82356-028-0 01 1 9202- ●
298 KNOB ASM; PARKING LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82356-028-0 01 1 9202- ●
303 SWITCH; MICRO
FOG 		1-82350-091-0 01 1 9202-9404 ●
303 SWITCH; MICRO
EXC. BUMPER W/HEADLAMPS<SLB> FOG 		1-82350-091-0 01 1 9202-9404 ●
303 SWITCH; MICRO
FOG 		1-82350-091-0 01 1 9405- ●
303 SWITCH; MICRO
EXC. LIGHTING SYSTEM ECE<SLC> FOG 		1-82350-091-0 01 1 9405- ●
303 SWITCH; MICRO
PARKING 		1-82350-127-0 01 1 9202- ●
303 SWITCH; MICRO
EXC. LIGHTING SYSTEM ECE<SLC> PARKING 		1-82350-127-0 01 1 9202- ●
303 SWITCH; MICRO
HAZARD 		1-82350-181-0 01 1 9202- ● ●
303 SWITCH; MICRO
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82350-128-0 01 1 9202- ● ●
303 SWITCH; MICRO
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-82350-128-0 01 1 9202- ●
304 KNOB ASM; HAZARD 1-82356-068-0 01 1 9202- ● ●
381 SWITCH ASM; METER CLUSTER SIDE 1-82350-171-0 01 1 9202- ●
381 SWITCH ASM; METER CLUSTER SIDE
EXC. LIGHTING SYSTEM ECE<SLC> 		1-82350-171-0 01 1 9202- ●
381 SWITCH ASM; METER CLUSTER SIDE
PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82350-138-0 01 1 9202- ● ●
381 SWITCH ASM; METER CLUSTER SIDE
LIGHTING SYSTEM ECE<SLC> 		1-82350-206-0 01 1 9202- ●
381 SWITCH ASM; METER CLUSTER SIDE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-82350-141-0 01 1 9202- ●
382 SCREW; SW,METER CLUSTER SIDE
M5X14 W/PL WASHER 		5-09981-050-0 08 1 9202- ● ●
